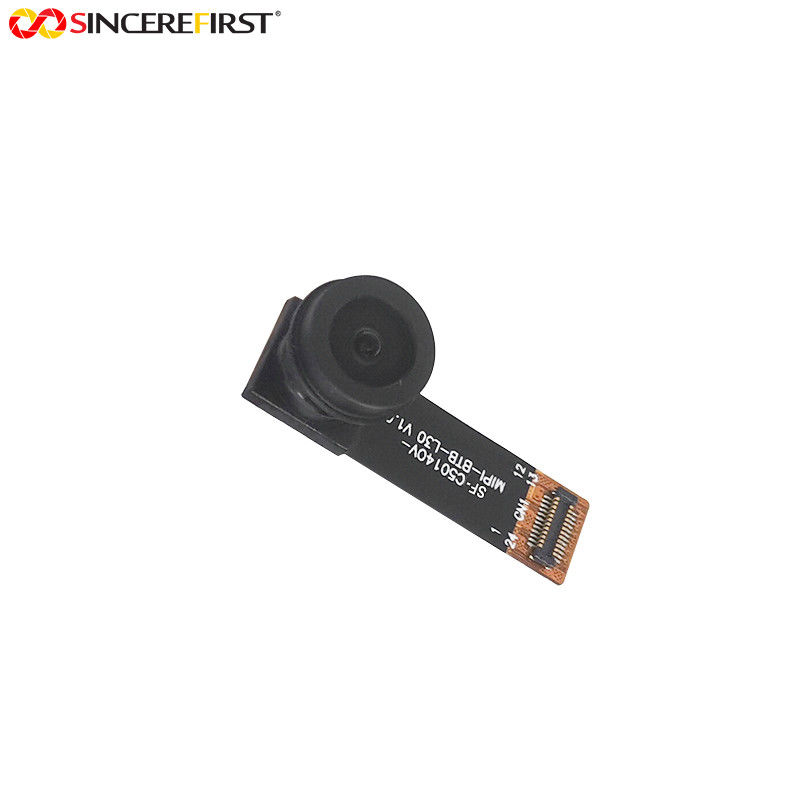

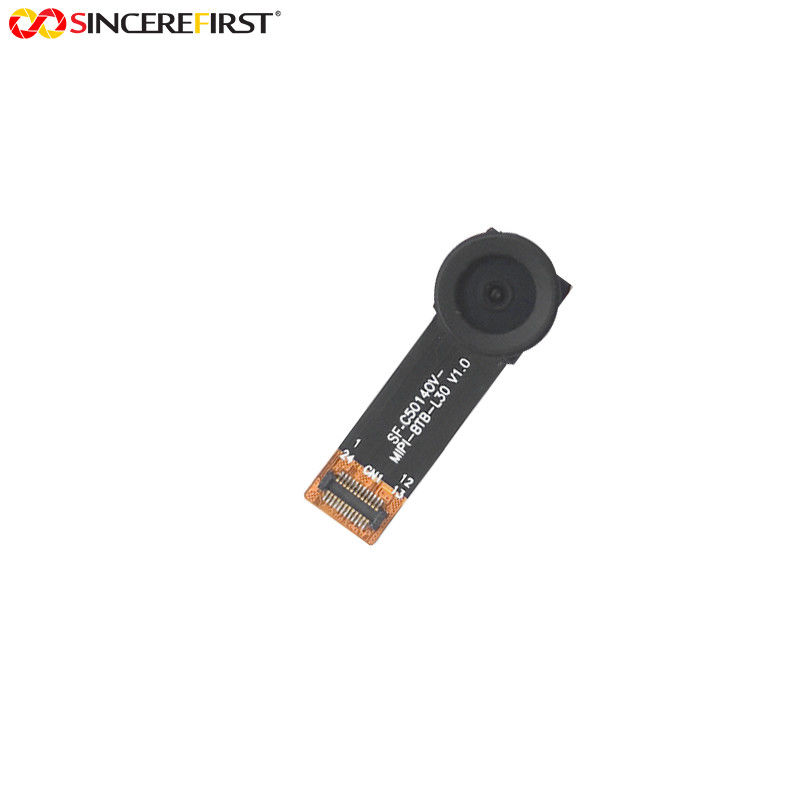

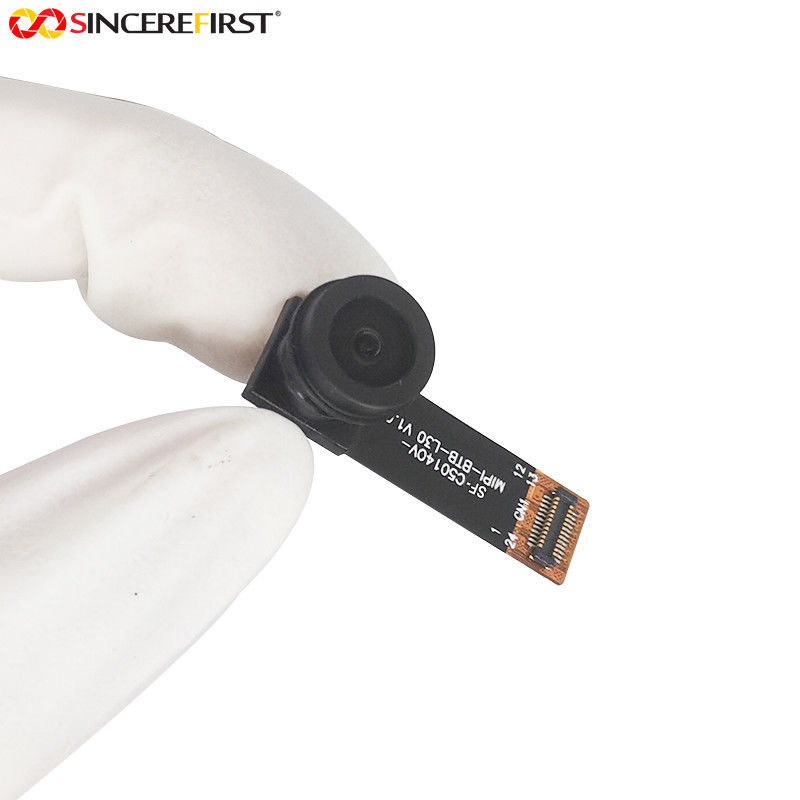

5MP Fixed Focus Wide Angle OV5648 Face Recognition Mipi Camera Module
Specificaitons
| Sensor | 5MP OV5648 Fixed Focus |
| Resolution | 2592(H)x1944(V) |
| Field of View (FOV) | 125° |
| Special Feature | Low Light |
| Shutter | Rolling shutter |
| Lens size | 1/4" |
| Pixel Size | 1.4µm x 1.4µm |
| Compression format | YUY2/MJPG |
| Focus Type | Fixed Focus |
| Power Supply | MIPI |
Description
OV5648 is a 5MP camera module based on the 1/4" OV5648 image sensor. It is used in various applications such as Raspberry Pi and computer. SincereFirst offers a 5 megapixel AF/FF autofocus camera module OV5648 mobile phone camera module MIPI interface. OMNIVISION’s OV05645-A66A is a 5-megapixel color CMOS QSXGA (2592x1944) image sensor with an active-pixel array of 2592x19443.
Features
◆1.4 μm x 1.4 μm pixel with OmniBSI+ technology for high performance (high sensitivity, low crosstalk, low noise)
◆optical size of 1/4"
◆automatic image control functions: automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), and automatic black level calibration (ABLC)
◆programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip,cropping, windowing, and panning
◆defective pixel canceling
◆support for output formats: 8-/10-bit raw RGB data
◆support for video or snapshot operation
◆support for LED and flash strobe mode
◆support for internal and external frame synchronization for frame exposure mode
◆support for horizontal and vertical sub-sampling
◆standard serial SCCB interface
◆MIPI interface (two lanes)
◆32 bytes of embedded one-time programmable (OTP) memory
◆on-chip phase lock loop (PLL)
◆embedded 1.5V regulator for core power
◆programmable I/O drive capability, I/O tri-state configurability
◆support for black sun cancellation
Applicaitons
cellular phones
toys
PC multimedia
digital still camera
