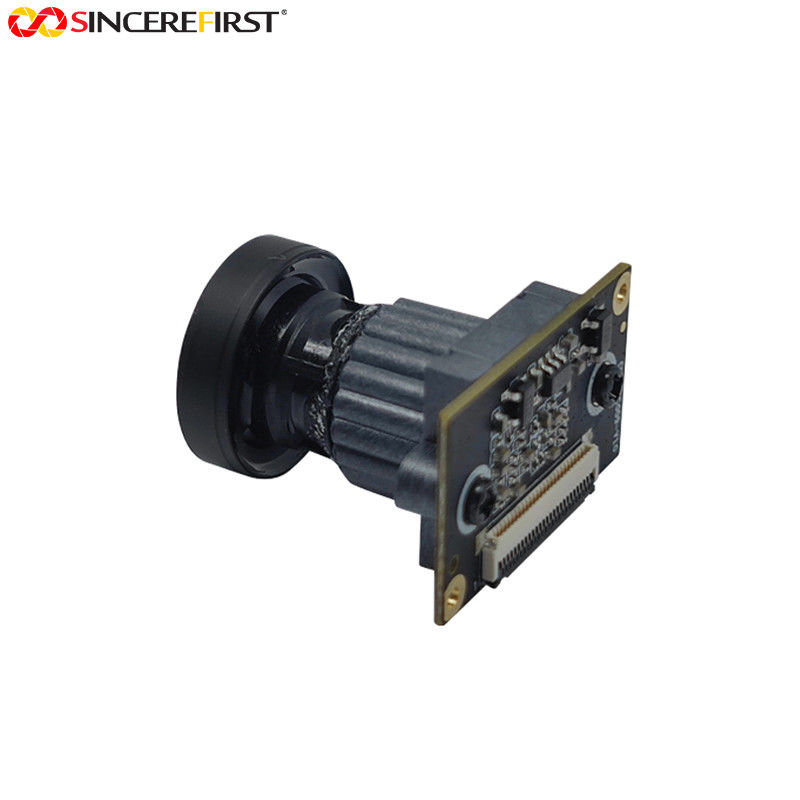

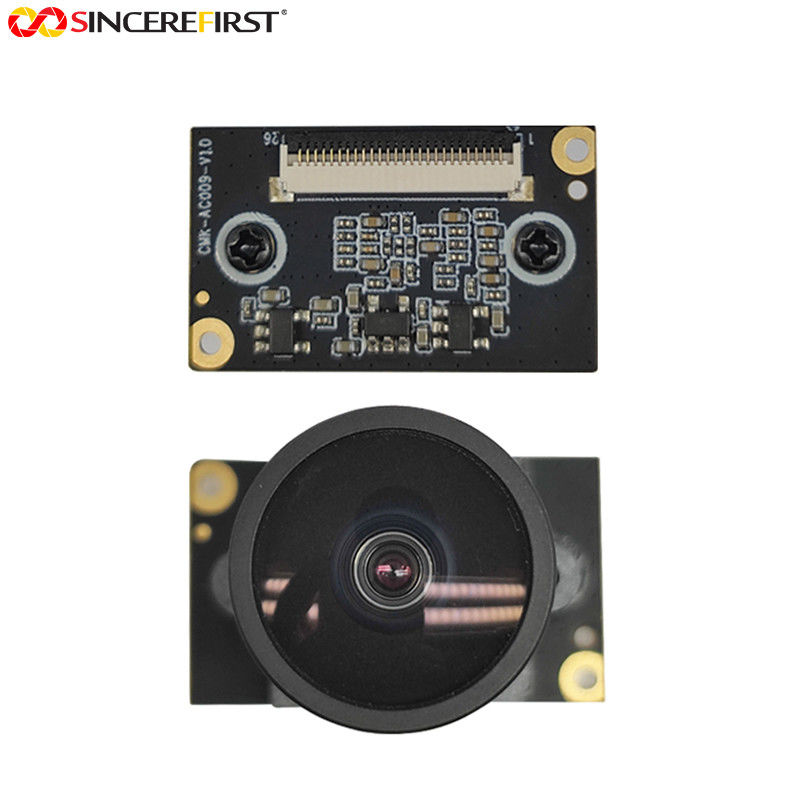

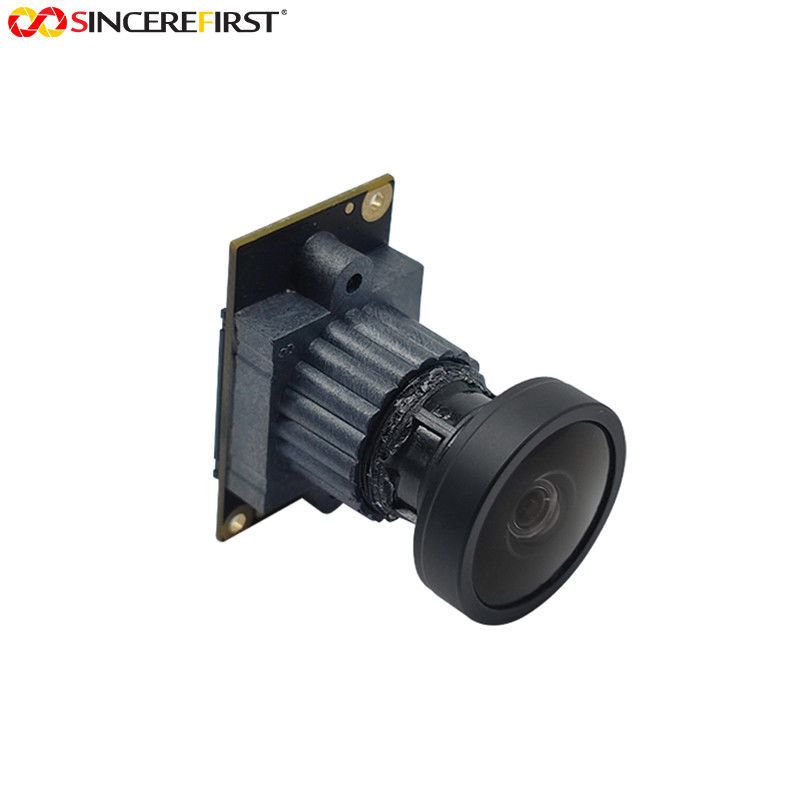

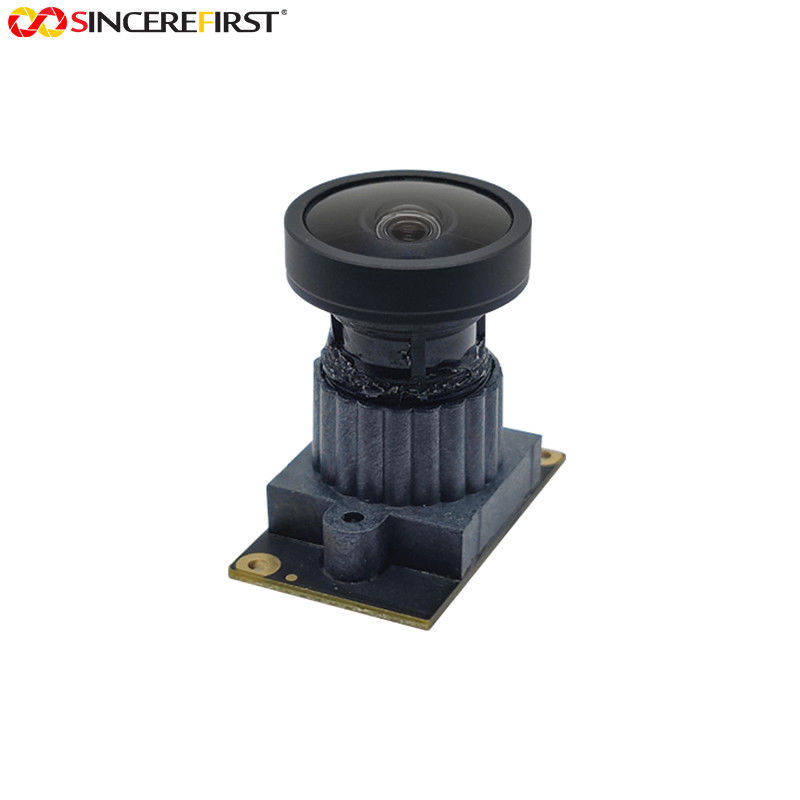

IMX307 MIPI Camera Module 2MP Fixed Lens Security Camera Module

2MP Fixed Lens IMX307 Sony CMOS Sensor Security Camera Module

Specificaitons

Description

The IMX307LQD-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Applications: Surveillance cameras, FA cameras, Industrial cameras)

Features

◆excellent low illumination proformance

◆2MP resolution with SONY IMX307 sensor

◆High quality images

◆programmable controls: frame rate, mirror and flip, cropping, and windowing

◆supports 2x2 color binning function

◆supports output formats: 12-bit/10-bit RAW RGB

◆SCCB control interface for register programming

◆supports MIPI 2-lane serial output interface

◆supports DVP 12-bit output interface

◆supports image sizes:1920 x 1080 @ 30 fps

◆supports automatic black level calibration

◆supports multi-camera synchronous function

◆Supports I/O switching
Low voltage LVDS(150m Vp-p)serial(2 ch /4 chswitching) DDR output
CSI-2 serial data output(2 Lane/4 LaneRAW10/RAW12 output)
◆Recommended exit pupil distance:-30 mm to - ∞

Device Structure

◆CMOS image sensor

◆Image size Type 1/2.8

◆Total number of pixels 1945 (H) × 1109 (V) approx. 2.16 M pixels

◆Number of effective pixels 1945 (H) × 1097 (V) approx. 2.13 M pixels

◆Number of active pixels 1937 (H) × 1097 (V) approx. 2.12 M pixels

◆Number of recommended recording pixels 1920 (H) × 1080 (V) approx. 2.07 M pixels

◆Unit cell size 2.9 μm (H) × 2.9 μm (V)

◆Optical black Horizontal (H) direction: Front 0 pixels, rear 0 pixels Vertical (V) direction: Front 10 pixels, rear 0 pixels

◆Dummy Horizontal (H) direction: Front 0 pixels, rear 3 pixels Vertical (V) direction: Front 0 pixels, rear 0 pixels

◆Substrate material Silicon

Applicaitons

smartphones

automobiles

smart home appliances
