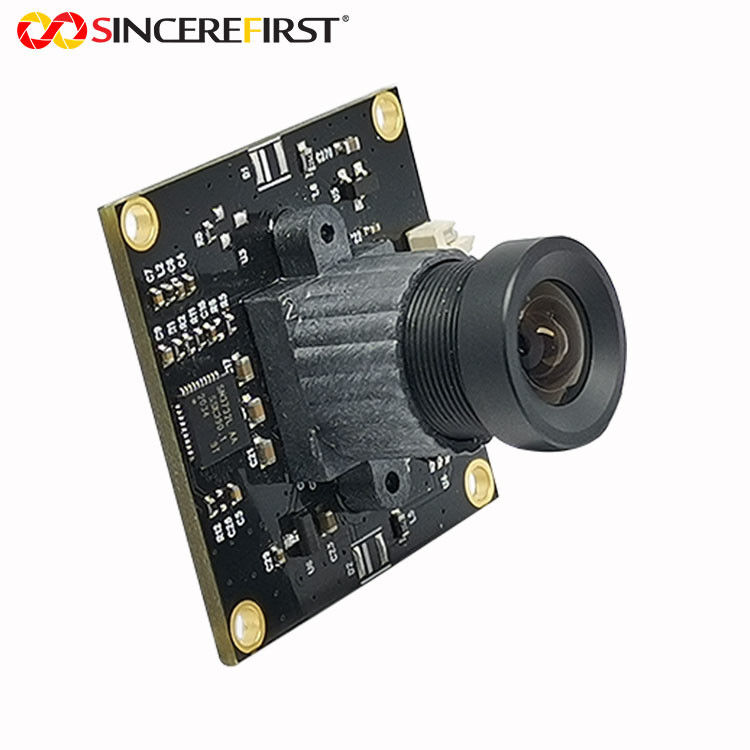

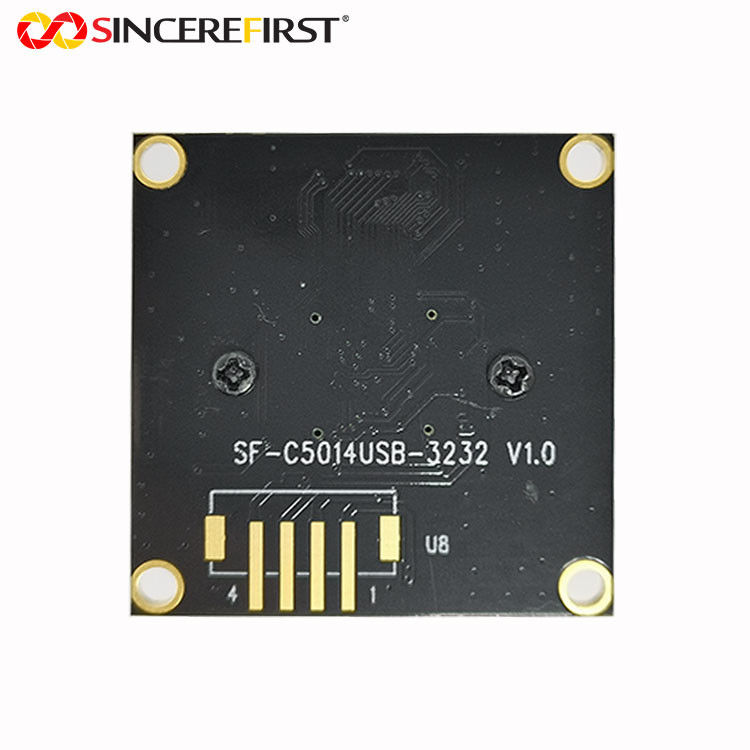

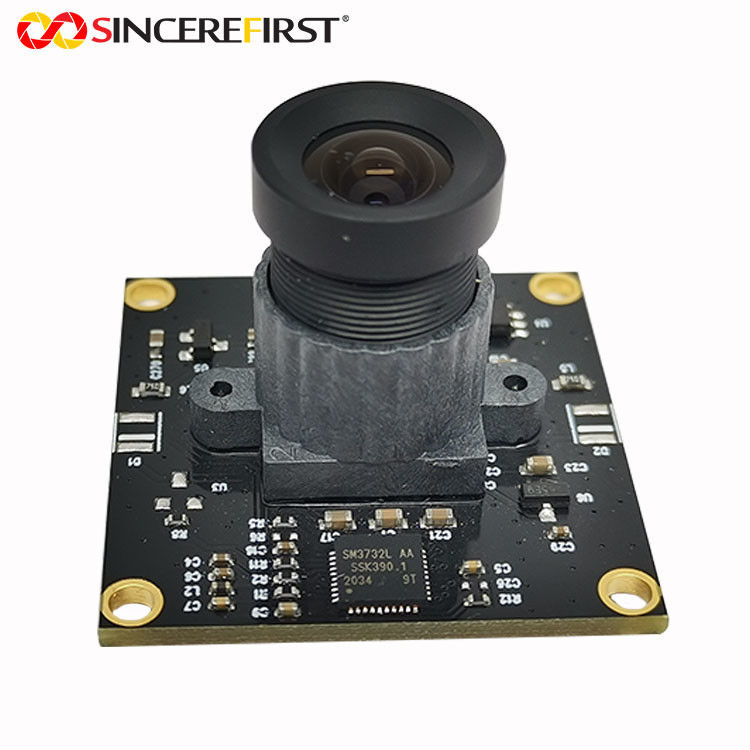

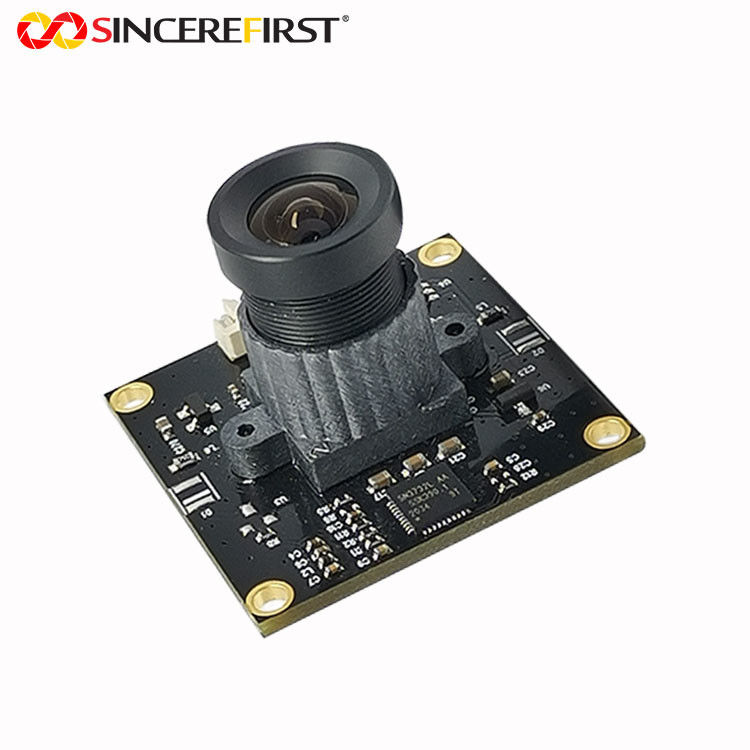

Raspberry Pi Wide Angle Fixed Focus 5MP OV5640 USB Camera Module

Raspberry Pi Wide Angle Fixed Focus 5MP OV5640 USB Camera Module

  • Highlight

    Wide Angle 5mp Spi Camera Module

    ,

    Raspberry Pi 5mp Spi Camera Module

    ,

    Raspberry Pi camera module usb

  • Sensor
    OV5640
  • Lens Size
    1/4 Inches
  • Pixel Size
    1.4µm X1.4µm
  • Max. Resolution
    2592(H) X 1944(V)
  • Focus
    Fixed Focus
  • Focusing Range
    20cm-100cm
  • Focal Length
    1.5mm
  • Fov(H)
    135°
  • TV Distortion
    <-20%
  • Connecting Port Type
    USB2.0 High Speed
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCEREFIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-C5014USB-3232
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

Raspberry Pi Wide Angle Fixed Focus 5MP OV5640 USB Camera Module

Raspberry Pi Wide Angle Fixed Focus 5MP OV5640 USB Camera Module





Specificaitons



Item Type Camera Module
Product Model SF-C5014USB-3232
Pixel 5MP
Photosensitive Chip OV5640 (1/4in) CMOS
Format MJPG/YUY2
Focus Mode Fixed Focus
Support System For WinXP/Win7/Win8/Win10/OS X/Linux/Android
Function Introduction Support OTG, Standard UVC Protocol, USB Free Drive
Output USB2.0
Certificate CE, FCC, RoHS, ISO





Description



This is one of our most popular USB camera modules, it is 5 Mega Pixel with high quality Omnivision OV5640 CMOS image sensor, and supports the USB Video Class (UVC) protocol. This camera module is designed to be connected to a computer or other device with a USB port and can be used in a variety of applications such as video conferencing, surveillance, and industrial control. The OV5640 sensor is a popular image sensor that is known for its high resolution and low power consumption. The UVC protocol support means that the camera can be used with any software that is compatible with the UVC standard, making it easy to integrate into a wide range of applications without the need for specialized drivers or software. Overall, the USB Camera with the OV5640 sensor is a versatile and easy-to-use camera module that can be used in a variety of applications.





Features



5MP USB webcam camera module

1/4” OV5640 CMOS sensor for high quality image

With fixed focus 135 degree no distortion lens

MJPEG/YUY2 dual video format optional

Mini size 32*32 mm for embedded application

High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface

Low power consumption - ideal for portable equipment.

UVC compliant - support Windows, Linux, Android system with UVC
Camera with UVC



Device Structure



CMOS Image Sensor

Image Size: Diagonal 4.60 mm (Type 1/4.0)

Total number of pixels: 3296 (H) × 2512 (V) approx. 8.28 M pixels

Number of effective pixels: 3296 (H) × 2480 (V) approx. 8.17 M pixels

Number of active pixels: 3280 (H) × 2464 (V) approx. 8.08 M pixels

Chip size: 5.095 mm (H) × 4.930 mm (V) (w/ Scribe

Unit cell size: 1.12 μm (H) × 1.12 μm (V)

Substrate material: Silicon





Applicaitons



Cars

Laptop

Face Recognition

Medical Devices

Industrial Devices
