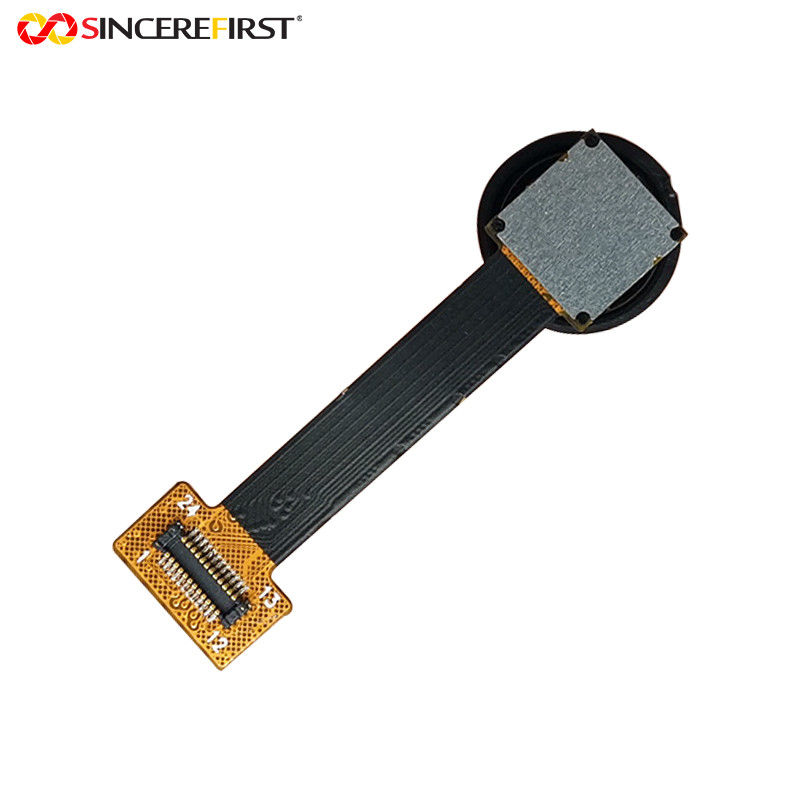

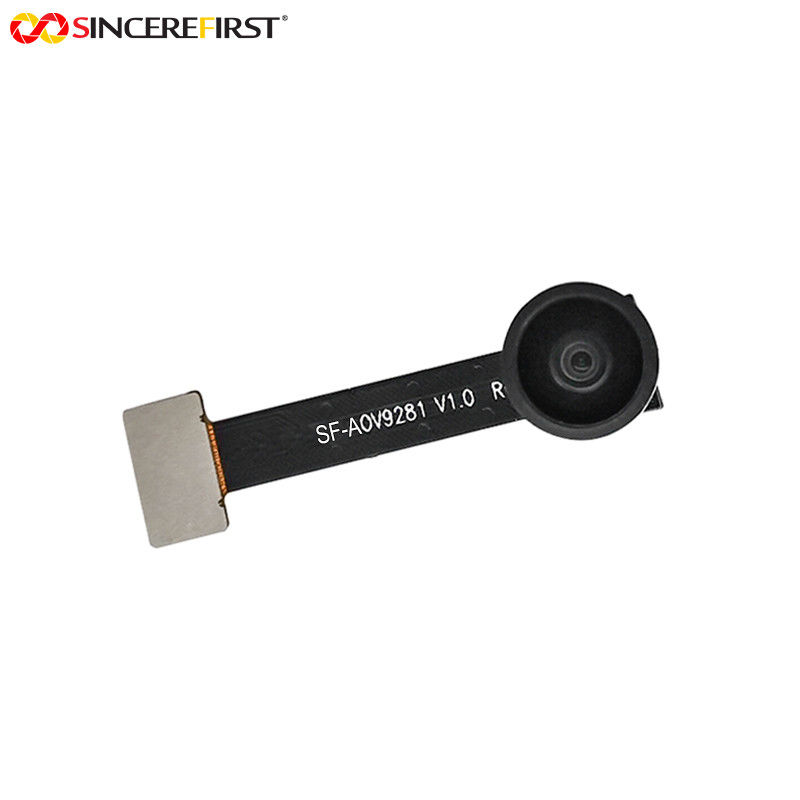

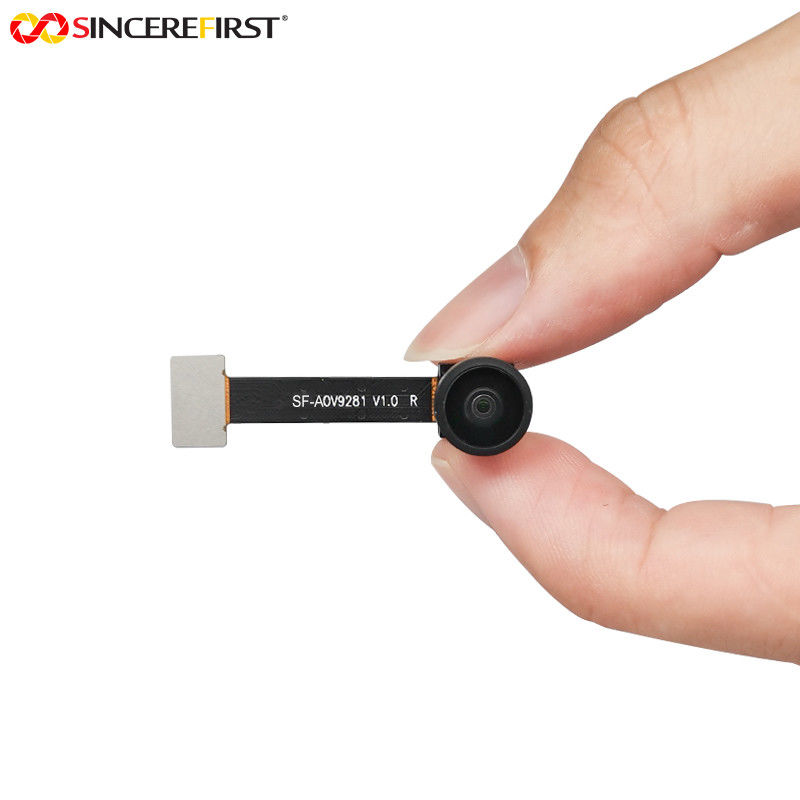

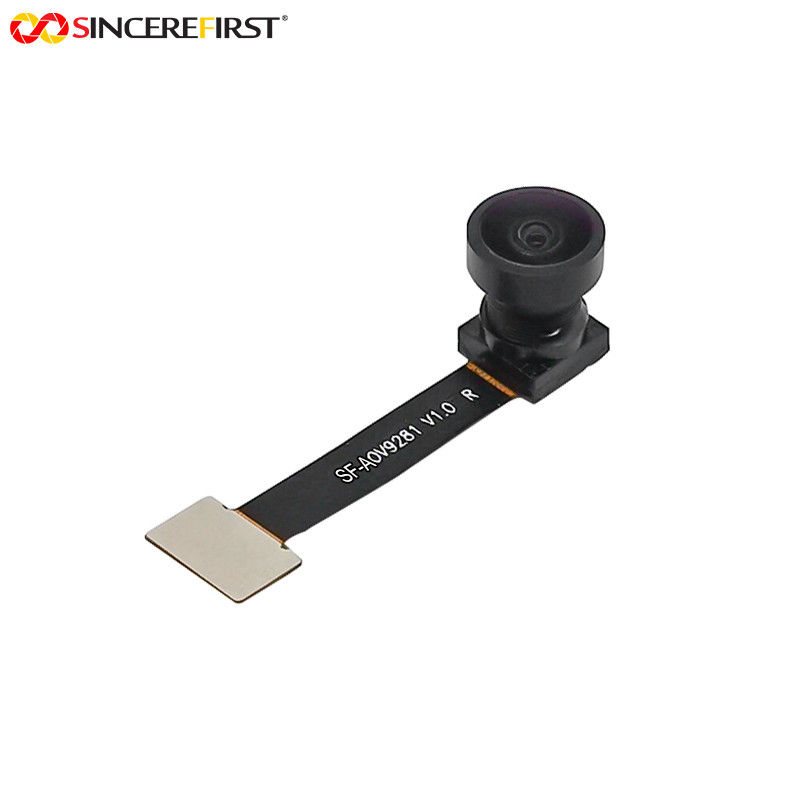

1mp Arducam OV9281 Sensor Global Shutter MIPI Camera Module For Raspberry Pi
Specificaitons
| Product Name | OV9281 Raspberry Pi Camera Module |
| Sensor Type | Global Shutter OV9281 |
| Sensor Size | 1/4” |
| Resolution | 1MP 1280×800 |
| Focal Length | 2.3mm |
| F.NO | 2.2 |
| Focus Distance | 50cm to Infinity |
| Focus Type | Fixed Focus |
| Field of View (FOV) | 85°(H) |
| Output Interface | 2-lane MIPI serial output |
Description
The Arducam monochrome (B&W) global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware.
The Arducam OV9281 camera breakout incorporates Omnivision 1/4-inch 1 Mp (1280×800) CMOS digital image sensor which is capable of operating at up to 60fps in 1MP ( 1280×800 ) resolution at 1-lane MIPI mode. The OV9281’s high frame rates make it an ideal solution for low-latency machine vision applications.
The sensor’s global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.
Features
◆USB 3.0 quick development and evaluation board is for sensors like 0V9281
◆For ReV.A.check Arducam driver: For Rey.B. check Raspberry Pi driver.
◆Monochrome qlobal shutter Camera Module with M12 Mount lens directly inserts to CSI slo on Raspberry Pi.Support Raspberry
Pi4Pi3/3B+/3A+CM3/3+Pi Zero and more
◆Supported By The Lastest Official Firmware: The Raspberry Pi has recently updated its firmware with V4L2 camera drivers, which
adds support includina for 0V9281.Thus this 0V9281 camera module is compatible with the official V4L2 camera driver. and you
can get it working easily just byenabling theoverlay
Applicaitons
Security
High dynamic range imaging
Unattended surveillance
Stereo vision
Machine vision
Automation
