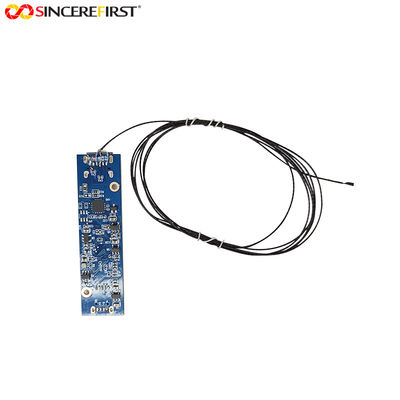

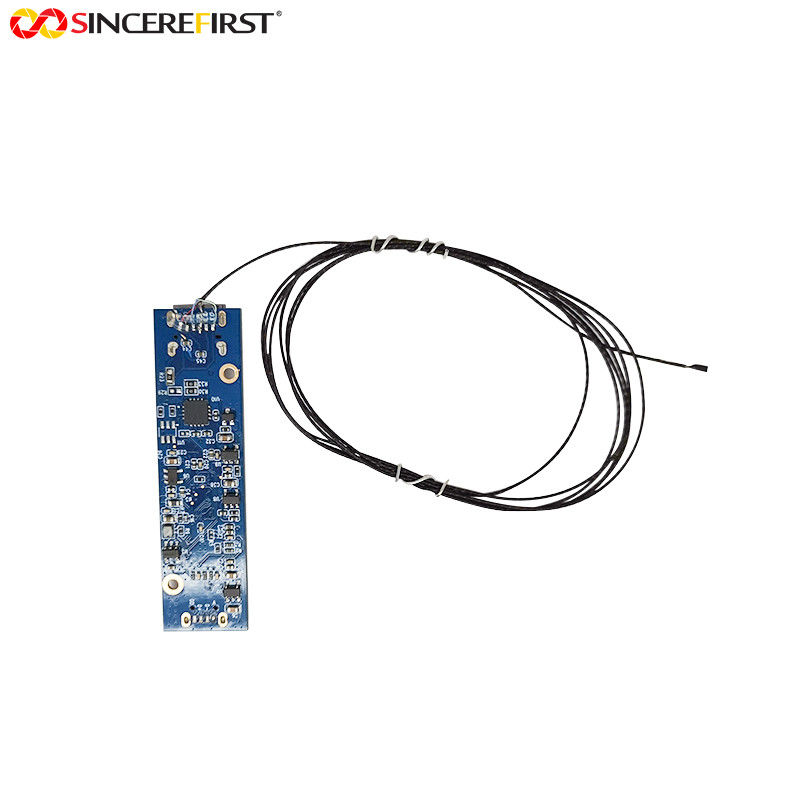

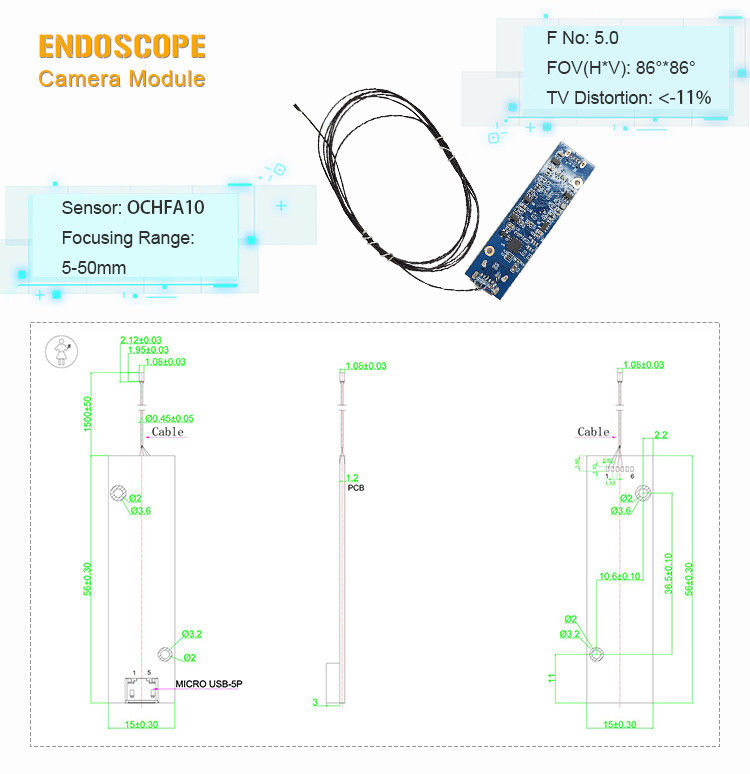

Mini OCHFA10 700*700 Pixel 1.5mm UVC Interface Endoscope Camera Module
Specificaitons
| Image Sensor | OCHFA10 |
| Resolution | 700*700 |
| OEM And ODM Service | Available |

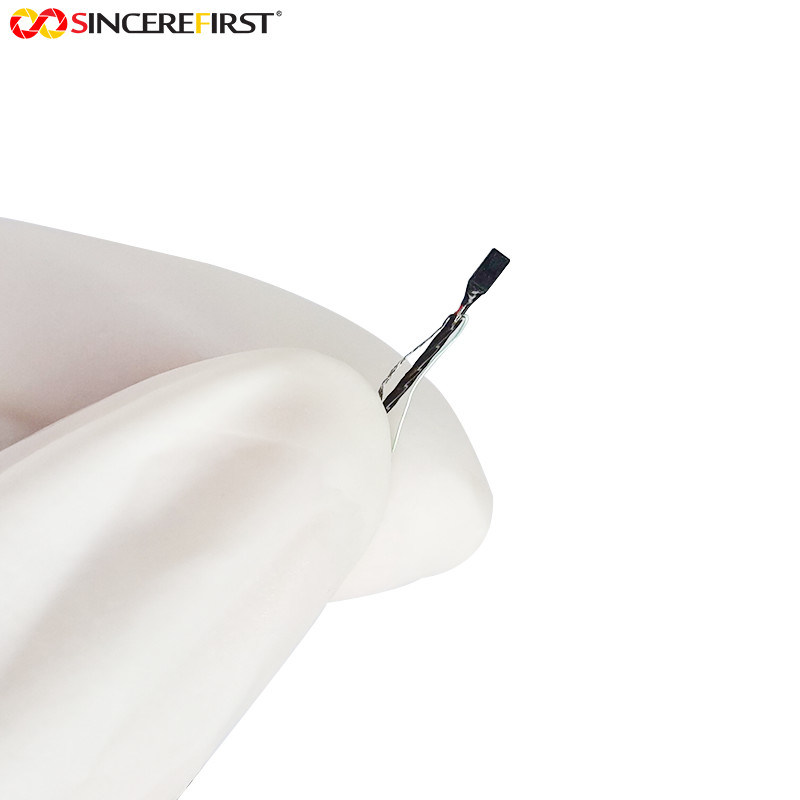

| Diameter | 1.5mm |
| Focusing Range | 5-50mm |
| Format | YUV&MJPEG |
| Focal Length | 0.418mm |
| Fov | 86° |
| Usage | Endoscope Camera |
| Output Format | USB2.0 UVC |
Description
OMNIVISON's OCHFA10 CameraCubeChip® is a 1/17.5” color 518 Kpixel analog camera for the rapidly growing disposable medical endoscope market.
Features
◆optical size of 1/17.5″
◆analog output
◆single 3.3V power supply
◆on-chip PLL
◆serial peripheral interface (SPI)
◆exposure and gain control
◆pseudo-global shutter (LED mode)
◆PureCel®Plus-S pixel structure
◆improved sensitivity, FWC, zero blooming, low noise, and low power consumption
◆enhanced NIR sensitivity
◆square aspect ratio
◆minimum package size (total 4 pads)
◆non-autoclavable
◆4 m drive distance
Technical Specificaitons
active array size: 700 x 700
maximum image transfer rate:
518 Kpixel (700 x 700): 30 fps
360 Kpixel (600 x 600): 40 fps
160 Kpixel (400 x 400): 60 fps
power supply:
analog: 3.3V ±5%
Power requirements: 25 mW (with IO consumption)
temperature range:
operating: -20°C to +70°C junction temperature
stable image: 0°C to +50°C junction temperature
output formats: analog signal output
optical size: 1/17.5″
diagonal field-of-view (FOV): 123° ± 3°
f no.: 5.0
focal length: 0.417 mm
scan mode: progressive
pixel size: 1.008 µm x 1.008 µm
image area: 733.824 µm x 733.824 µm

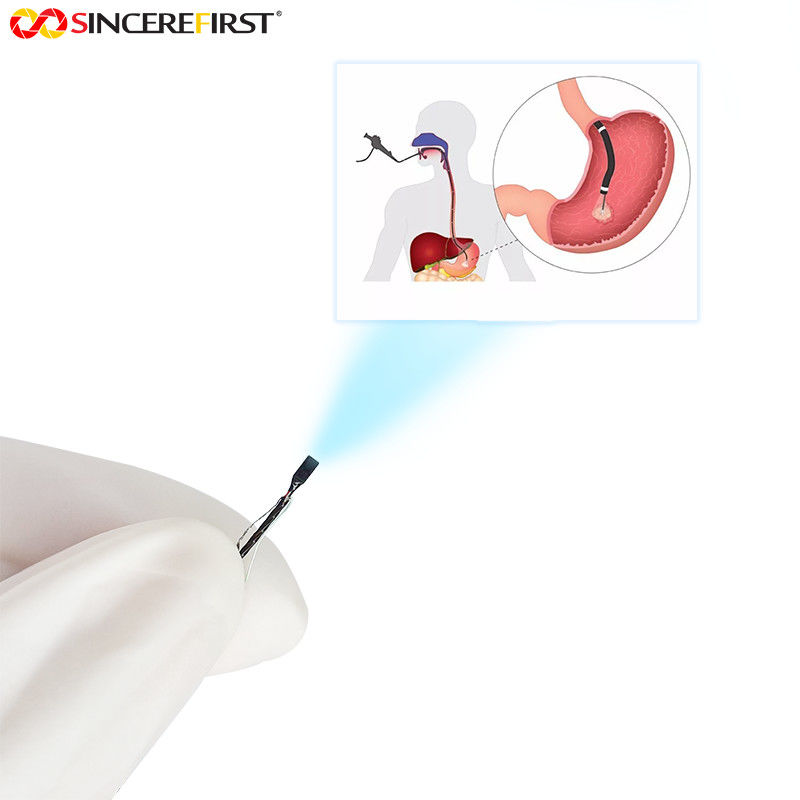

Applicaitons
disposable medical
dental
veterinarian
industrial endoscopes
