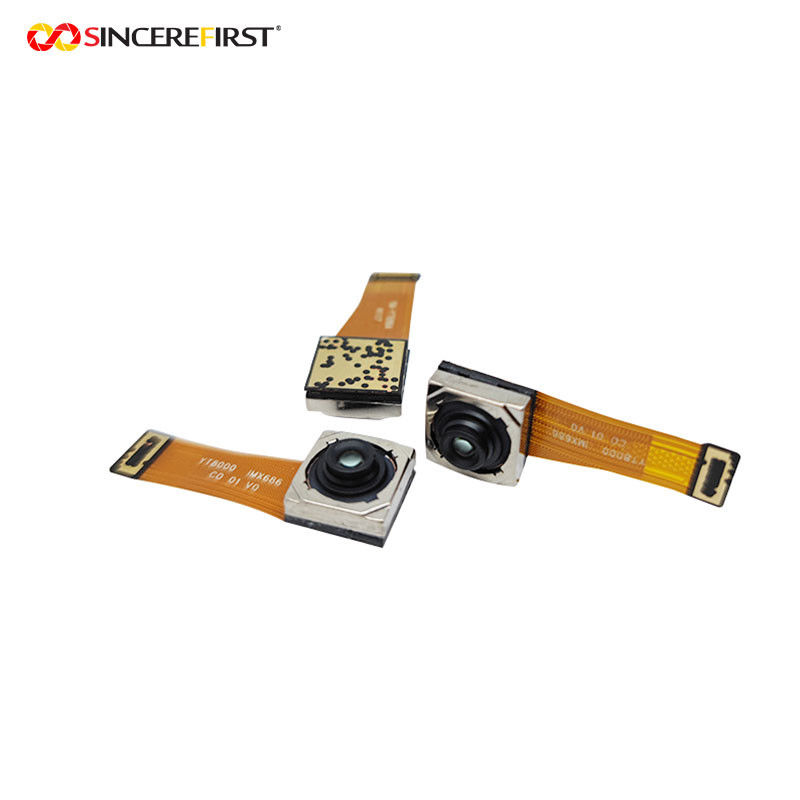

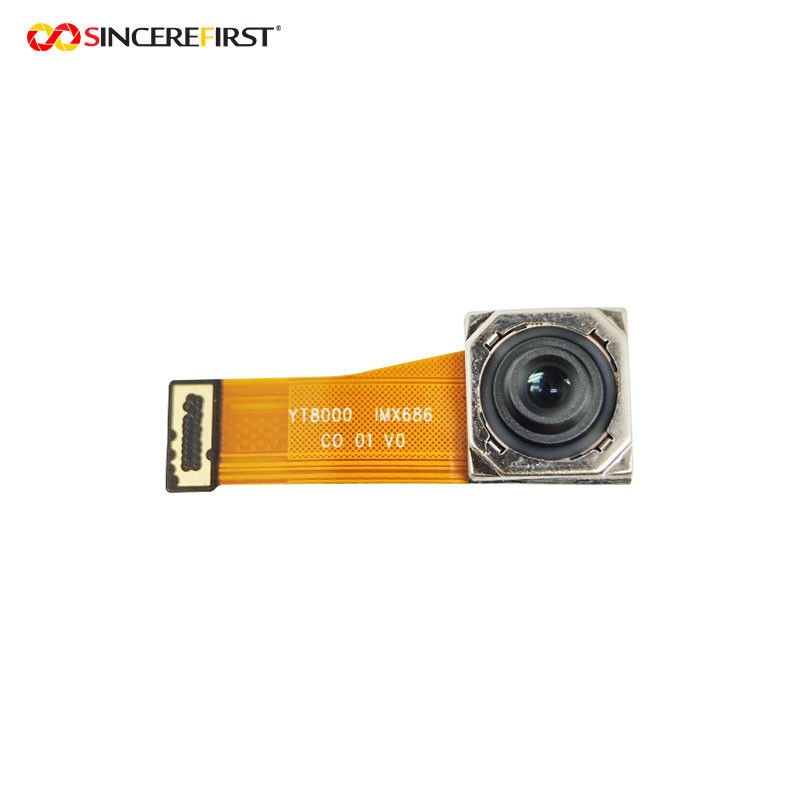

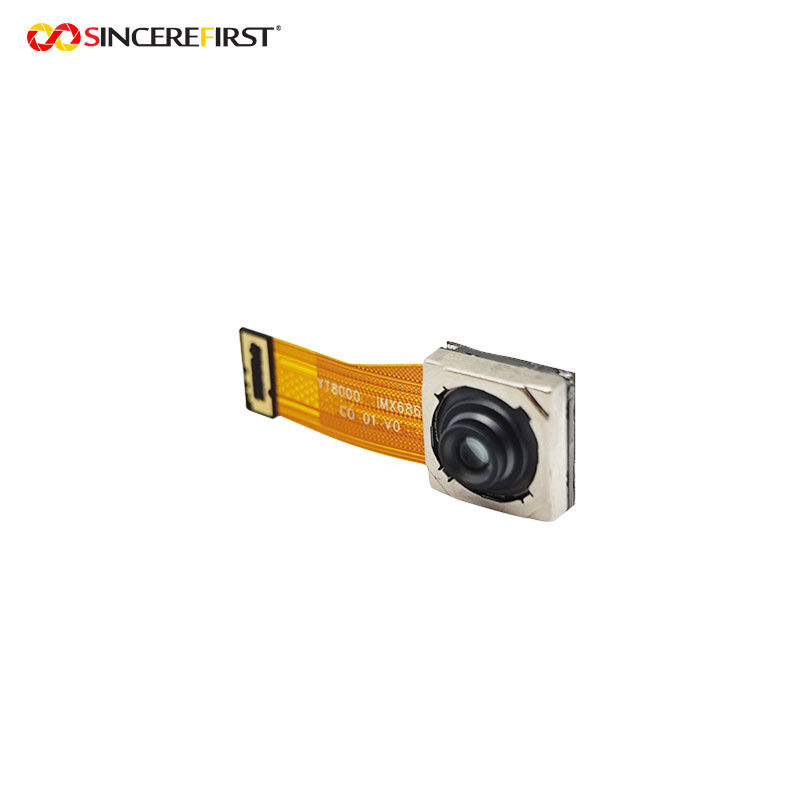

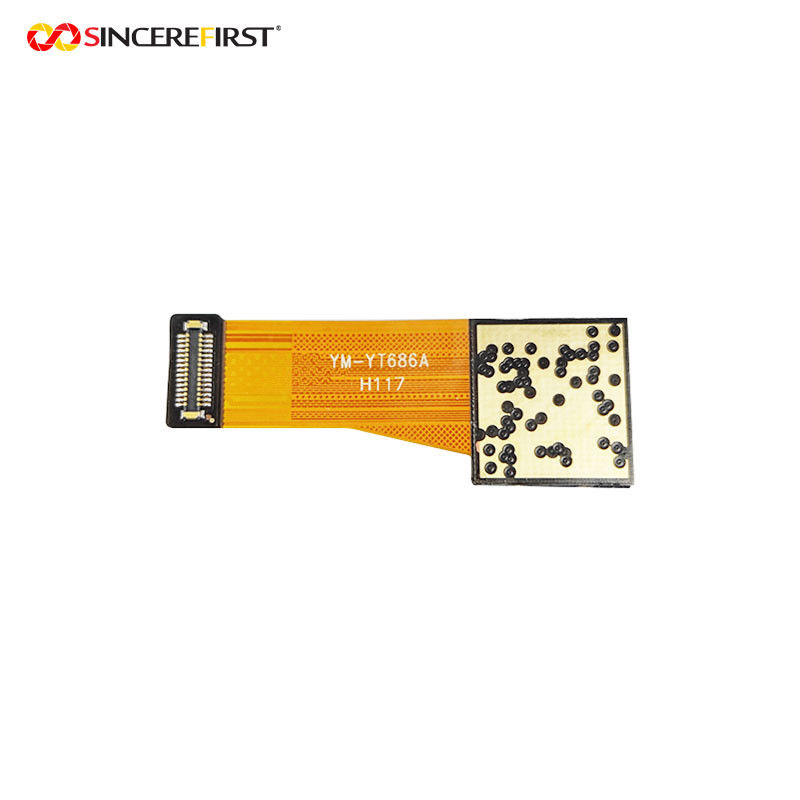

High Resolution 64mp Sony IMX686 Sensor Mipi Camera Module For Smartphone
Specificaitons
| Place of Origin | Guangdong, China |
| Brand Name | SINCERE FIRST |
| Model Number | SF-YT686A |
| Focus | Auto Focus |
| Chip Model | IMX686 |
| FOV | 79.8° |
| Image Size | 1/1.17 inch |
| Data Storage Options | Full HD, Cloud |
| Pixel | 64MP |
| Special Features | NIGHT VISION, Face Recognition, Vandal-proof, Waterproof, Weatherproof |
Description
The Sony IMX686 is a 64MP camera sensor with a pixel resolution of 9248 x 6944. This sensor measures 1/1.7-inch in size, paired with a 1.6um pixel dimension. It adopts Sony's back-illuminated and stacked CMOS image sensor to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It operates with four power supply voltages: analog 2.9 V and 1.8V,digital 1.1 V and 1.8 V for input/output interface and achieves low power consumption.
Features
◆Back-illuminated and stacked CMOS image sensor
◆Quad Bayer Coding (QBC) color filter arrangement
◆Phase Detection Auto Focus (PDAF)
◆High Frame Rate
30fps@Full resolution (QBC Re-mosaic)
30fps@QBC-HDR
30fps@V2H2 QBC-HDR
120fps@2x2 Adjacent Pixel Binning (16:9)
240fps@2x2 Adjacent Pixel Binning V2H2(16:9)
◆High signal to noise ratio (SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction (DPC)
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW 10, RAW 8, RAW14(QBC HDR without Local Tone Mapping)
◆QBC Re-mosaic function
◆Super Night Mode
◆QBC HDR function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output
MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant
MIPI C-PHY 1/2/3trio, Max 4.5Gsps/Trio, C-PHY spec. ver. 1.2 compliant
◆2-wire serial communication (Supports I2C "Fast mode", "Fast-mode Plus" and I3C)
◆5K bit of OTP ROM for users
Applicaitons
smartphone, industrial, medical, machine vision, for access control, for microscopes, for smart traffic, education, for research and development, for retail, for metrology, for embedded devices, for the automotive industry, agriculture, for UAVs, for electronics, for robotics, for traffic monitoring
