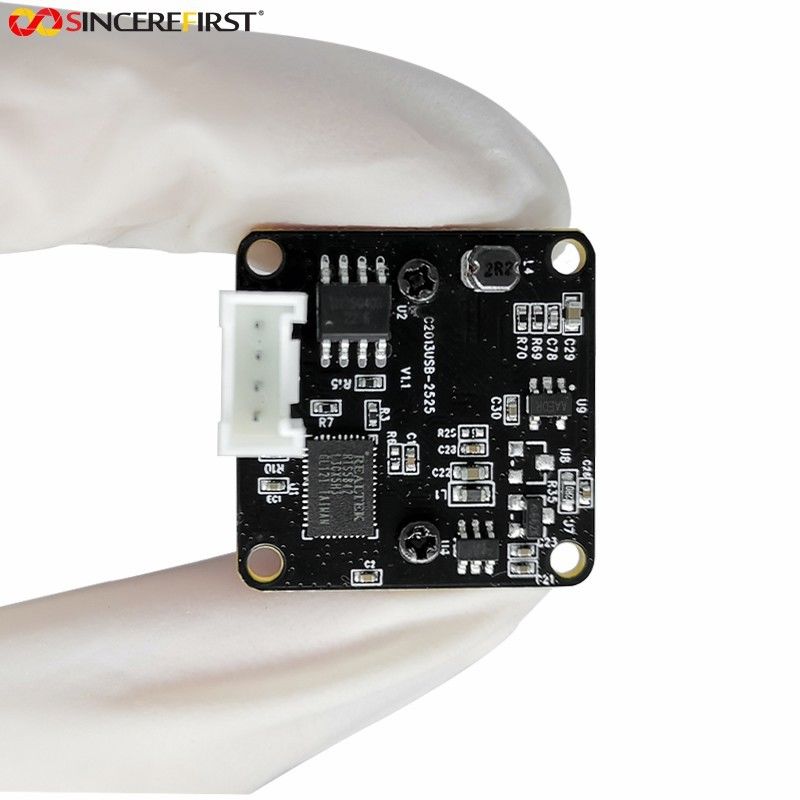

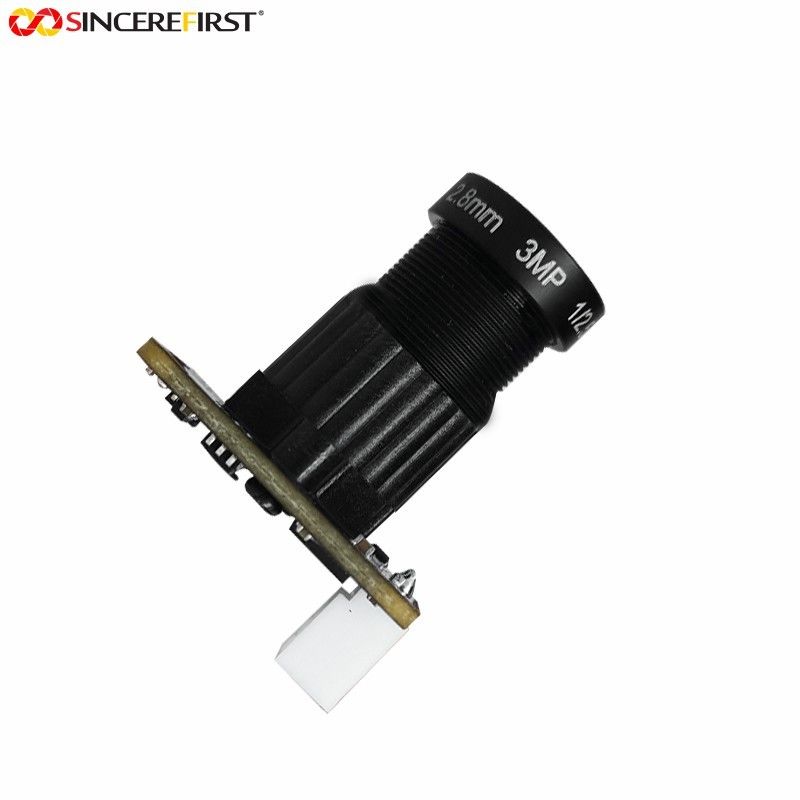

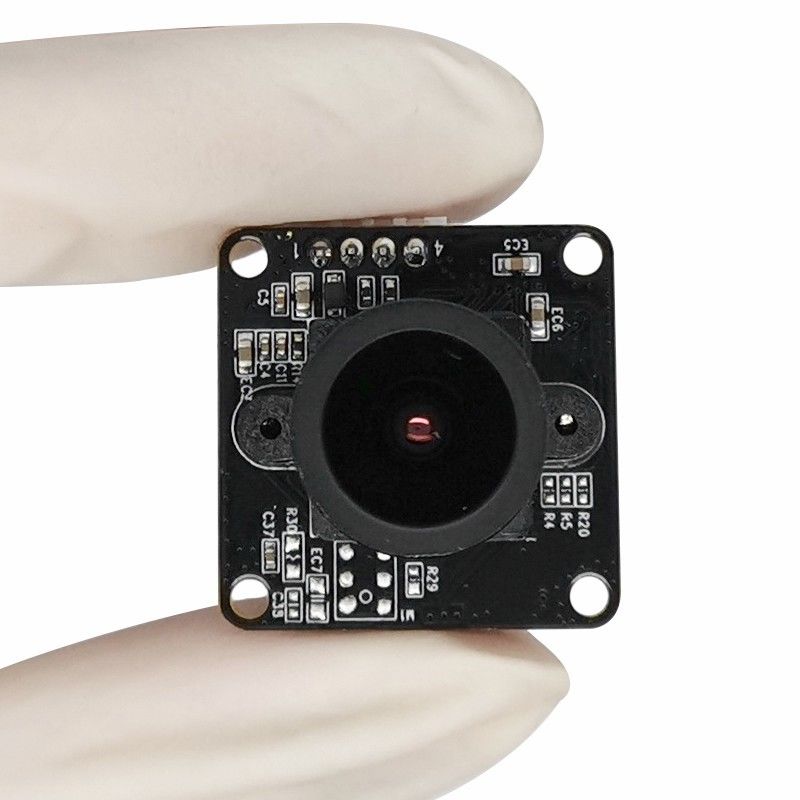

2 Megapixel 1080P HM2131 CMOS Sensor Ip USB Camera Module Pcb Board
Specificaitons
| Sensor | HM2131 |
| Lens FOV | 115° |
| Pixel | 2 Mega Pixel |
| Interface Type | USB2.0 |
| Sercor Type | 1/4″ |
| Pixel Size | 3.0µm x 3.0µm |
| Compression Format | MJPEG / YUV2 (YUYV) |
| Shutter Type | Electronic Rolling Shutter |
| Main Chip | DSP/SENSOR/FLASH |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26)MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Description
The HM2131 is a high sensitivity, low power, and high frame rate 1/2.7″ 1080p CMOS Image Sensor (CIS). It is a dual lens camera module with two different lenses. One lens is for colorful image with 650nm IR filter and the other one is for monochrome image with 850nm bandpass IR filter.
Features
◆2MP resolution with Himax HM2131 CMOS sensor
◆High quality images
◆High Sensitivity of 4600mV/Lux-sec
◆Low illumination of 0.001Lux
◆UVC compliant, Plug & Play
◆Support Linux, Android, Mac and Windows
◆Customization is supported
Applicaitons
driver recorder
IP camera
surveillance
IOT
