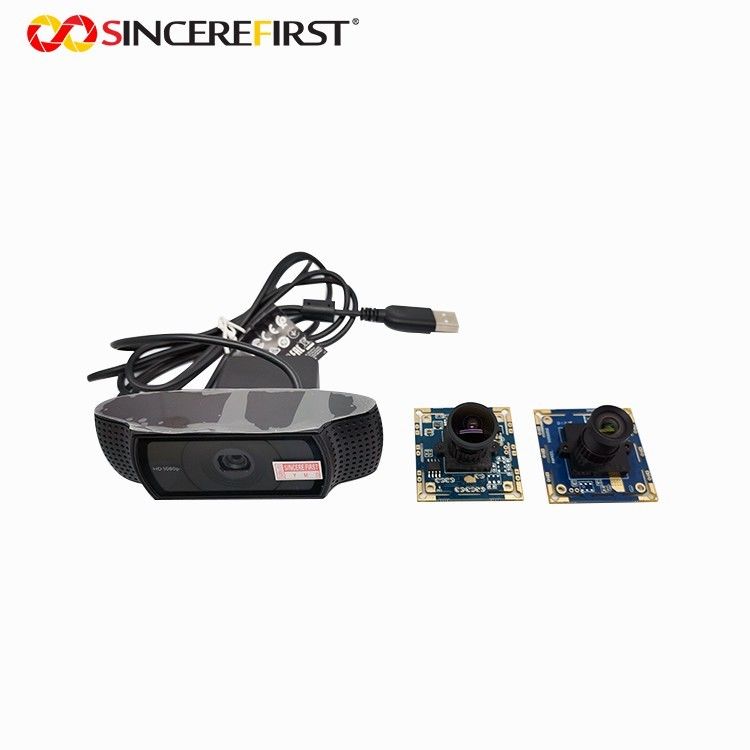

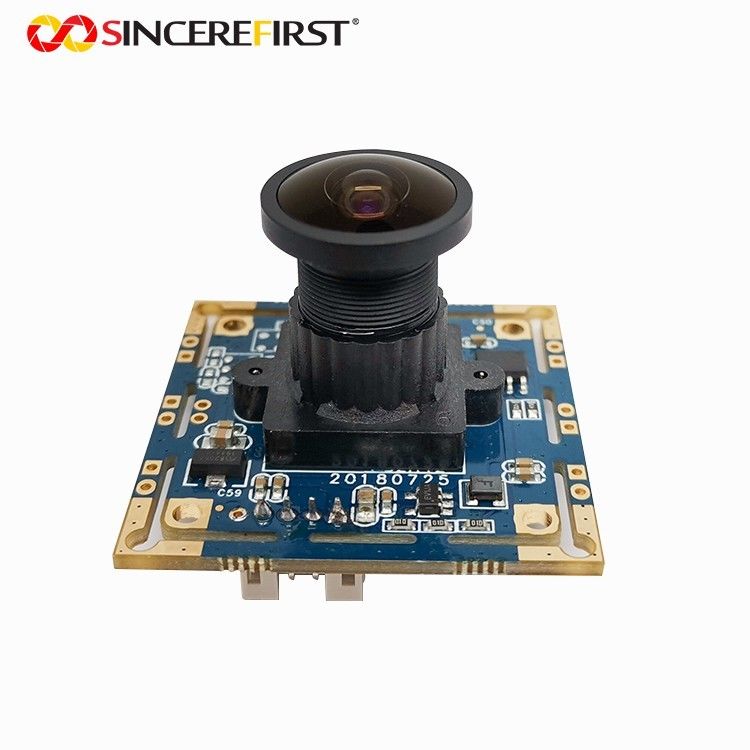

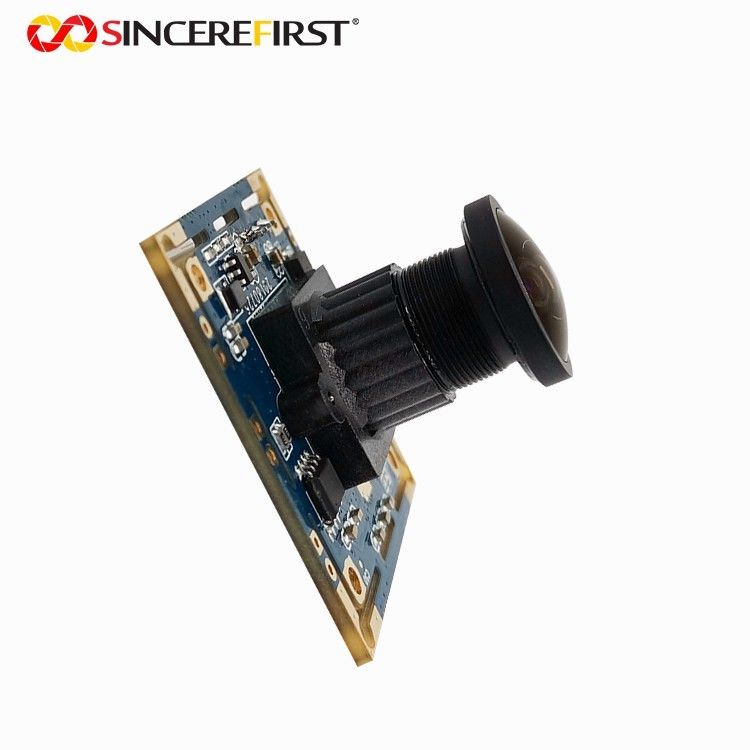

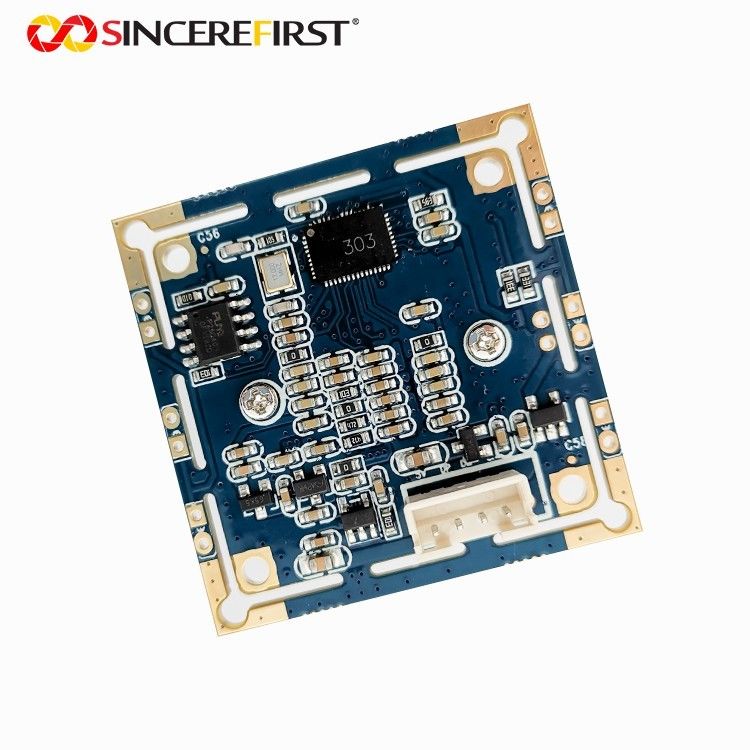

UVC USB2.0 Sony IMX322 Camera Sensor Low Light Imaging Camera Module
Specificaitons
| Sensor | Sony IMX322 |
| Lens Size | 1/2.9 inches |
| Max. Resolution | 1080P |
| Compression Format | H.264 /MJPEG / YUV2(YUYV) |
| Connecting Port Type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
Description
The IMX322LQJ-C is a diagonal 6.23 mm (Type 1/2.9) CMOS active pixel type image sensor with a square pixel array and approximately 2.12 M active pixels. This chip operates with analog 2.7 V, digital 1.2 V, and interface 1.8 V triple power supplies. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color pigment mosaic filters. This chip features an electronic shutter with variable integration time.
Features
◆Sony IMX322 low illumincation image sensor
◆H.264 compression format + low illumination
◆1080P HD high resolution good for dark image vision It comes with sharp clear image in dark place.
◆1280X720@ 30fps/1920X1080@ 30fps
◆Mini size for robotic project
◆CMOS active pixel type dots
◆Input clock frequency: 37.125 MHz
◆Readout mode
HD1080 p mode
HD720 p mode
◆Variable-speed shutter function (Minimum unit: One horizontal sync signal period (1XHS))
◆H driver, V driver and serial communication circuit on chip
◆CDS/PGA on chip
0 dB to 24 dB: Analog Gain 24 dB (step pitch 0.3 dB)
24.3 dB to 42 dB: Analog Gain 24 dB + Digital Gain 0.3 to 18 dB (step pitch 0.3 dB)
◆10-bit/12-bit A/D converter on-chip
◆CMOS logic parallel SDR Data-Clock output
◆R, G, B primary color pigment mosaic filters on chip
◆Recommended lens F value: 2.8 or more (close side)
◆Recommended exit pupil distance: –30 mm to –∞
Applicaitons
Consumer use drive recorder
Consumer use network camera
