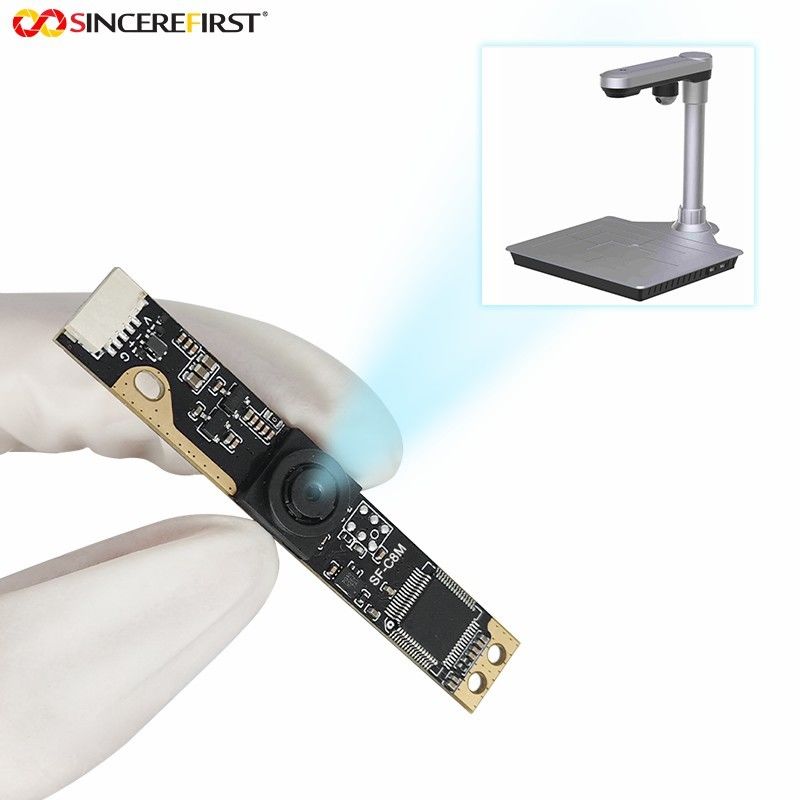

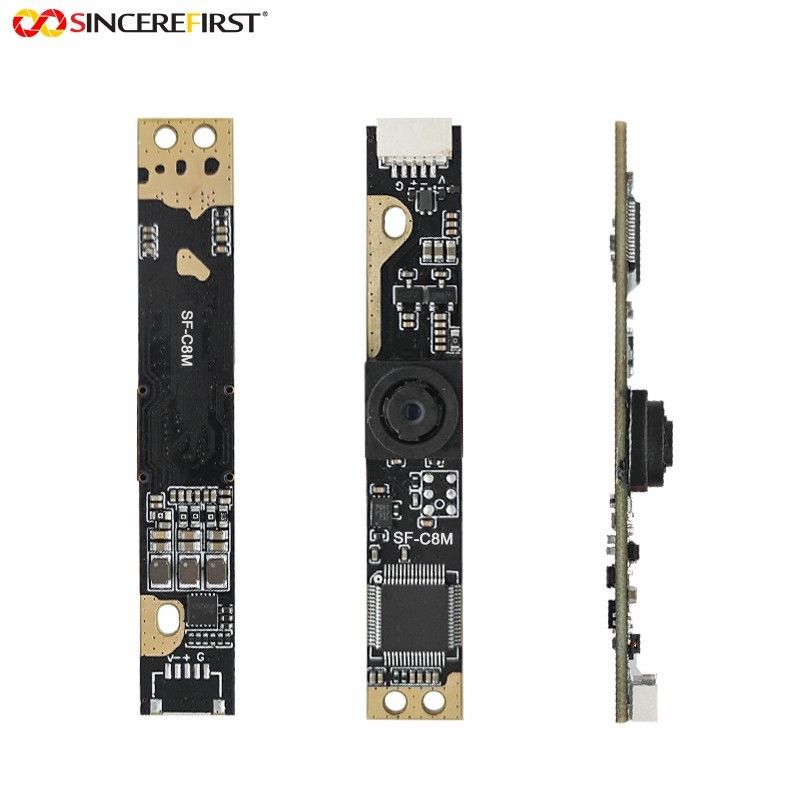

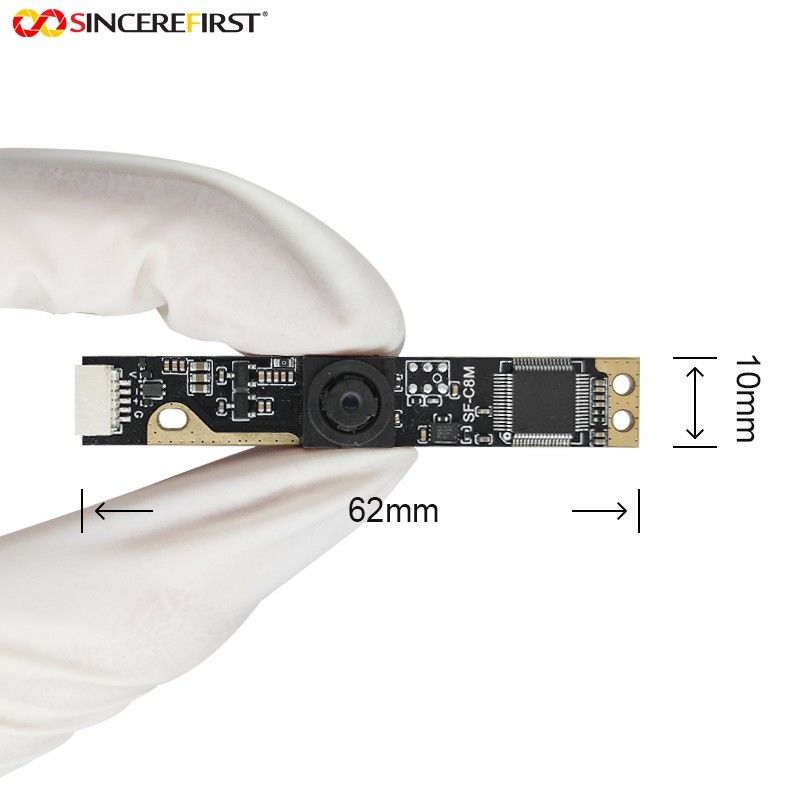

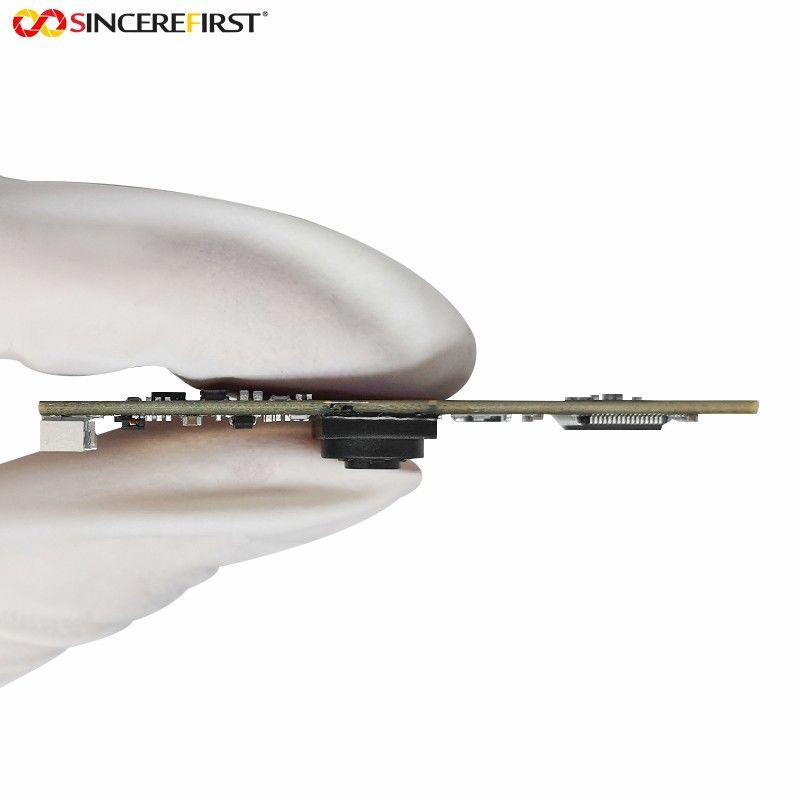

8mp High Speed Cmos Sensor Sony IMX179 Analog Camera Module Lens
Specificaitons
| Sensor | CMOS IMX179 |
| Max. Resolution | 3264(H) X 2448(V) |
| Lens Size | 1/3.2inch |
| Compression Format | MJPEG / YUY2(YUYV) |
| Pixel Size | 1.4µm x 1.4µm |
| Mini illumination | 0.5lux |
| Fov | 98° |
| Module Type | Fixed Focus |
| Interface | USB |
| Customized | Support |
Description
The IMX179 – 8.0 MP Fixedfocus USB Camera Module features the IMX179 color sensor from Sony. The sensor has a 1/3.2″ optical format, which combined with the pixel size of 1.4 µm x 1.4 µm provides the 8.0 MP 3264 x 2448 image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously. The sensor compiles the image by scanning across (or down). This camera module uses the USB UVC interface, which means it will work with Windows, Linux, and Apple systems.
Features
◆Fixed Focus
◆8MP resolution with SONY IMX179 CMOS image sensor
◆High quality image, high sensitivity
◆Low power consumption, low dark current
◆UVC compliant, Plug & Play
◆Support Linux, Android, Mac and Windows
◆High quality built-in microphones
◆OTG support
Applicaitons
video surveillance systems
live streaming
video conferences
dashcams
other vision
home surveillance systems
monitoring 3D printers
object recognition and tracking
other machine vision
