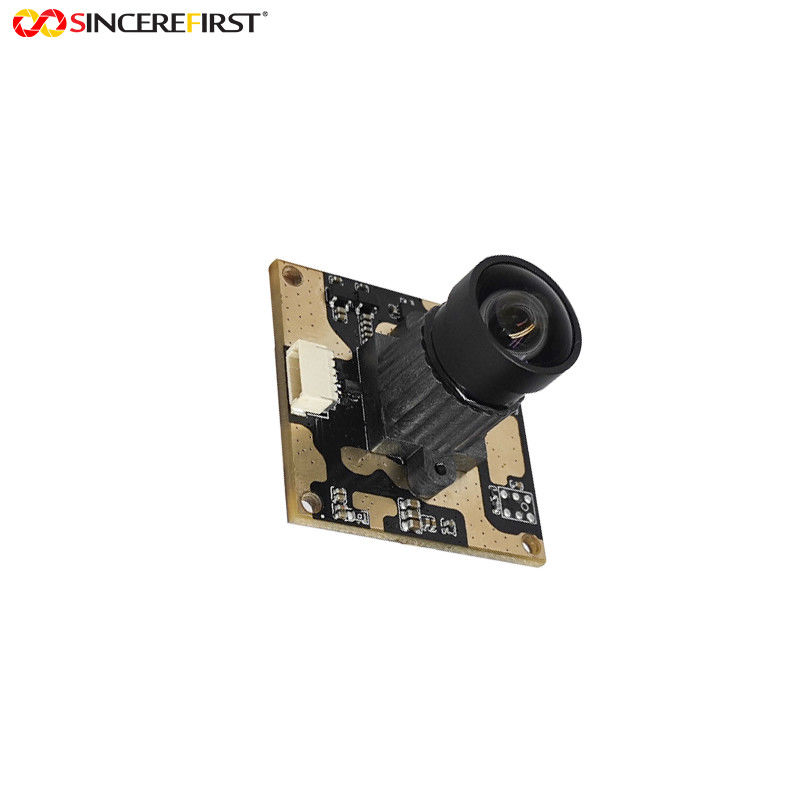

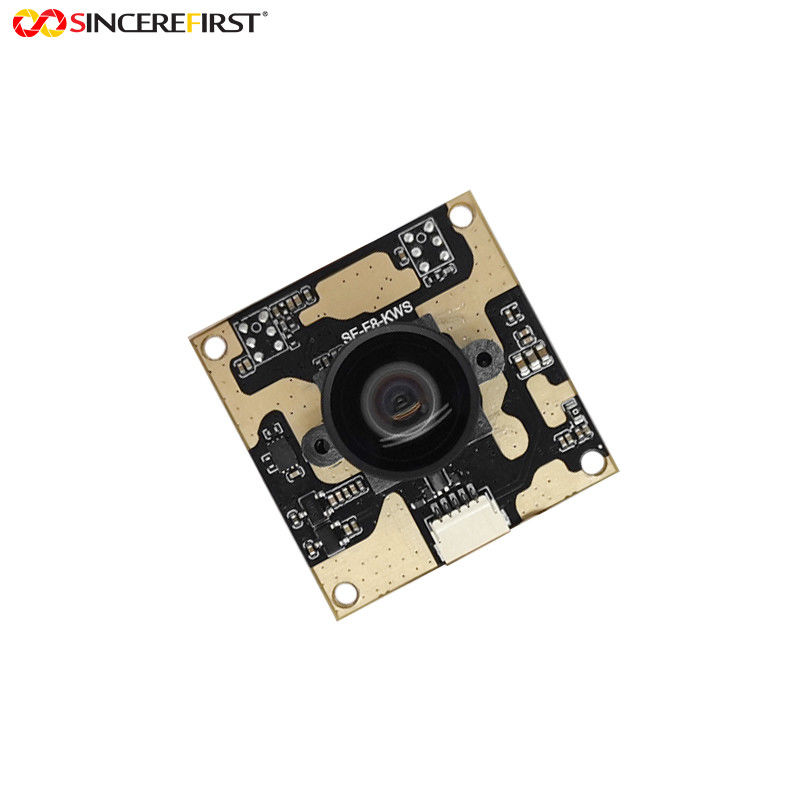

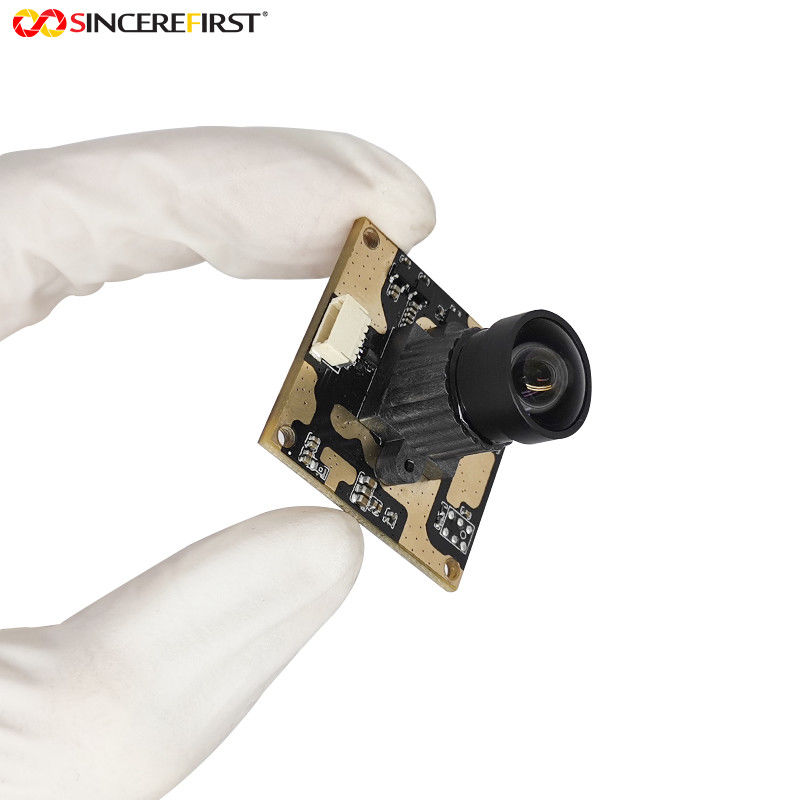

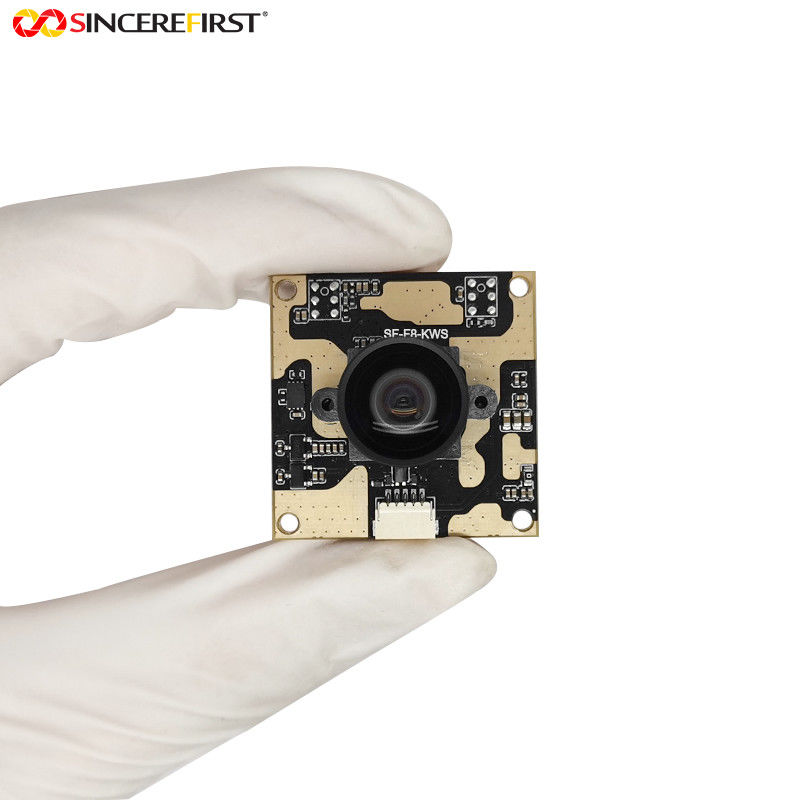

8mp Sony Imx 179 Obstacle Avoidance Optical Camera Sensor Module
Specificaitons
| Image Sensor | IMX179 |
| Resolution | 8MP |
| Color Filter | Color |
| Shutter Type | Rolling Shutter |
| View Angle | 70° |
| Output Format | YUYV/MJPG |
| Lens | NC |
| Focus Type | Ff, Fixed Focus |
| Supported OS | Windows, Linux, Android and MAC |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure |
Description
This camera is based on 8MP IMX179 USB Camera Module. The max resolution&frame rate is 3264(H)×2448(V)@30fps. Besides, we have equiped the camera with Fixed Focus Lens. We have expanded the using scope of the sensor, enabling the camera to realize your various projects. The camera is equiped with a 70°(H) fixedfocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.
Features
◆CMOS active pixel type dots
◆2-wire serial communication circuit on chip
◆CSI2 serial data output
◆Timing generator,H and V driver circuits on chip
◆CDS/PGAon chip
◆10-bit A/D converter on chip
◆Automatic optical black(OB)clamp circuit on chip
◆PLL on chip(rectangular wave/sine wave)
◆High sensitivity, low dark currentno smear
◆Excellent anti-blooming characteristics
◆Variable-speed shutter function(1H units)
◆RGB primary color pigent mosaic filters on chip
◆Max. 30 frame/s in all-pixel scan mode
◆Pixel rate: >260 MHz(>30 frame/s at All-pixel mode
Applicaitons
3D Scanner
VR Camera
Lightburn Laser Engraver Machine
Surveillance
Video System
Obstacle Avoidance System
