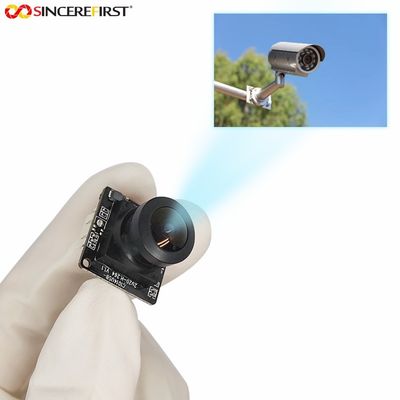

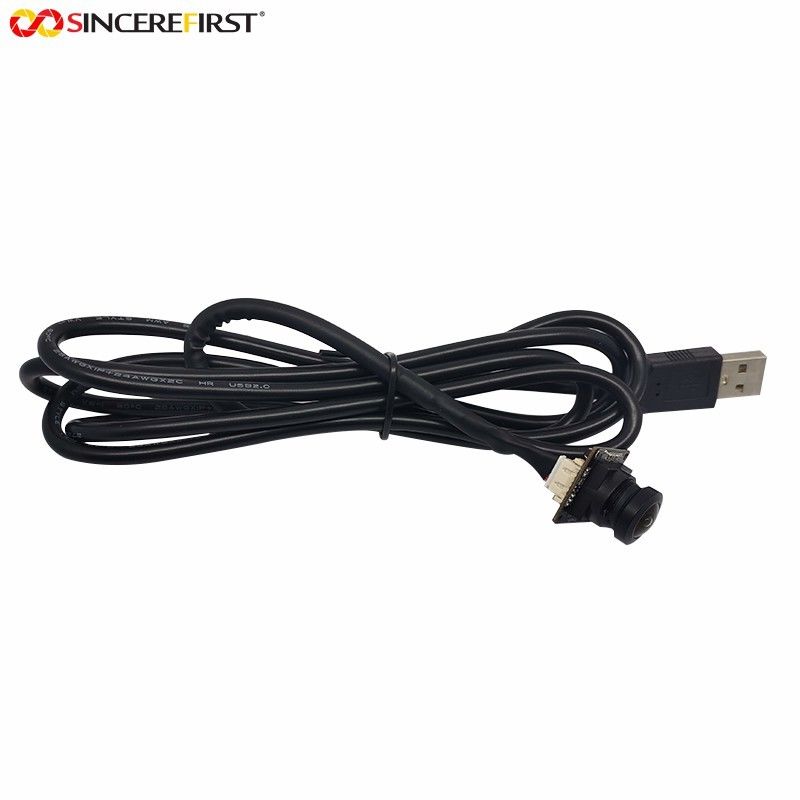

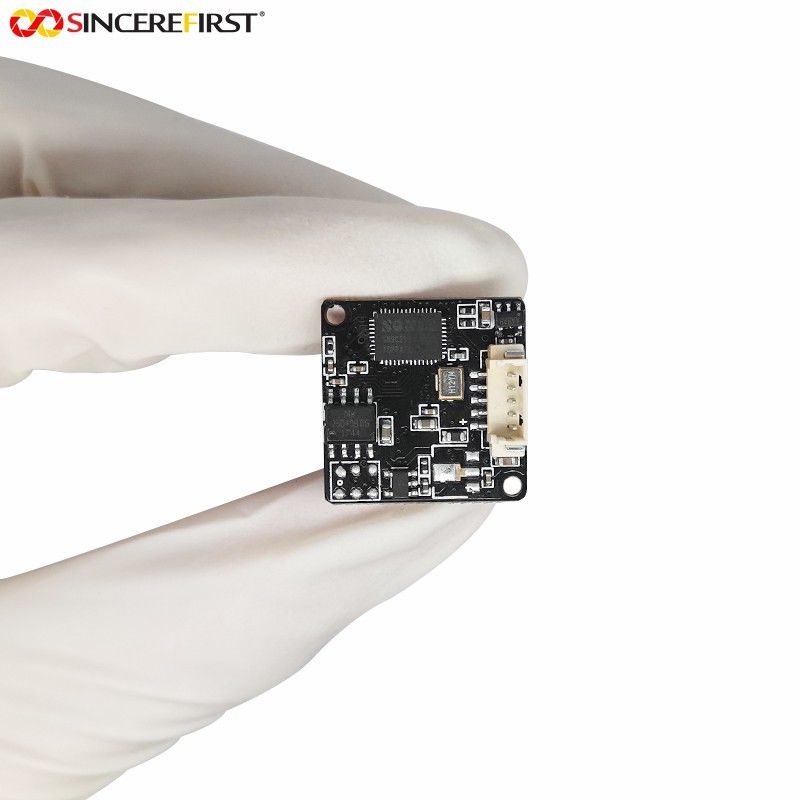

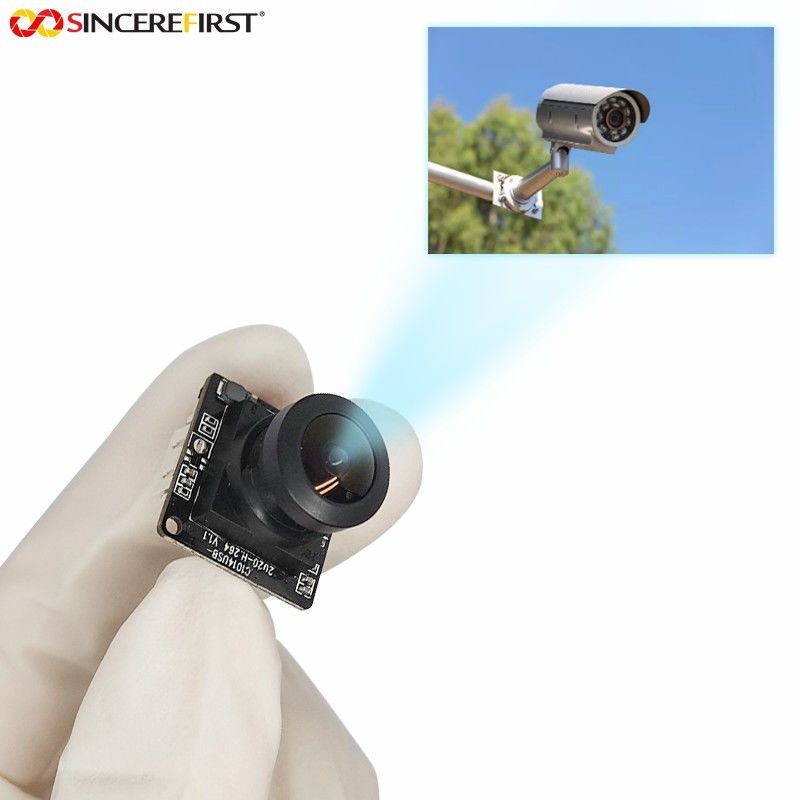

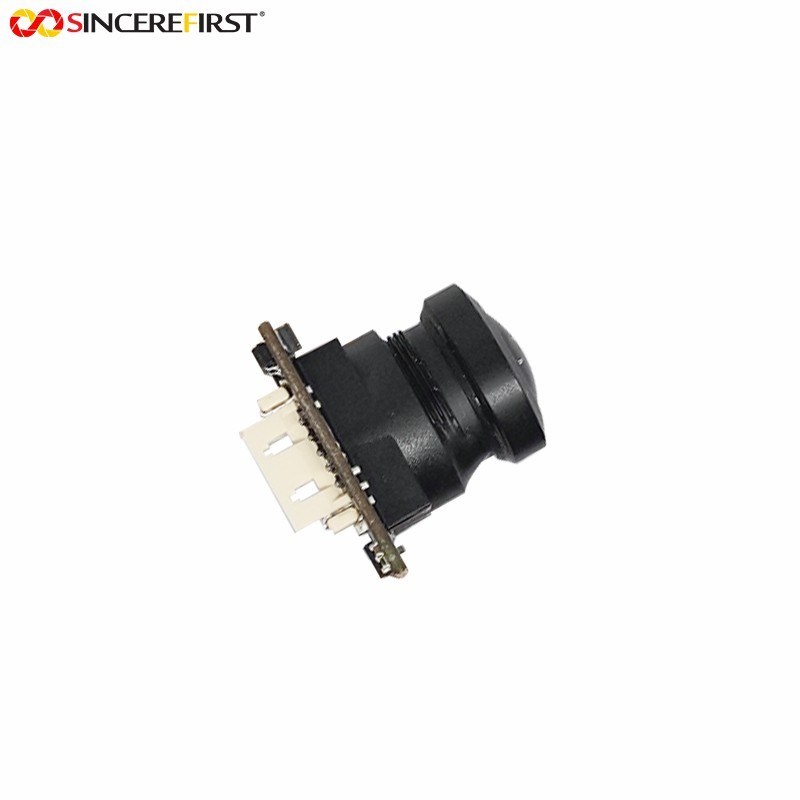

Low Power Image Sensor CMOS OV9712 USB Camera Module With Microphone
Specificaitons
| Sensor | OV9712 |
| Lens Size | 1/4 inch |
| Pixel Size | 3.0 µm X 3.0um |
| Image area | 3888 µm x 2430 µm |
| Max Resolution | 1280(H)X720(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Connecting Port Type | USB2.0 High Speed |
| Board Size | 20X20mm |
| AEB | Support |
| AGC | Support |
Description
The OV9712 is a 1/4-inch CMOS image sensor that provides full-frame, sub-sampled or windowed 8-bit/10-bit images in raw RGB format via the digital video port and with complete user control over image quality, formatting and output data transfer. It offers a chief ray angle (CRA) of 25° and incorporates advanced image processing functions, including exposure control, gain control, white balance, lens correction and defective pixel correction.
Features
◆HD 720P with Omnivision OV9712 CMOS sensor
◆Low illumination, Low-light sensitivity
◆High quality image, High quality microphones
◆UVC compliant, Plug & Play
◆Support Linux, Android, Mac and Windows, etc
◆Module size & shape is adjustable
Applicaitons
robotics
robot
artificial intelligenceAI
