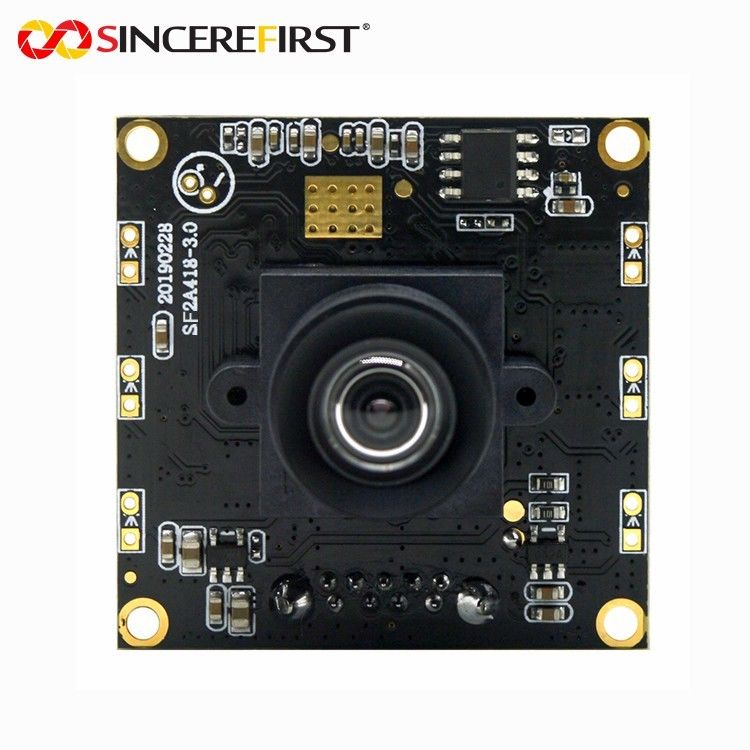

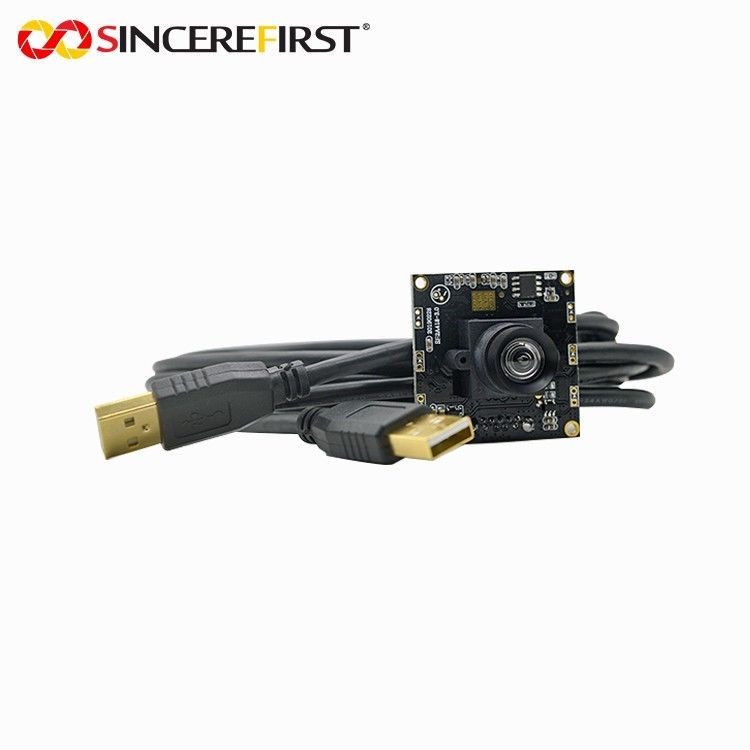

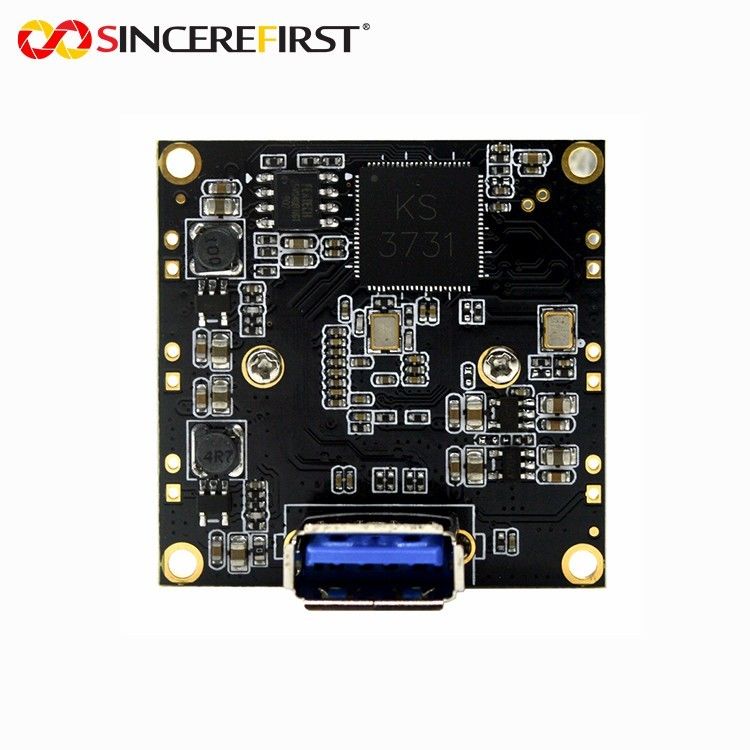

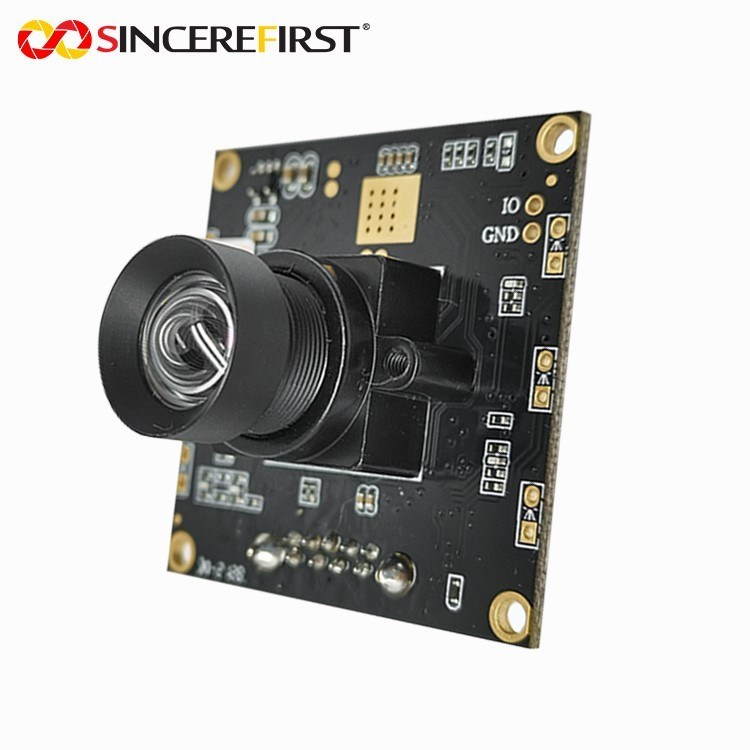

2mp Sony Starvis IMX290 USB Camera Image Sensor Module For Mobile
Specificaitons
| Sensor | 1/2.8" Optical format CMOS Image sensor |
| Focus Type | Fixed Focus |
| Resolution | 2.0 MP |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1945H x 1097V |
| Shutter Type | Electronic Rolling Shutter |
| Sensor | SONY IMX290 |
| Camera Board Size | 38mmx38mm |
| IR Sensitivity | Motorized IR-CUT |
| Interface | USB3.0 |
Description
The IMX290LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.
Features
◆Input frequency: 74.25 MHz / 37.125 MHz
◆Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
◆Maximum frame rate in Full HD 1080p mode: 60 fps
◆Wide Dynamic Range (WDR) function: Multiple exposure WDR, Digital Overlay WDR
◆10-bit/12-bit A/D converter
◆CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output
◆CMOS active pixel type dots
◆Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆Input frequency: 74.25 MHz / 37.125 MHz
◆Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
◆Readout mode All -pixel scan mode 720p-HD readout mode Window cropping mode Vertical / Horizontal direction-normal / inverted readout mode
◆Readout rate Maximum frame rate in Full HD 1080p mode: 120 frame / s
◆Wide dynamic range (WDR) function Multiple exposure WDR Digital overlap WDR
◆Variable-speed shutter function (resolution 1H units)
◆10-bit / 12-bit A/D converter
◆Conversion gain switching (HCG Mode / LCG Mode)
◆CDS / PGA function 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB) 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 to 42 dB (step pitch 0.3 dB)
◆Supports I/O switching CMOS logic parallel SDR output Low voltage LVDS (150 m Vp-p) serial ( 2 ch / 4 ch / 8ch switching) DDR output CSI-2 serial data output ( 2 Lane / 4 Lane, RAW10 / RAW12 output)
◆Recommended exit pupil distance: –30 mm to –∞
Applicaitons
smart surveillance,
autonomous mobile robots
UGV/UAVs
Sports broadcasting and analysis
ADAS
Industrial automation
Industrial/Agricultural cameras
machine vision
logistics
