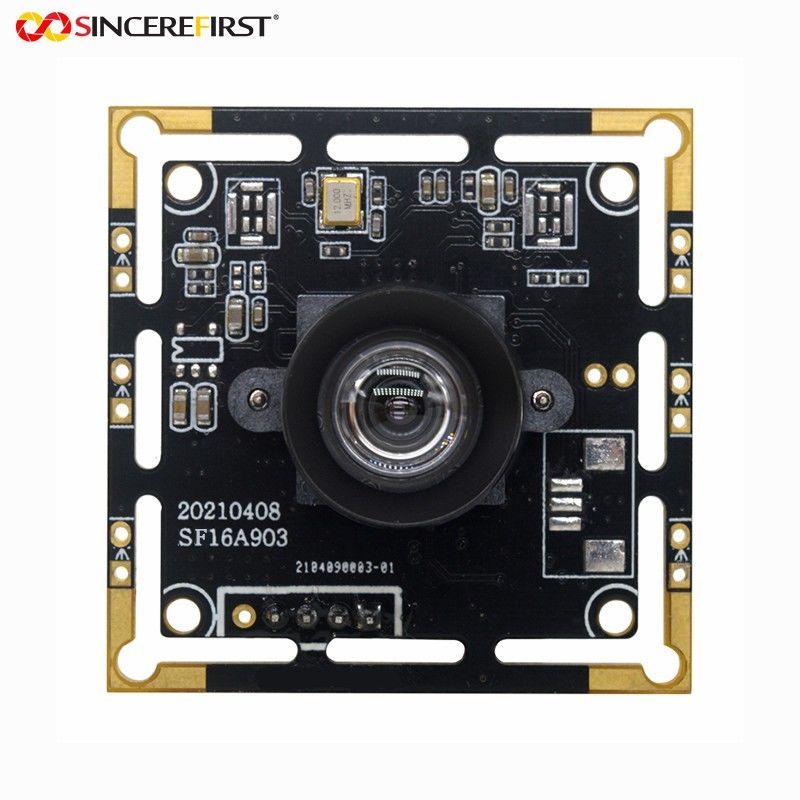

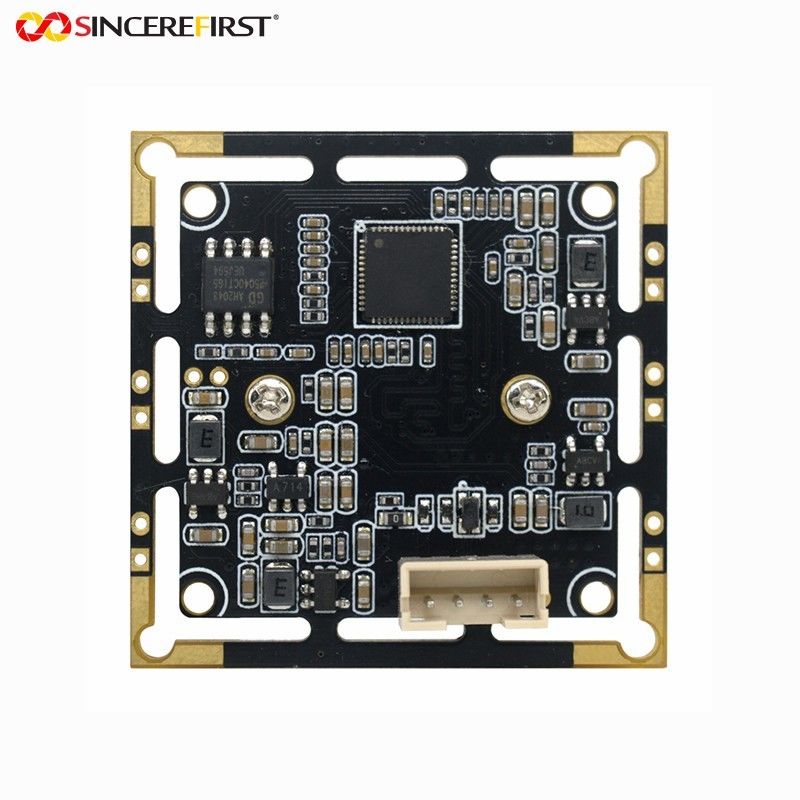

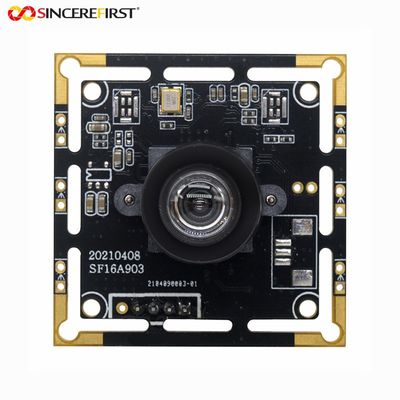

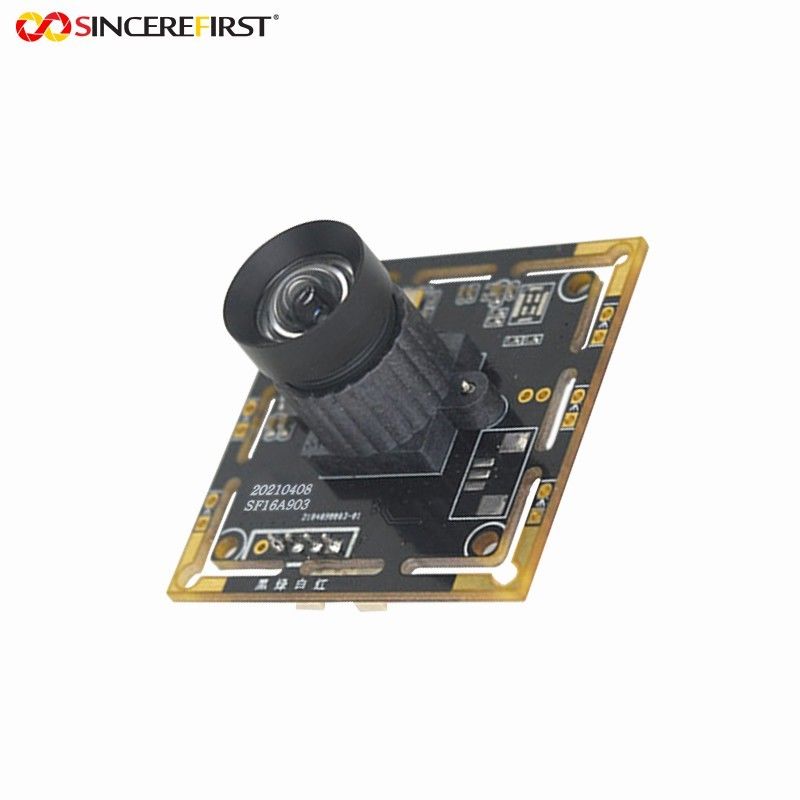

Fixed Focus Arducam CMOS Sensor IMX298 16mp RGB USB Camera Module
Specificaitons
| Sensor | 1/2.8” IMX298 |
| Resolution | 16MP 4656H x 3496V |
| Data Format | MJPG/YUY2 |
| Lens Mount | M12 |
| IR Sensitivity | Integral IR filter, visible light only |
| Power Supply | DC 5V |
| Working Current | MAX 160mA |
| Drive-free Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
Description
Arducam High-Resolution Camera Module is based on Sony 1/2.8” 16MP Sony IMX298 image sensor, mounted a high quality 105 degree (H) M12 Lens, UVC compliant USB 2.0 cameras.
Features
◆Ultra HD: This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.
◆Wide Angle: Mounted a High quality 105-degree wide view angle (horizontal) M12 lens with IR filter, provides a wilder Field of View.

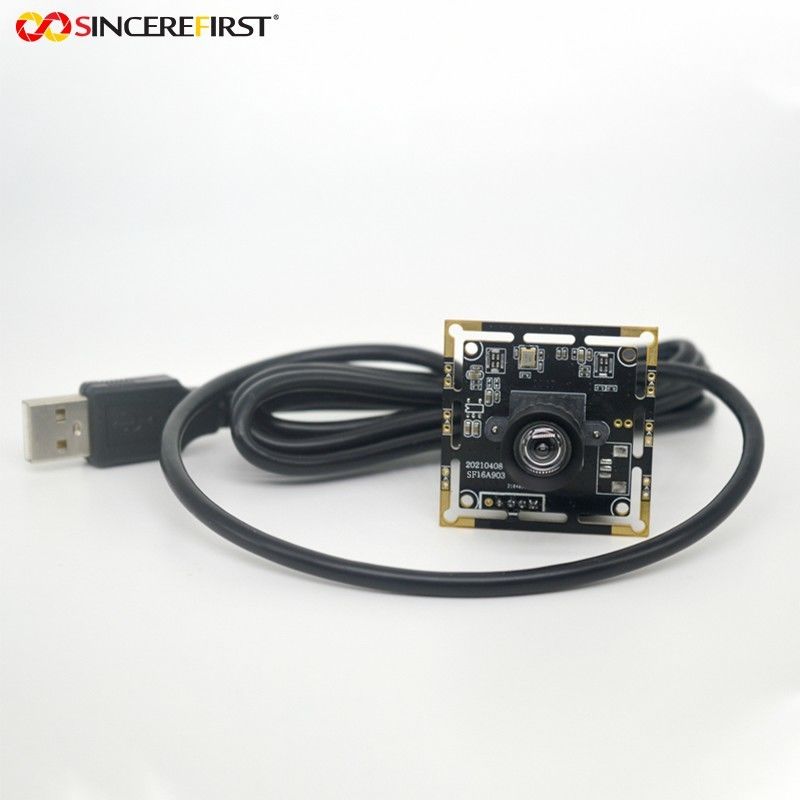

◆Plug&Play: Assemble with a mini metal case and rotatable bracket, you can easily put on the desk or any flat surface, or mount on the wall or tripod mount. UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera “Arducam IMX298 Camera”.
◆High Frame Rates: MJPG 10fps@4656×3496/3264×2448/ 2592×1944, 30fps@1080P/720P/1024×768;YUY2 10fps@1024×768/640×768
Applicaitons
Home Video Surveillance System
Dash Cam
Image Recognition
Electron Microscope
Qr Code Recognition
Test Recognition
Other Vision Applications Demand High Resolution
Video Conference
Day&Night Low Light Vision Security Camera System
Monitoring 3d Printer
Baby Camera
Robot And Machine Vision
