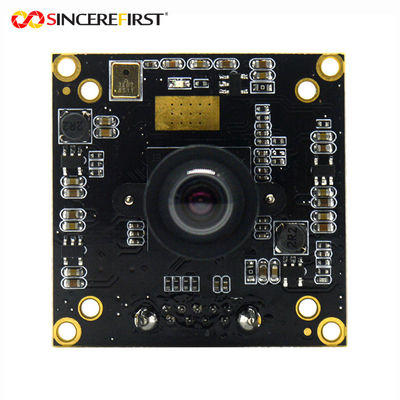

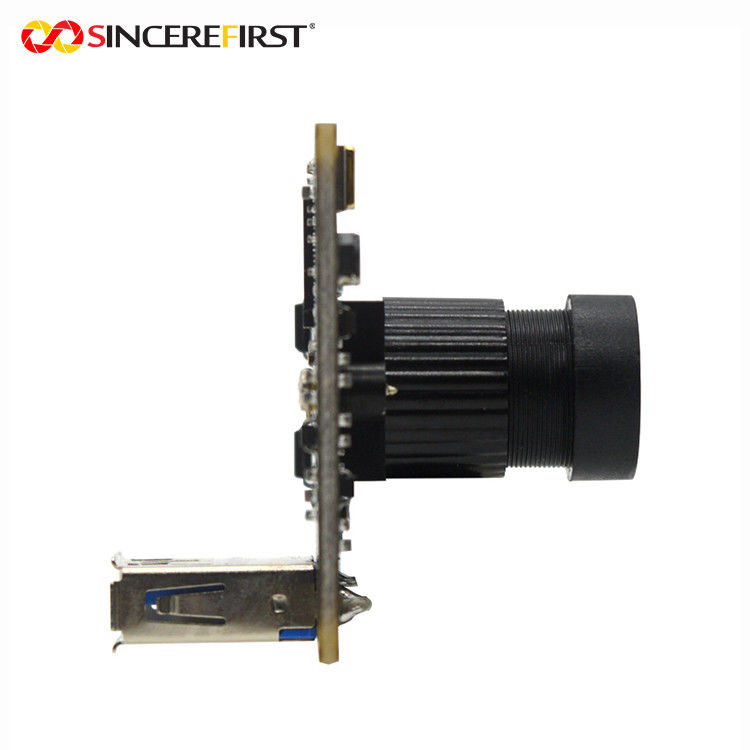

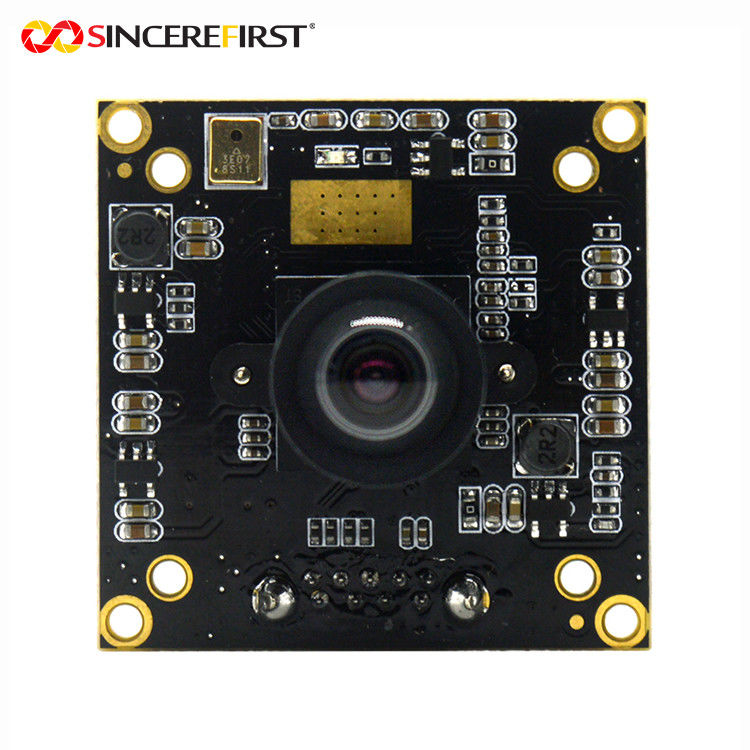

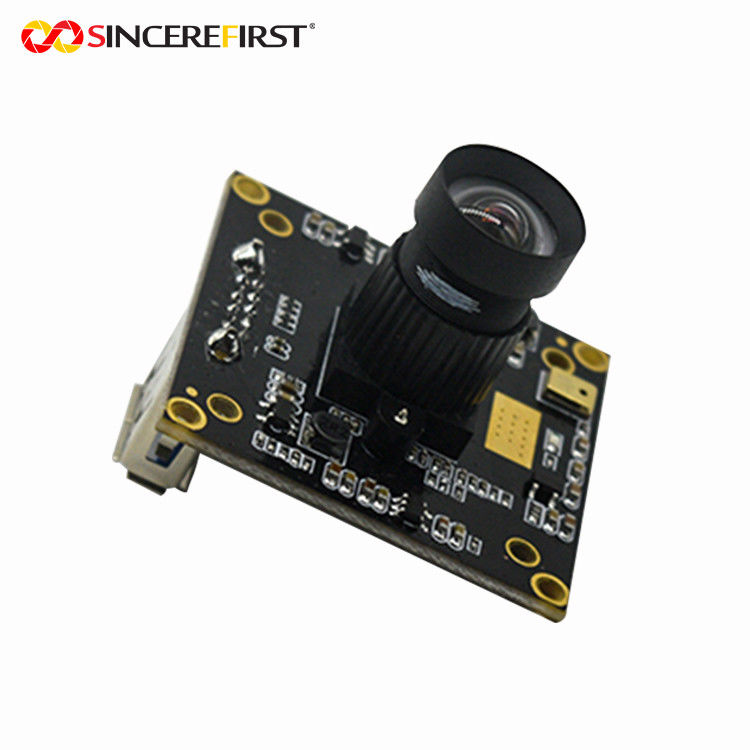

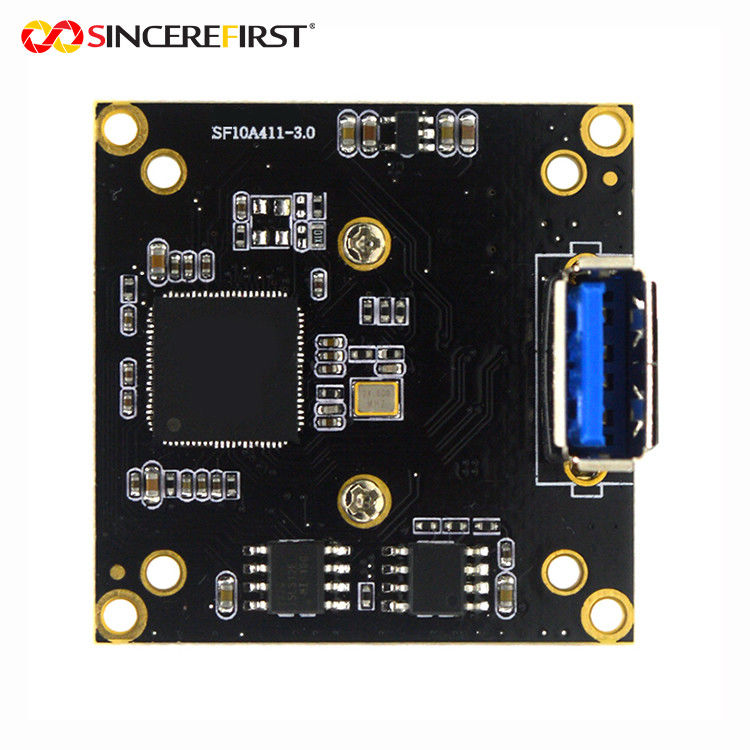

Arducam Embedded Monochrome Camera Module USB 3.0 10MP MT9J003

Arducam Mini Fixed Focus 10MP MT9J003 Monochrome Embedded Camera Modules

Specificaitons

Description

The MT9J003 is a 1/2.3−inch CMOS active−pixel digital imaging sensor with an active pixel array of 3856 (H) x 2764 (V) including border pixels. It can support 10 Mp (3664 (H) x 2748 (V)) digital still images and a 1080 p (3840 (H) x 2160 (V)) digital video mode. It incorporates sophisticated on−chip camera functions such as windowing, mirroring, column and row skip modes, and snapshot mode. It is programmable through a simple two−wire serial interface and has very low power consumption. The MT9J003 digital image sensor features onsemi’s breakthrough low−noise CMOS imaging technology that achieves near−CCD image quality (based on signal−to−noise ratio and low−light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. When operated in its default 4:3 still−mode, the sensor generates a full resolution image at 15 frames per second (fps) using the HiSPi serial interface. An on−chip analog−to−digital converter (ADC) generates a 12−bit value for each pixel.

Features

◆1080p Digital Video Mode
◆Simple Two−wire Serial Interface
◆Auto Black Level Calibration
◆Support for External Mechanical Shutter
◆Support for External LED or Xenon Flash
◆High Frame Rate Preview Mode with Arbitrary Down−size Scaling
from Maximum Resolution
◆Programmable Controls: Gain, Horizontal and Vertical Blanking,
Auto Black Level Offset Correction, Frame Size/rate, Exposure,
Left–right and Top–bottom Image Reversal, Window Size, and
Panning
◆Data Interfaces: Parallel or Four−lane Serial High−speed Pixel
Interface (HiSPi) Differential Signaling (Sub−LVDS)
◆On−die Phase−locked Loop (PLL) Oscillator
◆Bayer Pattern Downsize Scaler
◆Integrated Position−based Color and Lens Shading Correction
◆One−time Programmable Memory (OTPM) for Storing Module Information

Applicaitons

Digital Video Cameras
Digital Still Cameras
