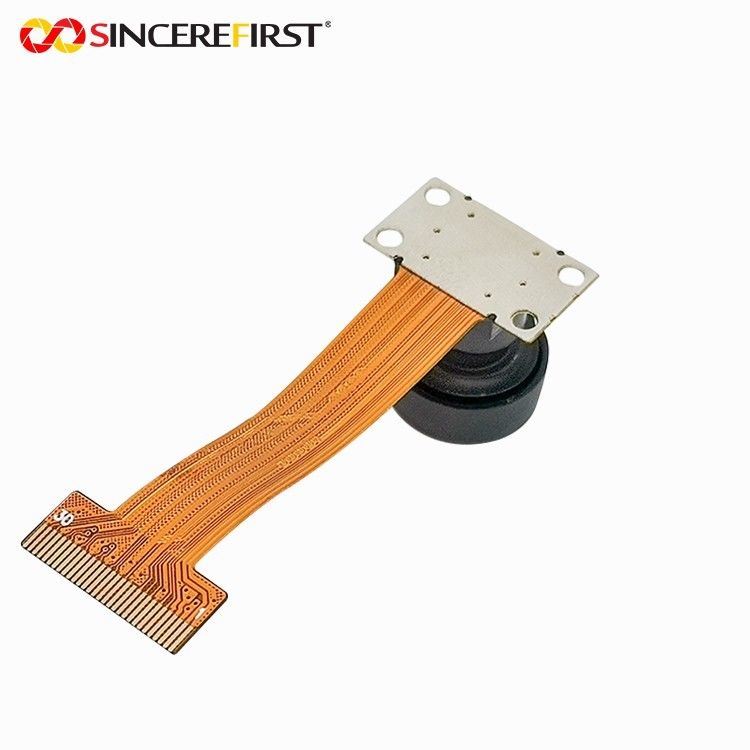

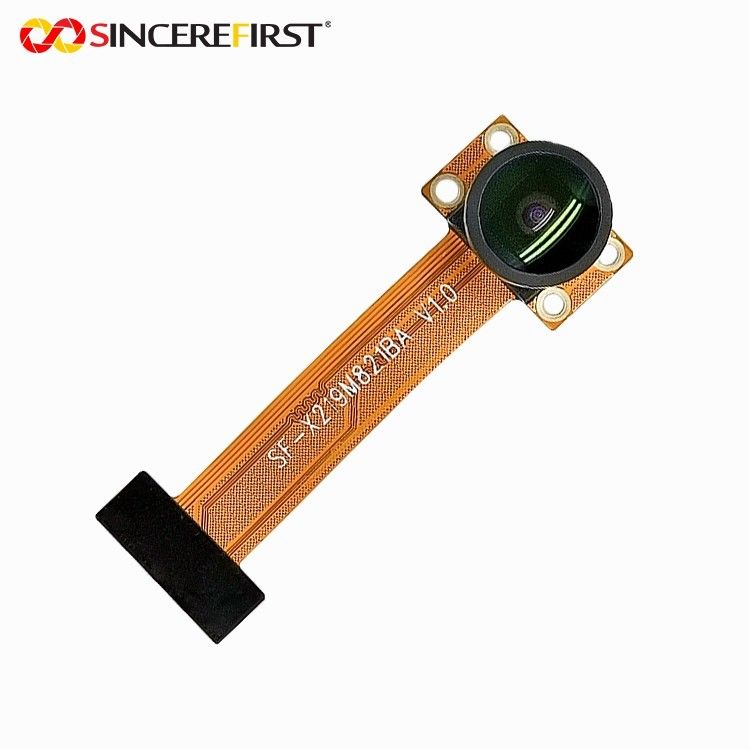

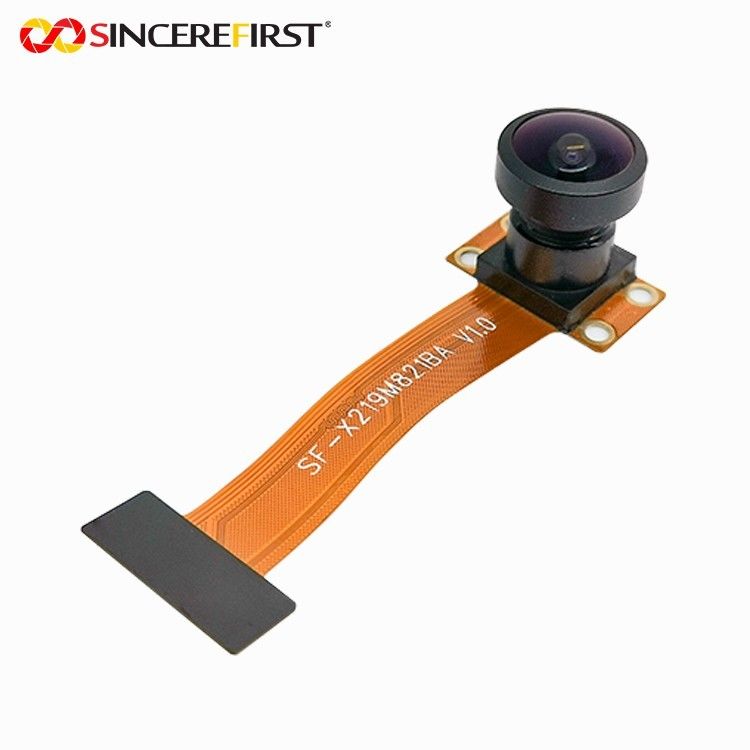

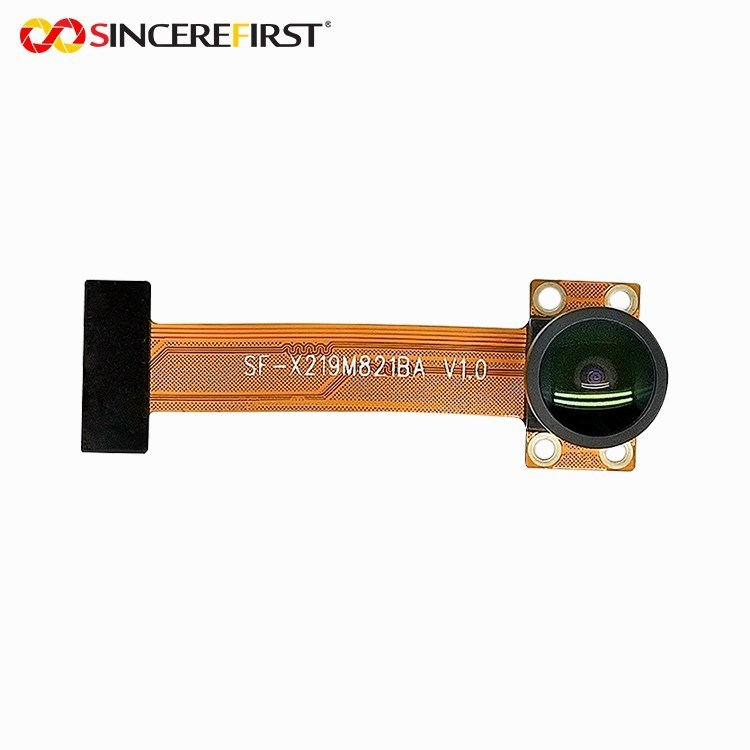

Wide Angle Arducam Sony IMX219 8 Megapixel Image Sensor Camera Module
Specificaitons
| Sensor | Sony IMX219 |
| Pixel | 8MP |
| Pixel Size | 1.12μm×1.12μm |
| Active Pixels | 3280 (H) × 2464 (V) |
| CSI-2 Data Output | 2-lane mode |
| Focus Type | Manual |
| FOV(Field of View) | 136° |
| IR Sensitivity | Integral IR Fliter |
| Shutter Type | Rolling Shutter |
| Frame Rates | 30fps@8MP, 60fps@1080p, 180fps@720p |
Description
The IMX219 8MP Camera Sensor is the IMX219 color sensor from Sony available as a drop-in part compatible with the Raspberry Pi v2 board or the ArduCam Nvidia board (B0187|NS). The sensor has a 1/4.0″ optical format, which combined with the pixel size of 1.12 µm x 1.12 µm, results in the 8 MP (3280 x 2464) image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously, and compiles the image by scanning across (or down).
Features
◆IMX219 color sensor
◆8-megapixel resolution (3,280 H x 2,464 V)
◆1.12 µm x 1.12 µm pixel size, 3.691 mm x 2.813 mm sensor size
◆Optional motorized stock lens
◆1/4.0-inch optical format
◆30 frames per second (fps) at full resolution;
Applicaitons
Robots, Drones
Action Cameras
3D scanning applications
Field animal camera
Recording slow motion
Machine vision, etc.
