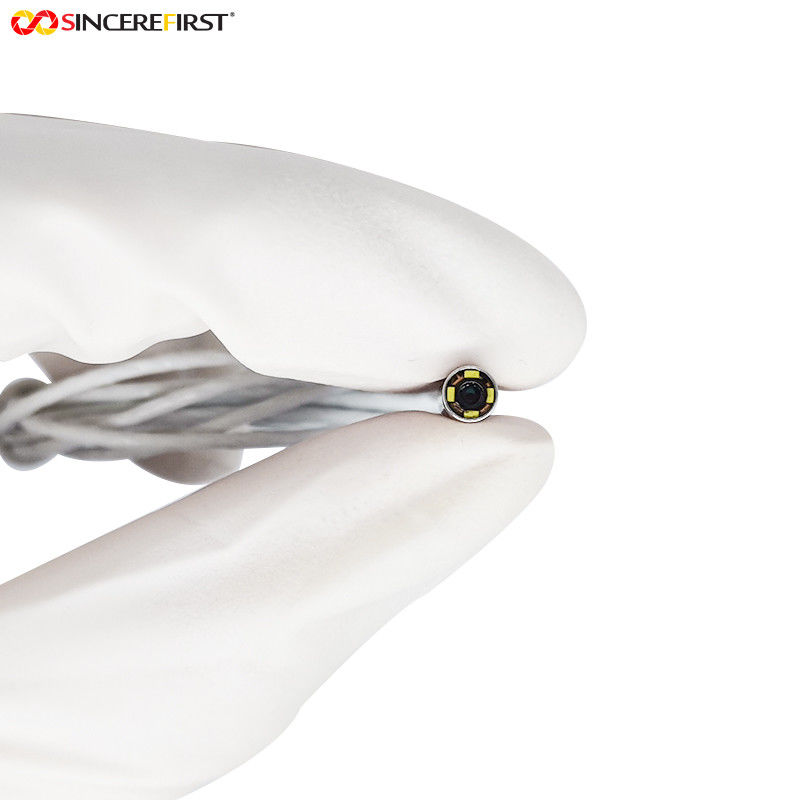

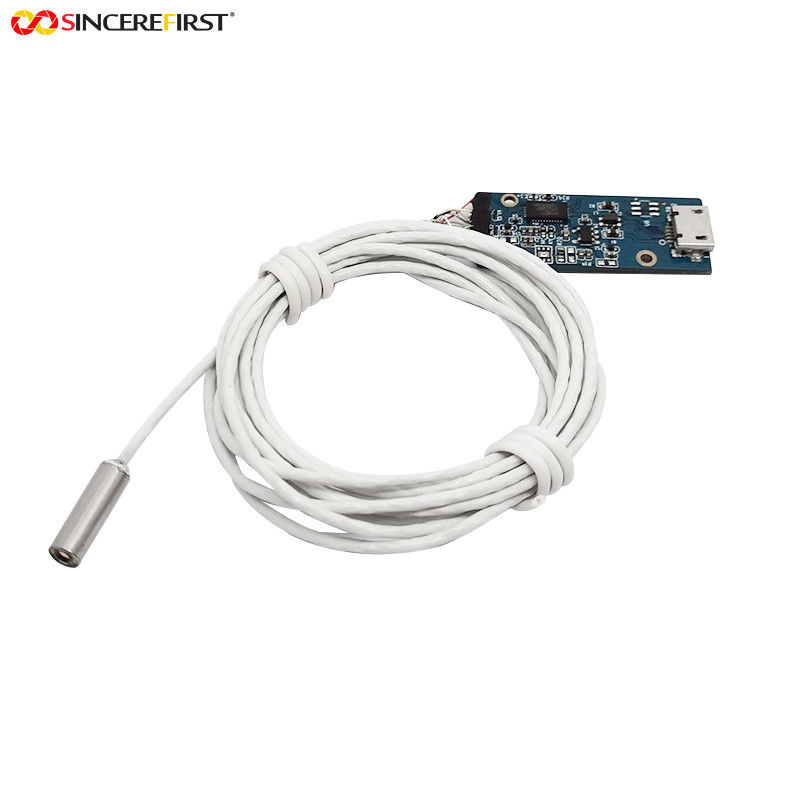

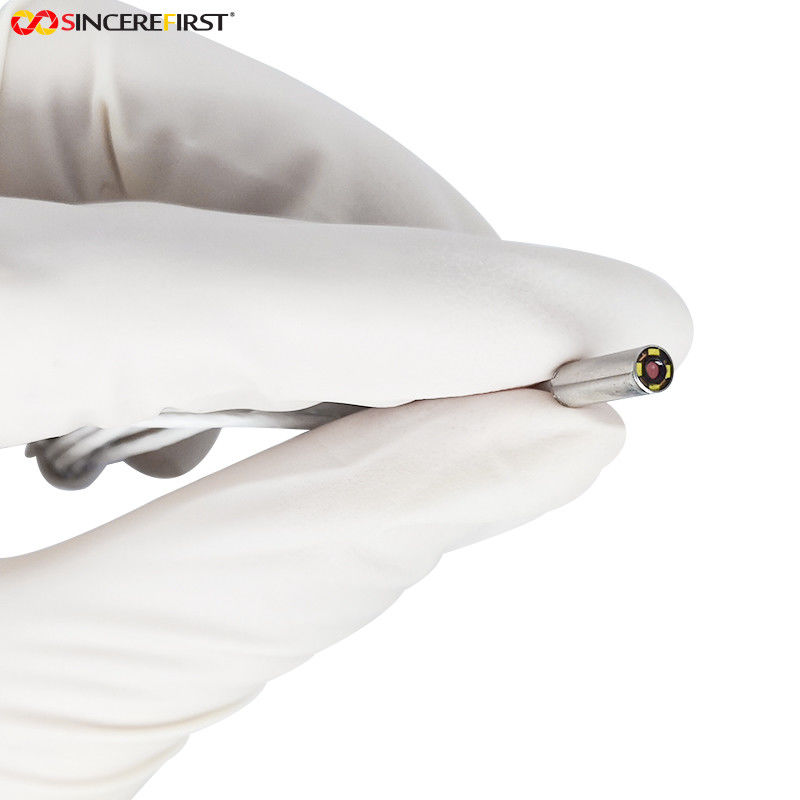

3.9mm VGA Sensor Medical Endoscope USB Dental Endoscopic Camera Module
Specificaitons
| Module Size | 3.9mm dia |
| Object Distance | 90°DFOV lens |
| Focus | Auto Focus |
| Interface | USB |
| Active Array Size | 640H*480V |
| Distortion | <-5.5% |
| LED | 4pcs LEDs |
| Output Formats | YUV/MJPG |
| DSP | USB2.0 UVC |
| Sensor | VGA |
Description
The VGA sensor endoscope camera module is a mini waterproof camera module that has a diameter of 3.9mm. It has a TV system of NTSC/PAL and a power input of DC 3.3V. The image device is a super color VGA 640×480 sensor with effective pixels of NTSC 720 (H)X525 (V) / PAL 720 (H)X625 (V) and a sensor scan mode of progressive scan.
Features
◆Analog Endoscope Camera 3.9mm diameter (with LEDs)
◆640*480 VGA Resolution
◆90° DFOV
◆20-80mm suggested DOF
◆IP67 waterproof
◆Designed for medical
◆High-quality image
◆USB interface
Applicaitons
disposable medical
dental
veterinarian
industrial endoscopes
