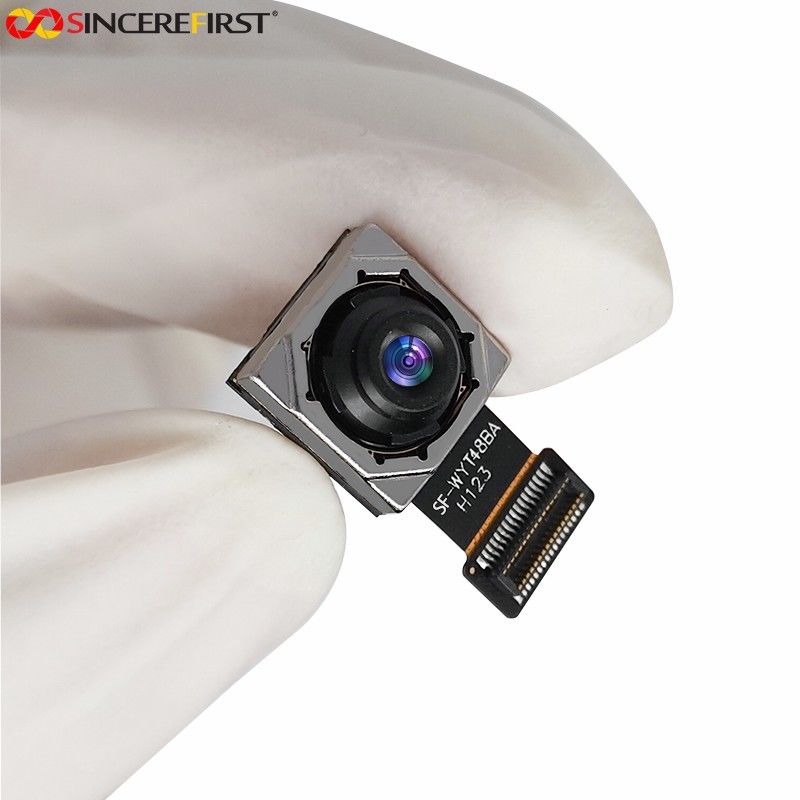

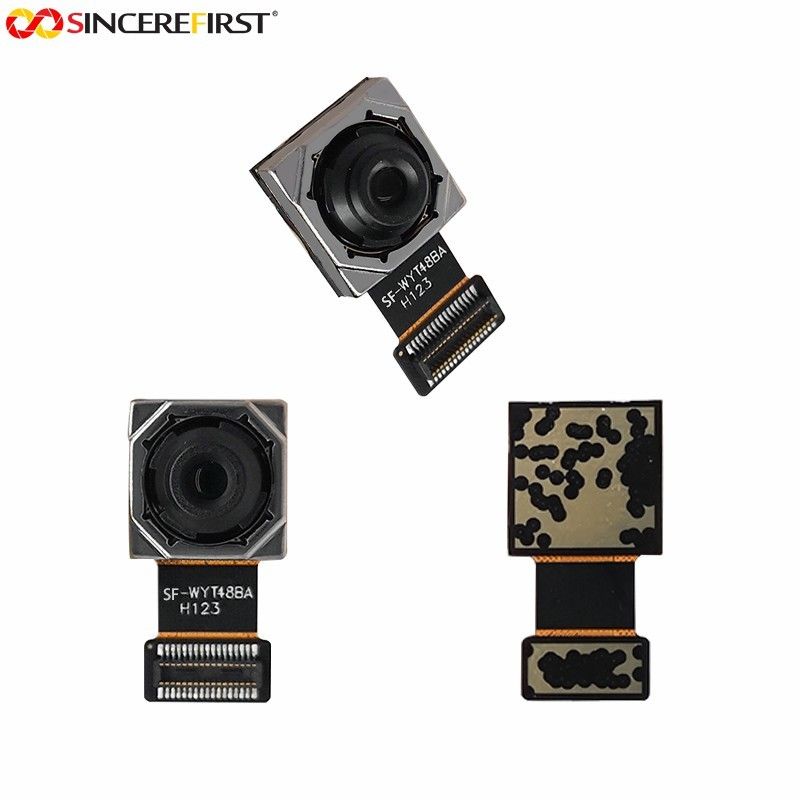

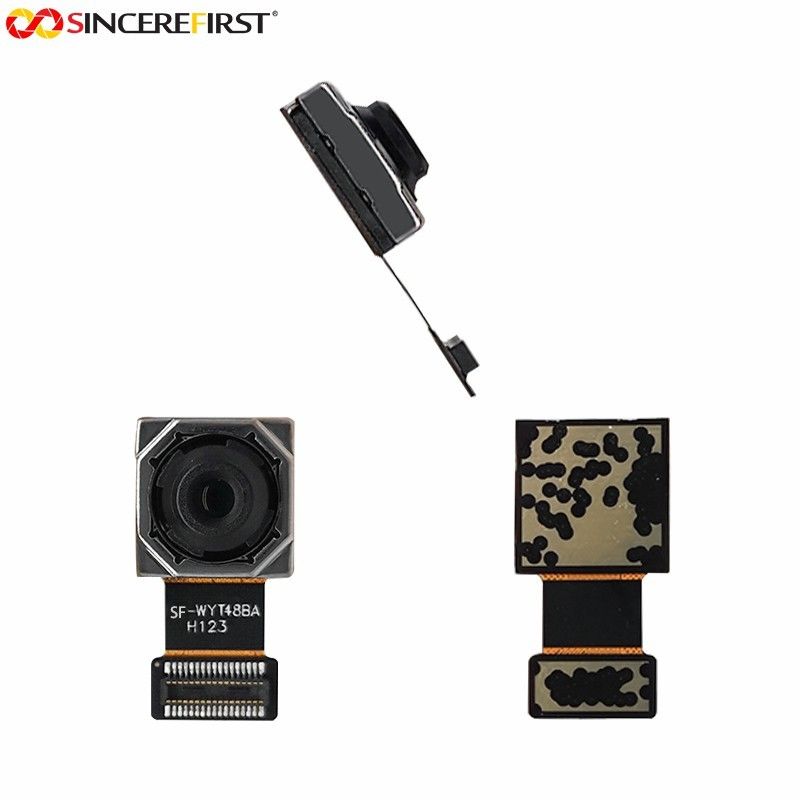

Omnivision 48mp OV48B MIPI Camera Module For Smartphone

Omnivision 48mp OV48B Image Camera Sensor Smartphone Camera Module​

Specificaitons

Description

OV48B is a 48-megapixel image sensor developed by OmniVision Technologies. It is the company’s first 48-megapixel image sensor with the industry’s smallest die size, featuring a 0.801 µm pixel size to enable high-resolution smartphone cameras with a 1/2" optical format. The OV48B sensor provides leading-edge still image capture and video performance.

Features

◆Automatic black level calibration (ABLC)

◆Programmable controls for:
– Frame rate
– Mirror and flip
– Binning
– Cropping
– Windowing

◆Support for dynamic DPC cancellation

◆Supports output formats:
– 10-bit RGB 4C pattern

◆Supports horizontal and vertical subsampling

◆Supports typical images sizes:
– 8000 x 6000
– 4000 x 3000
– 3840 x 2160
– 1920 x 1080
– 1280 x 720

◆Standard serial SCCB interface

◆Up to 4-lane MIPI TX interface with speed up to 2.35 Gbps/lane

◆2/3 trio CPHY interface, up to 1.45 Gsps/trio

◆Embedded 16k bits of one-time programmable (OTP) memory (4k bits reserved for customer use)

◆Supports 2×2 ML PD

◆4-cell support:
– 4-cell binning
– 4-cell full

◆On-chip 4-cell to Bayer converter

◆Three on-chip phase lock loops (PLLs)

◆Programmable I/O drive capability

◆Built-in temperature sensor

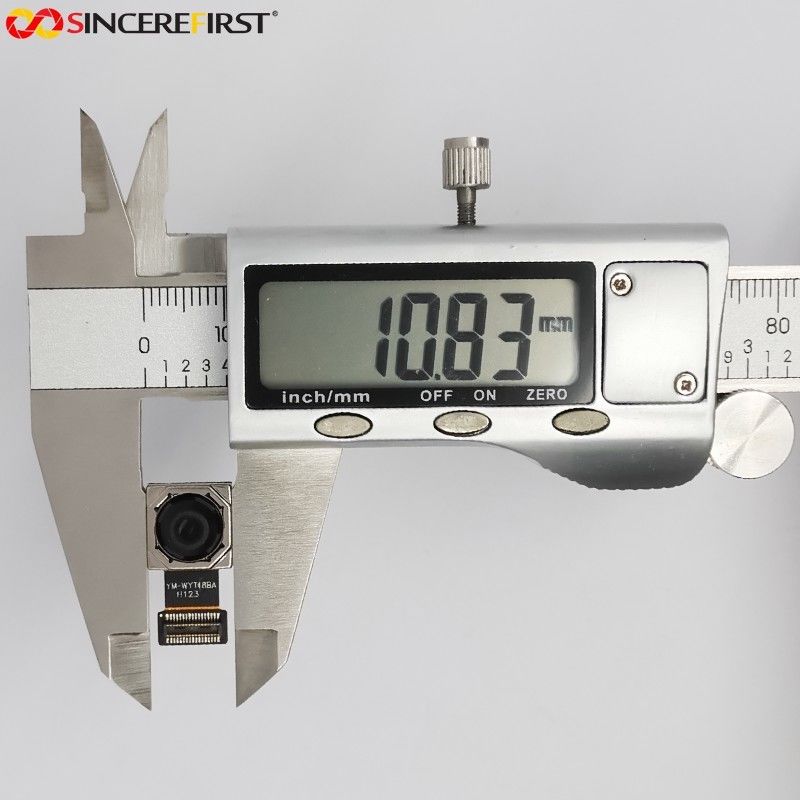

◆Typical module size: 9.5 x 9.5 x 5.9 mm

Applicaitons

smartphones

automotive

medical

mobile

surveillance
