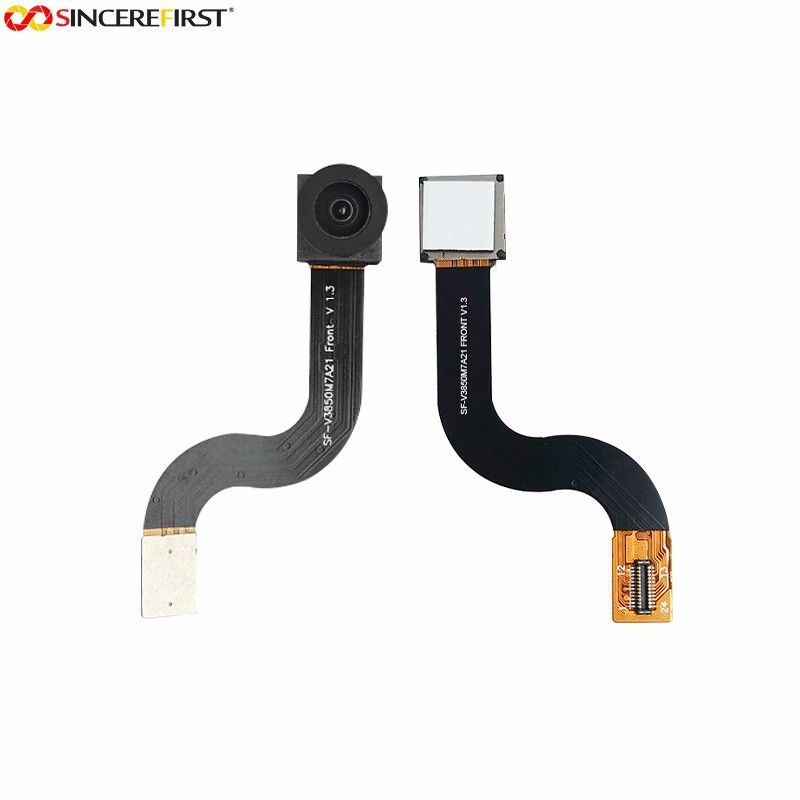

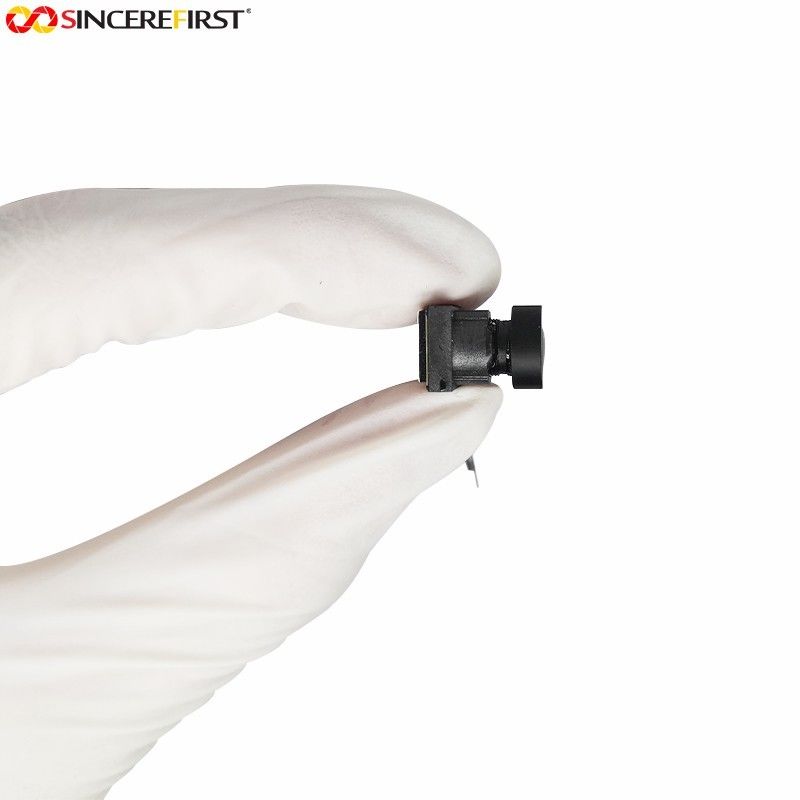

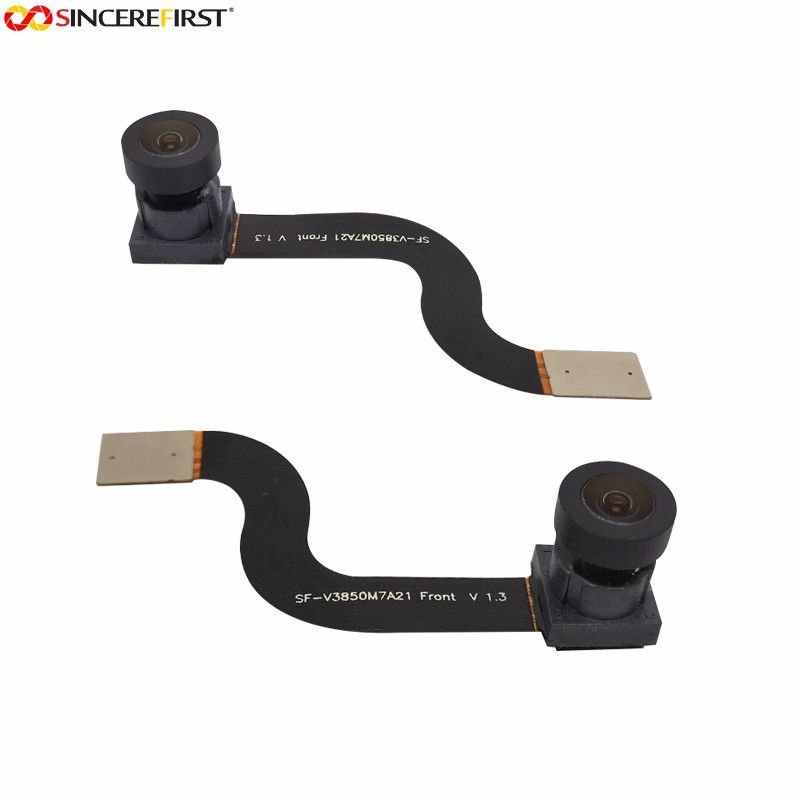

13mp Mipi Fixed Focus OV13850 Camera Sensor Image Camera Module
Specificaitons
| Chip Type | OV13850 |
| Lens Size | 1/3.06" |
| Output Format | 10-bit RGB RAW |
| Active Array Size | 4224×3136 |
| View Angle | 125° |
| Focal Length | 2.33mm |
| F Number | 2.4 |
| TV Distortion | ＜-25% |
| Shutter | Rolling |
| Focal Length | 2.33mm |
Description
OV13850 is a 13-megapixel PureCel®Plus-S image sensor from OmniVision Technologies. It is designed for high-end smartphones and tablets. OV13850 features a 1/3.06-inch optical format, an active array of 4224 x 3136 pixels (13MP), and an on-chip phase detection autofocus (PDAF) circuit.
Features
◆1.12 um x 1.12 um pixel with OmniBSI-3TM technology
◆optical size of 1/3.06"
◆31.2°CRA for <6mm z-height
◆programmable controls for frame rate, mirror and flip, cropping, and windowing
◆support for image sizes: 13.2MP(4224x3136) 10MP(16:9-4224x2376),4K2K(3840x2160), EIS 1080p (2112x1188)EIS 720p(1408x792) and more
◆13.2MP at 30 fps
◆two-wire serial bus control (SCCB
◆strobe output to control flash
◆8kbits of embedded one-time programmable(OTP) memory
◆two on-chip phase lock loops (PLLs)
◆frame exposure mode for still image (with mechanical shutter)
◆programmable controls: gainexposure,frame rate, image size. horizontal mirror,vertical flip,cropping,and panning
◆image quality controls:defect pixel correction, automatic black level calibrationlens shading correcton. and altemate row HOR
◆built-in temperature sensor
◆suitable for module size of 8.5 mm x 8.5 mmx<6mm
Applicaitons
Machine Vision
Medical Camera
Scientific Camera
