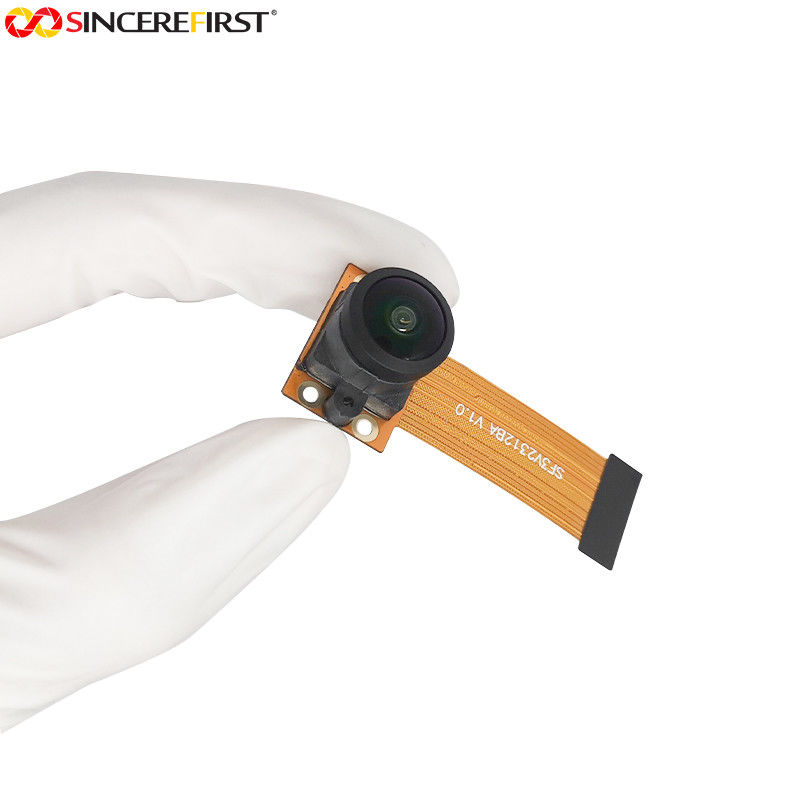

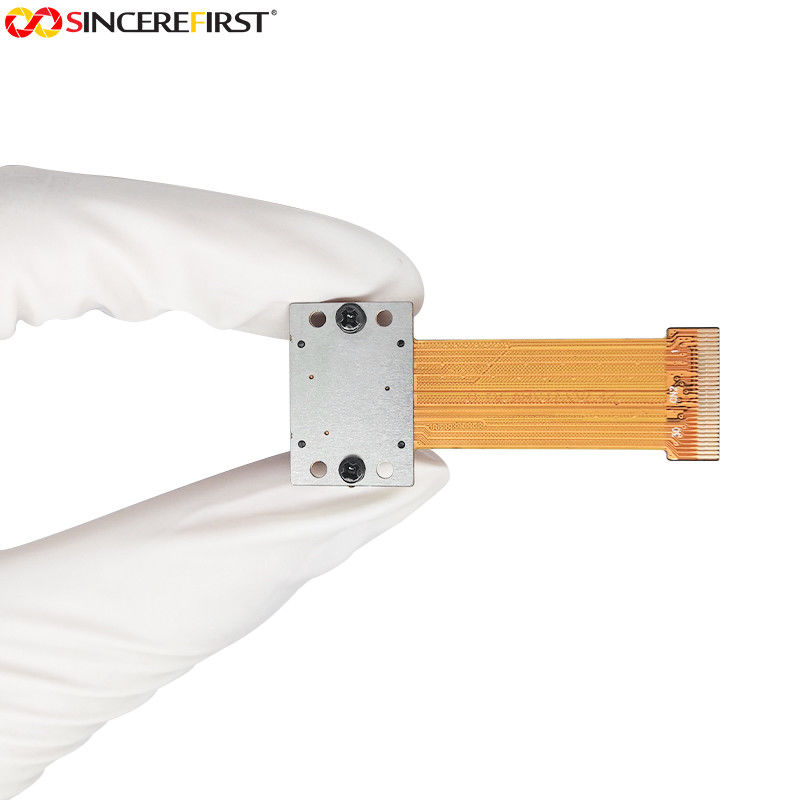

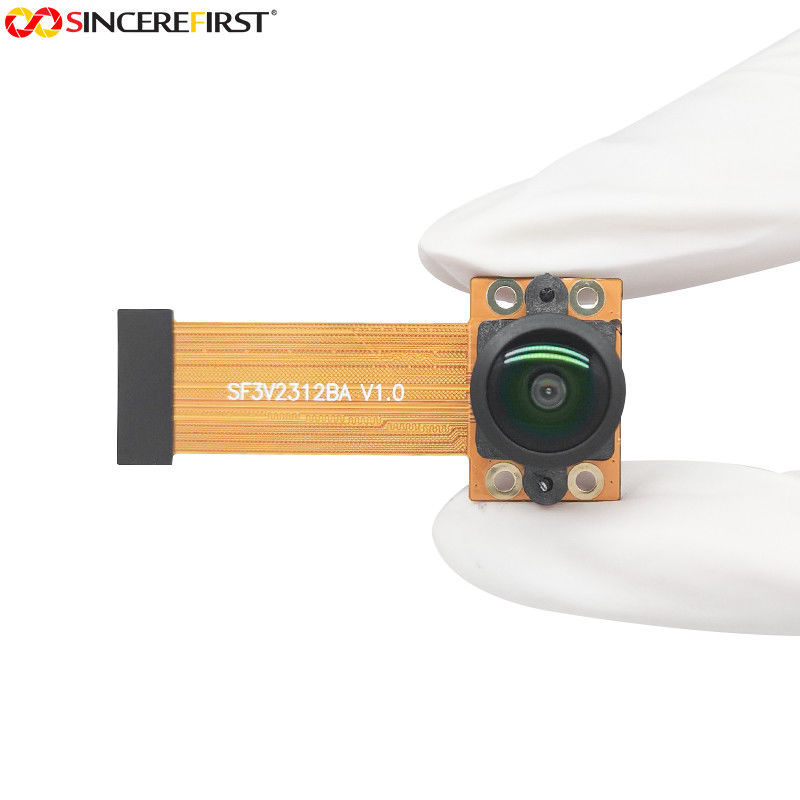

2MP Monochrome CMOS Sensor Omnivision OV2312 Camera Sensor Module
Specificaitons
| Chip Type | OV2312 |
| Pixel | 2MP |
| CFA (Chroma) | Monochrome |
| Interface | DVP |
| Optical Format | 1/2.9" |
| Shutter Type | Global Shutter |
| Fov | 166° |
| TV Distortion | ＜-30% |
| AVDD | 2.8V |
| DOVDD | 1.8V |
Description
OV2312 is a 2-megapixel RGB-IR global shutter image sensor that provides a dual-mode sensor that fuses human and machine vision capabilities, allowing designers to address both trends with a single camera (e.g., driver state monitoring (DSM) and video conferencing). It delivers motion-artifact-free images at high resolutions of 1600 x 1300 at 60 fps and 1280 x 720 at 90 fps. It is the automotive industry’s first and smallest-in-its-class 2MP, RGB-IR global shutter image sensor. It has advanced ASIL functional safety, leading near-infrared light performance and low power consumption; and facilitate the lowest total system cost.
Features
◆Sensors
◆Sensor: Global Shutter OV2312 Monochrome
◆Pixel size: 3 µm x 3 µm
◆Active array size: 1600 x 1300
◆Optical Format size: 1/2.9″
◆Maximum image transfer rate: 1600 x 1300: 60 fps
◆Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
◆Input clock frequency: 6~27 MHz
◆Max S/N ratio: 37.4 dB
◆Dynamic range: 68 dB
◆Lens
◆Lens Thread: M9 x 0.25P
◆Lens Field of View(FoV): 55°(H)
◆IR Sensitivity: without IR filter, sensitive to IR
◆Camera Module
◆Output interface: 2-lane MIPI
◆Output formats: RAW 8/10 bit
◆Minimum exposure time: 1 row period (11.3us at the resolution of 1600×1300 on Raspberry Pi)

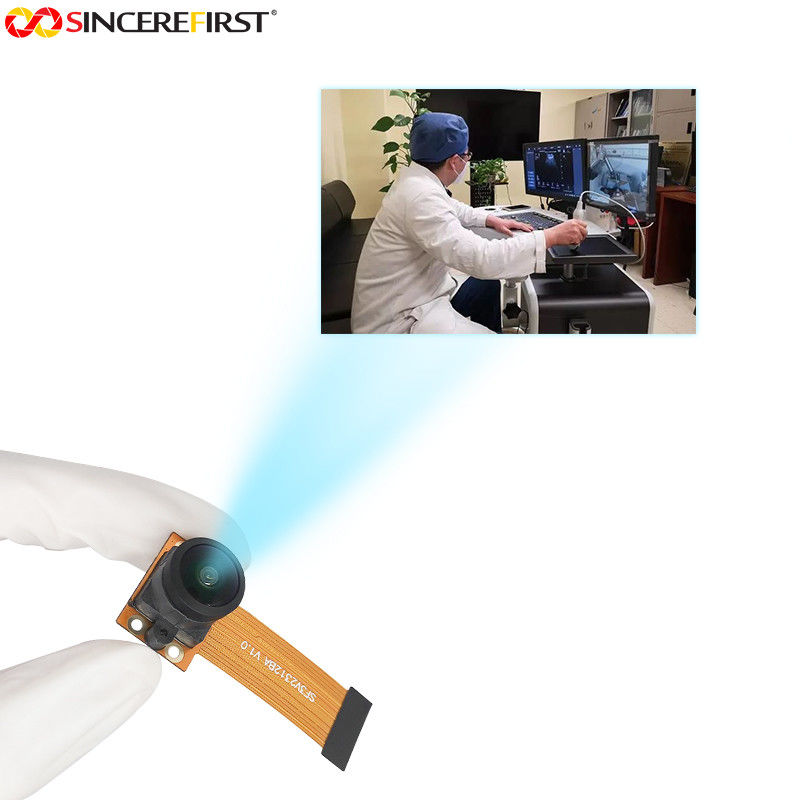

Applicaitons
Augmented and virtual reality
Drones
3D imaging
Machine vision
Industrial bar code scanning
Industrial automation
