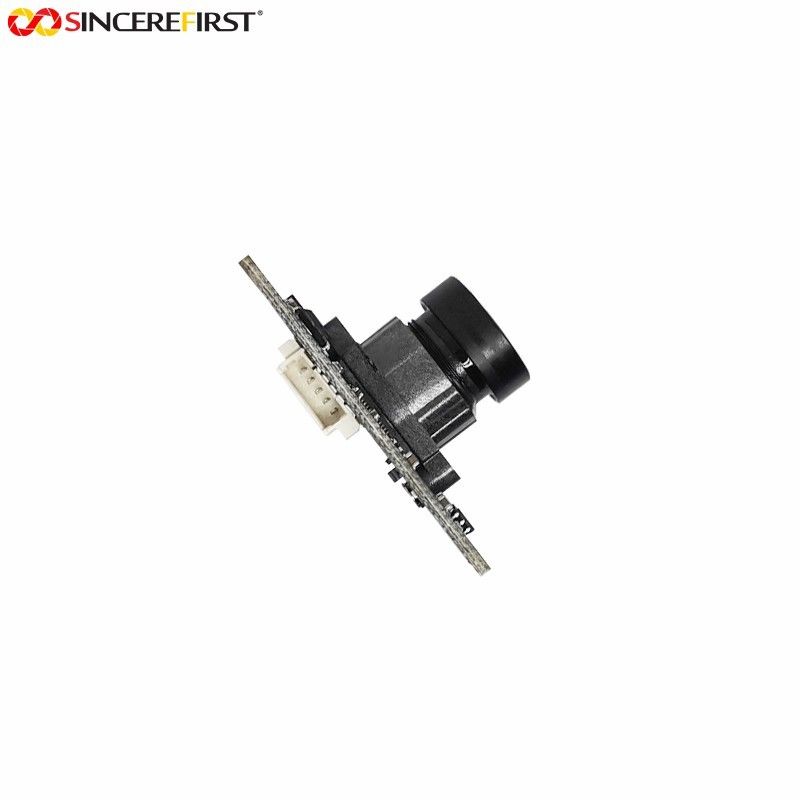

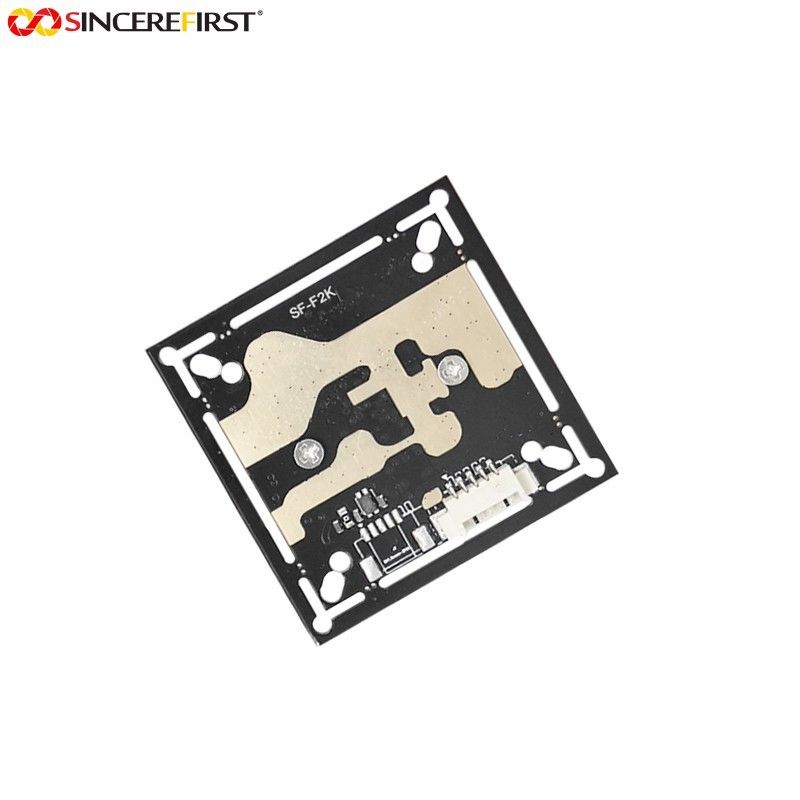

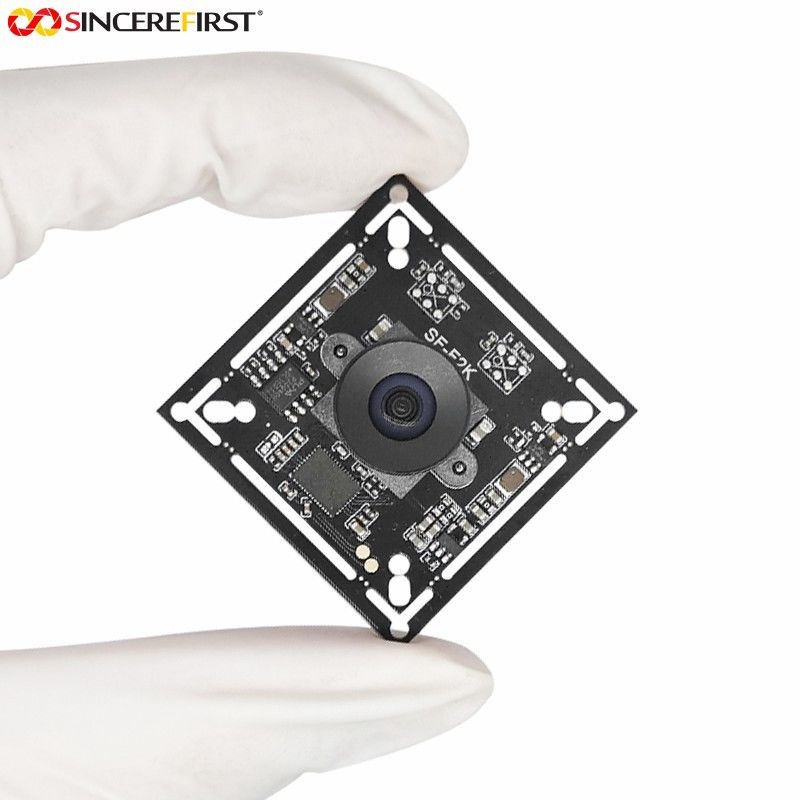

2MP PS5268 Mic Sensor Finger Print Scanner Camera Module With USB Interface
Specificaitons
| Camera Sensor | PS5268 |
| Sensor | 1/2.7’’ CMOS Sensor |
| Pixel | 2 Mega Pixel |
| Most Effective Pixels | 1920(H) x 1080(V) |
| Pixel Size | 3.0µm x 3.0µm |
| View Angle | 120° |
| Focus Type | Fixed Focus |
| Interface Type | USB2.0 |
| Focus Range | 60cm |
| Compression Format | MJPEG / YUV2 (YUYV) |
Description
The PS5268 is a low power, highly integrated CMOS image sensor that output of 1920x1080 (Full HD-1080p) pixels with rolling shutter readout. It embedded the new FinePixel™ and HDR sensor technology to perform the excellent image quality and single-shot high dynamic range synthesized image output. PS5268 outputs linear 14-bit or local tone mapped 12-bit raw data through MIPI CSI-2 interface with very low power consumption. It is available in CSP package. The PS5268 can be programmed to set the exposure time for different luminance condition via I2CTM serial control bus. Embedded HDR image synthesis with local tone mapping to deliver high performance, cost effective and time to market for high resolution HDR application. By programming the internal register set, it performs on-chip black level correction and high temperature image quality control.
Features
◆Image size :1928 x 1088 pixels with Bayer-RGB color filter array and micro-lens
◆Output format:
-14bit Linear HDR-RAWRGB
-12bit HDR + Local Tone Mapped
RAW RGB
-10bit Linear RAWRGB
Output interface
-12bit parallel DVP output
-2-lane MIPI output (up to 800Mbps per lane)
◆I2CM Interface with two kinds of Slave_ID
◆Low Power consumption
◆High sensitivity
◆Support on-chip HDR synthesis
◆Image sensor processor functions
-Automatic black-level calibration
-Embedded Local Tone Mapping
-Black sun cancellation
◆Support sensor frame synchronization
◆On-chip PLL (input clock/PLL m>=1MHz)
◆On-chip column A/D converter
◆On-chip manual analog gain control
◆Continuous variable frame time & exposure time
◆Support WOI and subsampling
◆Support dummy line & pixel timing
◆Support output Hsync at Vsync
◆Support1.7V~33VI/O
◆Support Fast Auto Exposure(FAE) function
Applicaitons
Surveillance HD-CCTV Camera
Surveillance IP Camera
Car Video Recorder
Video Door Phone
