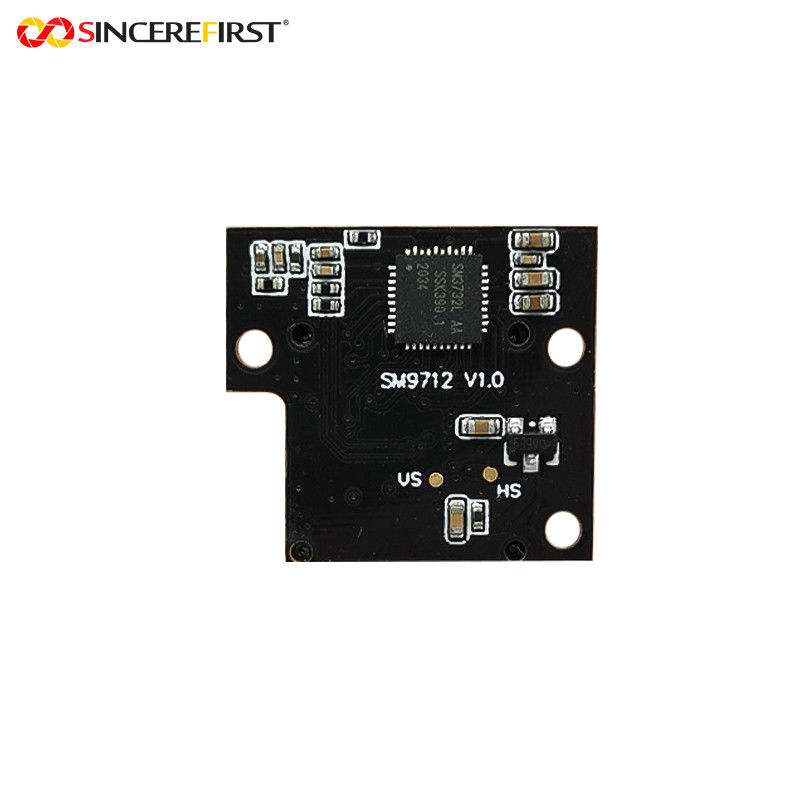

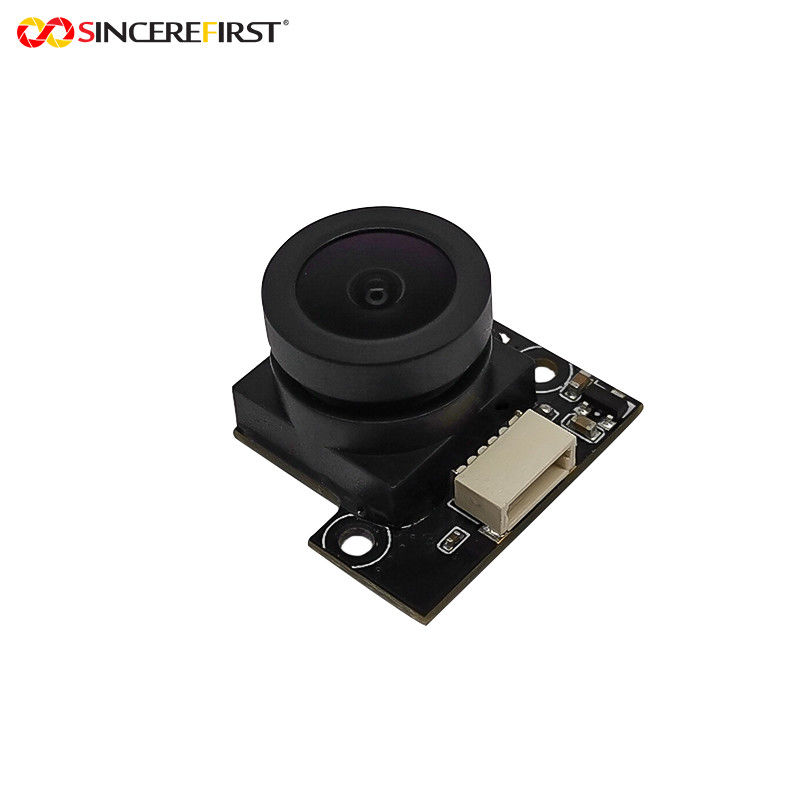

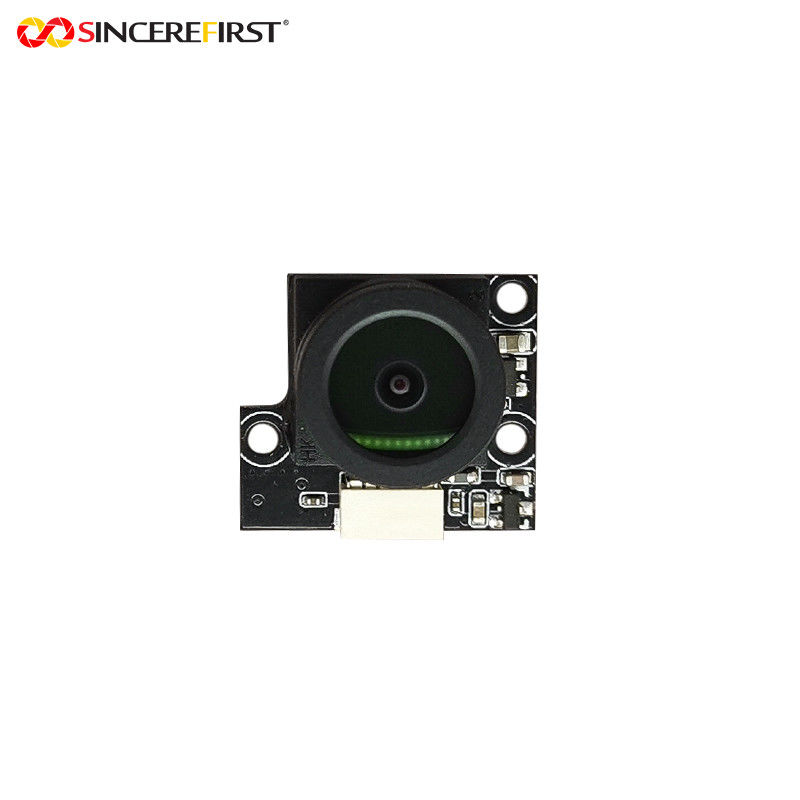

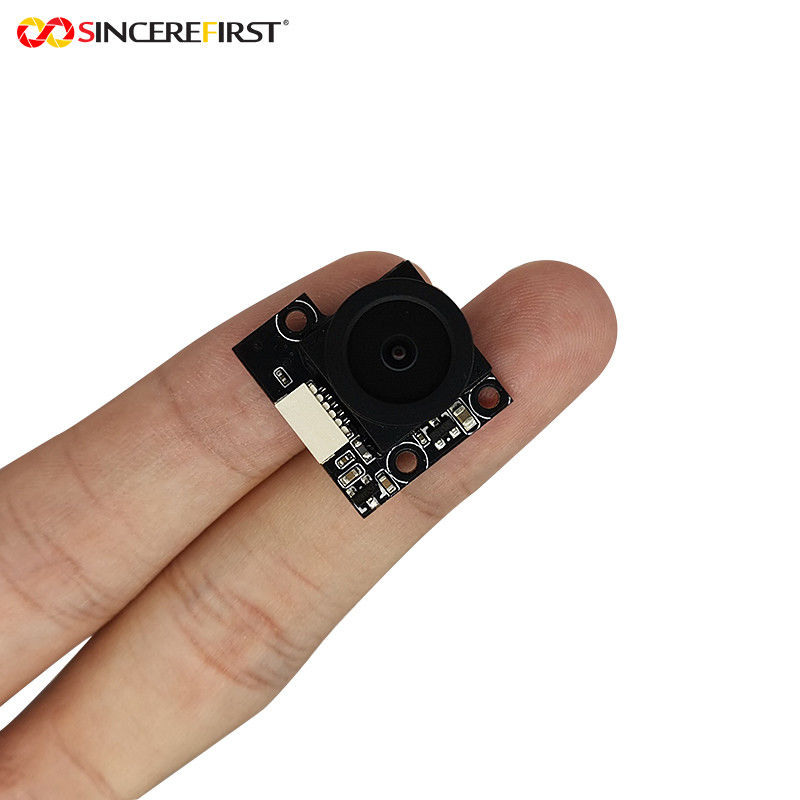

Micron 1MP Omnivision Cmos Sensor OV9712 Camera Image Sensor Types
Specificaitons
| Sensor | OV9712 |
| Lens Size | 1/4 inch |
| Pixel Size | 3.0um X 3.0um |
| Image Area | 3888m x 2430m |
| Max. Resolution | 1280(H)X720(V) |
| Compression Format | MJPEG / YUV2(YUYV) |
| Focusing Range | 60cm~Infinity |
| Focal Length | 2mm |
| F Number | 2.5 |
| TV Distortion | ＜-88% |
Description
OV9712 is a 1/4-inch sensor that provides full-frame, sub-sampled or windowed 8-bit/10-bit images in raw RGB format via the digital video port and with complete user control over image quality, formatting and output data transfer. The sensor offers a chief ray angle (CRA) of 25°.
Features
◆high sensitivity for low-light operation
◆ultra low power and low cost
◆automatic image control functions:
-automatic exposure controlAEC
-automatic gain control(AGC
-automatic white balance AWB
-automatic band filter(ABF)
-automatic black level calibration(ABLC
◆programmable controls:
-frame rate
-AEC/AGC 16-zone size/position
weight control
-mirror and flip
-cropping and windowing
◆image quality controls:
-lens correction
-defective pixel canceling
◆output support for raw RGB supports
image sizes:
-WXGA(1280x800
-HD720p(1280x720)
-VGA(640x480)
◆support for horizontal and vertical sub-sampling
◆support for black sun cancellation
◆support for internal and external frame cancellation
◆standard serial camera control bus (SCCB)interface
◆digital video port (DVP) parallel output interface
◆embedded one-time programmable (0TP)memory
◆on-chip phase lock loop(PLL)
◆built-in 1.5V regulator for core
Applicaitons
Notebooks
Telepresence
Digital Cameras
Webcams
Medical
Entertainment
