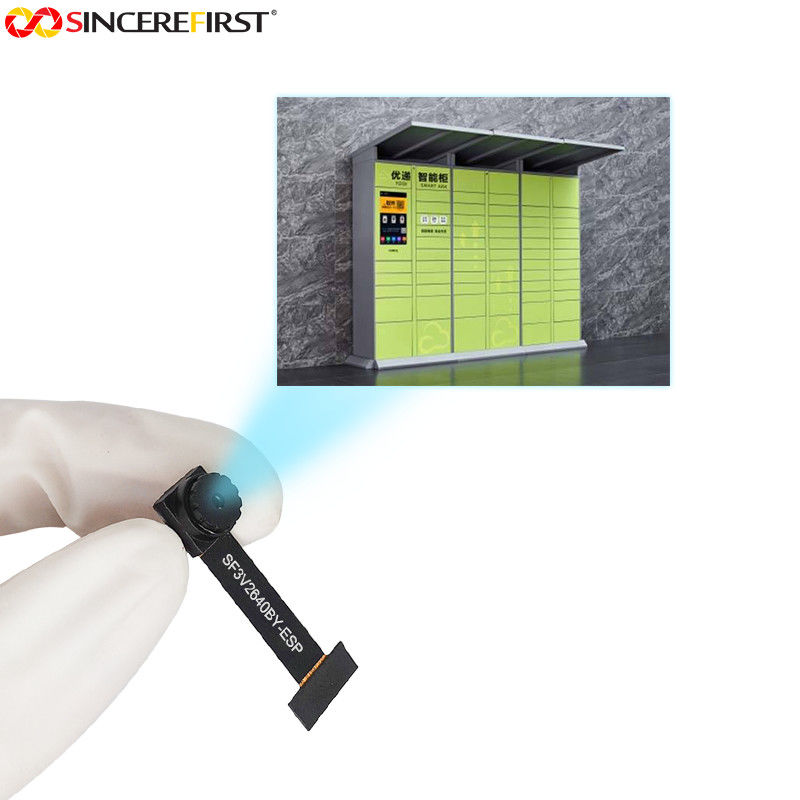

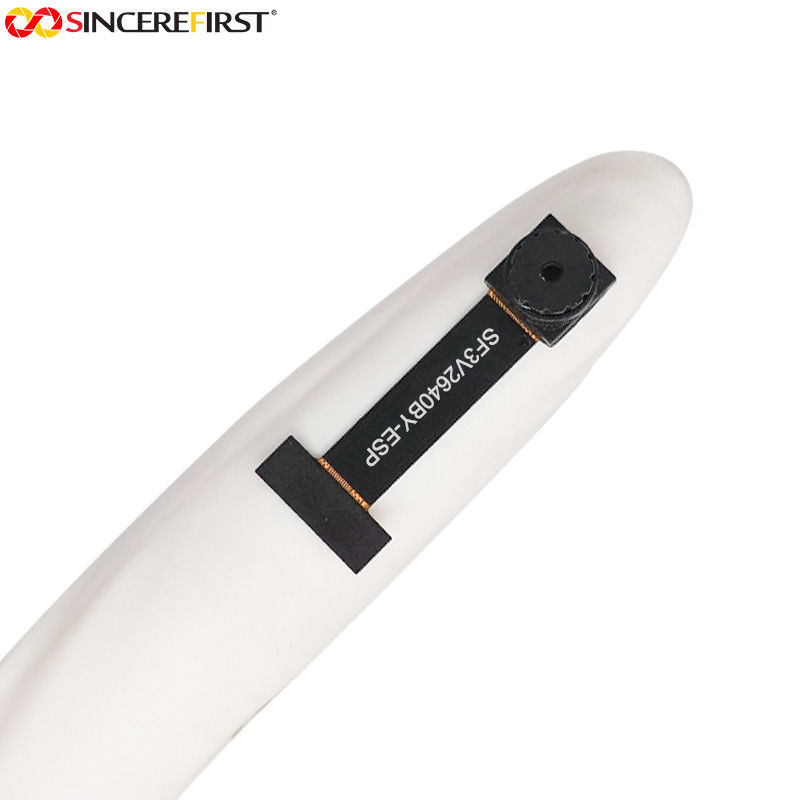

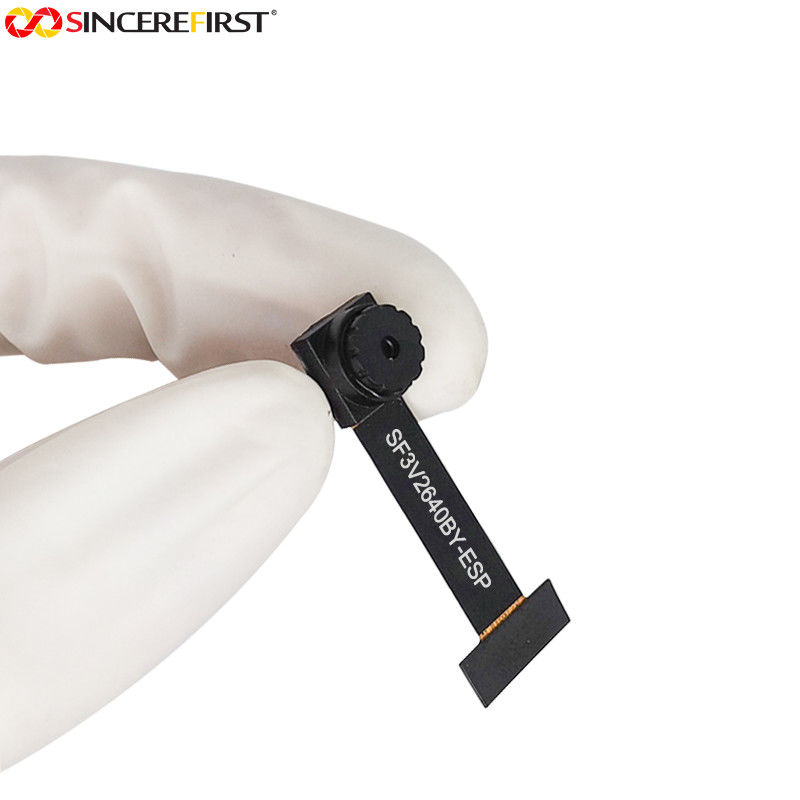

2mp Wide Angle Camera Module ESP32 Cam With OV2640 DVP Interface
Specificaitons
| Image Sensor | OV2640 |
| Shutter Type | Rolling Shutter |
| Pinout | 24PIN |
| Features | Wide Angle |
| Lens Size | 1/4" |
| Pixel Size | 2.2 µm x 2.2 µm |
| Dark Current | 15 mV/s at 60°C |
| Camera Module Type | FPC Camera Module |
| Distortion | <14% |
| Array Size | 1600 x 1200 |
Description
The OV2640 is a low voltage CMOS image sensor that provides the full functionality of a single-chip UXGA (1632x1232) camera and image processor in a small footprint package. It has an on-chip ISP which can do auto-exposure, auto-white balance in such a small sensor package to represent a nice image. The sensor interface is DVP which standards for digital video port, a kind of parallel source synchronization camera interface with 8bit data, horizontal/vertical synchronization signal.
Features
◆OV2640 is a 1/4 inch CMOS UXGA (1632 x 1232) image sensor, The sensor is small in size and low in operating voltage, providing the same functions of a single-chip UXGA camera and image processor.
◆Through SCCB bus control, it can output 8 / 10-bit image data with various resolutions in the form of whole frame, sub-sampling, scaling and window extraction.
◆The UXGA image of this product can reach up to 15 frames per second (SVGA can reach 30 frames and CIF can reach 60 frames).
◆Users can fully control the image quality, data format and transmission method.
◆194° Wide angle lens allow you to capture a large area of the scene within a short shooting distance.
Applicaitons
cell and camera phones
toys
PC multimedia
digital still cameras
