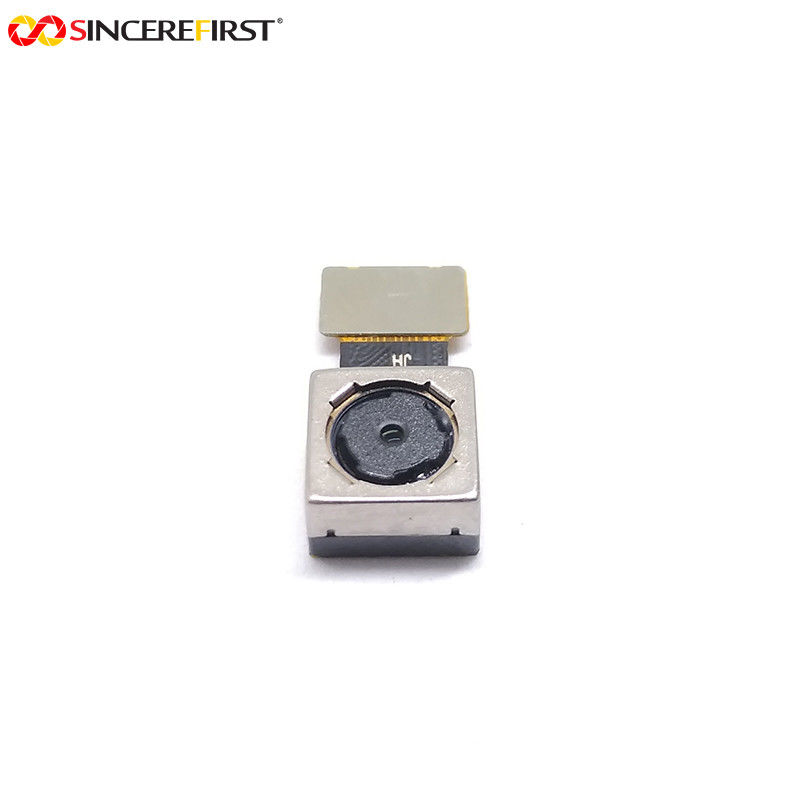

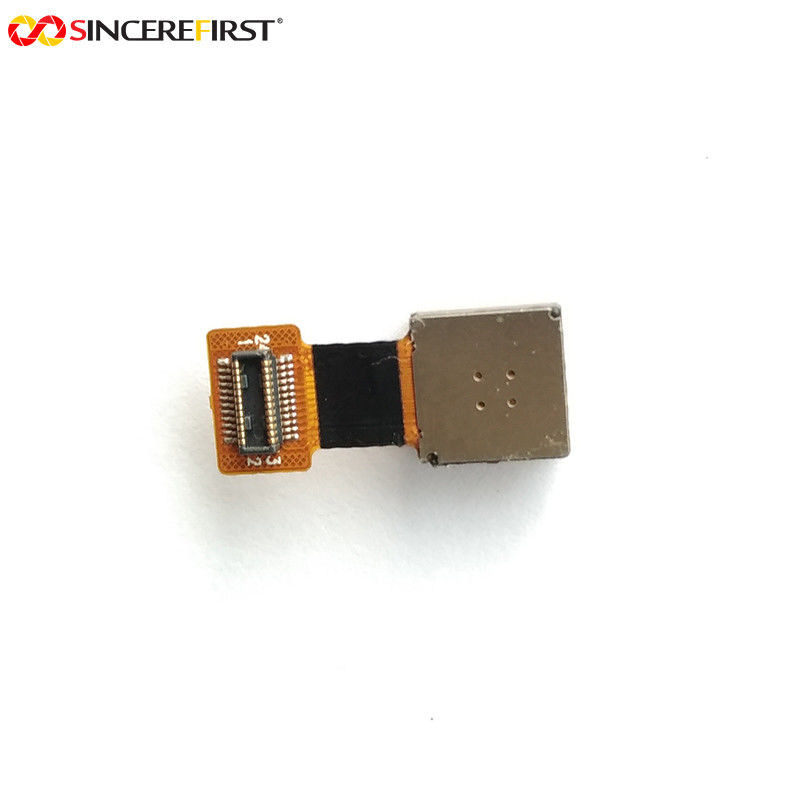

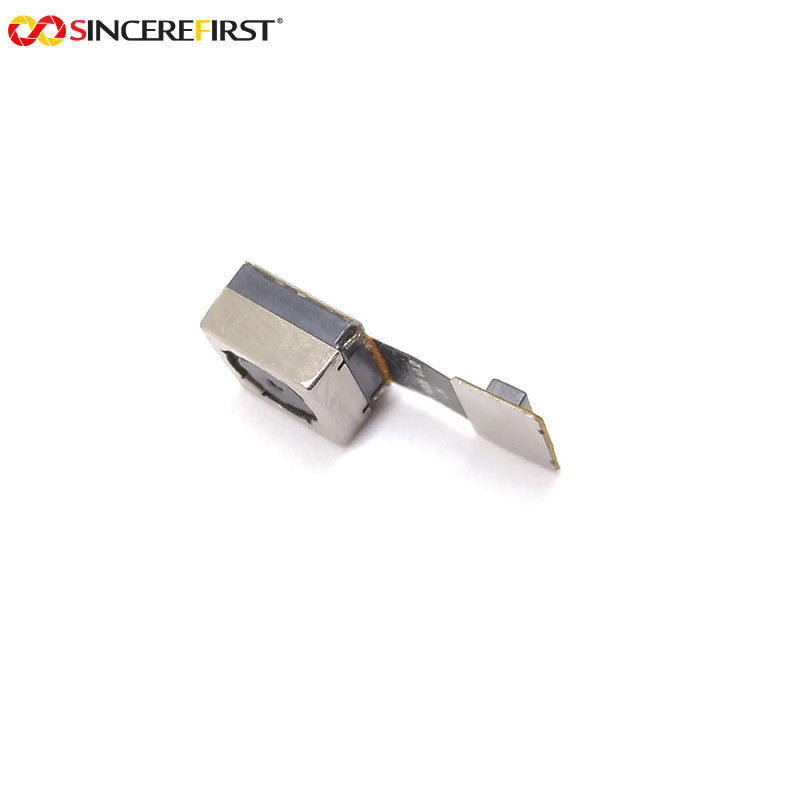

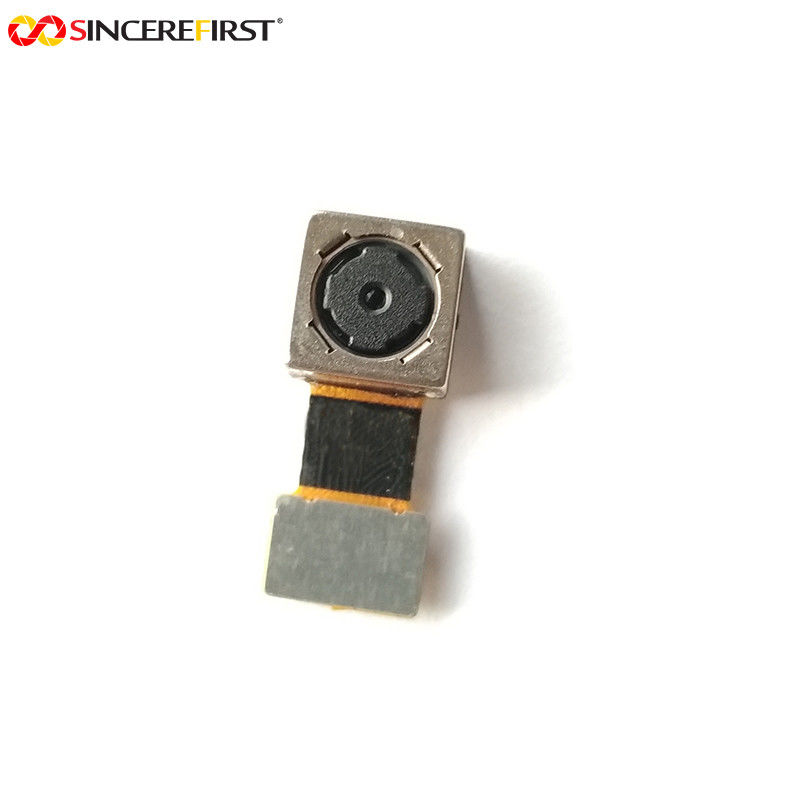

5MP OV5640 CMOS Image Sensor DVP Camera Module For Raspberry Pi
Specificaitons
| Sensor | 1/4’’ Omnivision OV5640 |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Compression format | MJPEG / YUV2 (YUYV) |
| Shutter Type | Electronic rolling shutter |
| Focus type | Auto focus |
| Interface | 24pin DVP |
| FOV Default | 67° |
| Objective Distance | 10cm to infinity |
Description
The OV5640 (color) image sensor is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package.
Features
Pixels: 5 megapixel
Resolution: 2592x1944
Sensor: Auto-focus OV5640 camera sensor module
1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
Supports image scaling, panning, windowing, etc.
Lens:
CCD size: 1/4inch
Aperture (F): 2.5
Focal Length: 2.0mm
Diagonal: 67 degree
Output Formats:
YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Operating Voltage: 3.3V
Control Interface: SCCB (I2C compatible)
Data Interface: DVP 8-bit
Applicaitons
Camera module is widely used for many applications, such as smartphones, tablets, PC multimedia, embedded system, robotics, drones, medical equipment, artificial intelligence, and more. SINCERE FIRST has helped some of the most innovative teams with customized integrated camera module solutions. Please contact us for any customization and additional features.
