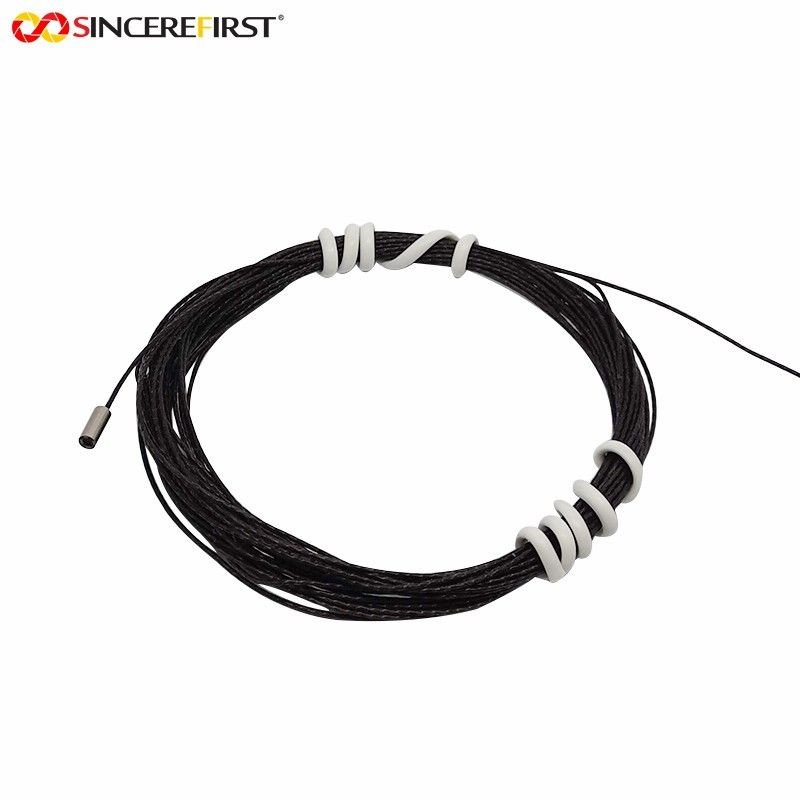

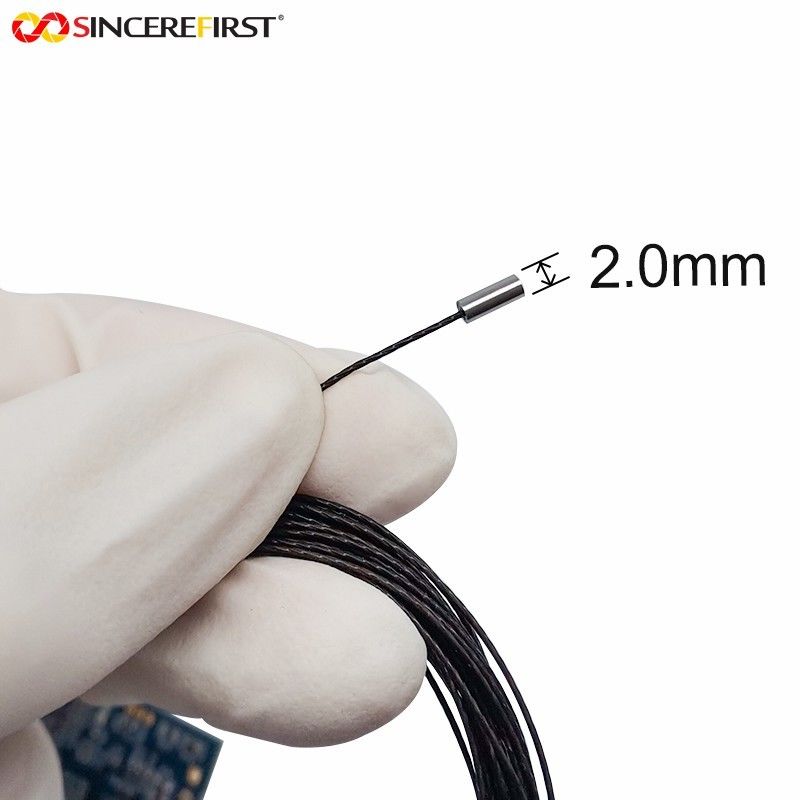

Gastroscope Diameter 1.5mm 2mm Led Endoscope Camera Module With Cable
Specificaitons
| Main Board Dimensions | 50*24mm |
| Camera Cable Length | 2Meters(Optinal) |
| Operating Humidity | 30%-40%RH |
| Stable Image Temperature | 0°C ~ 50°C |
| Operating Humidity | 30%-40%RH |
| TV System | NTSC/PAL(Optinal) |
| AGC | On |
| Light Source | 4pcs Hi-brightness white LED(Optinal) |
| IR Band Pass Filter 50% Cut-off | 665+/-10nm |
| Power Supply | 4.8~5.2V |
Description

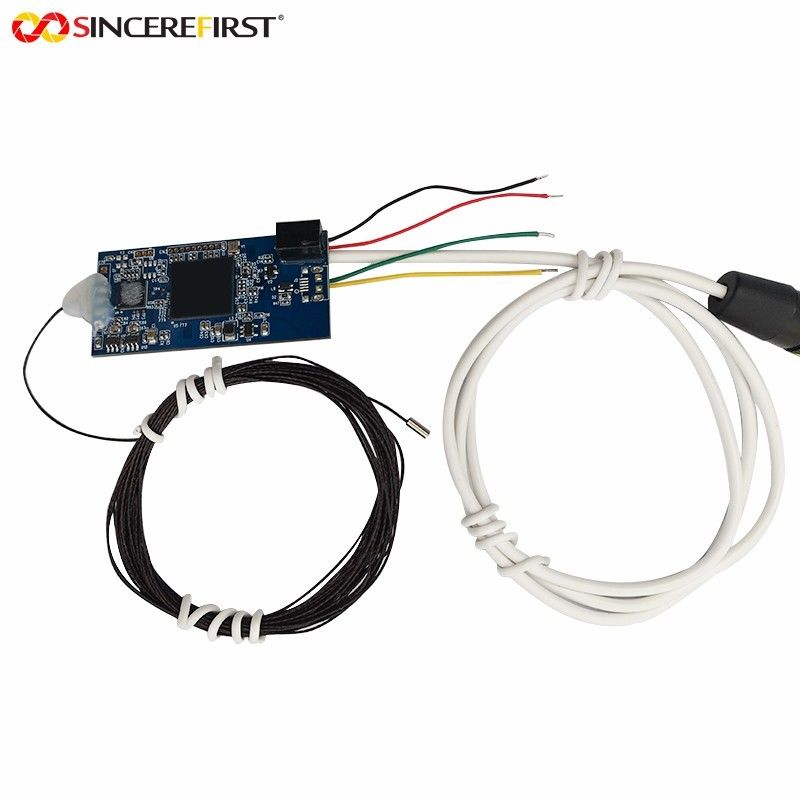

This is our endoscope camera module development, image quality is very excellent; It supports 30FPS high frame rate at (400x400) resolution; Its module size is very small: 50MM x 24MM; all these features make our product very unique and popular in the market.There is LED on this camera module, you can control the brightness by the scroll button, and you can decide to turn on/off the LED lights.
Features
◆CMOS sensor
◆Module size is very small: 50MM x 24MM
◆Auto Focus
◆It supports 30FPS frame rate at resolution (400x400)
◆High Dynamic Range (HDR) technology
◆UVC compliant, Plug & Play
◆Support Linux, Android, Mac and Windows
SCCB control interface for register programming
Applicaitons

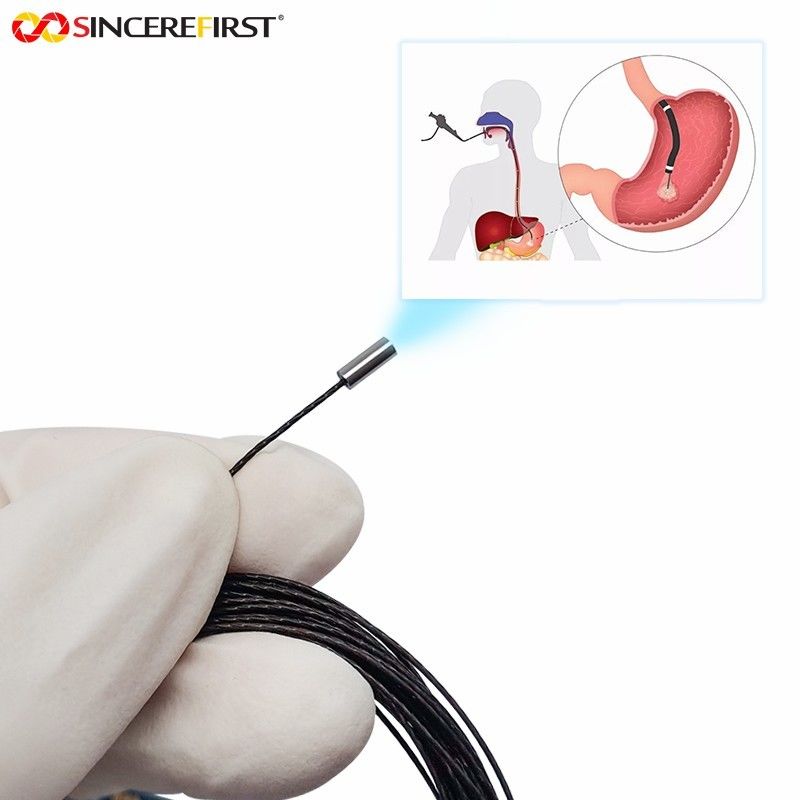

Gastroscope
neuro
ophthalmic
ENT
cardiac
spinal
urology
gynecology
arthroscopy procedures
Customized Service
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
Customized Process
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
