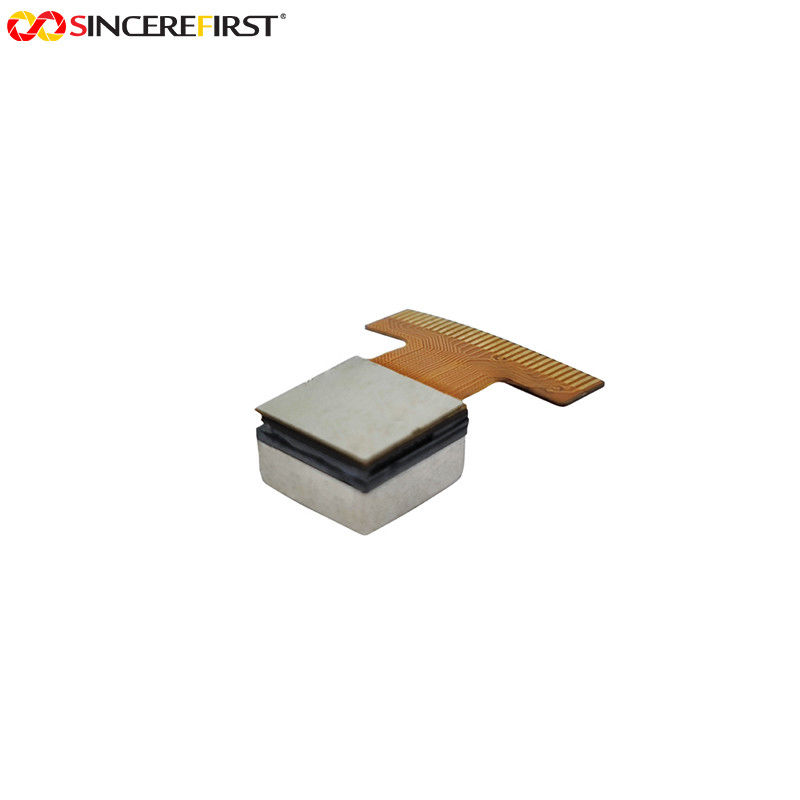

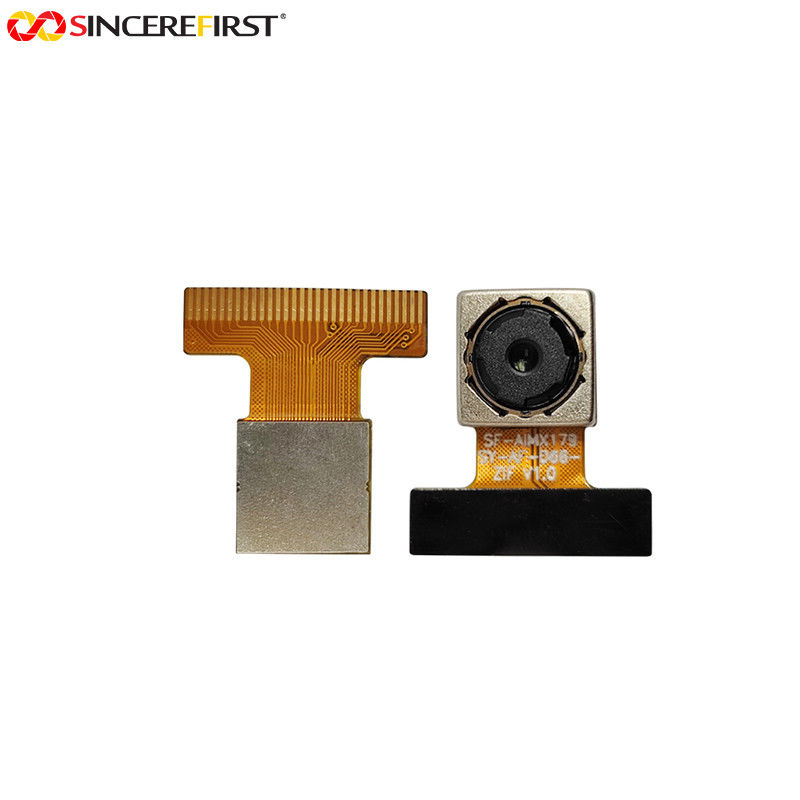

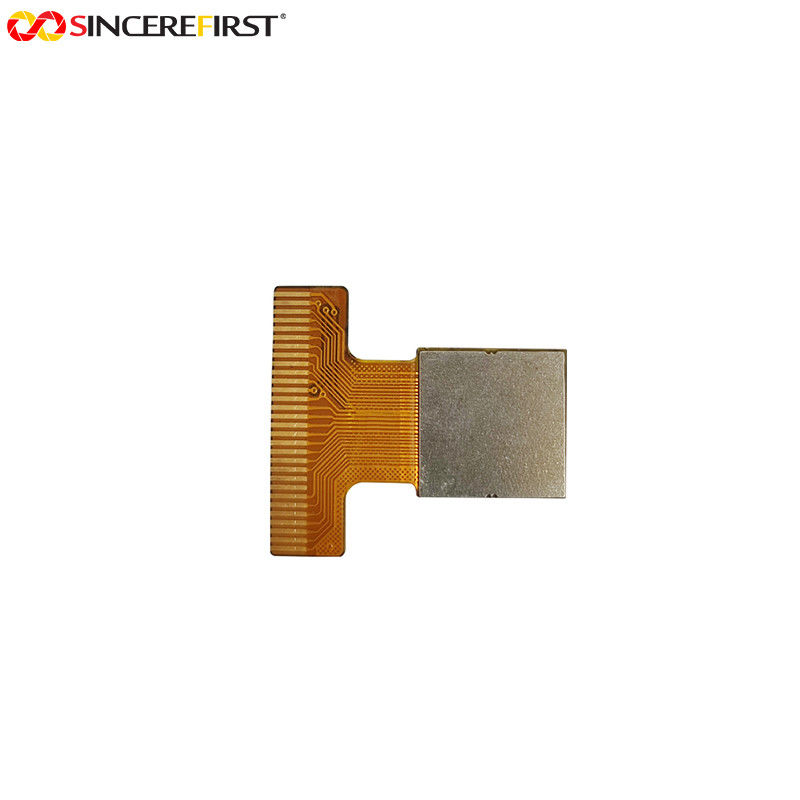

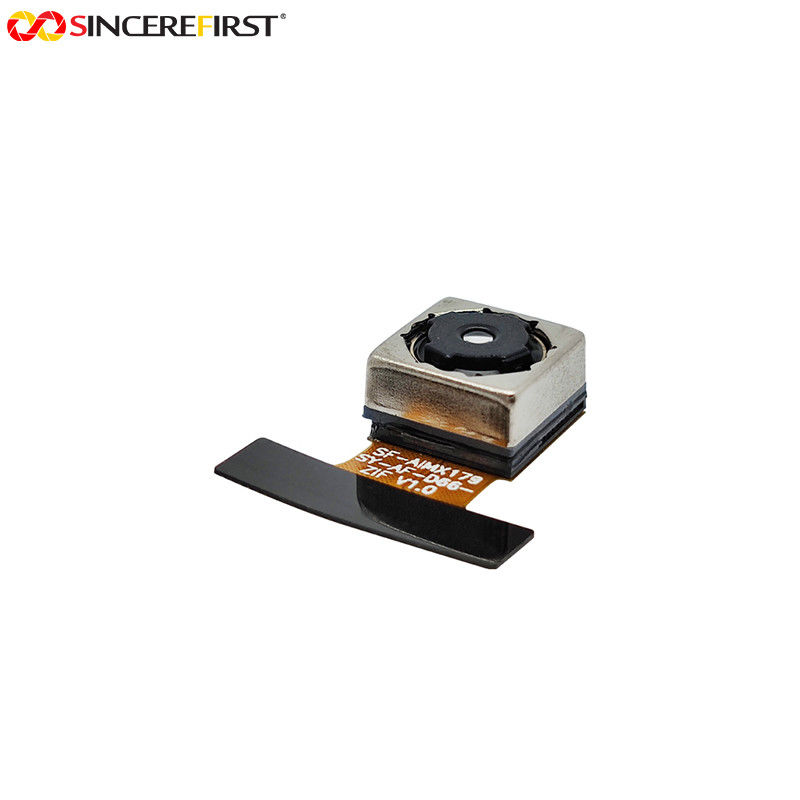

8mp Auto Focus Camera Module Image Detection Sony IMX179 Sensor
Specificaitons
| Focal Length | 4.39mm |
| Basic tolerance | ±0.1mm |
| Output format | RGB output |
| Type | Cmos camera module |
| Certification | RoHS |
| View Angle | 68° |
| Theory | CMOS Imaging |
| Technology | Infrared |
| Focus | Auto Focus, AF,Fixed Focus ,FF |
| Interface | MIPI |
Description
The lMX179 is a diagonal 5.7mm (Type 1/3.2)CMOS active pixel type image sensor with a square pixel array and 8.08M effective pixels.This chip operates with three power suppliesanalogue 2.7Vdigital 1.2 Vand IF 1.8 Vand has low power consumption.High sensitivity,low dark current,and no smear are achieved through the adoption of R, G,and B primary color pigment mosaic filters.This chip features an electronic shutter with variable charge-storage time.
In addition, this product is designed for use in cellular phone and tablet PC.When using this for another application, Sony does not guarantee the quality and reliability of product. Therefore,don't use this for applications other than cellular phone and tablet PC.Consult your Sony sales
representative if you have any questions.
Features
◆CMOS active pixel type dots
◆2-wire serial communication circuit on chip
◆CSI2 serial data output
◆Timing generator, H and Vdriver circuits on chip
◆CDS/PGA on chip
◆10-bit A/D converter on chip
◆Automatic optical black(OB)clamp circuit on chip
◆PLL on chip(rectangular wave/sine wave)
◆High sensitivity, low dark currentno smear
◆Excellent anti-blooming characteristics
◆Variable-speed shutter function(1H units)
◆R.G.B primary color pigment mosaic filters on chip
◆Max. 30 frame/s in all-pixel scan mode
◆Pixel rate:>260 MHz(>30 frame/s at All-pixel mode)
Applicaitons
security
surveillance
access control
artificial intelligence
all kinds of intelligent machines (Koisk, VTM, CRS, ATM, etc) and so on.
