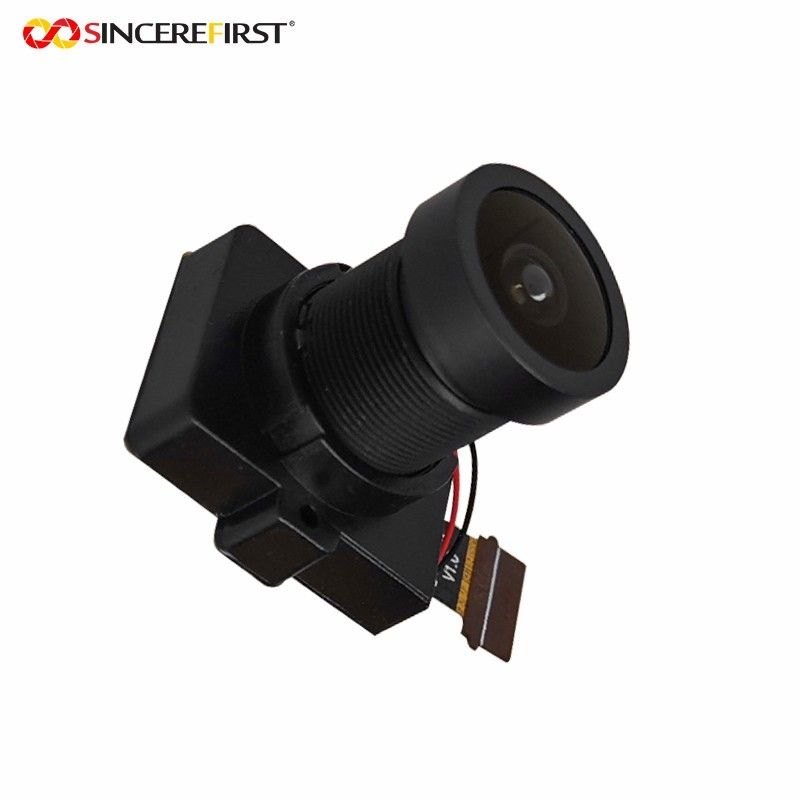

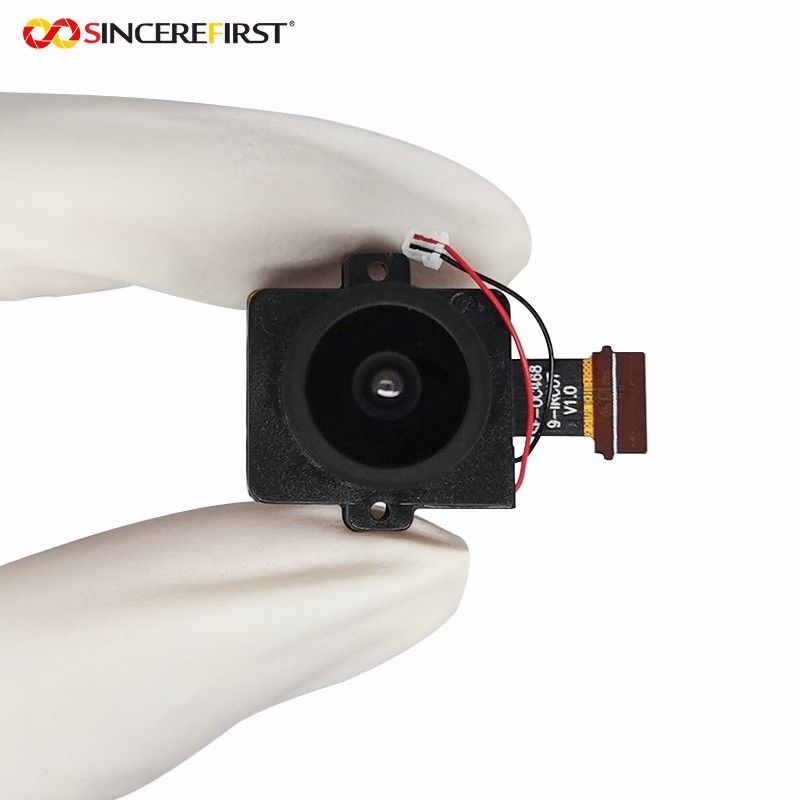

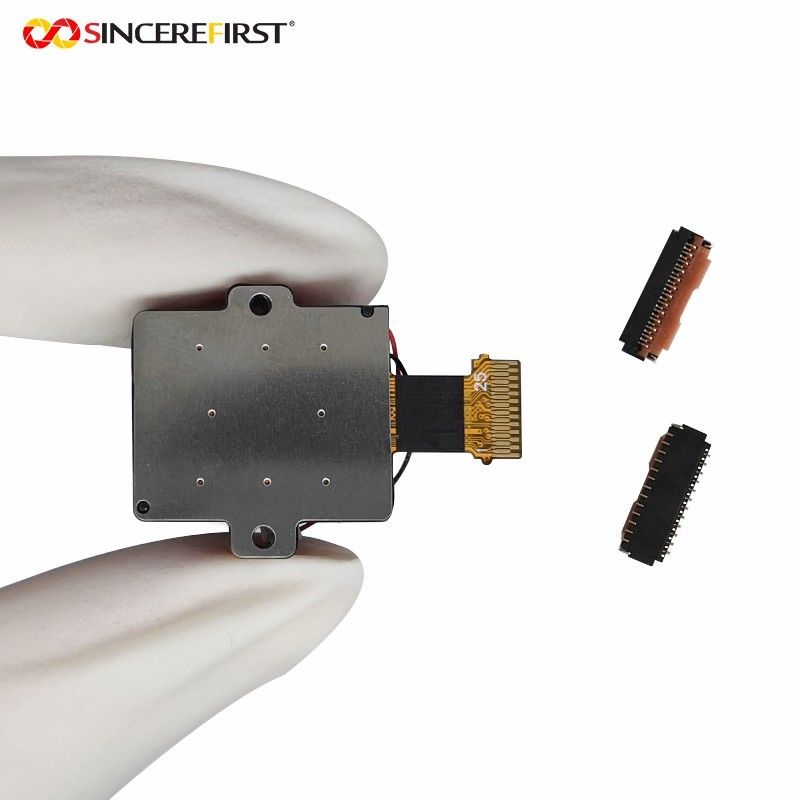

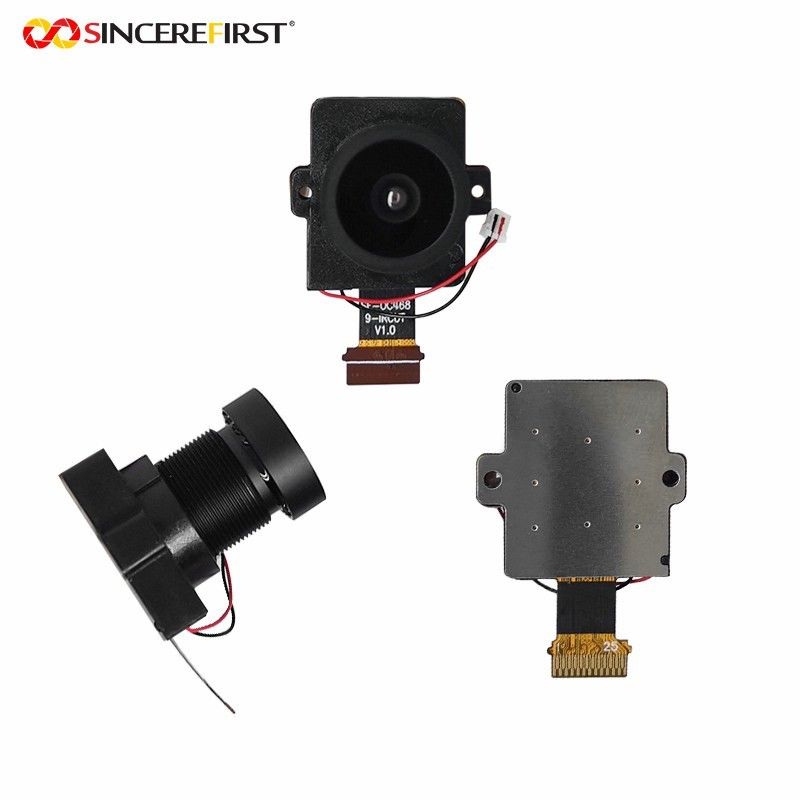

4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle

4MP CMOS Omnivision OV4689 Image Sensor Hd MIPI Camera Module

Specificaitons

Description

The OV4689 is a MIPI CSI-2 camera equipped with OmniVision 1/3" CMOS 4MP image sensor OV4689 which features improved OmniBSI-2™ technology. This camera outputs 10-bit RAW data.

Features

◆automatic black level calibration (ABLC)

◆programmable controls for frame rate, mirror and flip, cropping, and windowing

◆static defective pixel canceling

◆supports output formats: 10-bit RAW RGB (MIPI)

◆supports horizontal and vertical subsampling

◆supports images sizes: 4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p

◆fast mode switching

◆support 2x2 binning, 4x4 binning, re-sampling filter

◆standard serial SCCB interface

◆up to 4-lane MIPI serial output interface

◆embedded 4K bits one-time programmable (OTP) memory for part identification, etc (see sidebar note)

◆two on-chip phase lock loops (PLLs)

◆programmable I/O drive capability

◆built-in temperature senso

Applicaitons

IP cameras
sports cameras
automotive
