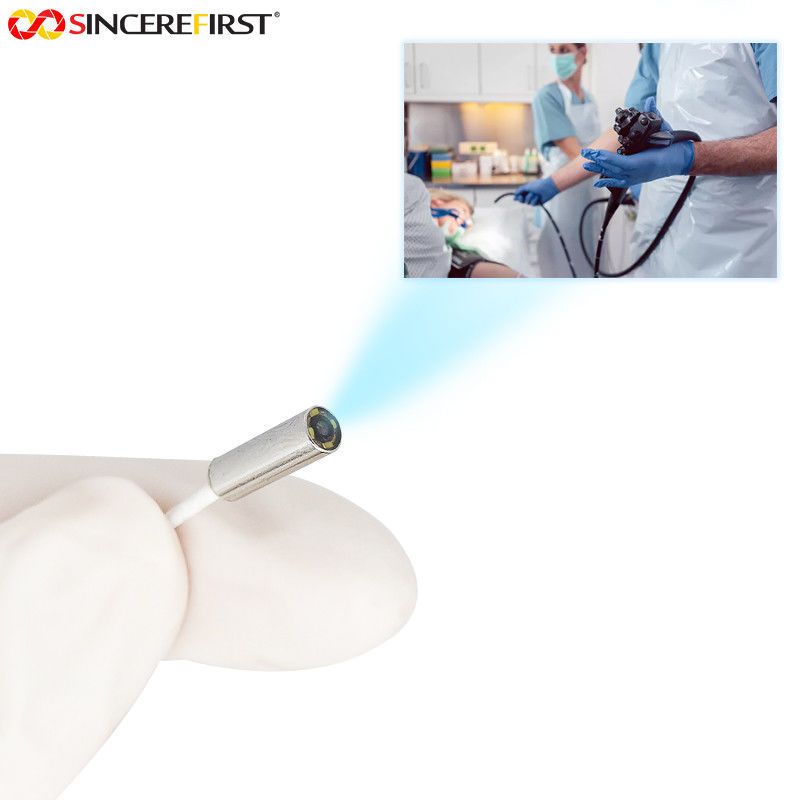

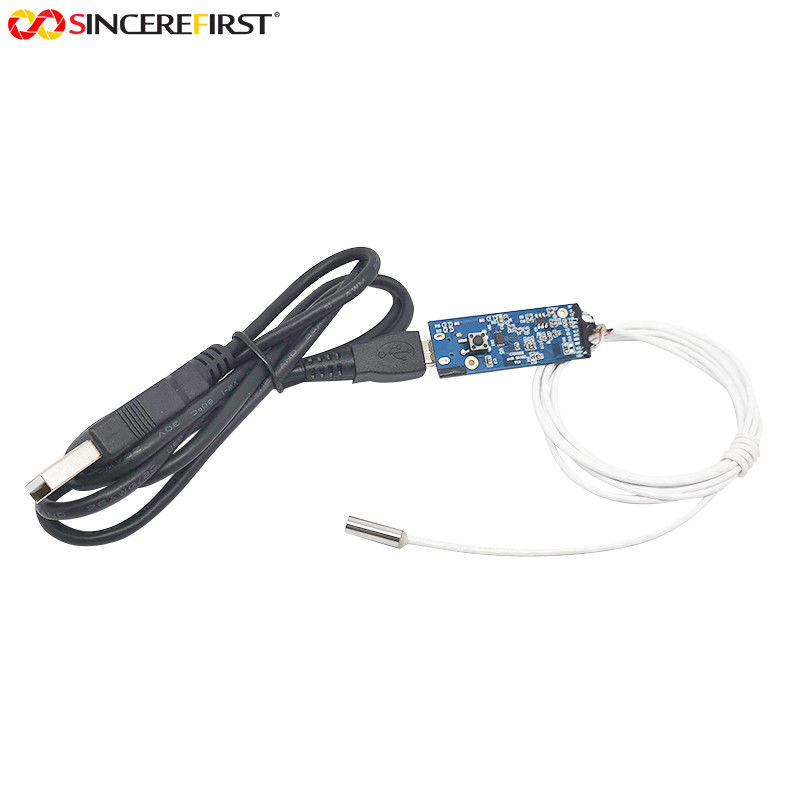

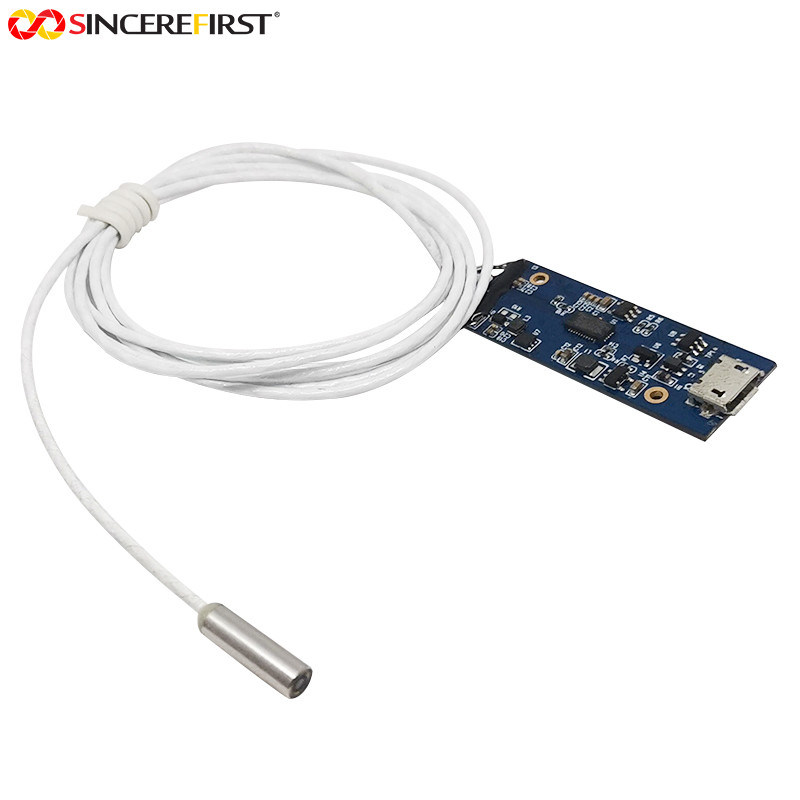

A medical endoscope is a medical instrument that can be inserted into the human body cavity and visceral cavity for direct observation and diagnosis. It includes image sensors, optical lenses, light source lighting, mechanical devices and other components. It's imaging mainly relies on the camera module of the front-end device, and this part of the module that obtains the image is generally called the endoscope camera module.

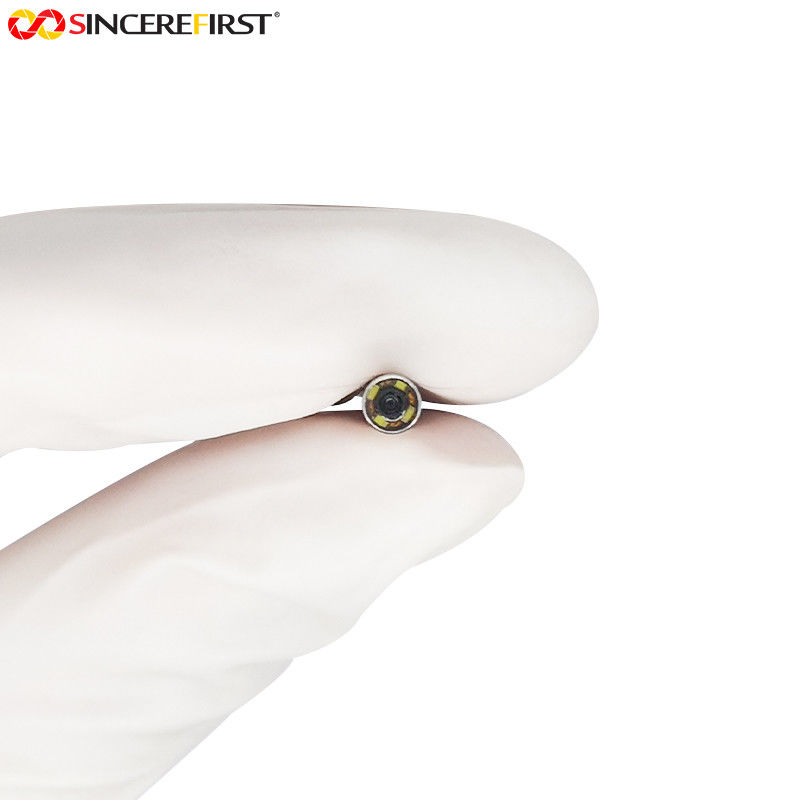

The outer diameter of an endoscopic camera is 3.9 millimeters and can be equipped with a wide-angle lens and a telephoto lens, making it easy to observe objects up close.
| Parameter | Value |
|---|---|
| Place of Origin | Guangdong, China |
| Sensor | CMOS, 1/11" |
| Focusing Range | 10mm~100mm |
| Focal Length | 1.25mm |
| F Number | 4 |
| Fov(D) | 75° |
| TV Distortion | ＜-10% |
| LED | 0402 white LED |
| Output Format | Standard UVC |
| Interface | USB |
This endoscope suitable for industrial video endoscopes, pipe detection endoscopes, and motor vehicle inspection endoscopes. Mirror, cylinder inspection, video fishing camera, underwater camera, ENT endoscope, oral endoscope, medical endoscope, throat endoscope, etc. This product mainly has characteristics of small size, low power consumption, clear imaging effect, etc.
Our products are sold all over the world, you can rest assured.
