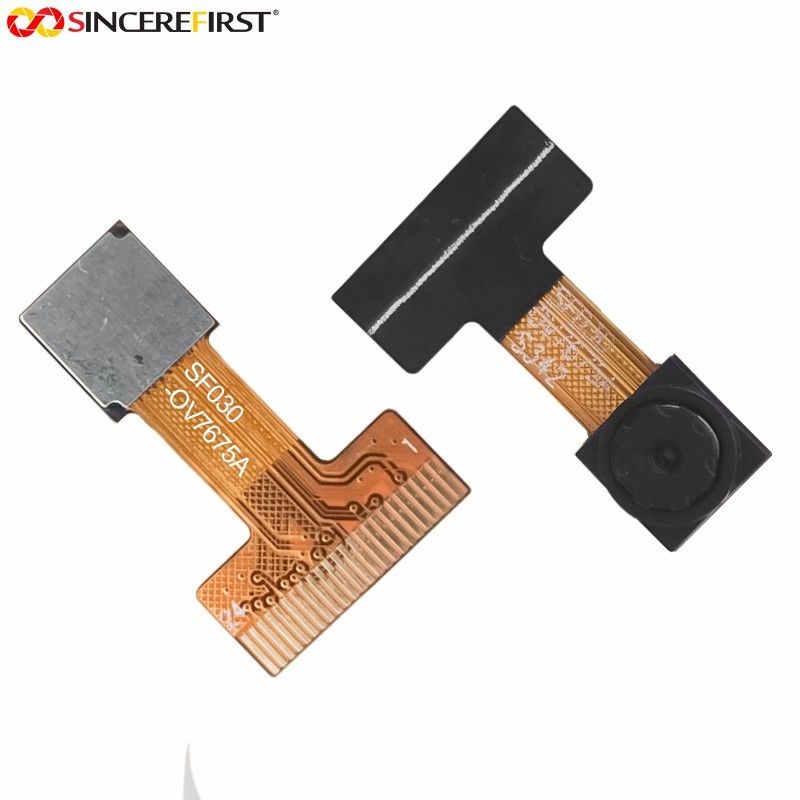

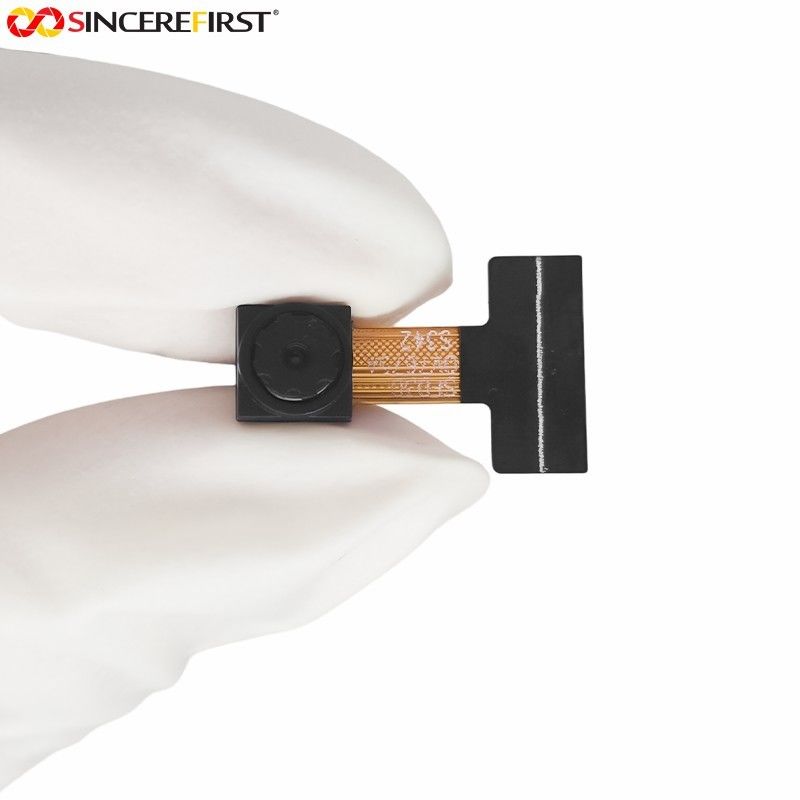

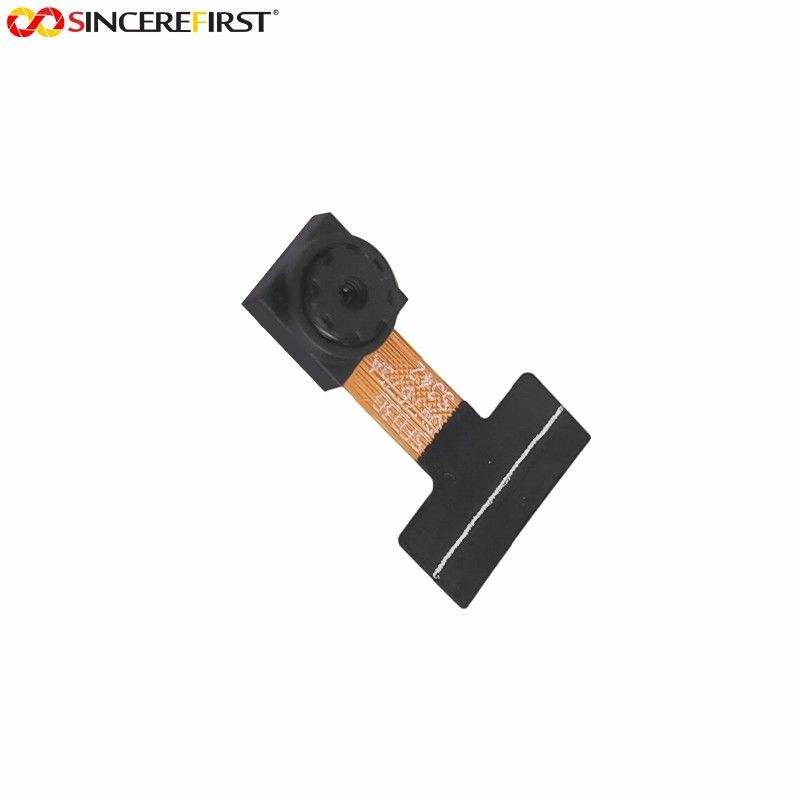

Micro 0.3MP OV7675 CMOS Image Sensor 24 Pin DVP Camera Module
Product Description:
The SincereFirst OV7675 camera provides support for resolutions of up to 640x480 pixels, ensuring the capture of clear and sharp images. Its versatile range of features enhances the functionality of your projects. Whether you're developing a home automation system, a smart monitoring device, or any other project, the SincereFirst OV7675 camera offers a reliable and flexible solution.
Features:
- Cost-Effective Vision Solution: Affordable and compact, ideal for budget-friendly projects integrating vision capabilities.
2. Simplify Embedded Vision for All: Easy to set up and operate. Making it possible to add machine vision to your development board without much effort at all.
3. High Precision: Captures images with high resolution and detail, allowing for precise visual analysis.
4. Low Power Consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications.
Technical Parameters:
| Active Array Pixels |
640x480 |
| Interface |
24-pin DVP |
| Shutter Type |
Electronic Rolling Shutter |
| Lens Optical Size |
1/9 Inch |
| Focus Type |
Auto Focus |
| View Angle |
60±2° |
| Lens Size |
1/9inch |
| Sensor |
OV7675 Sensor |
| EFL |
1.7mm |
| Distortion |
＜1% |
| AVDD |
2.8V |
Applications:
Machine/Computer Vision
Robotics
IoT
Digital Fabrication
Real-time Processing
