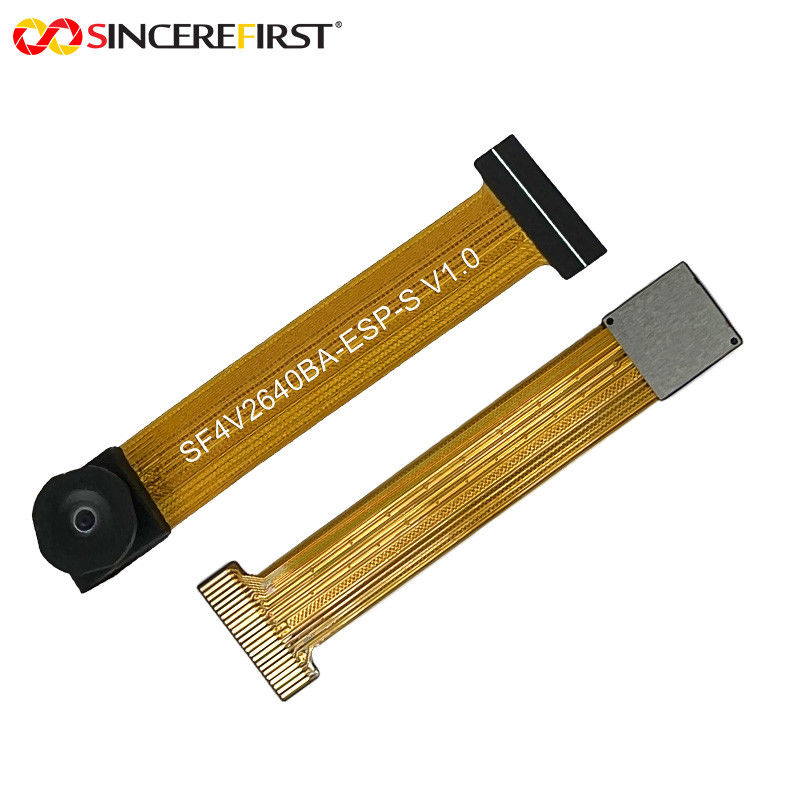

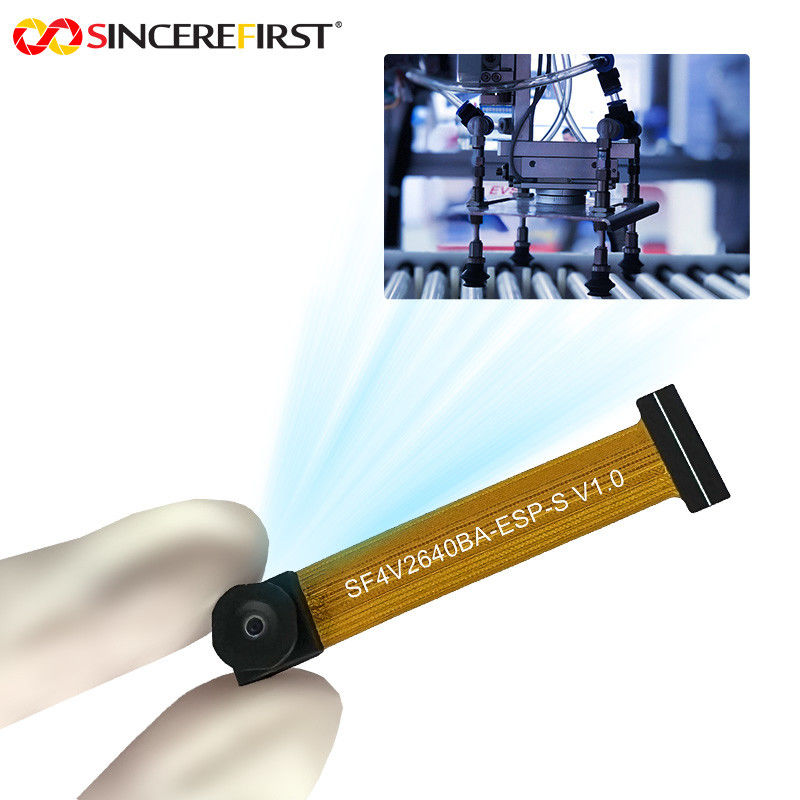

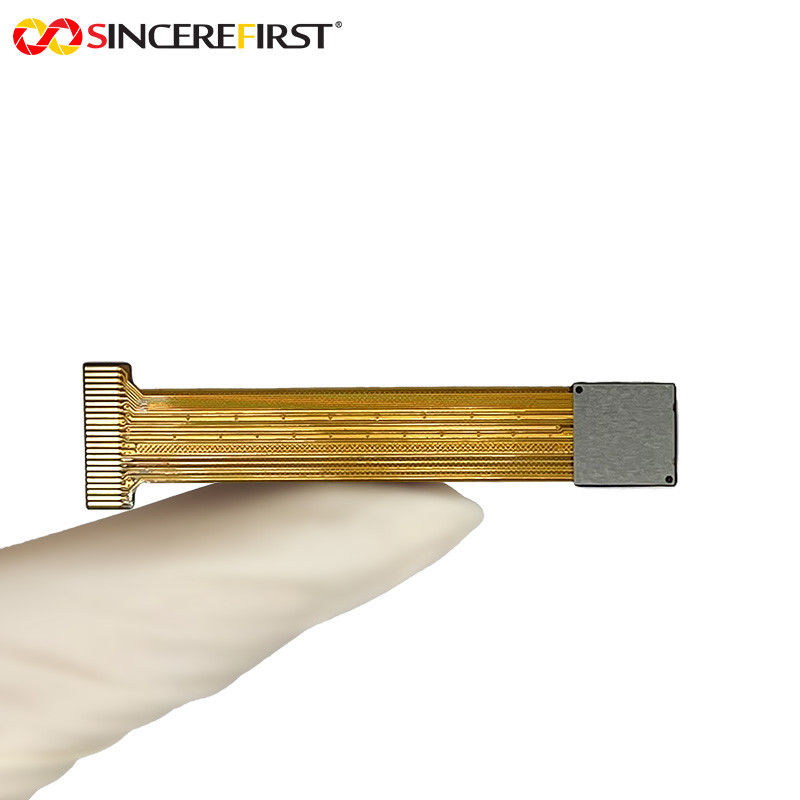

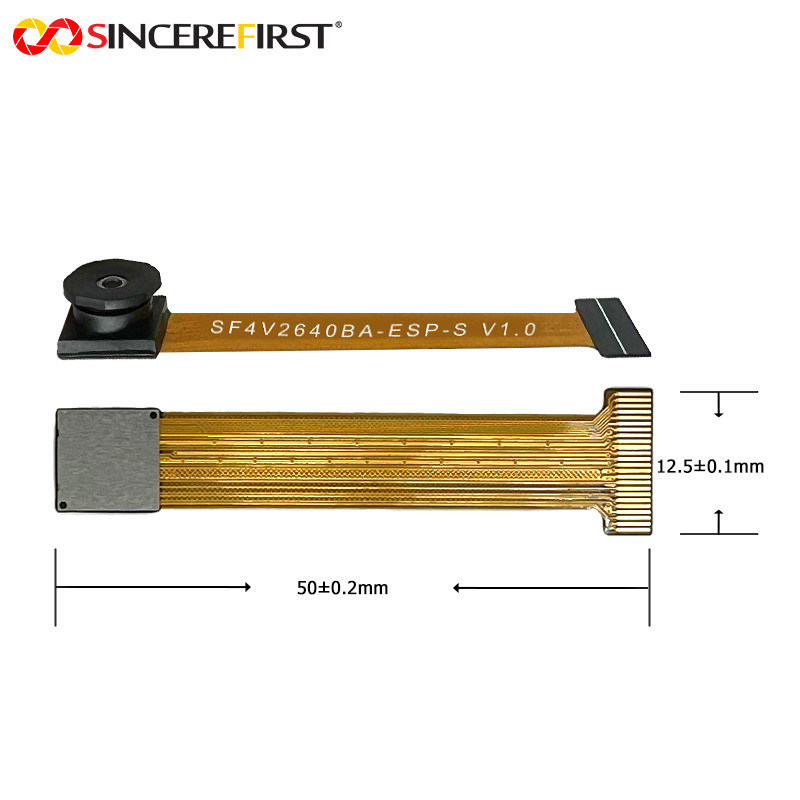

Mini 2MP OV2640 DVP 24 Pin Interface Wide Angle Compact Camera Module
Product Description:
OV2640 is known as an evergreen image sensor from OmniVision. It features DVP friendly interface, powerful on-chip ISP with JPEG encoding, and low power consumption, which makes the OV2640 image sensor unique and popular for IoT camera applications at all times.
Features:
- This 2MP mini Compact Camera Module is based on the 1/4″ OV2640 SOC sensor, which has an on-chip ISP, so as to do auto-exposure, auto-white balance to represent a nice image.
2. DVP interface standards for digital video port, friendly to most of the low-end ARM and RISC microcontrollers like STM32, ESP32.
3. The function of the hardware JPEG encoder, it off-loads the processing power and reduces memory footprint usage from the microcontrollers.
4. Resolution: 1600 x 1200 (UXGA); Maximum Image Transfer Rate: 15fps@1600×1200, 30fps@SVGA, 60fps@CIF; Output Format: YUV/RGB/Raw RGB Data
5. Lens SPEC: Stock lens; 135 degree (D) field of view angle; Integral 650 IR filter, visible light only; Lower than -10% distortion.
Technical Parameters:
| Parameter |
Specification |
| Focus Type |
Fixed Focus |
| EFL |
1.4mm |
| Array Size |
2MP(1600*1200) |
| Features |
Wide Angle |
| Certificate |
CE, FCC, ISO, REACH |
| Pinout |
24pin |
| View Angle |
D135°H110°V86° |
| Lens Type |
1/4" |
| Focusing Range |
10cm~Infinity |
| Distortion |
＜-10% |
Applications:
Smart Home Devices
Industrial Wireless Control
Wireless Monitoring
QR Wireless Identification
Wireless Positioning System Signals
Other IoT Applications
