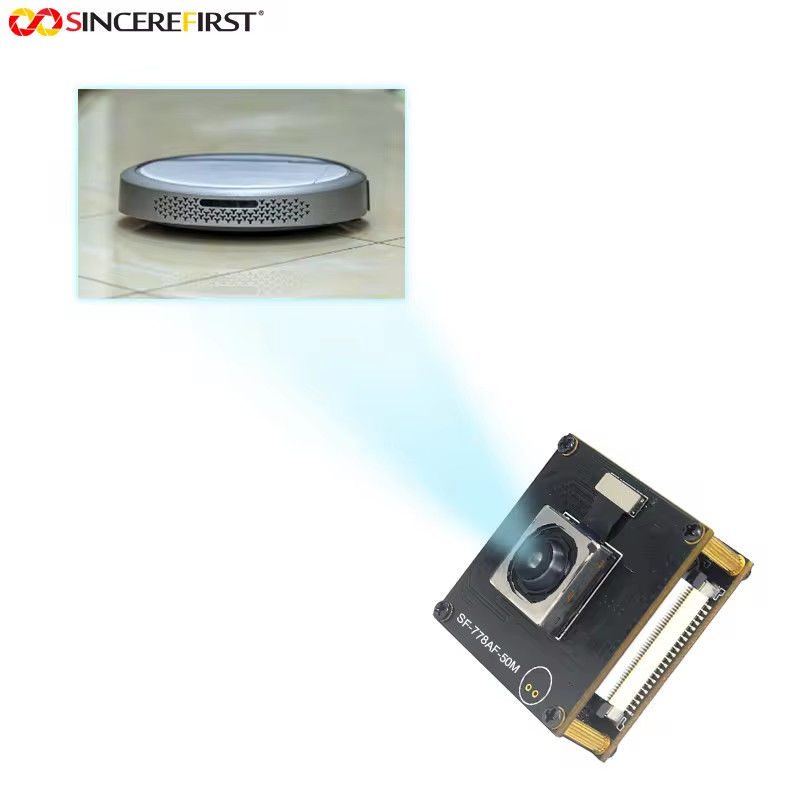

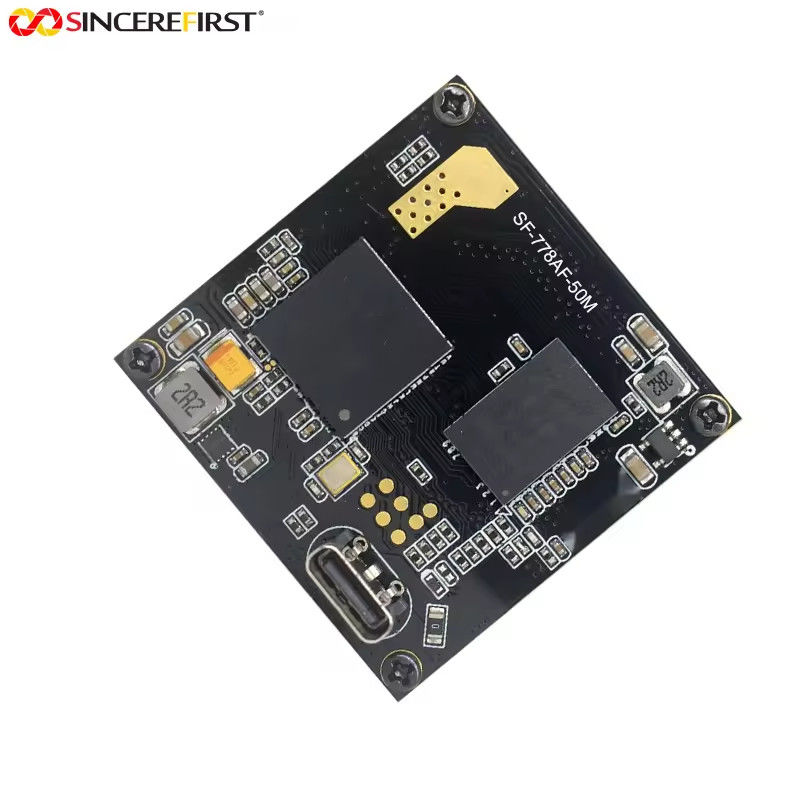

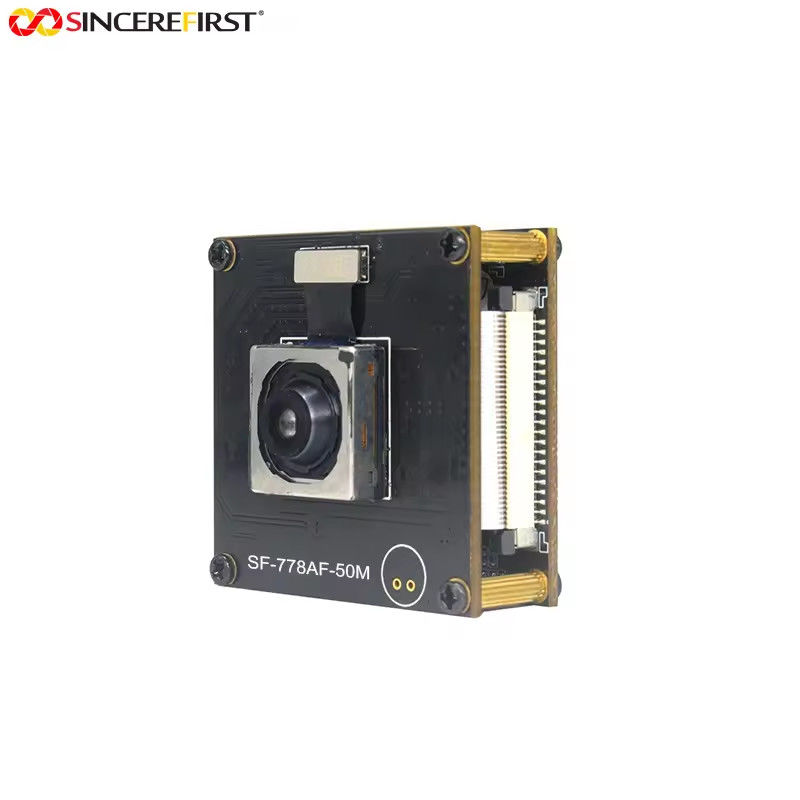

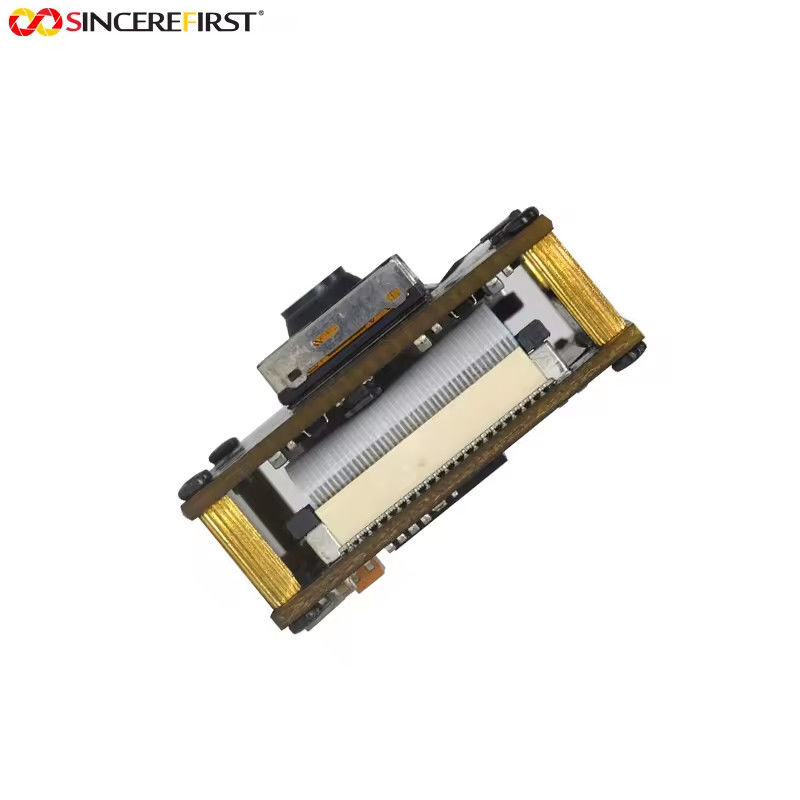

High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot

High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot

Products - USB Camera Module
  • Highlight

    High Pixel Board Camera Module

    ,

    50MP IMX766 Board Camera Module

    ,

    Sweeping Robot Board Camera Module

  • Operating Voltage
    USB-DC5V
  • Product Name
    HD IMX766 50MP USB Camera Module
  • Drive-free Agreement
    USB Video Class（UVC）
  • Operating Current
    610mA(VGA)
  • Pixel Size
    1.0μmX1.0μm
  • Standard Interface
    USB2.0 High Speed
  • Module Size
    Two Layers 38mmX38mm
  • Photosensitive Model
    Sony CMOS Sensor
  • Photosensitive Size
    1/1.56"
  • Drive Mode
    Free Driver
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    Rohs, Reach, ISO
  • Model Number
    SF-778AF-50M 50MP U2.0
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot

  • High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot
  • High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot
  • High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot
  • High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot
Get Price Contact Now

High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot

Product Description:

HD IMX766 50MP USB Camera Module
Product Overview

This camera is SINCEREFIRST NEW UVC camera module. This camera module is based on 50MP High Resolution image sensor. The max resolution&frame rate is 8000(H)×6000(V)@30fps. In addition, we have equipped the camera with auto focus Lens.It is compatible with Windows, Linux, Android and MAC and no additional driver is required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.

Features:

  • HD High Resolution: Based on a 48MP CMOS image sensor sony IMX766; Max Resolution: 8000(H)×6000(V). Max Frame Rate: 30fps. Compression Format: MJPG / YUY2
    2. Auto Focus AF Lens
    3. UVC Compliant: OTG supported just plug the USB cable into your PC’s USB port, and running the software can capture the high-level video and continuous recording, no driver needed.
    4. Wide Compatibility: USB cameras are widely available for Raspberry Pi, Windows, Android, Linux, and Mac OS with UVC protocol.
5. More Application: Perfect for embedded applications, Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.

Technical Parameters:

Product Attribute Value
Brand SincereFirst
Product Name HD IMX766 50MP USB Camera Module
Standard Interface USB2.0 High Speed
Module Size Two Layers 38mmX38mm
Operating Voltage USB-DC5V
Operating Current 610mA (VGA)
Output Format MJPG/YUY2
Imaging Distance 60CM~∞ (AF)
Photosensitive Size 1/1.56"
Pixel Size 1.0μmX1.0μm


Keywords: usb camera board, usb 3.0 camera module, usb camera module



Applications:

1. 3D Scanner
2. VR Camera
3. Laser Engraver Machine
4. Surveillance
5. Video System

High Pixel 50MP Sony IMX766 Sensor USB Board Camera Module For Sweeping Robot 0
