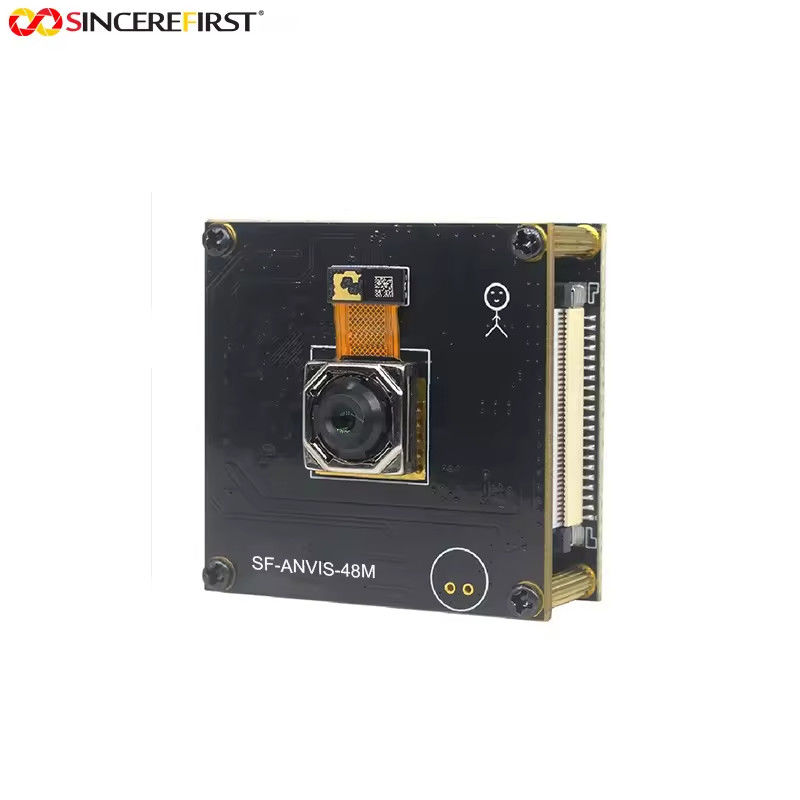

SincereFirst 48MP USB2.0 camera module is based on S5KGM1 CMOS image sensor with Supply Voltage 5 V, Frame Rate 30 fps at 8000*6000 resolution. The sensor has a 1/2.0″ optical format, which combined with the pixel size of 0.8 µm, results in the 48.0 Megapixel 8000H x 6000V resolution. This camera has smart WDR technology that helps to capture vivid photos with greater details even in mixed lighting conditions. It has a PDAF autofocus, tetra chroma and an RGB Bayer color filter.
It is a UVC compliant, plug and play camera module and work with Window, Linux and Mac OS operation systems, which is suitable for robotics, artificial intelligence(AI), machine vision, computer vision, IoT, mobile phone applications, etc.

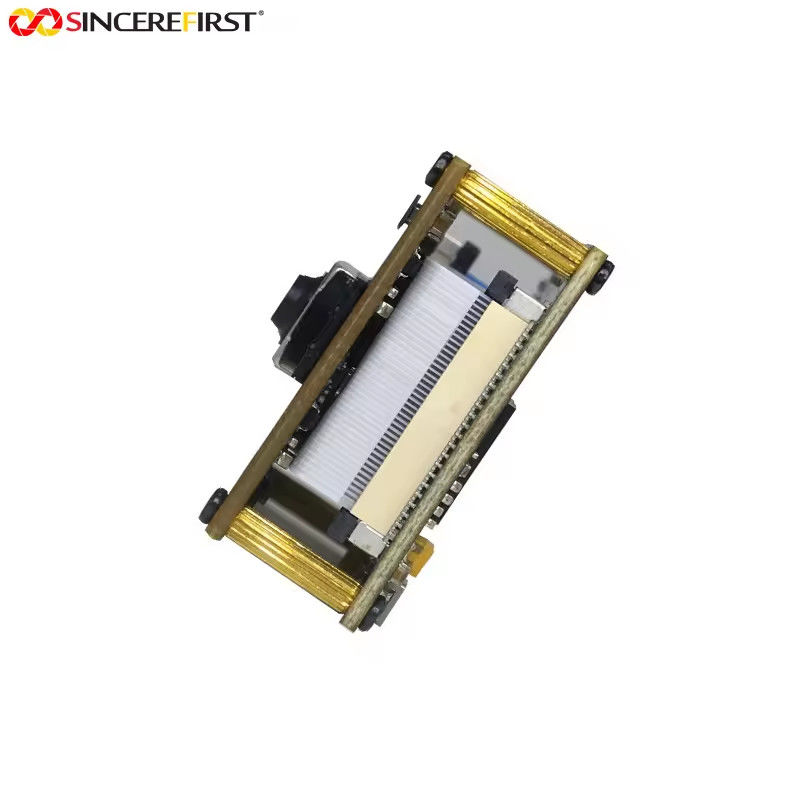

Our off-the shelf dimensions are 38*38mm, any other required dimension can be customized.
It supports the below resolution & frame rate:
MJPG:
8000x6000@4FPS; 4000x3000@12FPS; 3840x2160@30FPS; 640x480@23FPS;
YUY2:
1920x1080@5FPS; 800x600@18FPS; 640x480@23FPS;
| Technical Parameters | Description |
|---|---|
| Brand | SincereFirst |
| Product Name | High Resolution HD 48MP USB Camera Module |
| Camera Sensor | CMOS |
| Output Format | MJPG/YUY2 |
| Pixel Size | 0.8μmX0.8μm |
| Photosensitive Size | 1/2" |
| Drive Mode | Free Driver |
| Standard Interface | USB2.0 High Speed |
| Operating Voltage | DC5V |
| Operating Current | 460mA (VGA) |
| Imaging Distance | 1CM~∞ (AF) |
| Drive-free Agreement | USB Video Class (UVC) |
Our products are sold all over the world, you can rest assured.
