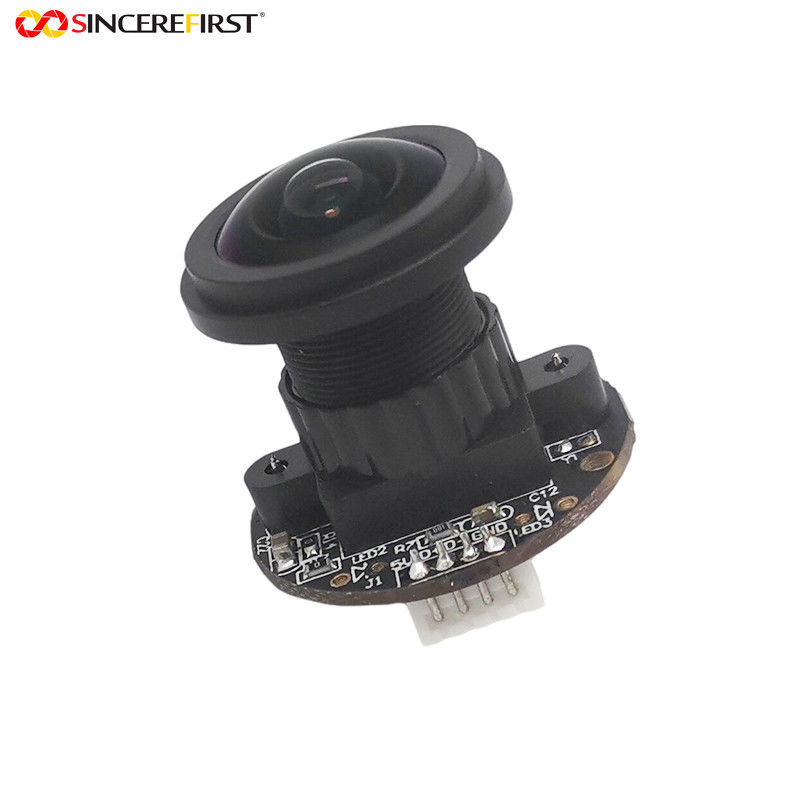

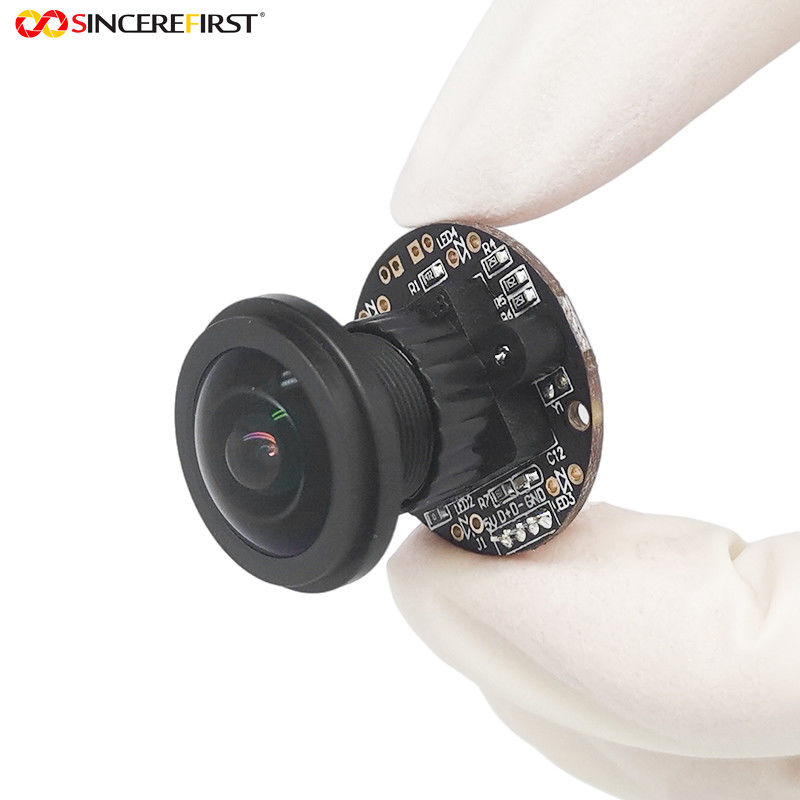

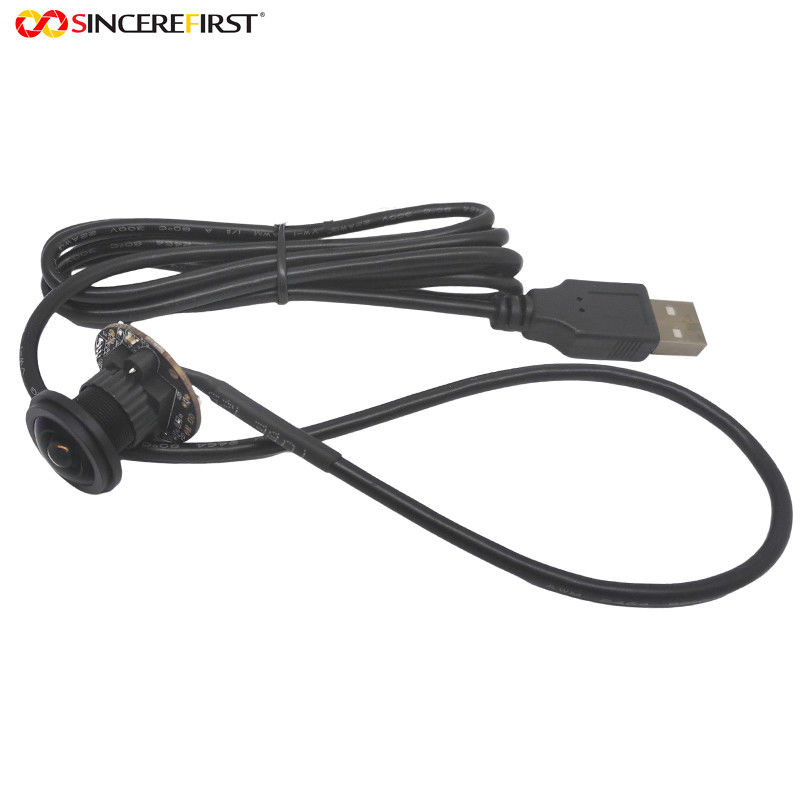

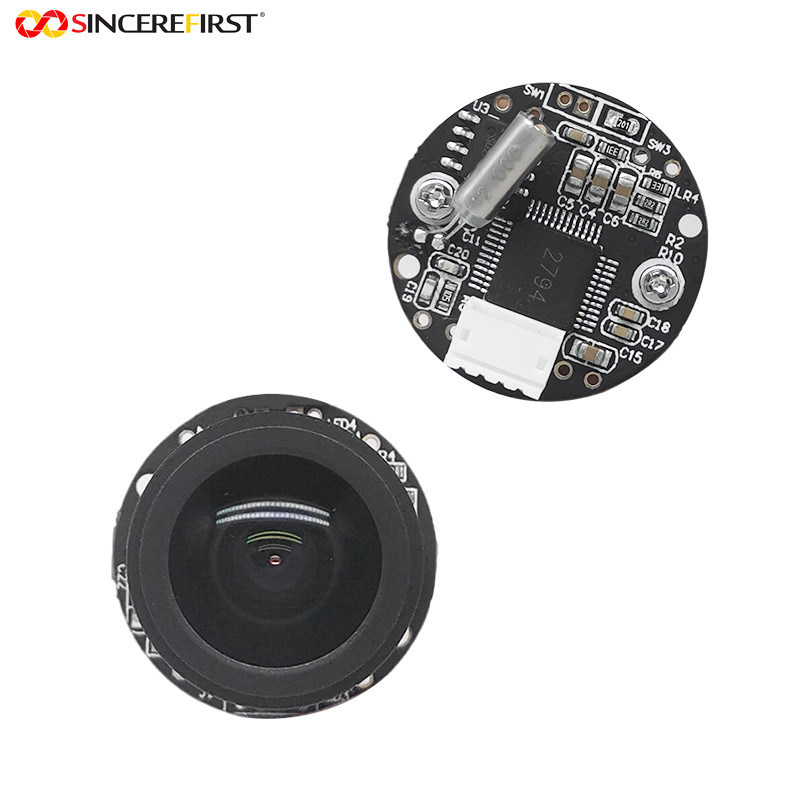

OmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera Module
Product Description:
High quality color photo imaging at VGA resolution and video capability can be easily embedded into next generation low-power,low-noise demands products with this new module SF352Y. The camera module outputs image date with high speed USB 2.0 interface.With performance packaging technology ,it achieved compacted size with high reliability of this module.lt also features wide dynamic range by implementing high sensitivity and less noise.
Features:
- USB specification compliance
USB 2.0&1.1compliance
USB video V1.1compliance(UVC)
USB audio V1.0 compliance
USB high speed,full speed auto switching
USB 2.0 HS/FS PC Camera Controller
2. Supports,640*480,352*288,320*240,176*144,160*120 output formats.
3. USB Video Class compliant,works with native driver in Microsoft Windows XP 32-bit/64-bit,Windows 7 system and Windows 8 system
4. Adjustable parameters:Brightness/ Contrast /Saturation/Sharpness/Gamma/Backlight
Compensation/Power Line Frequency/White Balance Temperature, Auto
5. Upgradeable partial firmware and customized parameters through USB interface
6. Software controlled connection to USB bus for re-enumeration
7. Adjustable and dynamic frame rate control on USB transaction
8. Automatic frame rate adjustment when exposure in low light environment
9. Selective suspend to minimize power consumption
Technical Parameters:
| Module Name |
FPC Camera Module |
| Module Size |
24.5mm*24.5mm |
| Temperature(Operation) |
-20°Cto70°C |
| Temperature(StableImage) |
0°C to 50°C |
| Assembly Technique |
SMT(ROSH) |
| Object Distance |
5CM~100M |
| PCB Printing Ink |
Black |
| Interface |
USB2.0 |
| Power |
USB Bus Power |
| Image Compression |
YUY2 |
| Sensor Type |
1/4inch |
| Active Array Size |
640*480 |
| Maximum Video Rate |
30 fps |
| Len View Angle |
90° |
Applications:
ATM Machines
Robot Vision Cameras
Sensing Toys
Monitoring
Drones
