Back-illuminated and stacked CMOS image sensor
Quad Bayer Coding color filter arrangement
Phase Detection Auto Focus (PDAF)
High Frame Rate 30fps@Full resolution (QBC Re-mosaic) / 30fps@QBC-HDR / 120fps@2x2 Adjacent Pixel
Binning (16:9) / 240fps@2x2 Adjacent Pixel Binning V2H2(16:9)
High signal to noise ratio(SNR)
Dual sensor synchronization operation
Built-in 2D Dynamic Defect Pixel Correction
Lens Shading Correction (LSC)
Built-in temperature sensor
Output video format of RAW10/8, COMP8
QBC Re-mosaic function
QBC HDR function
Two PLLs for independent clock generation for pixel control and data output interface
CSI-2 serial data output
MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant
MIPI C-PHY 1/2/3trio, Max 2.5Gsps/Trio, C-PHY spec ver. 1.0 compliant
2-wire serial communication (Supports I 2C "Fast mode" and "Fast-mode Plus")
28K bit of OTP ROM for users
| Product Attribute | Value |
|---|---|
| Brand | SincereFirst |

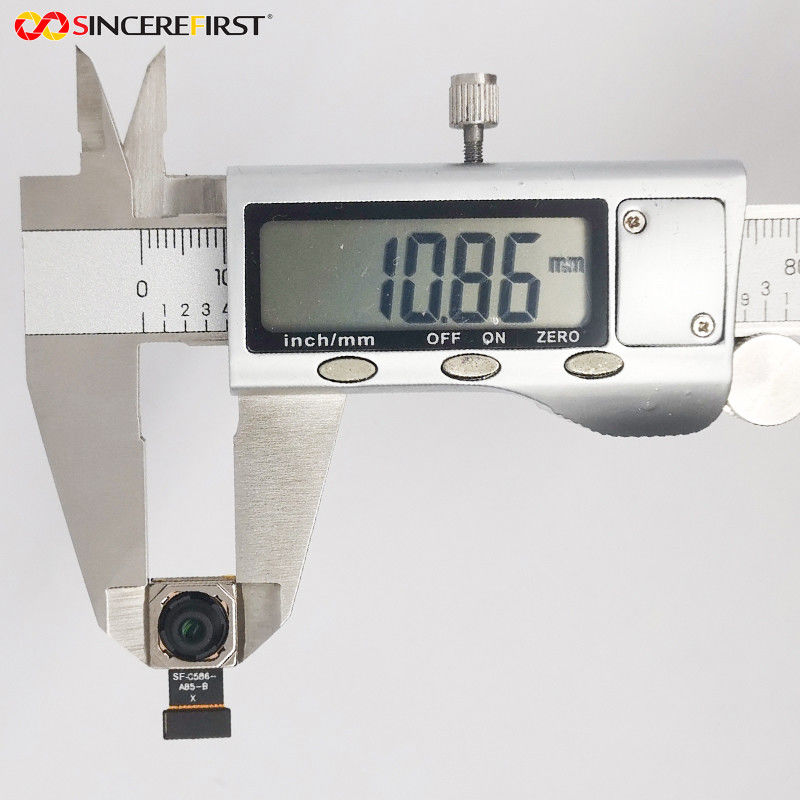

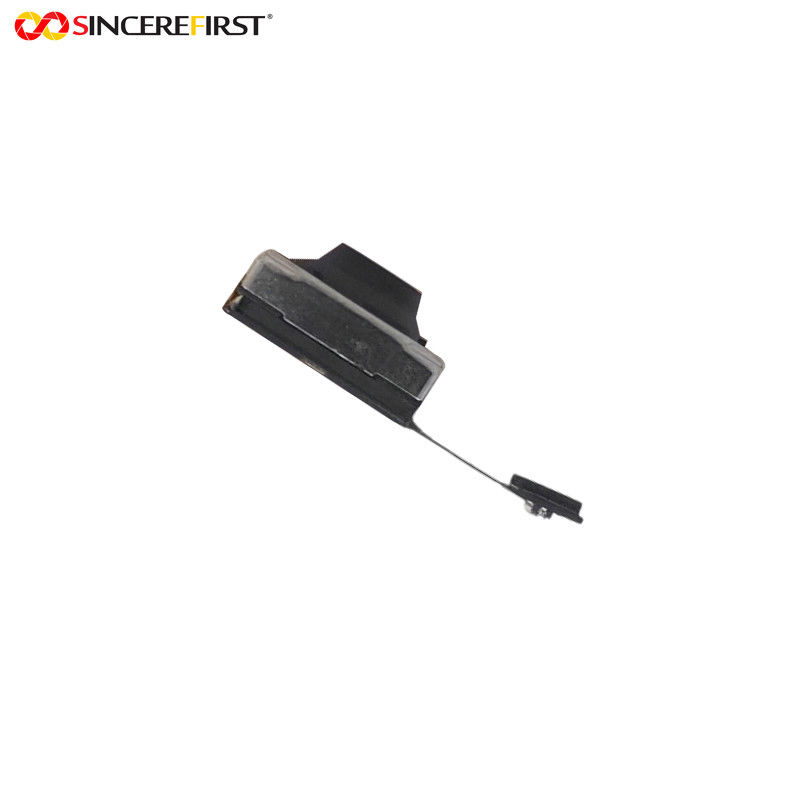

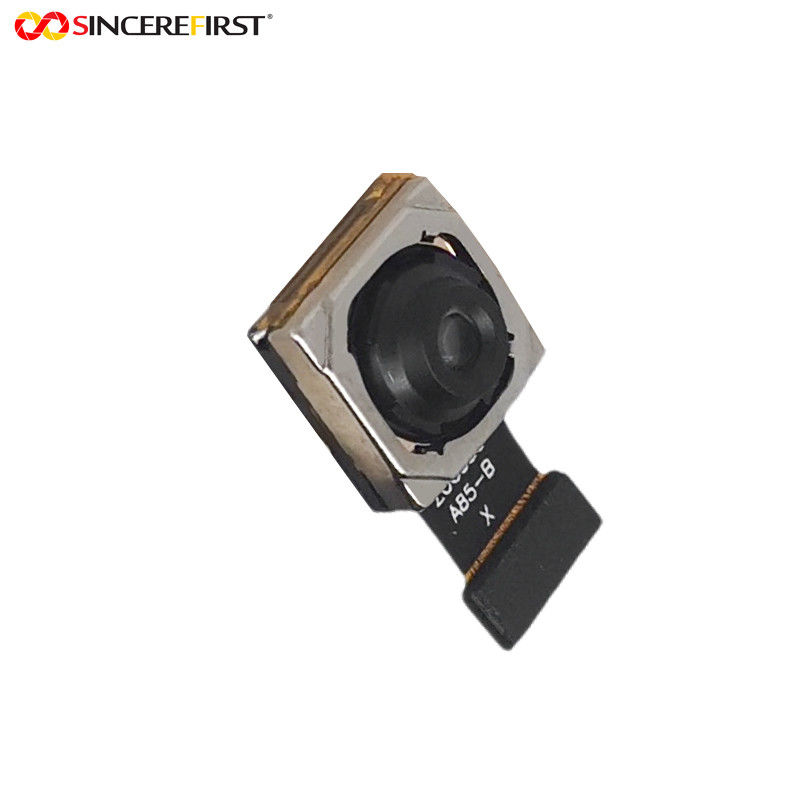

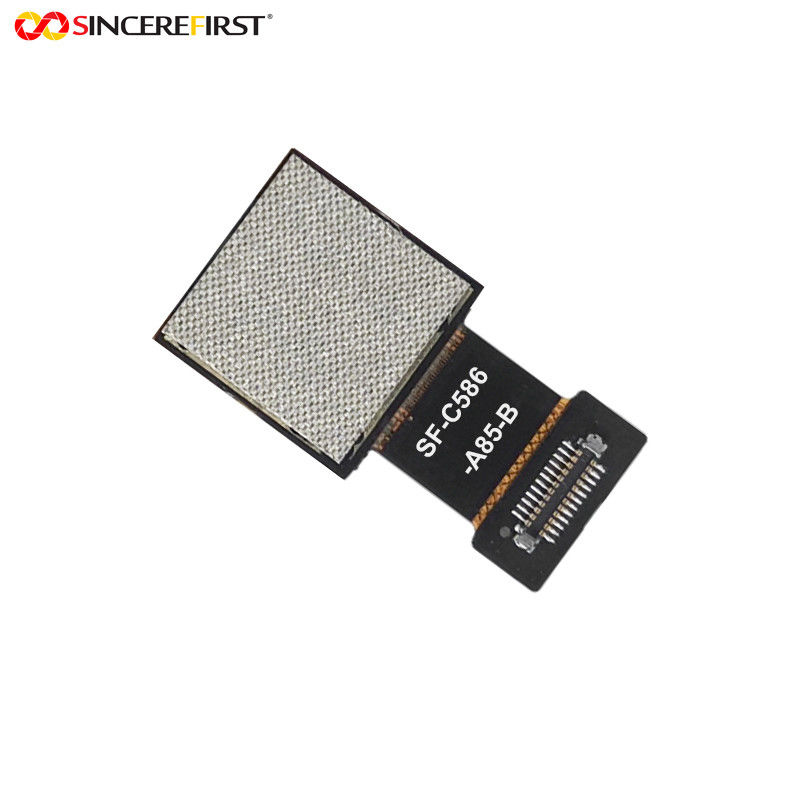

| Product Name | HD IMX586 48MP USB Camera Module |
| Standard Interface | MIPI |
| Sensor Size | 1/2.0" |
| Pixel | 8000 x 6000 |
| Focusing | Auto Focus |
| Lens Type | 60122A |
| :I²C | 0X20(W)/0X21(R) |
| Distortion | ＜1.5% |
| EFL | 4.74mm |
Machine Vision
Video Surveillance
3D Scanning and Metrology
Video Conferencing
Our products are sold all over the world, you can rest assured.
