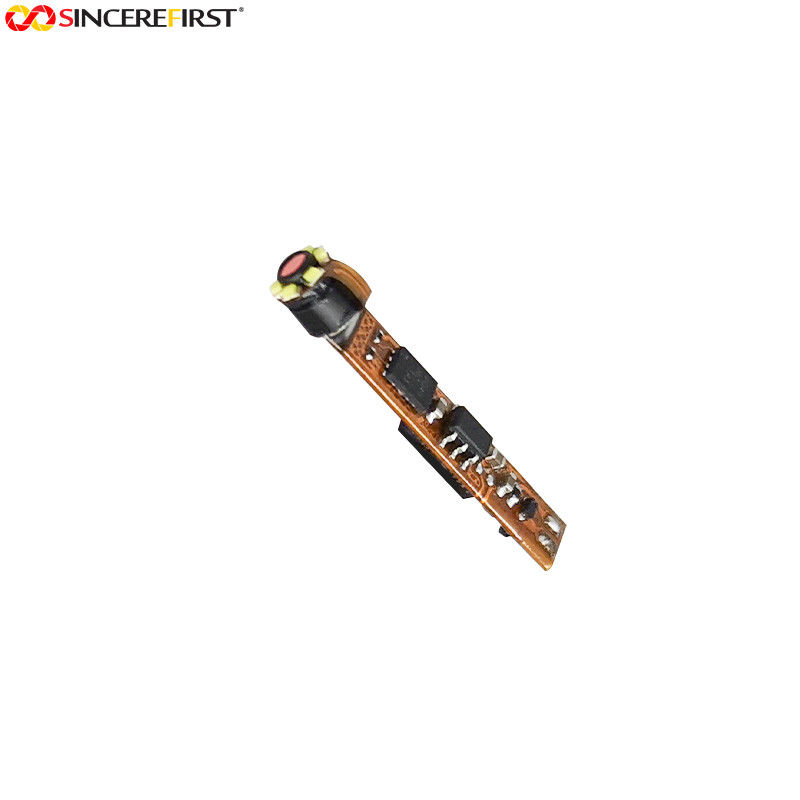

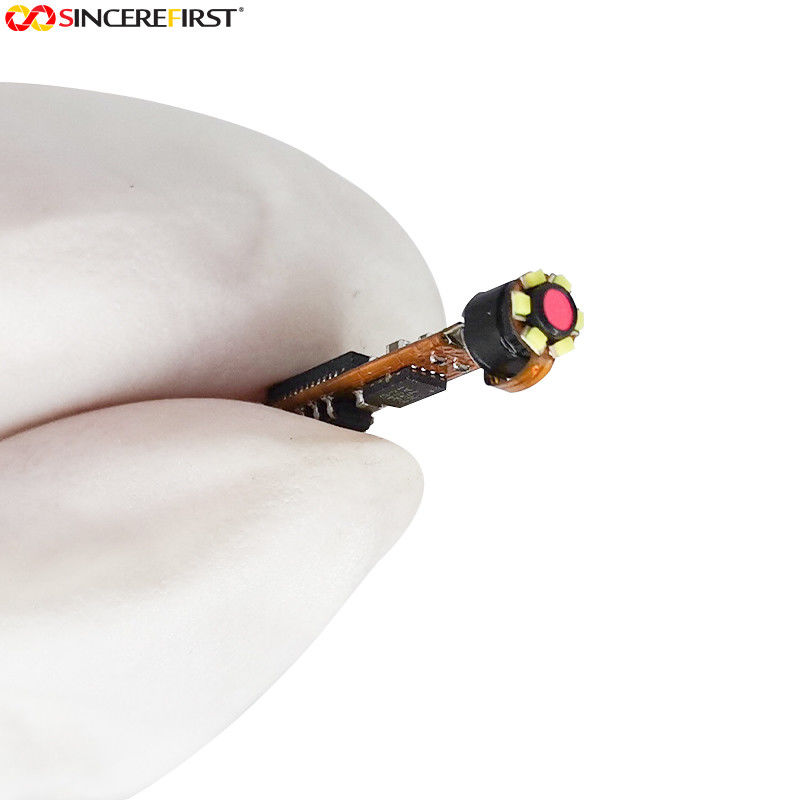

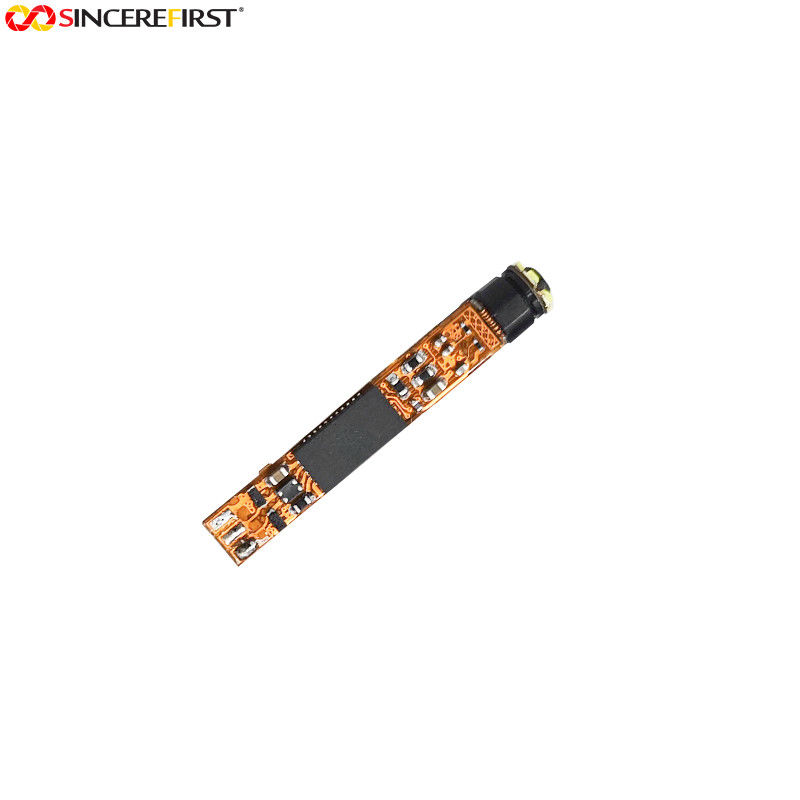

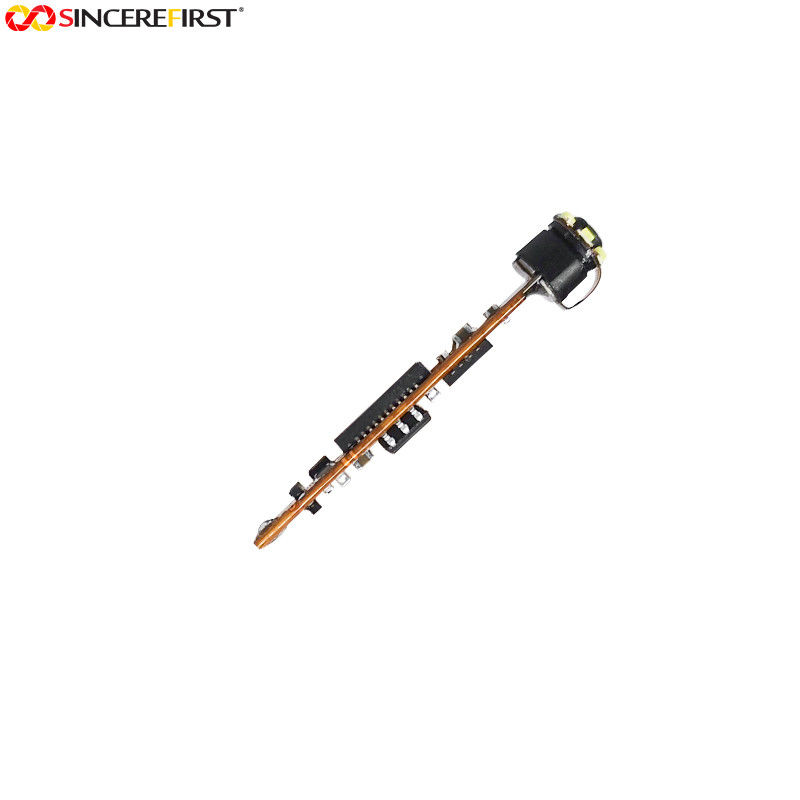

This is a very compact USB endoscope camera module. It comes with and without steel sleeves, making it very suitable for applications that require placement in pipelines. Six additional light rings can be placed on the lens and pasted together without requiring more space.
The chip uses OV9734, 1280x720@30FPS The picture is very clear and stable. It is very rare to achieve such a small design under 720P. You can also use your imagination to apply this design to your products, making them more competitive in the market.
| Technical Parameter | Specification |
|---|---|
| Pixel Size | 1.4umX1.4um |
| Sensor | OV9734 |
| Signal-to-noise Ratio | 36db |
| Output Image Format | YUV2(YUYV)/ MJPEG |
| USB Protocol | USB2.0HS/FS |
| Output Format | Standard UVC |
| Maximum Effective Pixel | 1280(H)X720(V) |
| Lens Size | 1/9 Inch |
| Interface Type | USB2.0 High Speed |
| Dynamic Range | 68db@8x Gian |
Pipeline Inspection
Vehicle Inspection
Medical ENT Endoscope
