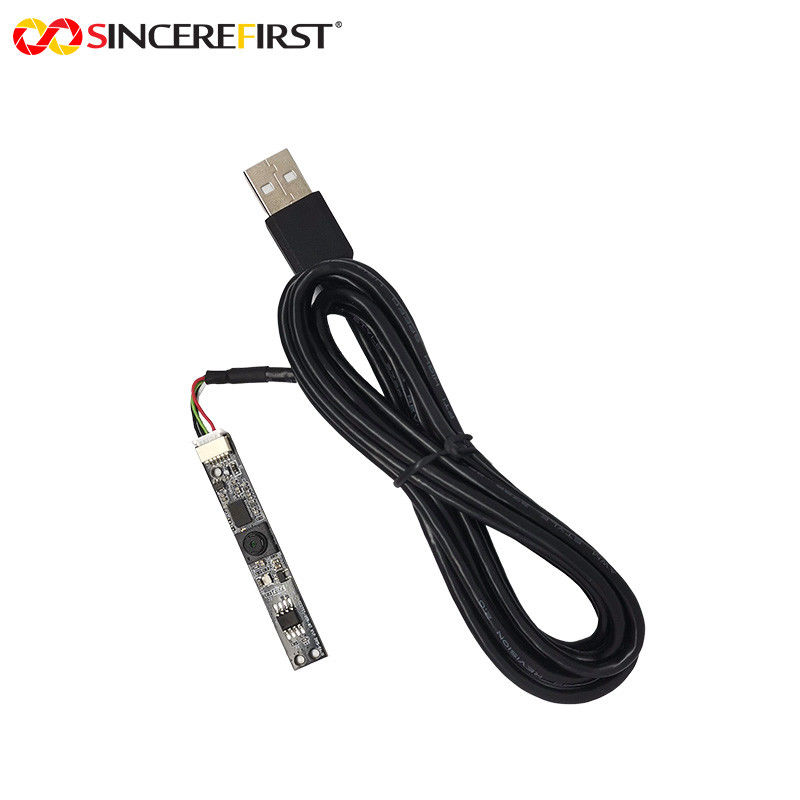

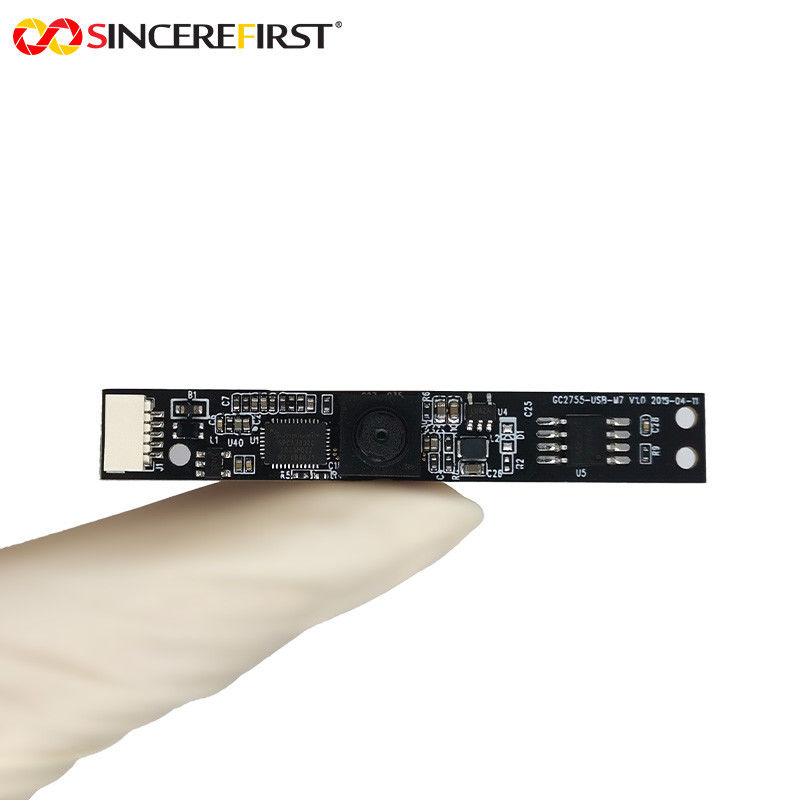

This is our popular USB2.0 camera module, it is Fixed Focus, 2MP resolution (1920x1080) with 1/5'' GalaxyCore GC2755 CMOS sensor, image quality is very high and stable. Our camera module size is 60MM x 8MM and customization is fully supported.
1. 2MP Resolution with 1/5'' GalaxyCore GC2755 CMOS sensor

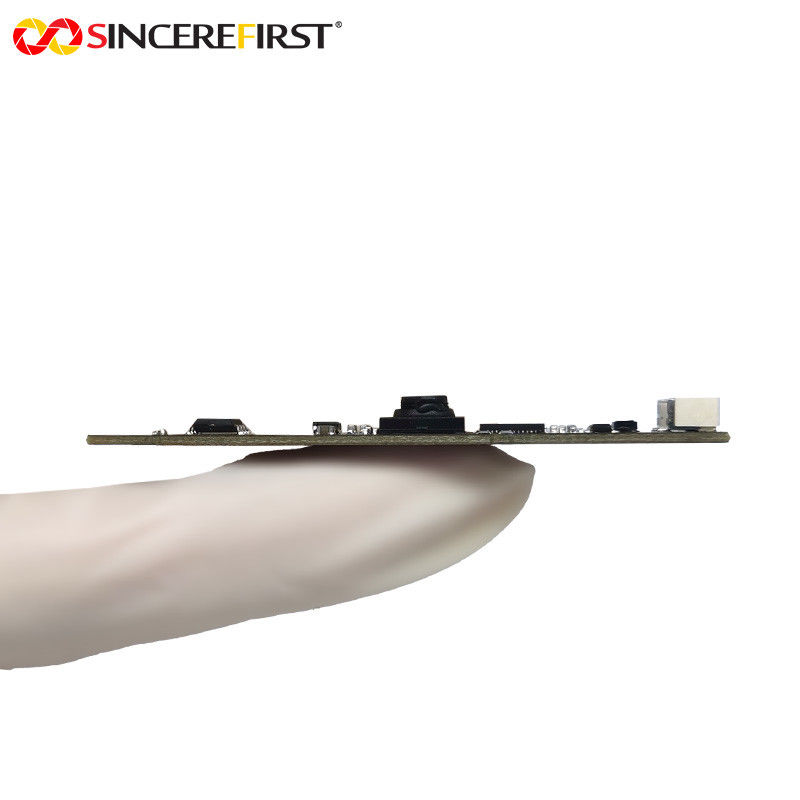

2. Module size is slim: 60MM x 8MM
3. UVC compliant, Plug & Play
4. Support Linux, Android, Mac and Windows
5. Customization is fully supported
| Parameter | Specification |
|---|---|
| Sensor | 1/5’’ GalaxyCore GC2755 CMOS sensor |
| Pixel | 2 Mega Pixel |
| Most Effective Pixels | 1920(H) x 1080(V) |
| Pixel Size | 1.6µm x 1.6µm |
| Compression Format | MJPEG / YUV2 (YUYV) |
| Focus Type | Fixed Focus |
| Interface Type | USB2.0 |
| Fov(D) | 70° |
| TV Distortion | ＜-1% |
| DSP | USB2.0 DSP |
security systems
medical
industrial

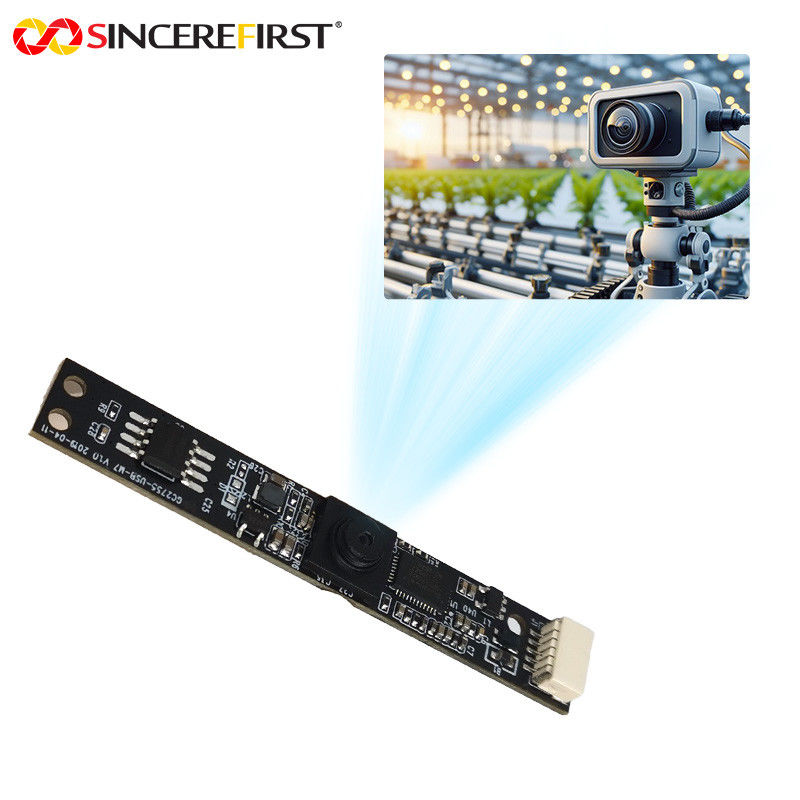

agriculture
Our products are sold all over the world, you can rest assured.
