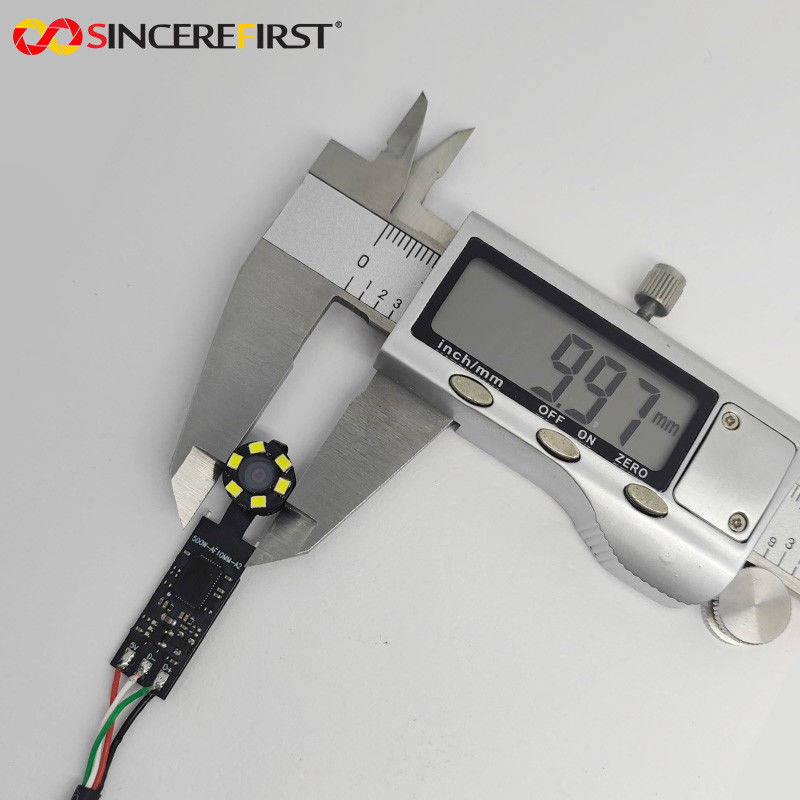

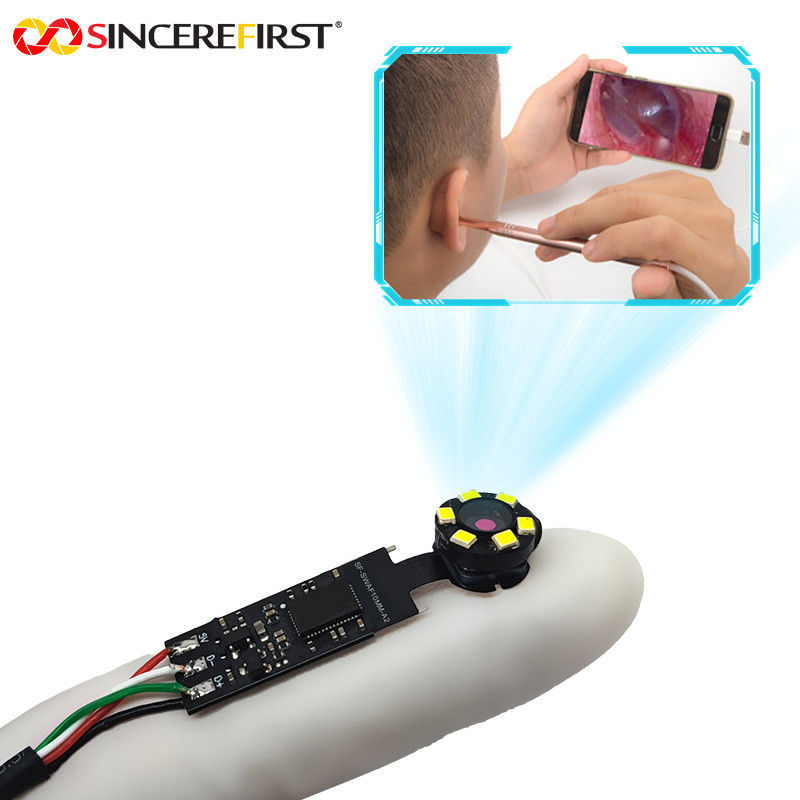

This is one of the highest resolution endoscope camera modules, unlike most other endoscope modules which have lower resolutions like 0.3MP, 1MP, 2MP, this module is 5MP resolution with CMOS sensor, image quality is very high, and you can see every detail. And it supports 30FPS high frame rate at (or below) 2592x1944 resolution. It is Auto Focus, and you can adjust focal length.There are 6 built-in LED lights, you can use this camera module both in daytime or night time, even without light at all.
| Parameter | Specification |
|---|---|
| Chip Type | CMOS Sesor |
| Pixel | 5 Mega Pixel |
| Most Effective Pixels | 2592 (H) x 1944 (V) |
| Certification | Rohs, Reach, ISO |
| Focus Type | Auto Focus |
| Compression Format | MJPG/YUY2 |
| Interface Type | USB2.0 OTG & Android |
| Lens FOV | 73° |
| LED | 6PCS White |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Mechanical Inspection
Car Repair
Plumbing Fixes
Medical
