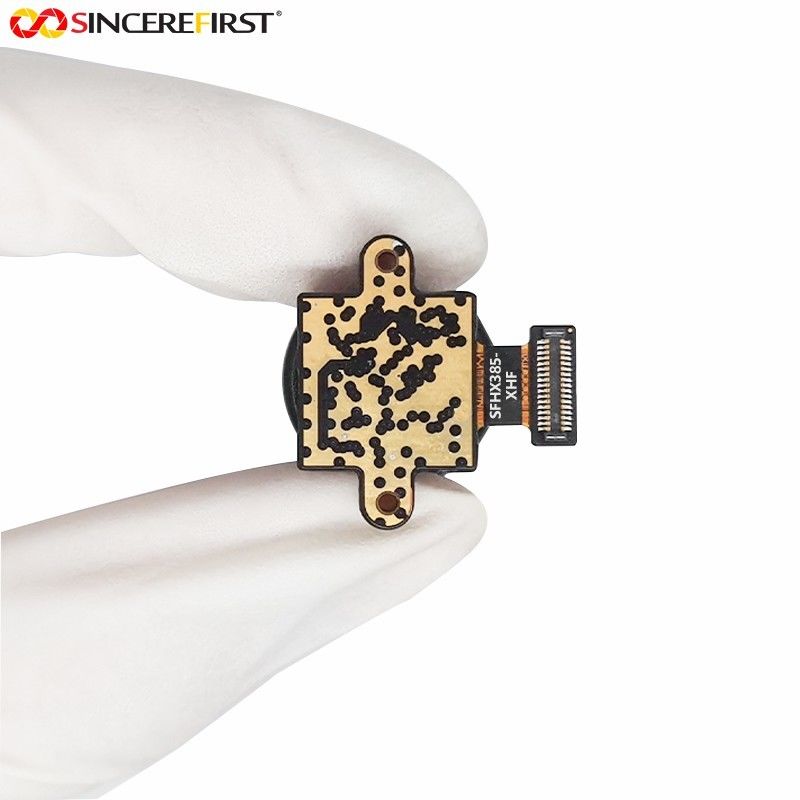

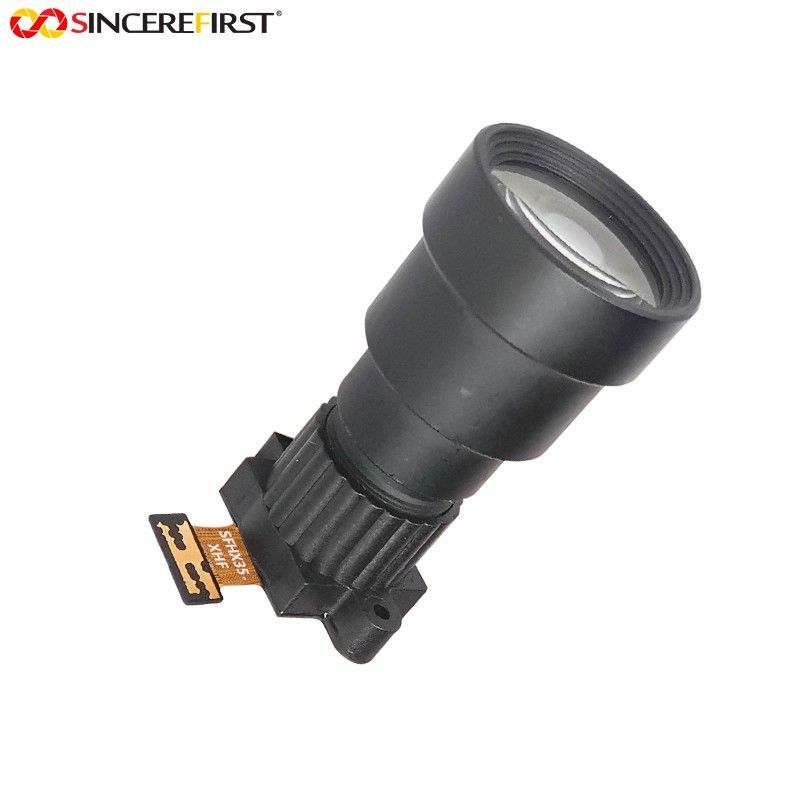

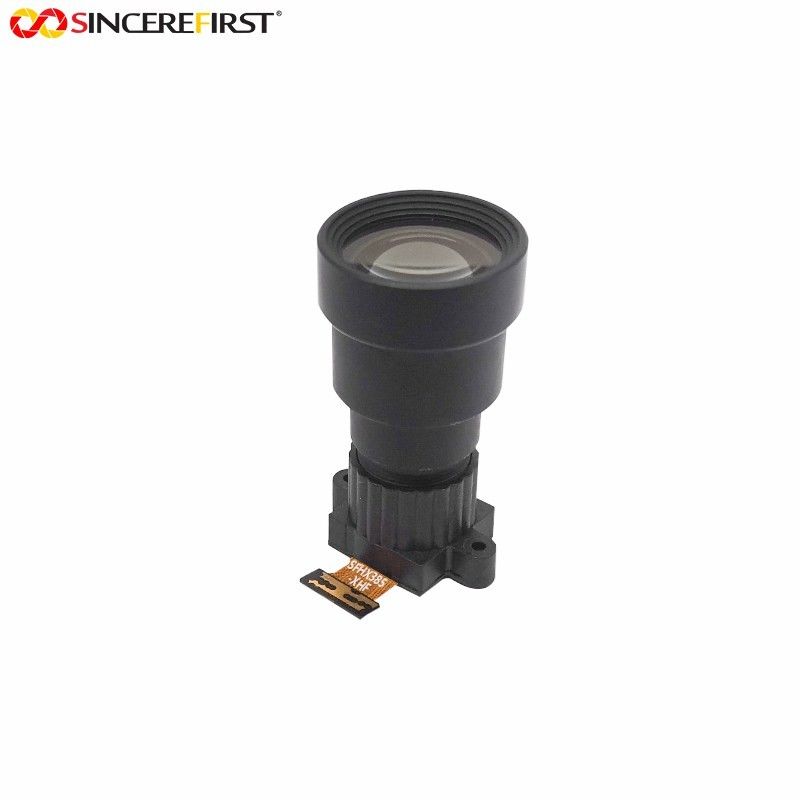

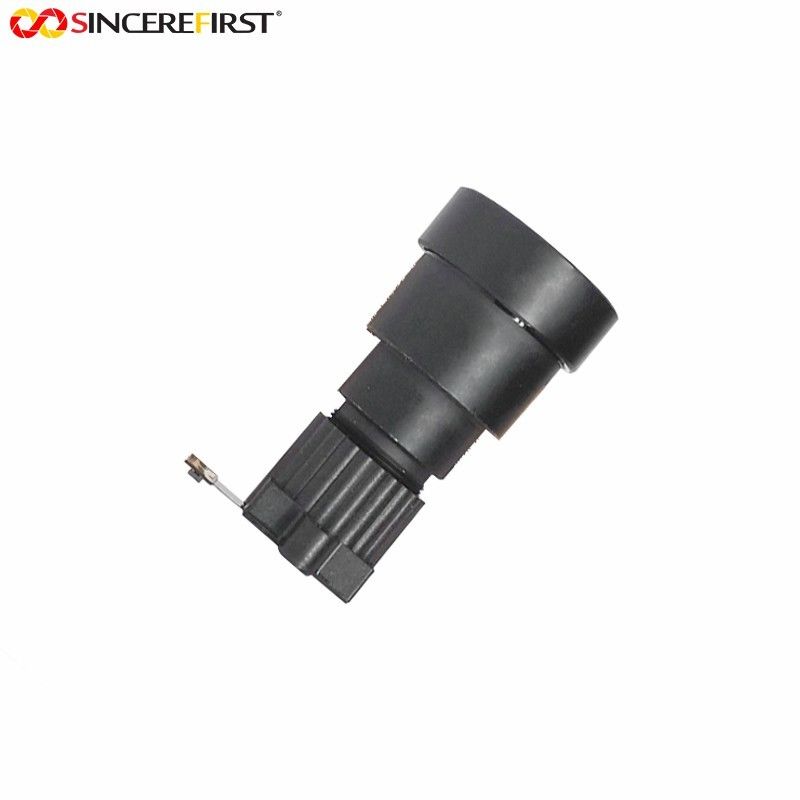

The IMX385 mipi Camera Module is an incredible piece of technology that brings high-quality imaging capabilities to a wide variety of applications. One of the most impressive aspects of the IMX385 mipi Camera Module is its high resolution. With a 2.13 megapixel sensor, it can capture images and video with stunning detail and clarity. This makes it an excellent choice for applications such as surveillance, manufacturing, and medical imaging.
Digital Overlap WDR function
●DOL2 frame (Combining 2-frame)
●DOL3 frame (Combining 3-frame)
Support readout drive mode
Full HD1080p mode (All pixel scan)
(When DOL 2 frame mode is selected, the size of Vertical effective OB and the vertical effective margin for
color processing are different from Normal mode. About detail, refer to P31 of this document.)
Support Interface
●Low-voltage LVDS (150mVp-p) serial DDR output (2ch, 4ch,8ch)
●CSI-2 serial output (2Lane/4Lane,RAW10/RAW12)
| Attribute | Value |
|---|---|
| Sensor | IMX385 SONY |
| Sensor Type | 1/2" |
| FOV | D:120 H:102 V:55.5 |
| Certification | Rohs, Reach, ISO |
| Output Formats | AHD |
| Features | 2MP, Wide Angle |
| Distortion | -44% |
| Focusing Range | 100M |
| DVDD | 1.2V |
| AVDD | 3.3V |
Surveillance Cameras
Video Surveillance
Internet of Things
Aerial Drones
QR Code Recognition
Our products are sold all over the world, you can rest assured.
