Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

Products - USB Camera Module
  • Highlight

    LVDS Display Rockchip RK3399 Development Board

    ,

    EDP Display Rockchip RK3399 Development Board

    ,

    MIPI Display Rockchip RK3399 Development Board

  • GPU
    Mali-T860
  • Memory
    2GB-4GB
  • Dimension
    44 * 110 * 16 Mm
  • EMMC
    4GB-128GB
  • OS
    Android 7/9/10 And Linux
  • Power Supply
    12V/5A
  • Artwork
    8-Layer Design
  • Product Name
    Rockchip Rk3399 Development Board
  • Applications
    Smart Home, Industrial Automation
  • Display Interface
    EDP/LVDS/MIPI
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    Rohs, Reach, ISO
  • Model Number
    SF-K9MAX-RK3399
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

  • Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display
  • Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display
  • Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display
  • Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display
  • Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display
Get Price Contact Now

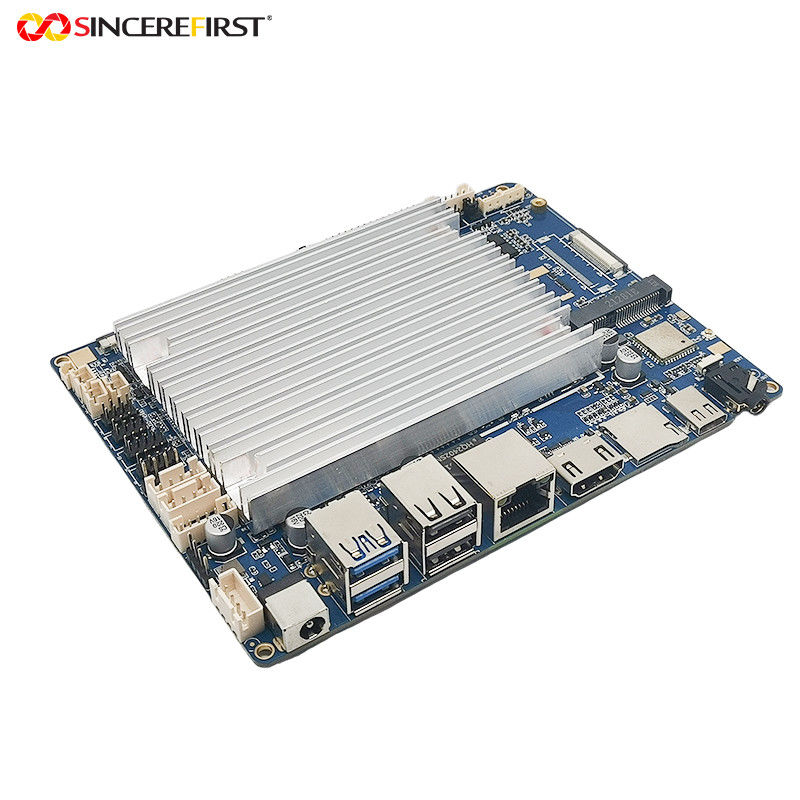

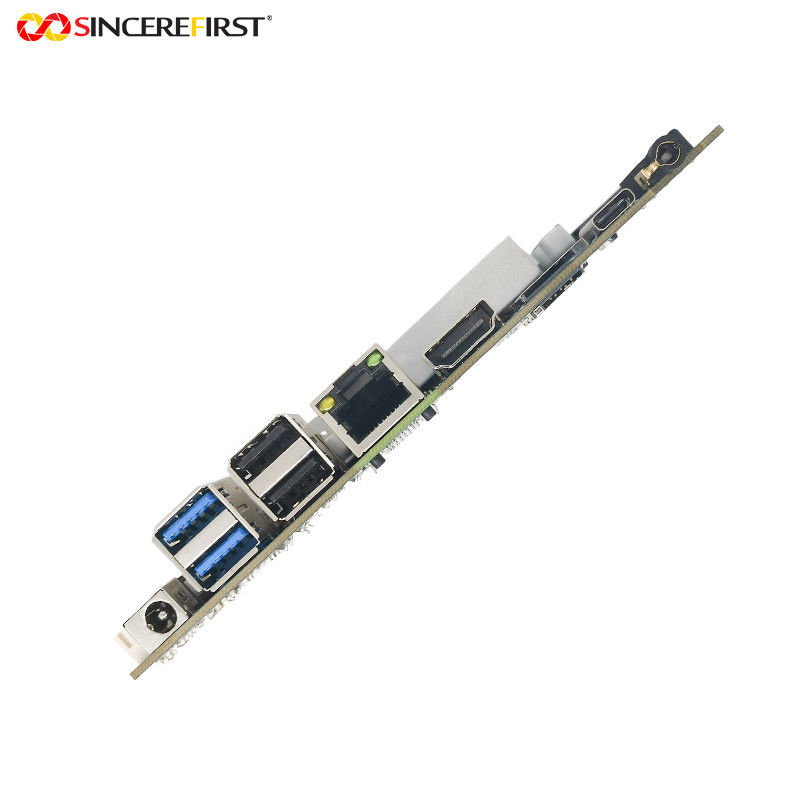

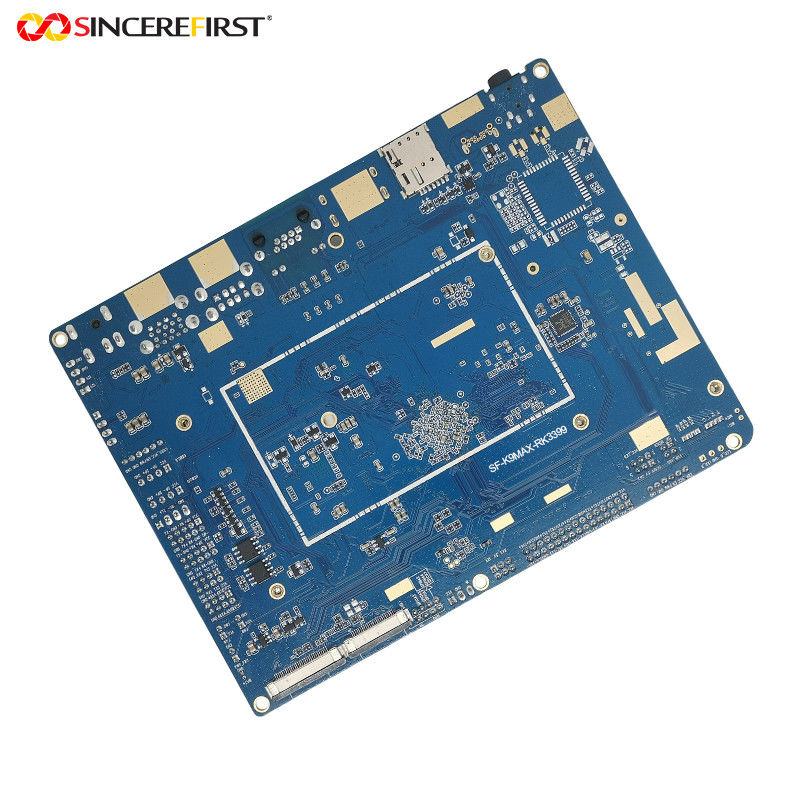

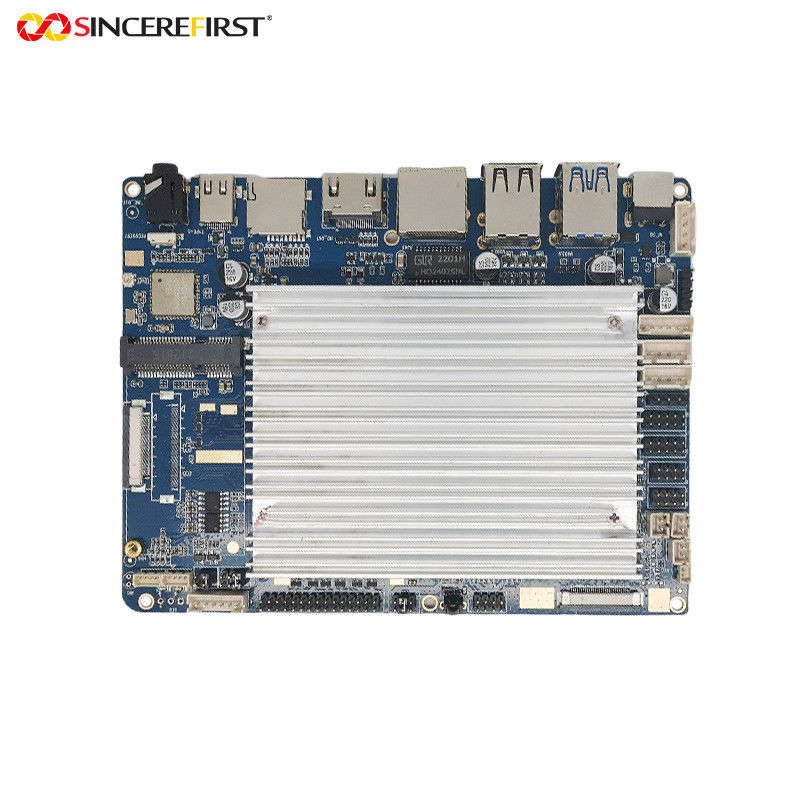

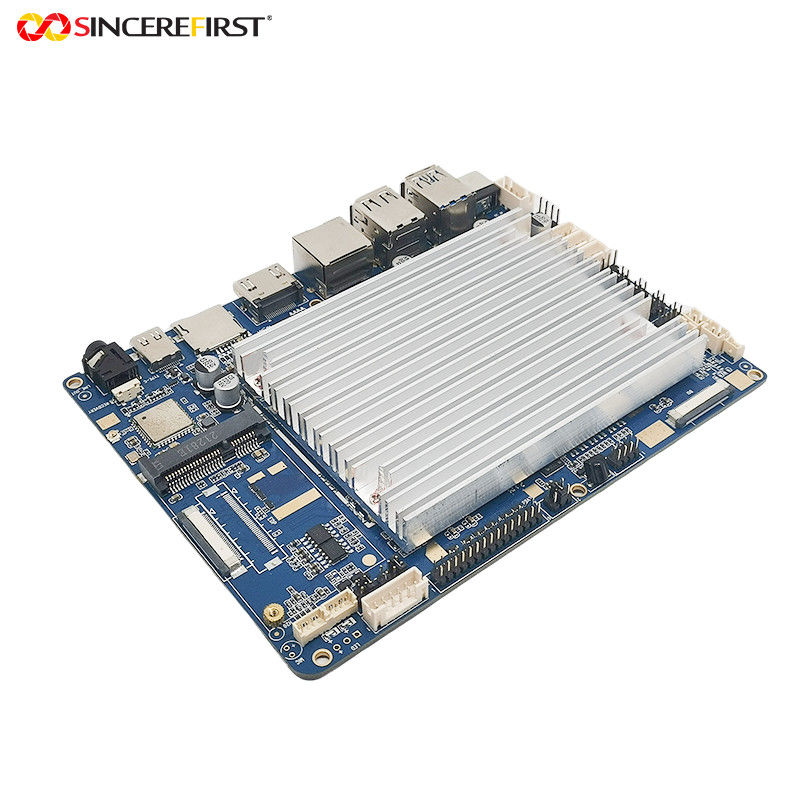

Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

Function:

1. Hexa Core 64bts Processor
2. Up to 1.8GHz
3. High performance GPU
4. 4K HD Display
5. Support Face-recognition and touch screen
6. Support AFBC



Hardware:

1. Support HDMI_OUT/LVDS/EDP/MIPI Display
2. Built-in RTC_IN,Real-time display
3. Support MIPI Camera
4. Rich Interfaces(RS485/RS232/GPIO)
5. Rich USB USB2.0/USB3.0/Type_C_OTG)
6. Support MIC/LINE-OUT
7. Strong Network communication(1000Mbps,
8. WIFI+Bluetooth,4G Module)
9. Support IR, SIM card,TF card

Technical Parameters:

Processor Dual-core Cortex-A72 up to 1.8GHz +Quad-core Cortex-A53 up to 1.4GHz
GPU ARM Mali-T860 MP4
Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1, OpenCL,DX11
Support AFBC
Video Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps 1080P
decoding, (MVC, MPEG-1/2/4,VP8)
1080P video encoding,Support H.264,VP8 format
Video Post-processor: deinterlacing, denoising, edge/detail/color optimization
Power Supply 12V/5A
Working Tem -20℃~60℃Fan/Heat Sink Optional
Artwork 8-Layer Design


Applications:

Security

Surveillance

Alert

loT
