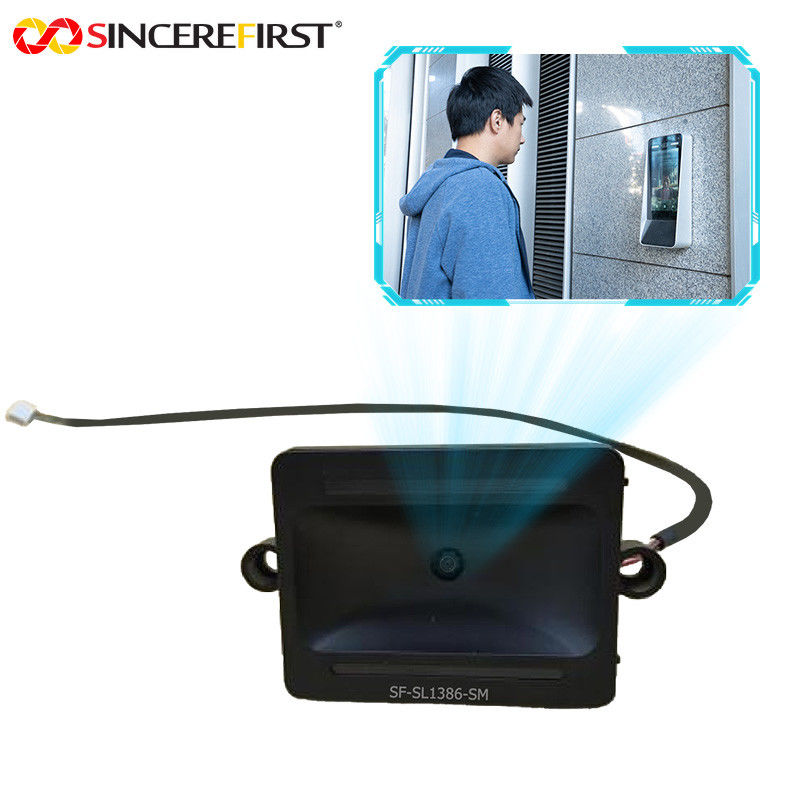

0.3MP Wide Angle 85° Scanning USB Camera Module With Software & Shell
Product Description:
This is a 0.3MP ultra-high-speed and ultra-wide-angle screen barcode 2D scanning engine USB module. It comes with software and shell, small size, high integration, and can be very conveniently used in payment, gate machine and other application environments. Highly compatible transmission interface, applicable to more devices, and safer data transmission.
Features:
- The SF-SL1386-SM scanning device supports fast scanning
- Small size, thickness only 23.1mm
- Fast reading speed and high precisio
4. Simple operation, with user-friendly tools to make equipment debugging more convenient
5. Large Angle, support close identification
6. High integration, integrated buzzer, fill light, terminal in a core board, higher stability
Technical Parameters:
| Product Name |
Scanning Camera Module |
| FOV |
D:85° H:70.1° V:55.4° |
| Focal Length |
1.56mm |
| Pixel Size |
3.4μmX3.4μm |
| Imaging Solution |
640*480 |
| Identification Distance |
10mm-120mm |

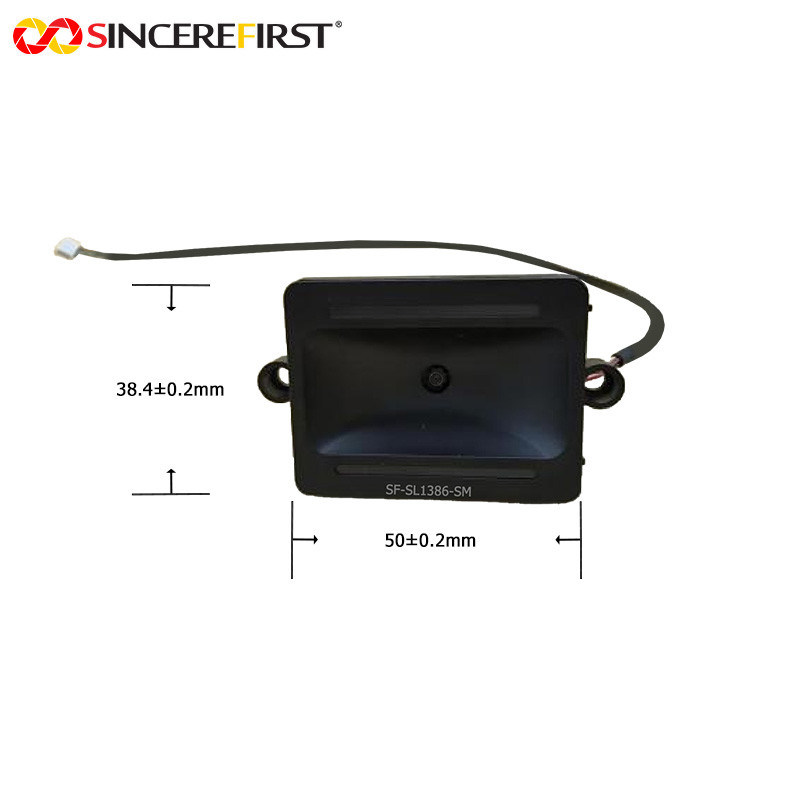

| Machine Size |
65*38.4*23.1mm |
| Standard Interface |
USB2.0 |
| Recognition Accuracy |
≥5mil |
| Sensor |
1/6.5" |
Applications:
Microwave Oven
Car Pos Gate
Access Control
E-Commerce Self-Service Cabinet
Drug Sales Cabinet
Self-Service Inquiry
Queue Number
Finance Medical
Express
Cashier
Self-Service Equipment
