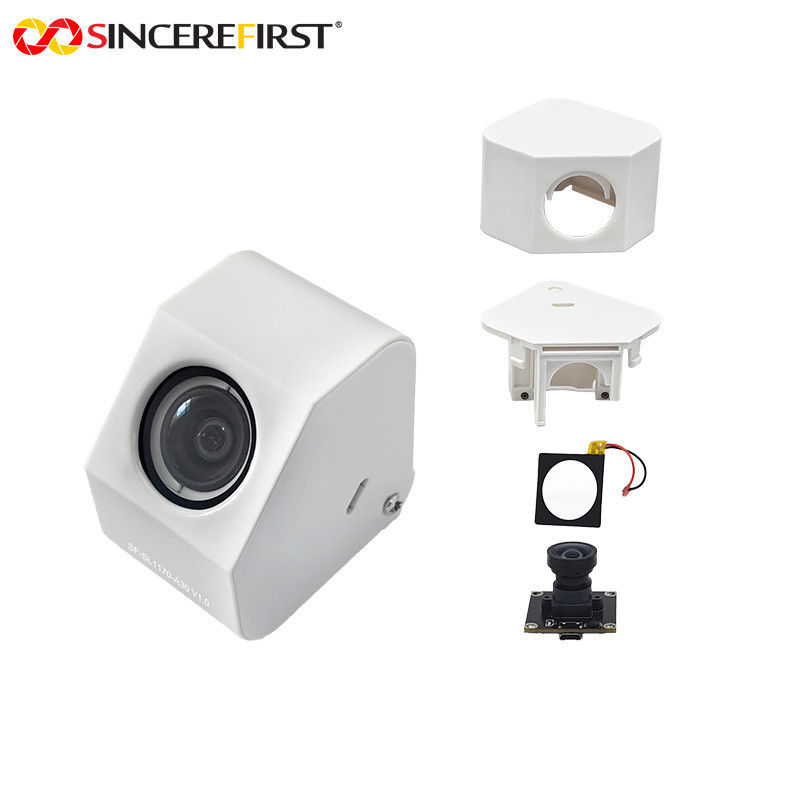

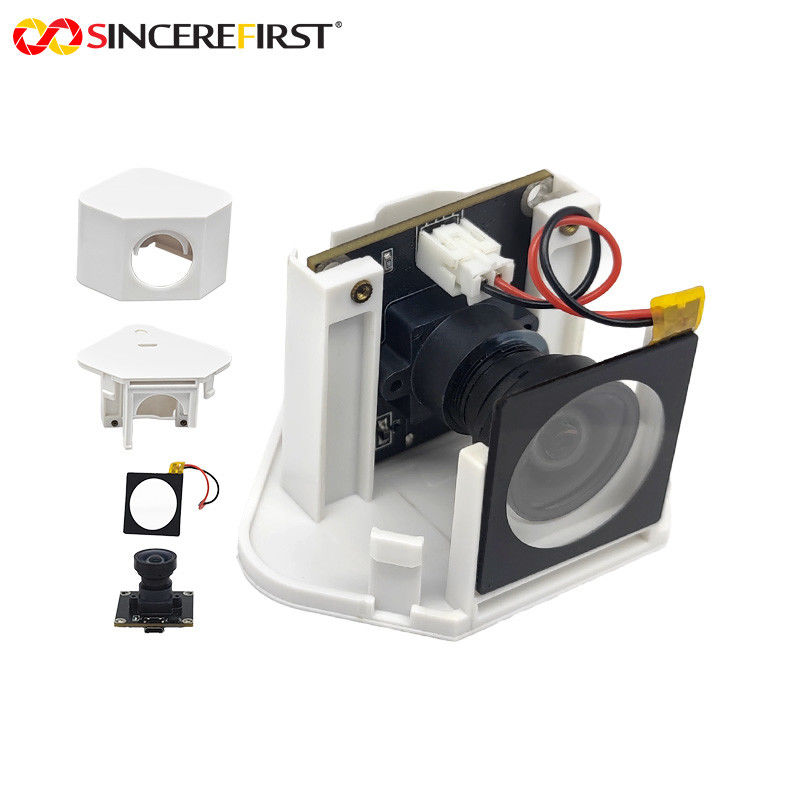

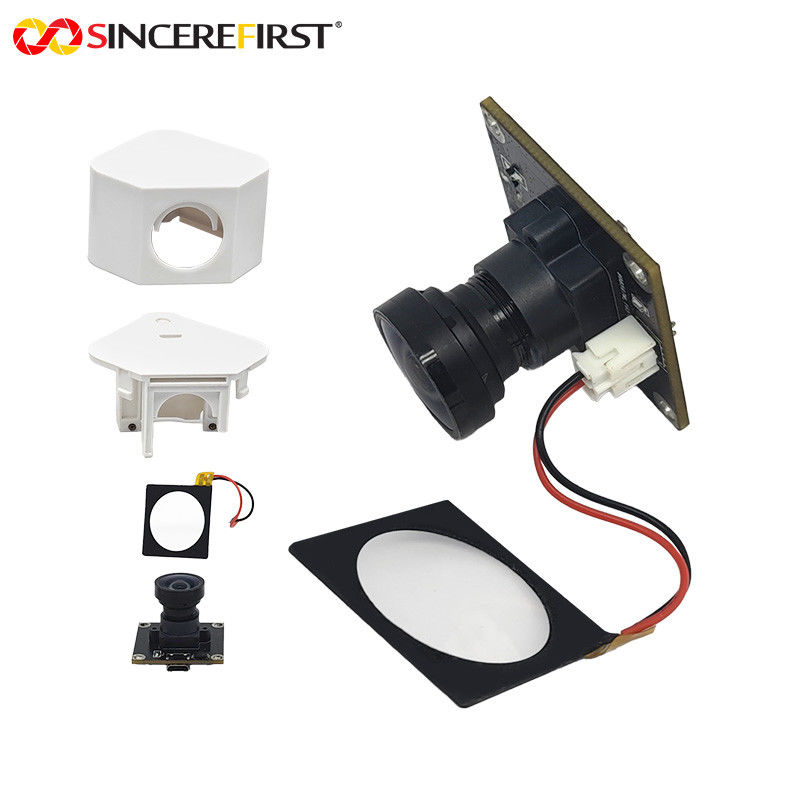

This camera AR0230 wide angle finished camera module with housing is fog and moisture proof. It has a resolution of 2MP, supports 30FPS frame rate, adopts USB2.0 interface, complies with UVC standard, plug and play, and does not require any driver or software. Designed for special applications such as refrigerators, freezers, freezers, vending machines, kiosks, cold storage, etc.
1. Anti-fog & Anti-moisture design with casing
2. 2MP resolution with high quality CMOS image sensor
3. UVC compliant, Plug & Play
4. Support Linux, Android, Mac and Windows
5. Built-in fisheye lens of 120° view angle
| Module Size: | 32MM*32MM*27.5MM |
| Sensor Type: | AR0230 |
| Interface: | USB2.0 |
| Active Array Size: | 1928*1088 |
| Lens Construction: | 2G4P+IR(650NM) |
| Keywords: | Refrigerator Camera Module |
| Focal Length: | 2.26mm |
| FOV(D): | 120° |
| TV Distortion: | ＜8.8% |
| Power: | USB Bus Power |

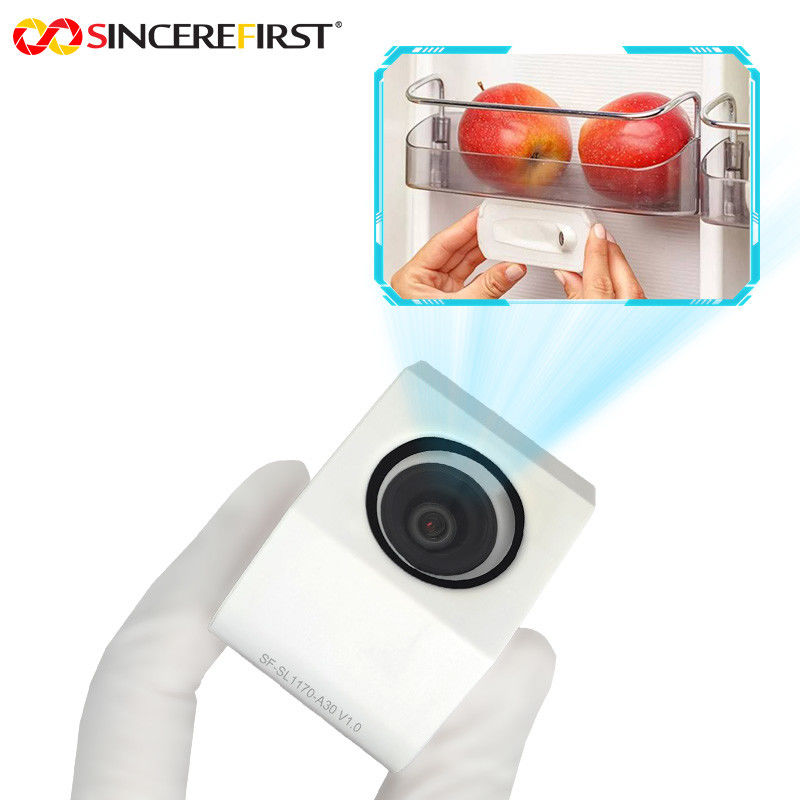

Fridge
Refrigerator
Freezer
Vending Machine
Koisk
Cold Storage
Our products are sold all over the world, you can rest assured.
