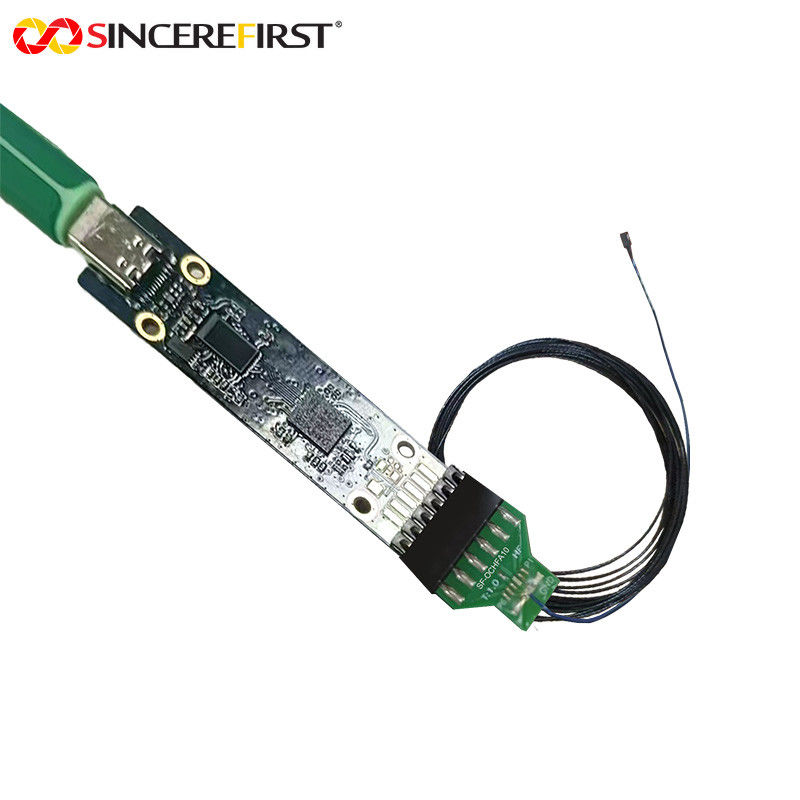

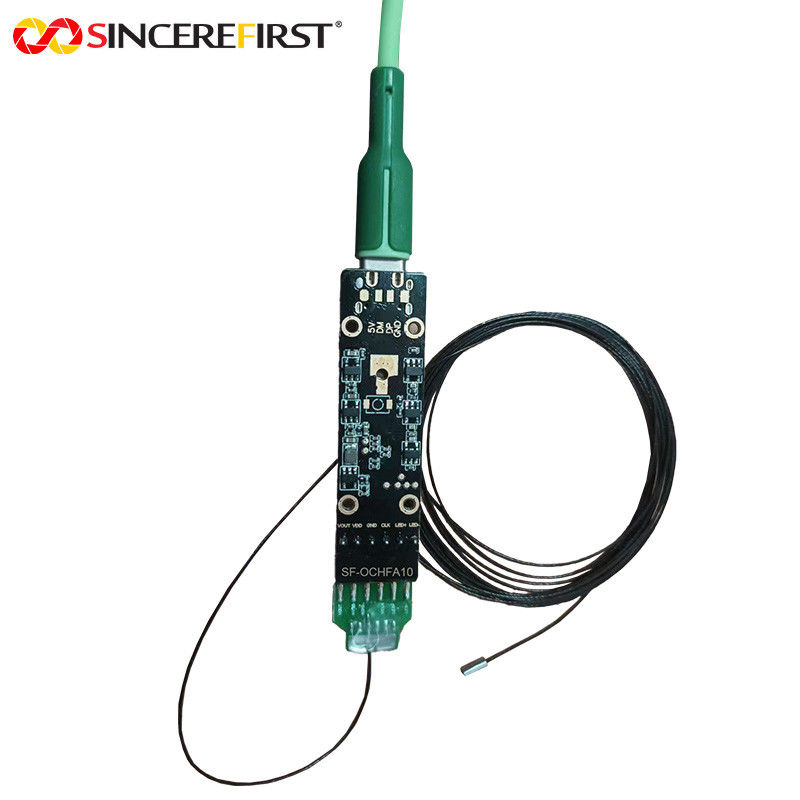

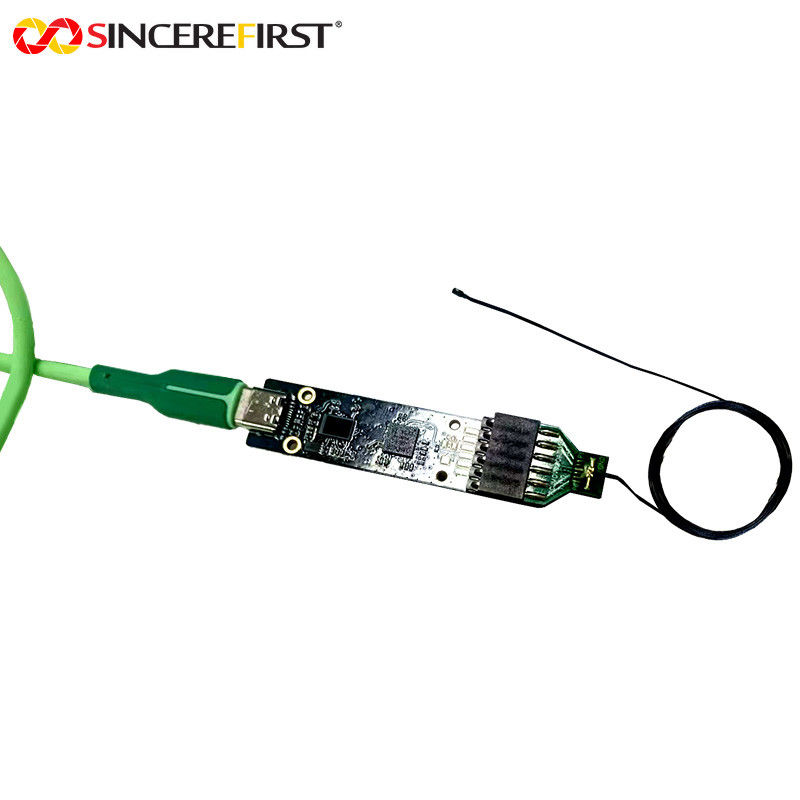

0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm

0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm

Products - Endoscope Camera Module
  • Highlight

    Medical Industry Endoscope Camera Module

    ,

    1.0mm Endoscope Camera Module

    ,

    0.49MP Endoscope Camera Module

  • Image Sensor
    OCHFA10
  • Sensor Size
    1/18
  • Pixel
    0.49MP
  • View Angle
    120°
  • Diameter
    1.0mm
  • AVDD
    3.3V
  • White Balance
    Automatic White Balance
  • Output Format
    YUV/MJPG
  • Application
    Medical, Industry
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-OCHFA10-2500mm
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm

  • 0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm
  • 0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm
  • 0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm
  • 0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm
Get Price Contact Now

0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm

Features:


  • 1.0mm dia(no LEDs)
    2. OCHFA10 sensor 1/17.5″
    3. 720×720 Resolution
    4. 120° DFOV
    5. IP67 waterproof
    6. Designed for medical
    7. High-quality image
    8. UVC compliant, Plug & Play
    9. Support USB2.0 OTG interface


Technical Parameters:

Image Sensor OCHFA10
Product Name Endoscope Camera Module
Lens Size 1/18 Inch
Interface Type USB2.0 High Speed
Pixel 0.49MP
Wide Angle 120°
Diameter 1mm
Connector 6P 2.54mm
Signal-to-Noise Ratio 36db
Pixel Size 1.4umX1.4um
AVDD 3.3V

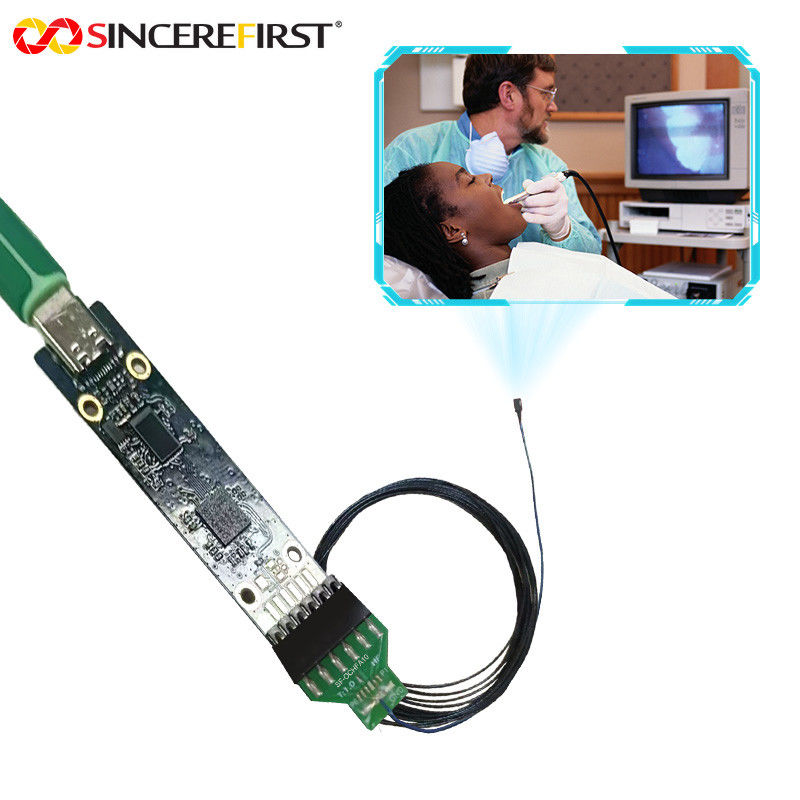

Applications:

Medical Device

Industry

Telemedicine

Medical Oral Care

Robots



0.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm 00.49MP OCHFA10 Wide Angle Endoscope Camera Module Medical Industry 1.0mm 1
