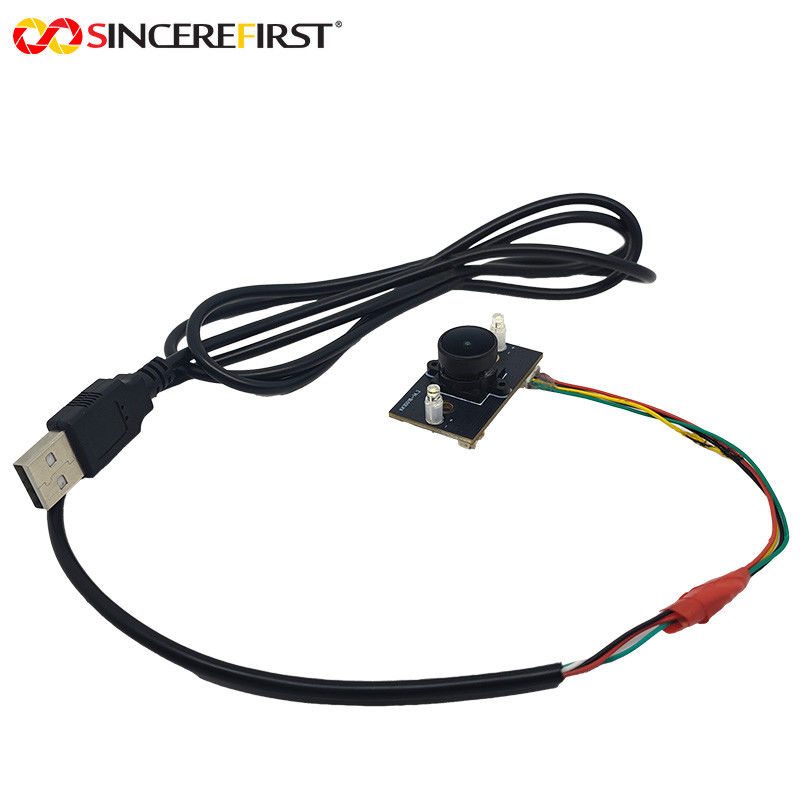

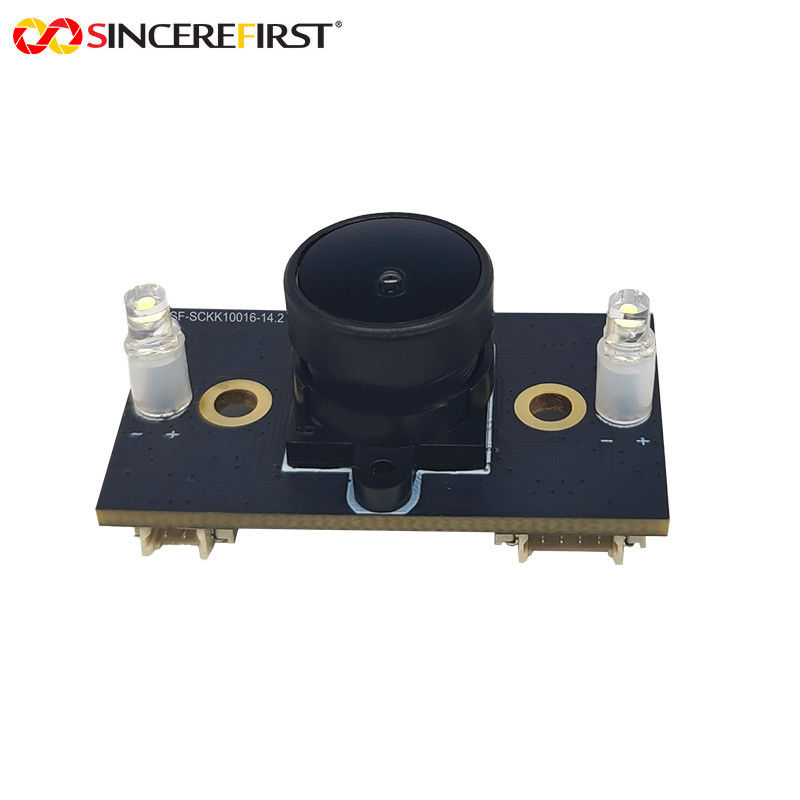

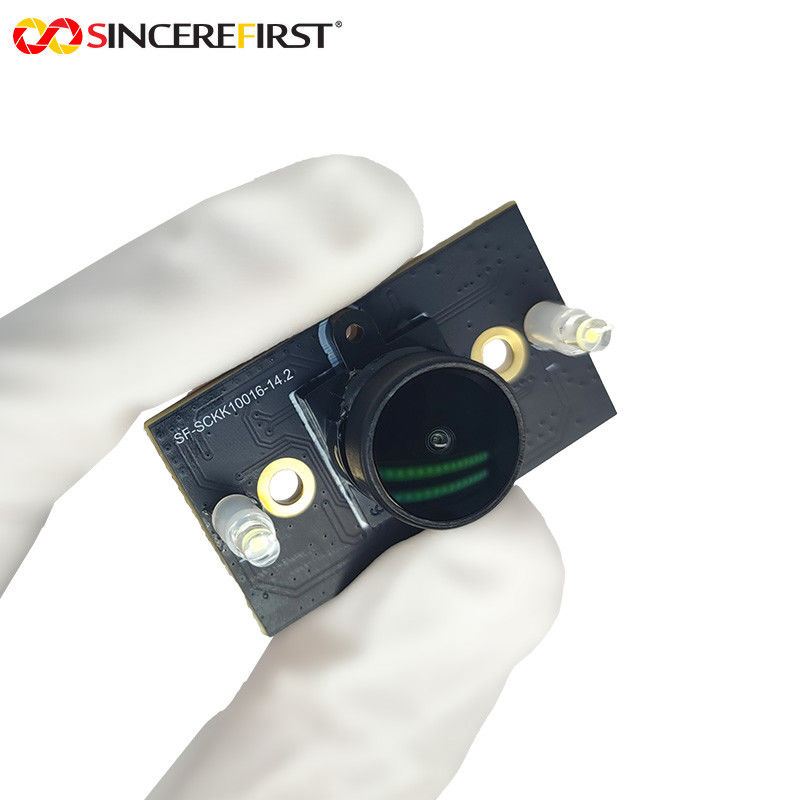

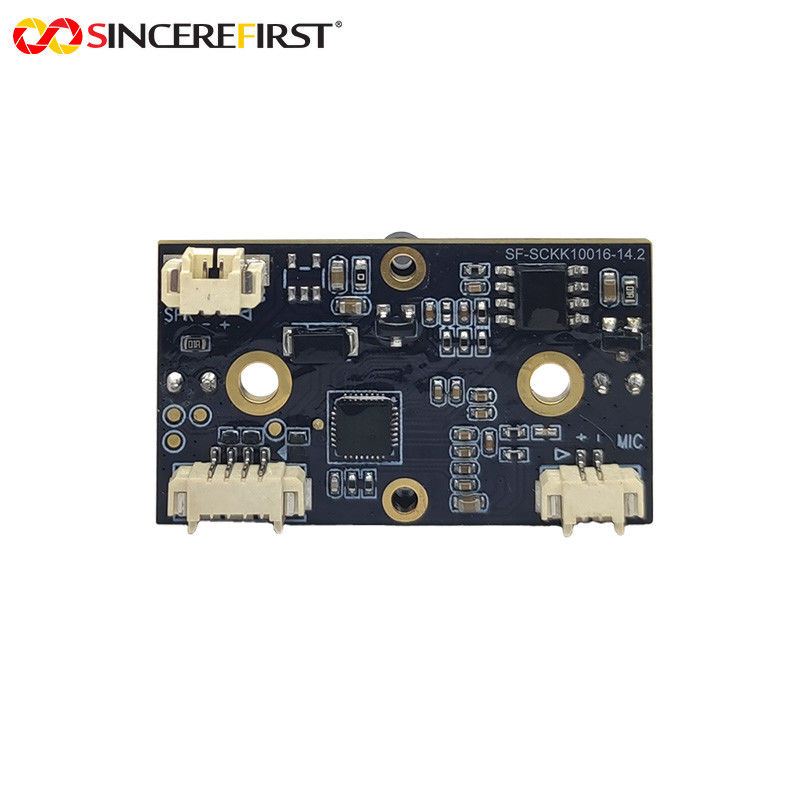

720p BF314A Sensor Fixed Focus USB2.0 Camera Module Wide Angle

Product Description:

The BF314A is a 1/4-inch 720P HD CMOS Image Sensor which includes CMOS image sensor(CIS),Sensor control. It is fabricated with the world's most advanced CMOS image sensor process to realize ultra-low dark noise, high sensitivity, high dynamic range and very low power imaging system. The sensor consists of a 1288*728 pixel array which has an optical format of 1/4 inch for 720P. It has integrated noise canceling CDS(Correlated Double Sampling) circuits,analog global gain control, auto black level compensation,on-chip 10-bit ADC.It provides Raw data with 10-bit parallel ports. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.

The product is capable of operating at up to 30 frames per second at 37.125MHz master clock in 720P HD mode, with complete user control over image. All required sensor control functions, including Exposure control, Gain control, image size and so on, could be programmable through the two-wire serial bus.

Features:

• Standard optical format of 1/4 inch for 720P
  2. 30 frames/sec 720P mode @ 37.125MHZ inner clock.
  3. Ultra-low dark noise at high temperature.
  4. Ultra-Low power consumption of typical
  5. Output formats: Raw Bayer(720P).
  6. Power supply:1.7V~3.45V for I/O, 2.6V~3.0V for VDD3A.
  7. Horizontal Nertical mirror.
  8. Auto biack level control.
  9. Sensor Control function: Exposure control, Gain control, Test pattern, lmage size control.
  10. Package: CSP.

Technical Parameters:

Applications:

Smart Home Appliances

Parking Assist

Blind-Side Detection

Robot

Garbage Classification Detector
