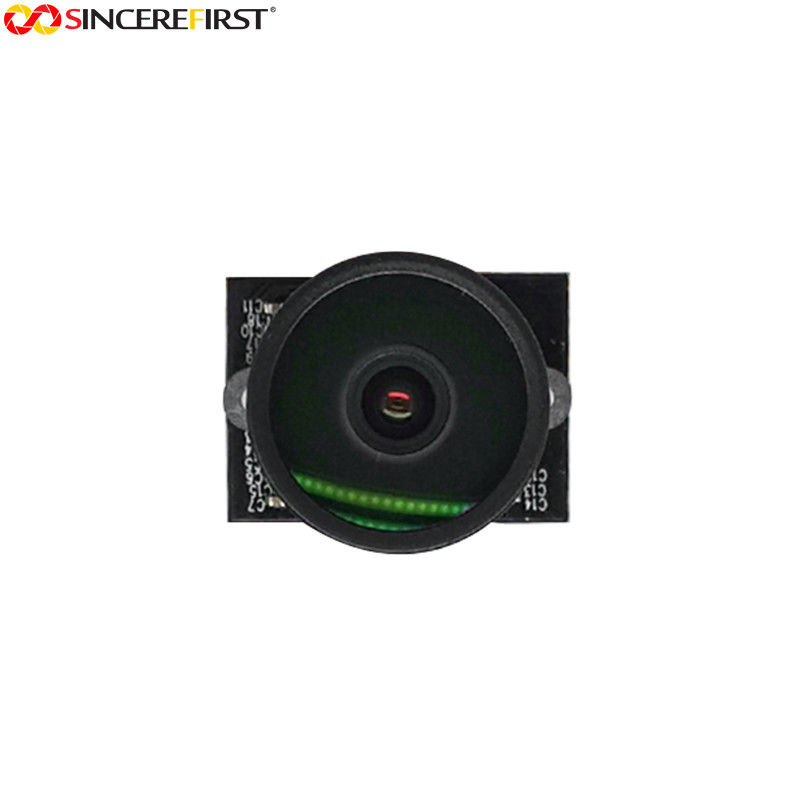

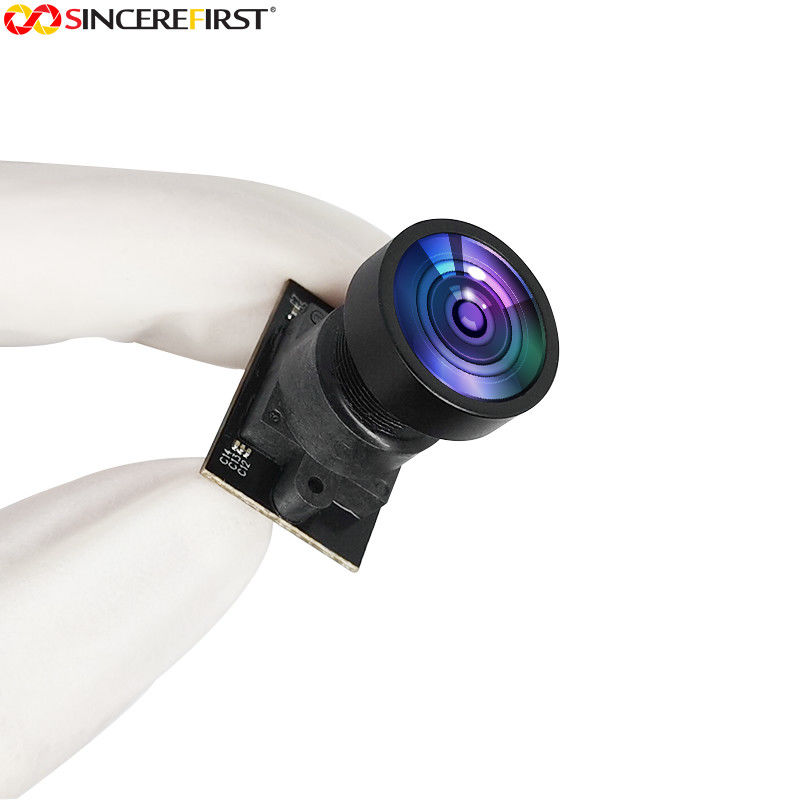

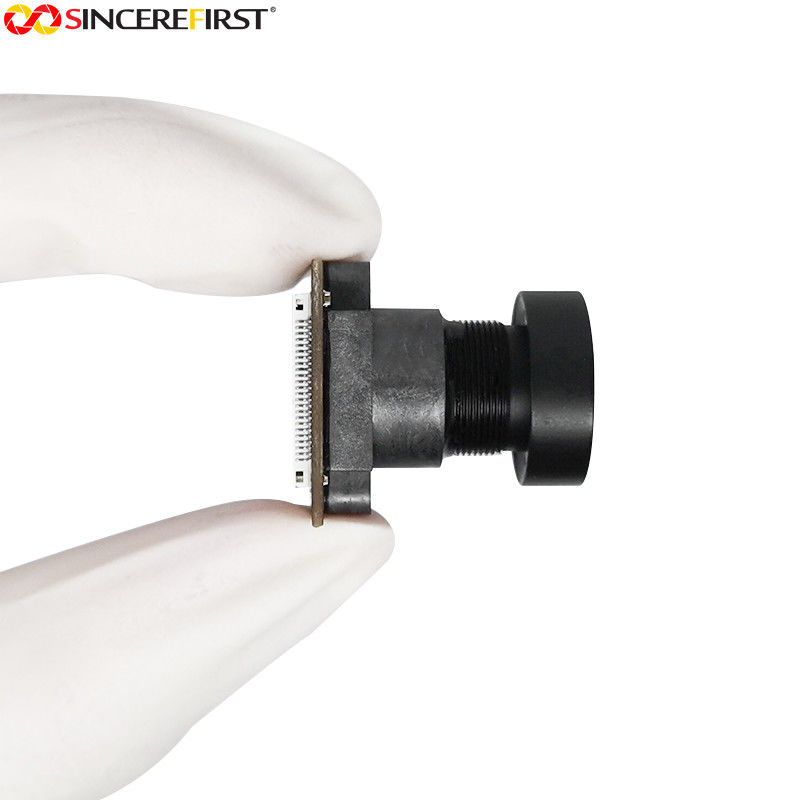

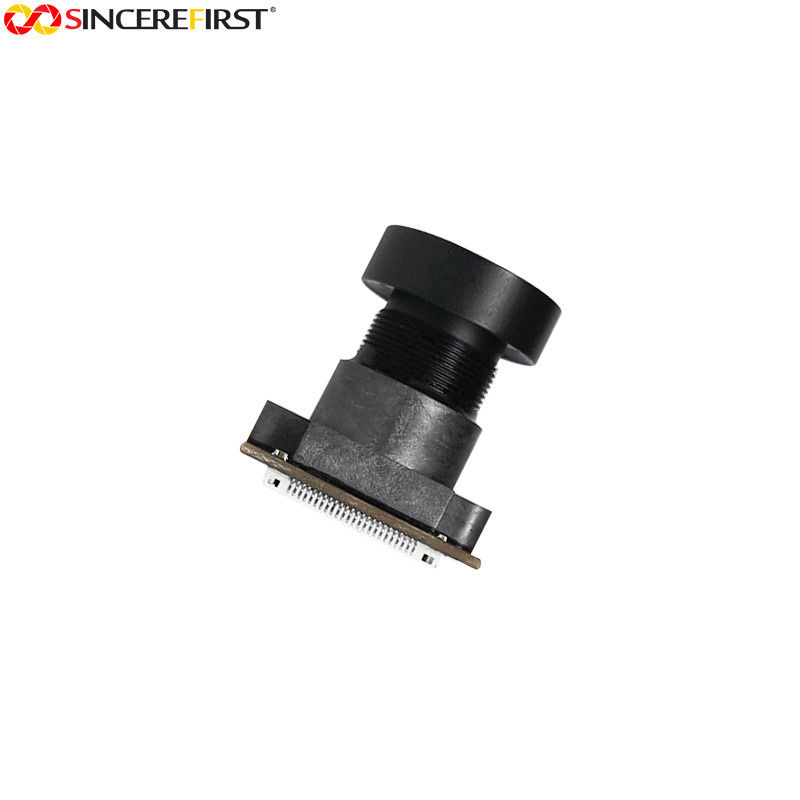

2MP Fixed Focus IMX307 Socket Digital Camera Sensor Module MIPI

Product Description:

The IMX307LQD-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2V,and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.



Features:

1. CMOS active pixel type dots
2. Built-in timing adjustment circuit, H/ driver and serial communication circuit
3. Input frequency: 74.25 MHz /37.125 MHz
4. Number of recommended recording pixels:1920(H) x 1080 (V) approx.2.07M pixel
5. Readout mode
All-pixel scan mode
720p-HD readout mode
Window cropping mode
Vertical /Horizontal direction-normal / inverted readout mode
6. Readout rate
Maximum frame rate in Full HD 1080p mode:60 frame /s
7. Wide dynamic range(WDR) function
Multiple exposure WDR
Digital overlap WDR
8. Variable-speed shutter function (resolution 1H units)
9. 10-bit/12-bit A/D converter
10. Conversion gain switching (HCG Mode /LCG Mode)
11. CDS /PGA function
0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB)
30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 to 42 dB (step pitch 0.3 dB)
12. Supports I/O switching
Low voltage LVDS(150 m Vp-p) serial ( 2 ch/ 4 chswitching) DDR output
CSI-2 serial data output ( 2Lane /4 Lane,RAW10/RAW12 output)
13. Recommended exit pupil distance:-30 mm to-∞

Technical Parameters:

Keywords	FPC Camera Module, MIPI Camera Module, CMOS Camera Module
View Angle	140°
Chip Type	IMX307
Pixel	2MP
Product Type	Socket Camera Module
Sensor Size	1/2.8inch
Pinout	24pin
Distortion	＜-50%
Features	Wide Angle
Certificate	CE,ISO,FCC



Applications:

The IMX307 MIPI camera module is a versatile and high-quality camera module that can be used in a wide range of applications. With its advanced image processing capabilities and high resolution, this camera module is ideal for use in many different settings, from industrial applications to consumer electronics.

One of the primary applications of the IMX307 MIPI camera module is in the field of digital photography. With its high resolution and advanced image processing capabilities, this camera module is perfect for capturing stunning photos and videos that are rich in detail and color. Whether you are a professional photographer or just someone who loves taking pictures, the IMX307 MIPI camera module is an excellent choice.

Another area where this camera module excels is in the field of surveillance and security. With its high-resolution images, this camera module can capture detailed images of people and objects, making it ideal for use in security cameras and other surveillance equipment. Whether you are monitoring a large public space or just keeping an eye on your home or office, the IMX307 MIPI camera module is a powerful tool for ensuring safety and security.

The IMX307 MIPI camera module is also a popular choice for use in medical equipment. With its high-resolution images and advanced image processing capabilities, this camera module can be used in a variety of medical equipment, such as endoscopes, surgical microscopes, and other diagnostic and therapeutic devices. Its ability to capture detailed images of internal organs and tissues is invaluable in the diagnosis and treatment of numerous medical conditions.
