The IMX347LQR-C is a diagonal 9.04 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 4.17 M effective pixels. This chip operates with analog 2.9V,digital 1.2 V,and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.
1. CMOS active pixel type dots
2. Built-in timing adjustment circuit,H/ driver and serial communication circuit
3. Input frequency: 6 to 27 MHz/37.125 MHz/74.25 MHz
4. Number of recommended recording pixels: 2688 (H) * 1520 (V) approx.4.09M pixel
5. Readout mode
All-pixel scan mode
Window cropping mode
Vertical /Horizontal direction-normal / inverted readout mode
6. Readout rate
Maximum frame rate in All-pixel scan mode2688(H)X1520(V)AD10bit: 90 frame/s
7. High dynamic range(HDR) function
Multiple exposure HDR
Digital overlap HDR
8. Variable-speed shutter function (resolution1H units)
9. 10-bit/12-bit A/D converter
10. Conversion gain switching (HCG Mode/LCG Mode)
11. CDS /PGA function
0 dB to 29.4dB:Analog Gain 29.4dB (step pitch 0.3 dB)
29.7 dB to 71.4dB : Analog Gain 29.4dB+Digital Gain0.3 to 42dB (step pitch 0.3 dB)
12. Supports I/O
CSI-2 serial data output ( 2 Lane /4 Lane,RAW10/RAW12 output)
13. Recommended exit pupil distance: -30 mm to -∞

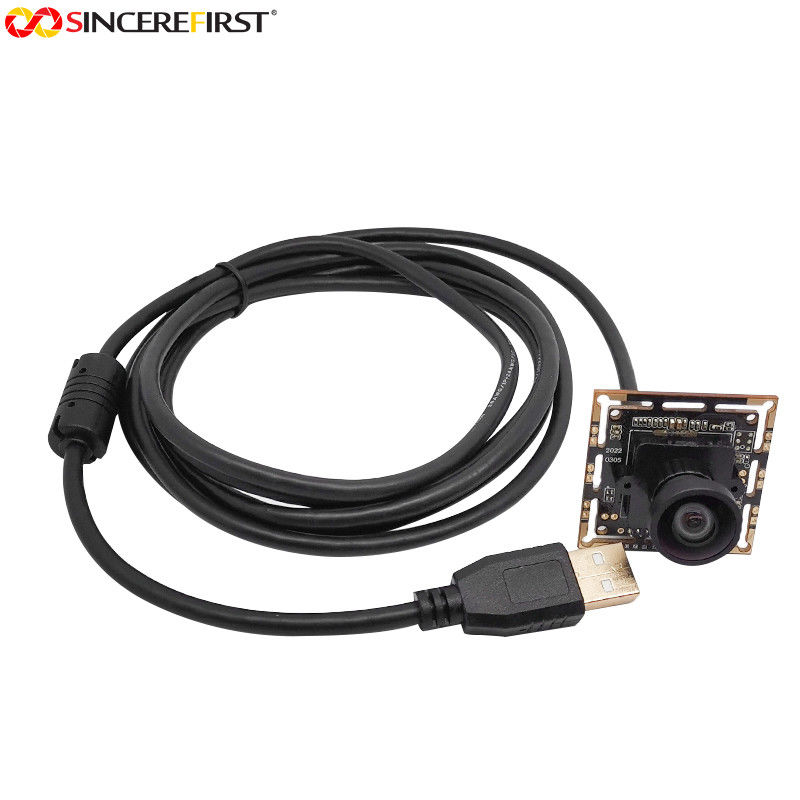

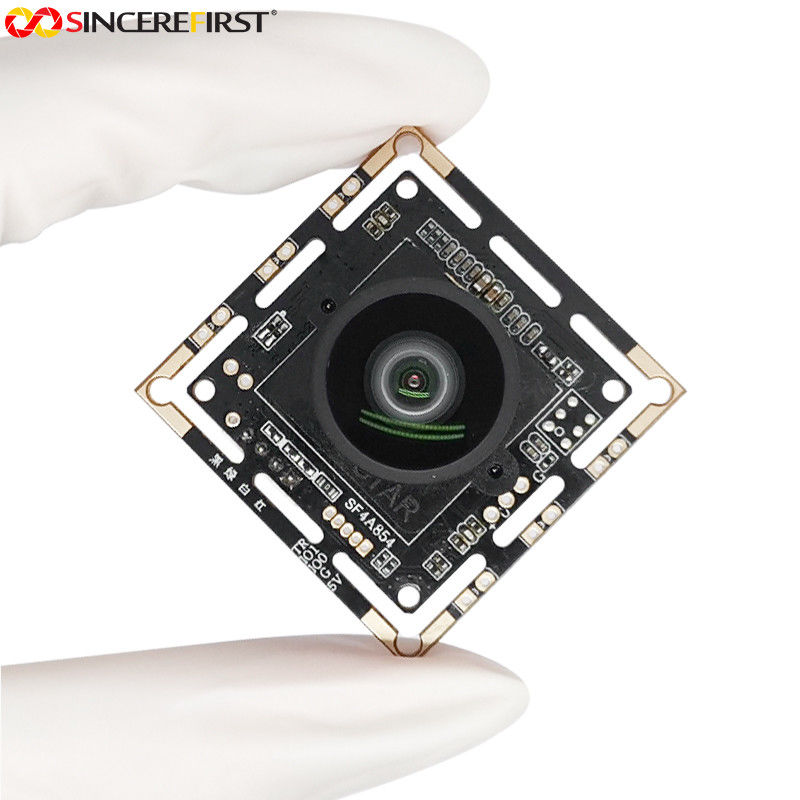

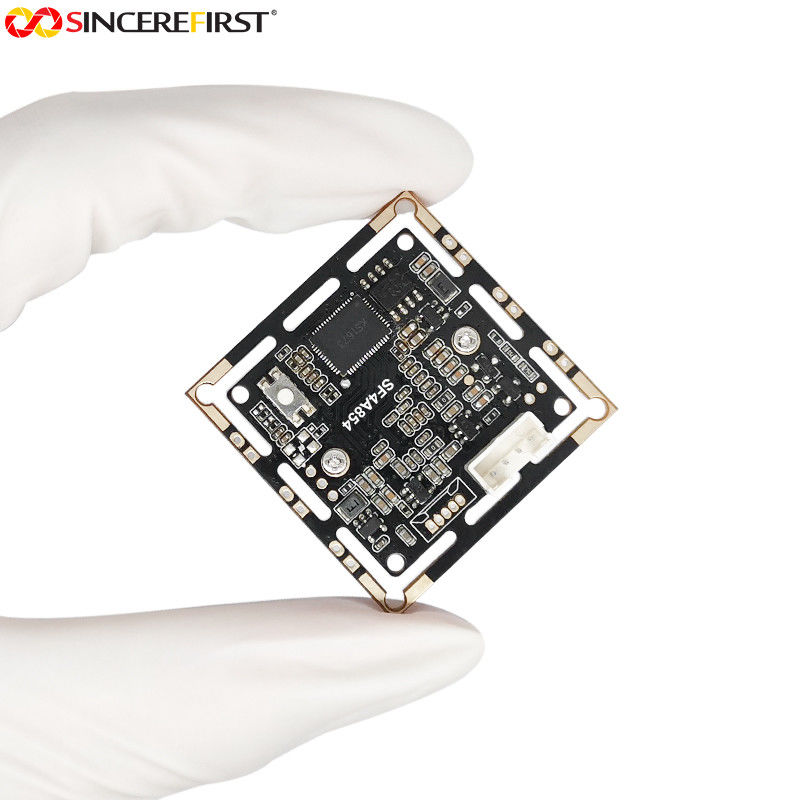

| Technical Parameter | Value |
|---|---|
| Sensor Model | Sony IMX347 CMOS |
| Module Size | Compatible with 38mmX38mm and 32mmx32mm can be customized |
| Sensor Size | 1/2.9" |
| Pixel Size | 2.9μm X2.9μm |
| Output Format | SMT(ROSH) |
| Pixel Size | 1.0μmX1.0μm |
| Object Distance | 1CM~∞ |
| Interface | USB2.0 High Speed(4 Pin-2.0 mm terminal port) |
| Working Power | 220mA(VGA) |
| Working Voltage | USB-DC5V |
Factory Automation
Robotics
Healthcare
Defect Detection Machine Vision
Kiosk
Car Dashcam
