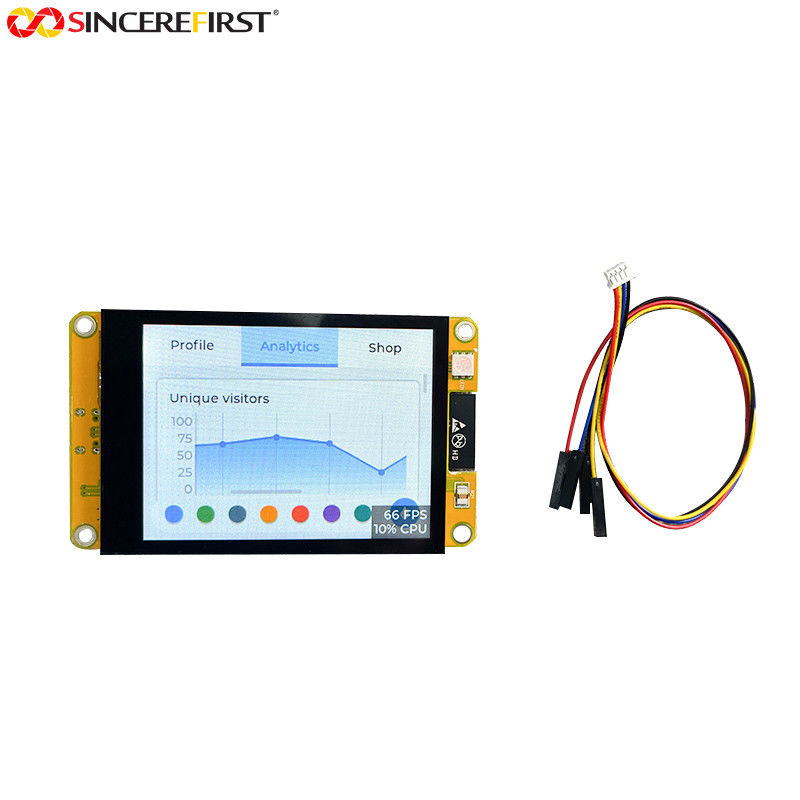

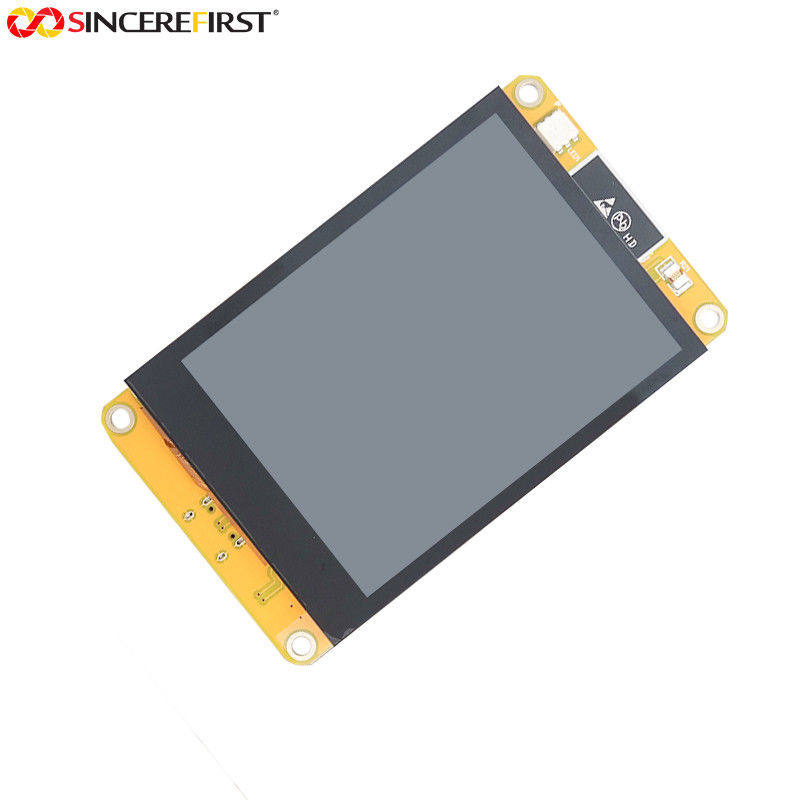

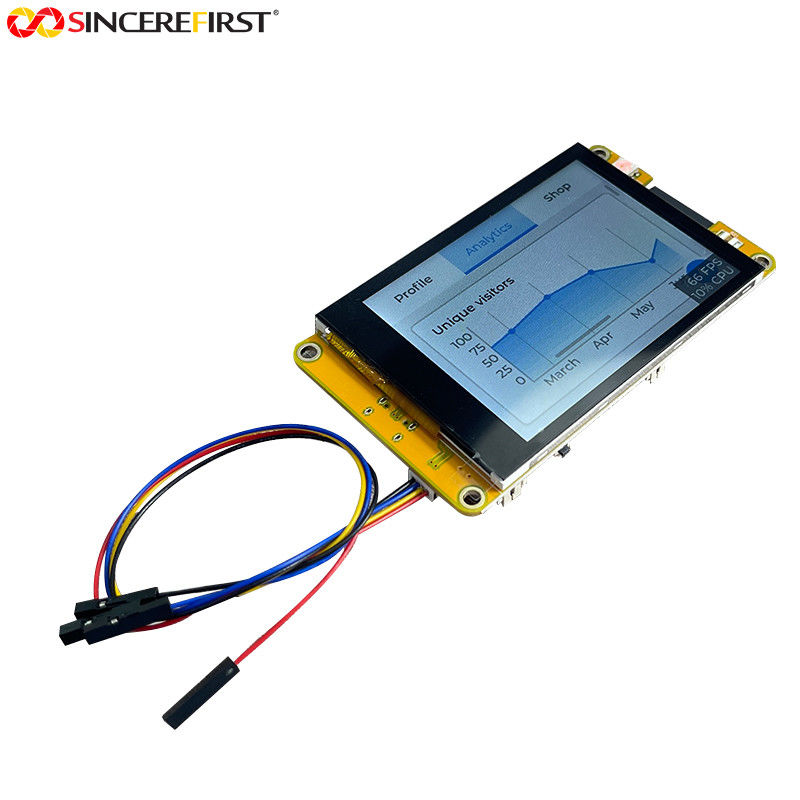

3.2-inch Lcd Color Display Screen ESP32 Cam Board Camera Module

Product Description:

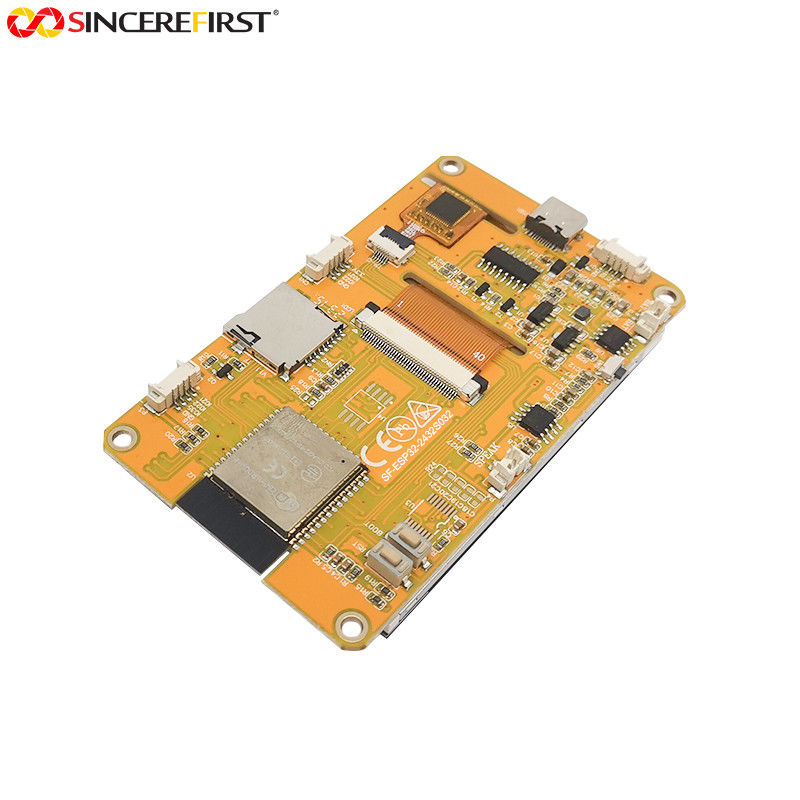

This LCD module uses ESP32-WROOM-32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency canreach 240MHz,520KB SRAM,448KB ROM, Flash size is 4MB,The display resolution is 240x320,resistive touch. The module includes LCD display screen,backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.TF card interface, serial interface, temperature and humidity sensor interface(DHT11 interface) and reserved 10 port interface, this module supports development in arduino IDE,ESP IDE,Micropython
and Mixly.

Features:

1. 3.2-inch color screen, support 16 BIT RGB 65K color display, display rich colors
2. 240X320 resolution
3. The sample program has been programmed in the factory and can be
plugged in
4. With TF card slot for easy expansion storage
5. Provide arduino library functions and sample programs to facilitate rapid secondary development
6. Support one-click download program
7. Military-grade process standards, long-term stable work
8. Support the lithium battery to be charged and discharged at the same

Technical Parameters:

Applications:

As technology continues to advance, so does the demand for better and more efficient camera systems. LCD camera modules have emerged as a game-changing technology in the field of camera systems, opening up a world of applications that were previously impossible.

One of the most widely used applications of LCD camera modules is in the field of security and surveillance. These camera modules can be integrated into surveillance cameras, enabling high-resolution and real-time monitoring of various spaces. From warehouses and factories to shopping malls and residential areas, these systems have proven invaluable in ensuring the safety and security of people and property.

In addition, LCD camera modules are used in the healthcare industry, where they are used for endoscopy and other medical imaging applications. These modules enable doctors to get a clear view of the internal organs and identify abnormalities, facilitating diagnosis and treatment.

LCD camera modules are also used in the automotive industry, where they aid in parking assistance and backup cameras, allowing drivers to maneuver their vehicles with greater ease and accuracy, ultimately resulting in safer driving.

Moreover, LCD camera modules have opened up a world of creative possibilities in the field of photography and videography. With the ability to capture high-quality images and video, these modules have revolutionized the way we capture and share our experiences.
