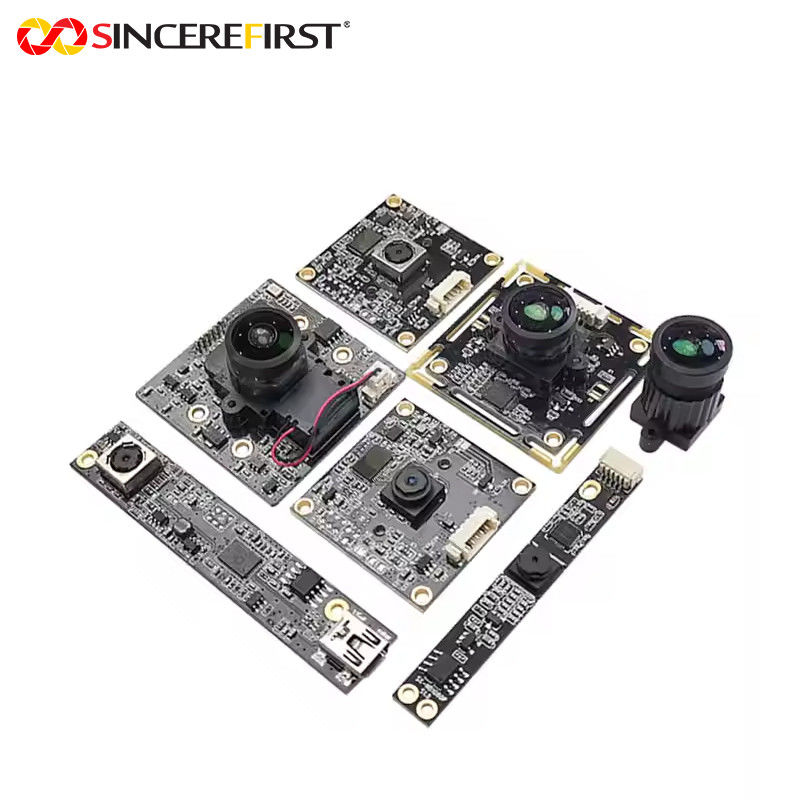

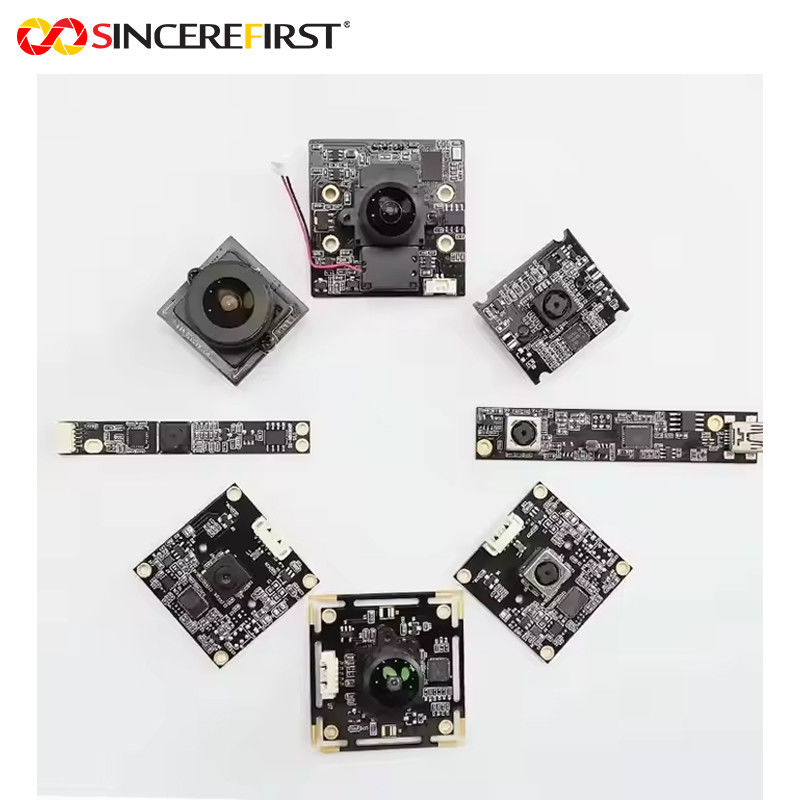

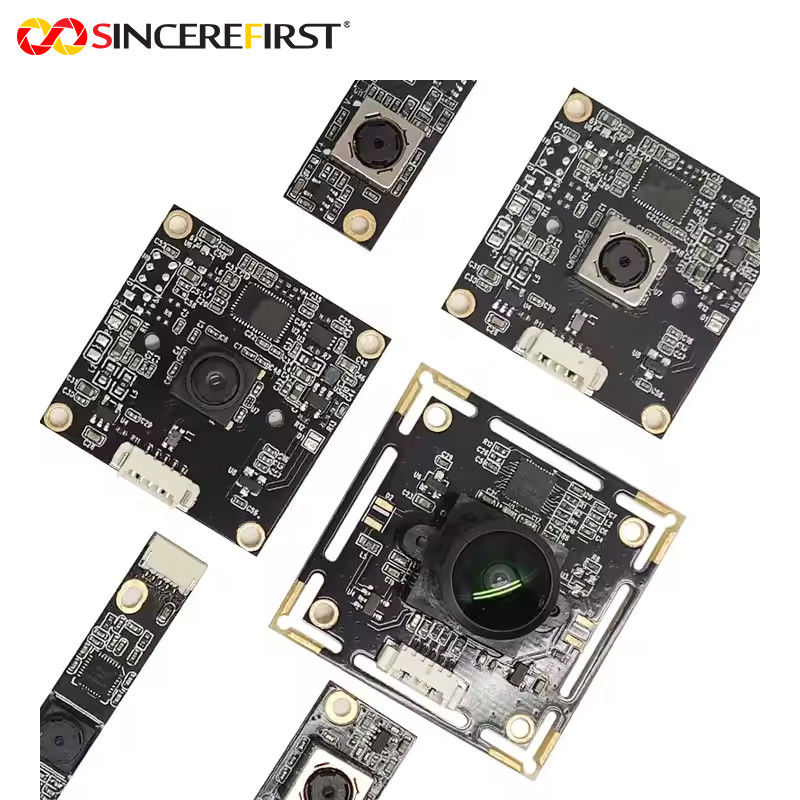

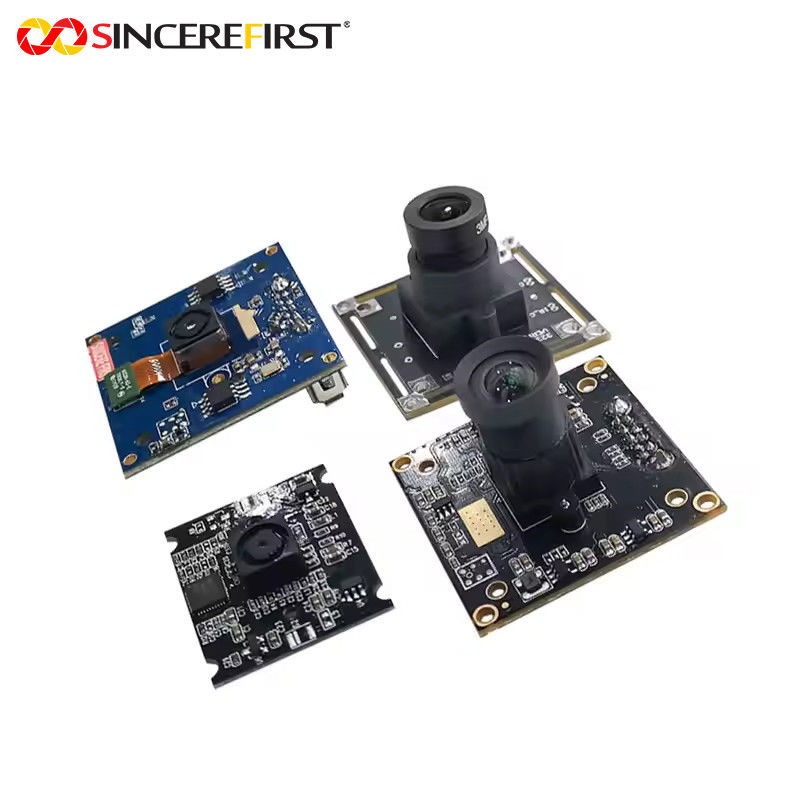

1.5MP USB IMX296 Global Shutter USB Compact Camera Module

Product Description:

One of the key features of this SF1.5A483 USB Camera Module is its operating current of 280mA (VGA). This makes it an ideal choice for users who need a camera module that is energy-efficient and can operate for an extended period without draining the battery.

Resolution frame is 1440*1080@60fps ,The output format of this USB Camera Module is MJPG/YUY2, which provides high-quality images and videos.

Operating system:Windows XP/7/8/10,Linux (Support UVC protocol),Android (Support UVC request protocol),MAC-ios.

which makes it easy to use and compatible with various operating systems. Users can simply plug it in and start using it without the need for any additional drivers or software. Chip type is Sony IMX296.

Focus Mode: Adjustable, manual focus or fixed focus .

parameters:Brightness,contrast, hue, saturation,clarit,Gamma, white balance, backlight contrast. exposure value.

Support Lens :Size:1/2.9".2.1mm,2.8mm ,3.6mm ,6mm ,8mm,12mm,16mm

Features:

• CMOS active pixel type dots
• Built-in timing adjustment circuit,H/V driver and serial communication circuit
• Global shutter function
• Input frequency

• Number of recommended recording pixels:1440 (H)x 1080 (V) approx.1.55 M pixels

• Readout rate

• Variable-speed shutter function (resolution 1H units)
• 10-bit A/D converter
• CDS/PGA function

• I/O interface

• Recommended lens F number: 2.8 or more (Close side)
• Recommended exit pupil distance:-100 mm to-c

Technical Parameters:

Applications:

The USB Camera Module is a versatile product that can be used in a variety of occasions and scenarios. Its compact size and easy installation make it suitable for a wide range of applications, such as:

• Video conferencing: With the rise of remote work and virtual meetings, the USB Camera Module can be used to enhance the video quality of conferences and meetings. It's easy to install and can be used with any computer that has a USB port.
• Security systems: The USB Camera Module can be used as a camera sensor for security systems. It can be connected to a computer or a Raspberry Pi board to create a DIY security system.
• Remote learning: With the increase in online education, the USB Camera Module can be used to improve the video quality of online classes. It can be used with any computer or tablet that has a USB port.
• Home automation: The USB Camera Module can be used as a part of a home automation system. Its compact size makes it easy to install and it can be used to monitor different parts of the house.
• Robotics: The USB Camera Module can be used as a camera sensor for robotics projects. It can be connected to a Raspberry Pi board or an Arduino board to create a DIY robot.

The USB Camera Module is an affordable and versatile product that can be used in a wide range of applications. Its small size and easy installation make it ideal for DIY projects and home automation systems. Whether you're looking to improve the video quality of your virtual meetings or create a DIY security system, the USB Camera Module from SINCERE FIRST is a great choice.

Customization:

SINCERE FIRST offers product customization services for the SF1.5A483 USB camera module. This camera module USB is designed with a camera sensor that has a pixel size of 3.45μm. It operates on a drive-free agreement, USB Video Class (UVC), and has a free diver drive mode. The USB camera board has a module size of two layers 38mmX38mm. It is manufactured in Guangdong, China, and has an operating current of 280mA (VGA). Our product customization services can tailor the SF1.5A483 to meet your specific needs.
