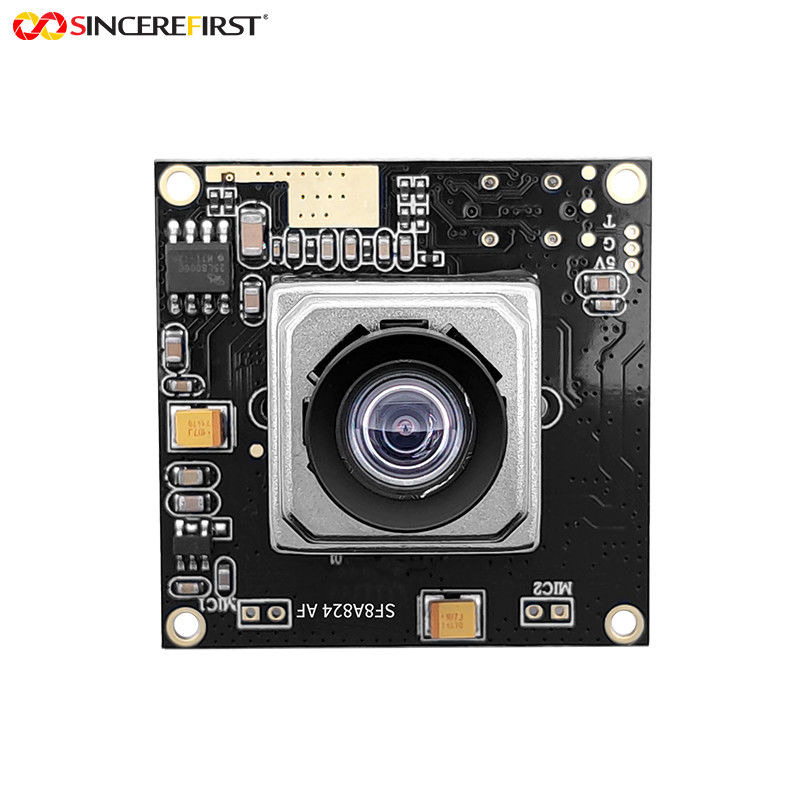

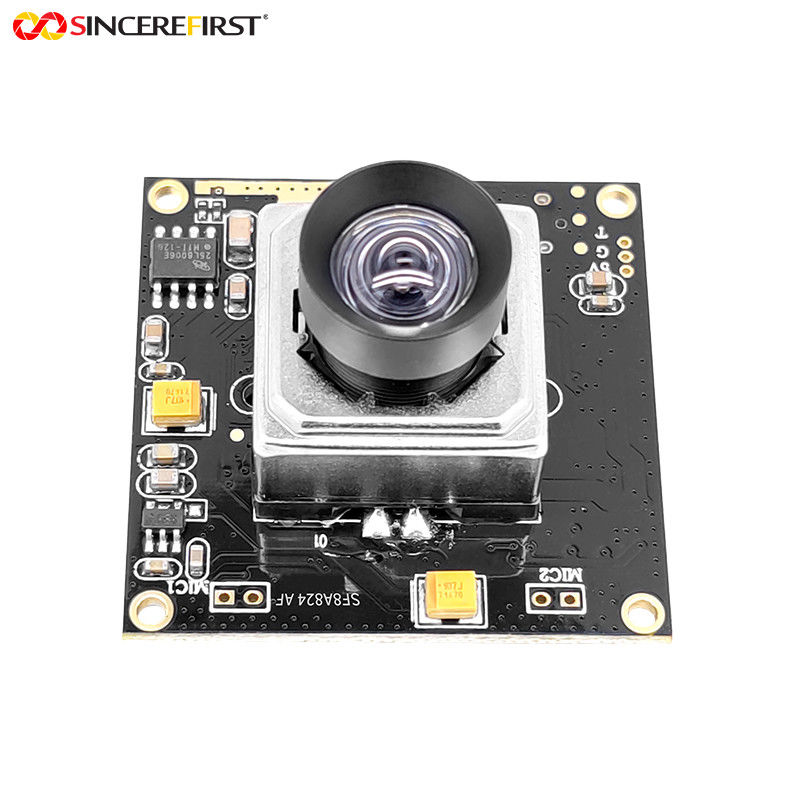

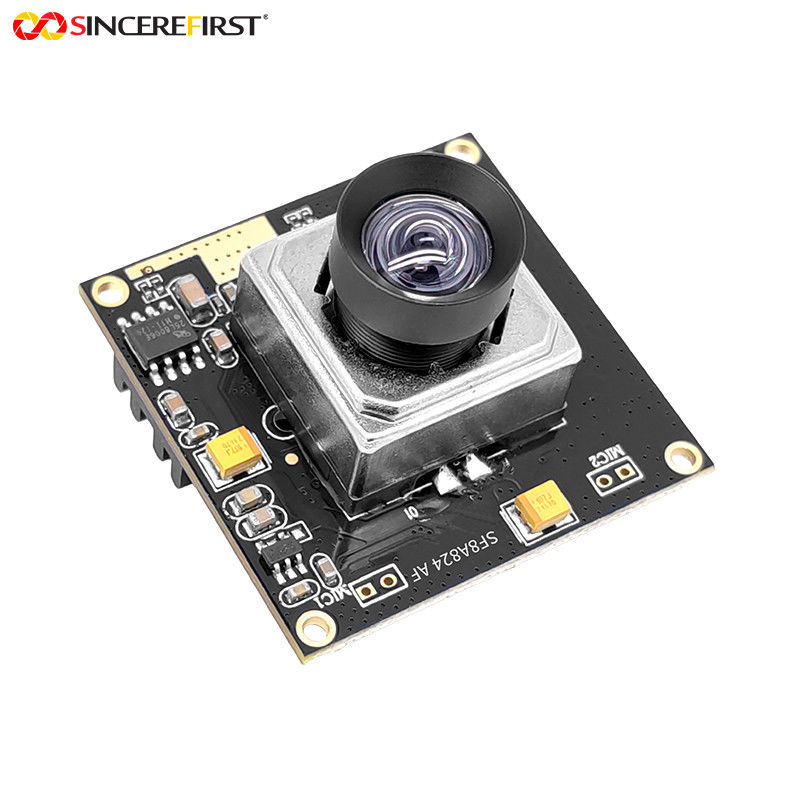

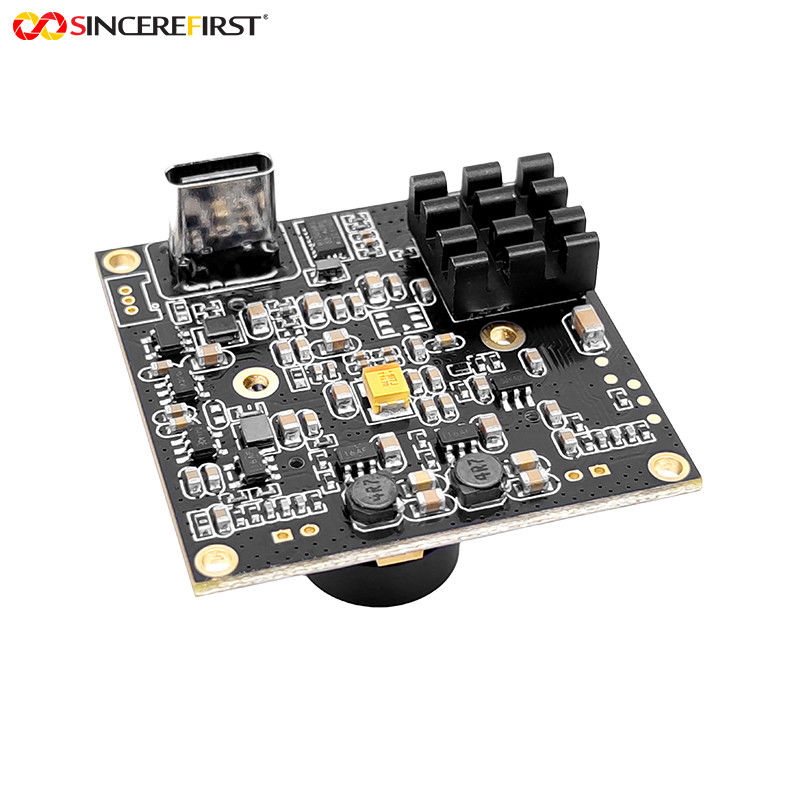

This is a 4K camera module with a resolution of 8MP (3840x2160) and equipped with a SONY IMX317 CMOS sensor. The image quality is excellent and stable. The biggest advantage of this camera module is that it supports a high frame rate of 30FPS at full resolution 8MP (3840x2160). The standard size of this camera module is 38MMx38MM (compatible with 32MMx32MM) and supports customization.
1. Full HD 4K USB camera module with microphone
2. 1/2.5 inch Sony IMX317 sensor for high quality and clear images
3. High speed USB3.0 interface
4. Ultra small form factor and thin design for embedded applications
5. High quality lens, true distortion-free color images.
6. Low power consumption - perfect for portable devices.
7. UVC for Linux, Windows XP/7/8/10, Android, MAC-ios, Raspberry Pi, etc.
8. 38cm×38cm PCB Board
9. Auto Focus
| Pixel Size | 1.62μmX1.62μm |
| Drive Mode | Free Diver |
| Frame Rate | 30fps |
| Output Format | MJPG/YUY2 |
| Brand | SincereFirst |
| Product Name | 8MP USB Camera Module |
| Shutter Mode | Rolling Shutter |
| Module Size | 38mmX38mm |
| Standard | USB3.0 High Speed |
| Imaging Distance | 1cm-∞ |
Imaging recognition, high definition shooting, wide dynamic scene application, text recognition, etc...
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
