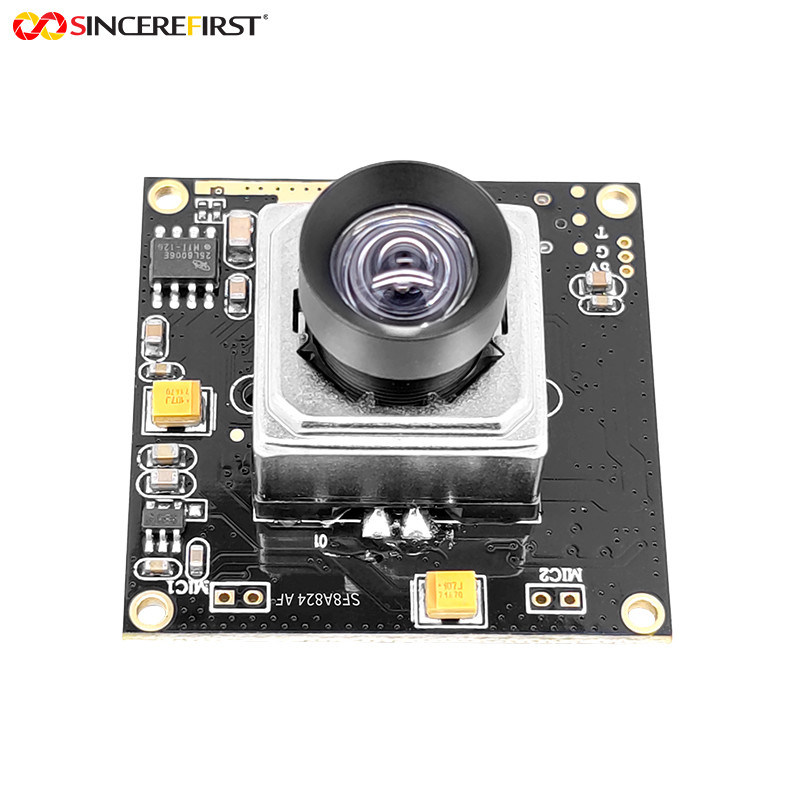

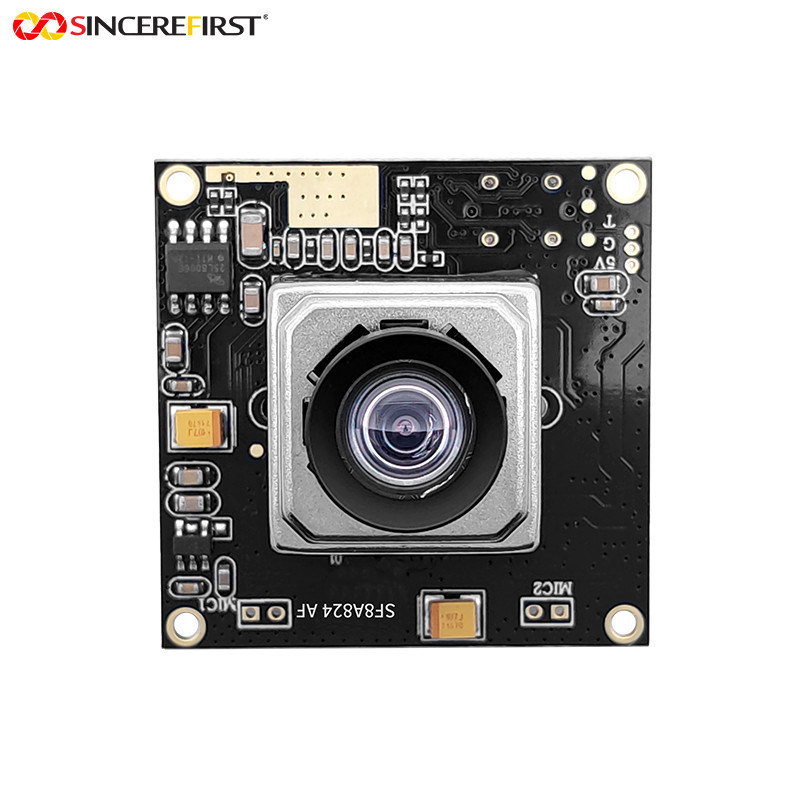

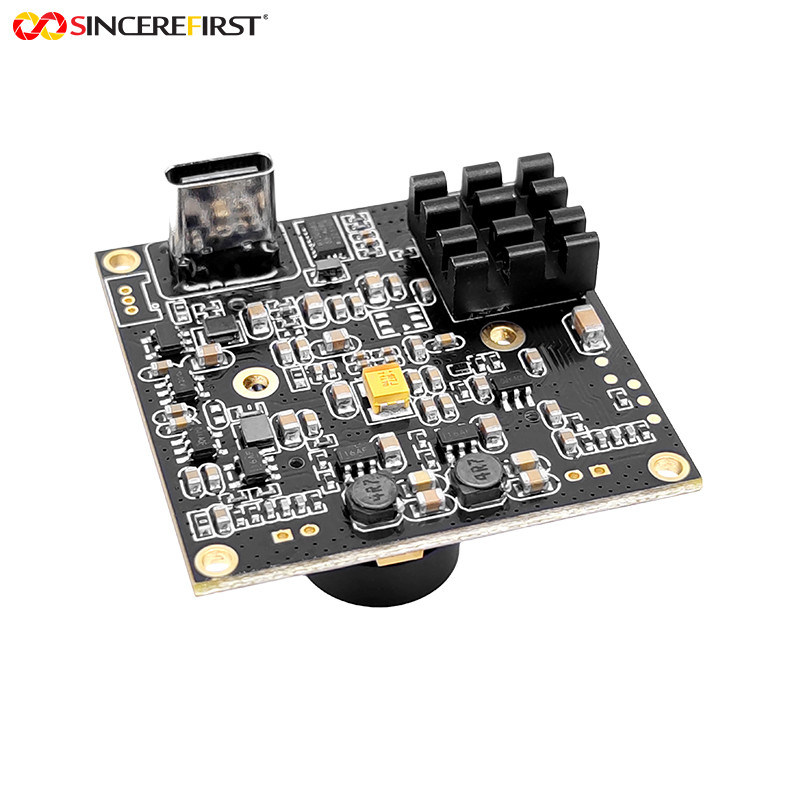

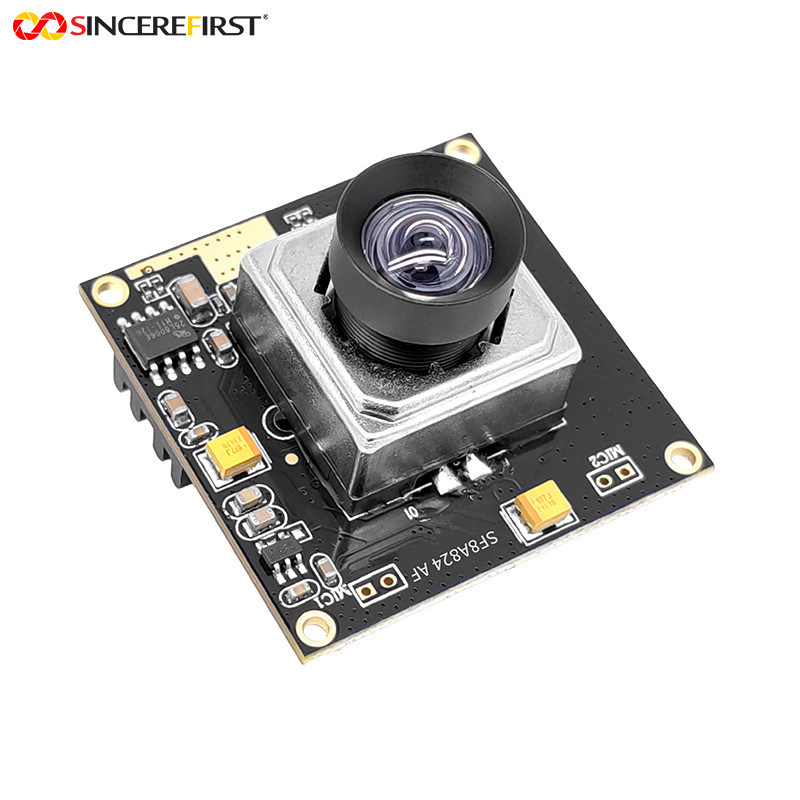

IMX317 CMOS Sensor 8MP HD Image USB3.0 Interface UVC Protocol Camera Module
Product Description:
This IMX317 CMOS Sensor 8MP HD Image USB3.0 Interface UVC Protocol Camera Module, is a high-definition camera module equipped with Sony IMX317 sensor (1/2.5 inch, 8MP), specially designed for high-definition image acquisition, machine vision recognition and wide dynamic scenario applications as a high-resolution universal imaging component. It supports up to 4K (3840×2160) resolution with multiple adjustable resolution options, and offers 4K@30fps and 1080P@30fps frame rates; the Sony IMX317 sensor significantly enhances detail resolution, delivering clear and delicate high-definition images. Equipped with a USB3.0 Type-C interface, it provides sufficient bandwidth for high-resolution data transmission, ensuring real-time display of HD images. Built-in UVC protocol enables driver-free compatibility with full platforms, including Windows, Linux, Android and Raspberry Pi, greatly improving deployment efficiency. It adopts a rolling shutter and supports focusing from 1cm to infinity, compatible with M12/C/CS lens interfaces; parameters such as brightness, white balance and exposure can be adjusted via software, enhancing adaptability to complex lighting environments. With an operating temperature range of -20℃~70℃ and a stable temperature range of 0℃~50℃, it ensures stable operation in various environments, complies with RoHS standards, and balances high resolution, high speed and versatility, perfectly fitting various high-definition imaging scenarios.
Features:
- 8MP UHD Output: Equipped with Sony IMX317 sensor, supports up to 4K@30fps and 1080P@30fps, enhancing detail resolution.
- USB3.0 High-Speed Transmission: USB3.0 interface provides sufficient bandwidth, ensuring real-time HD image transmission.
- Full-Platform Driver-Free Compatibility: Built-in UVC protocol, directly connects to Windows/Linux/Android/Raspberry Pi for efficient deployment.
- Wide Dynamic Adjustable Parameters: Software-adjustable brightness, white balance and exposure, adapting to complex lighting environments.
Technical Parameters:
| Pixel Size |
1.62μmX1.62μm |
| Drive Mode |
Free Diver |
| Frame Rate |
30fps |
| Output Format |
MJPG/YUY2 |
| Brand |
SincereFirst |
| Product Name |
8MP USB Camera Module |
| Shutter Mode |
Rolling Shutter |
| Module Size |
38mmX38mm |
| Standard |
USB3.0 High Speed |
| Imaging Distance |
1cm-∞ |
Applications:
- Machine Vision Detection: Can be used for micro-defect detection, precision dimension measurement and texture recognition, thanks to its 4K HD image quality.
- HD Video Acquisition and Recording: Can be used for document scanning, specimen digitization and product HD Image with its high-definition imaging.
- Intelligent Terminal Vision Module: Can serve as a HD image acquisition unit for self-service terminals, interactive large screens and intelligent devices.
- Wide Dynamic Scene Monitoring: Can achieve stable imaging in complex environments such as backlight, strong light and low light.
Customized Service:
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
Why Choose us?
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
