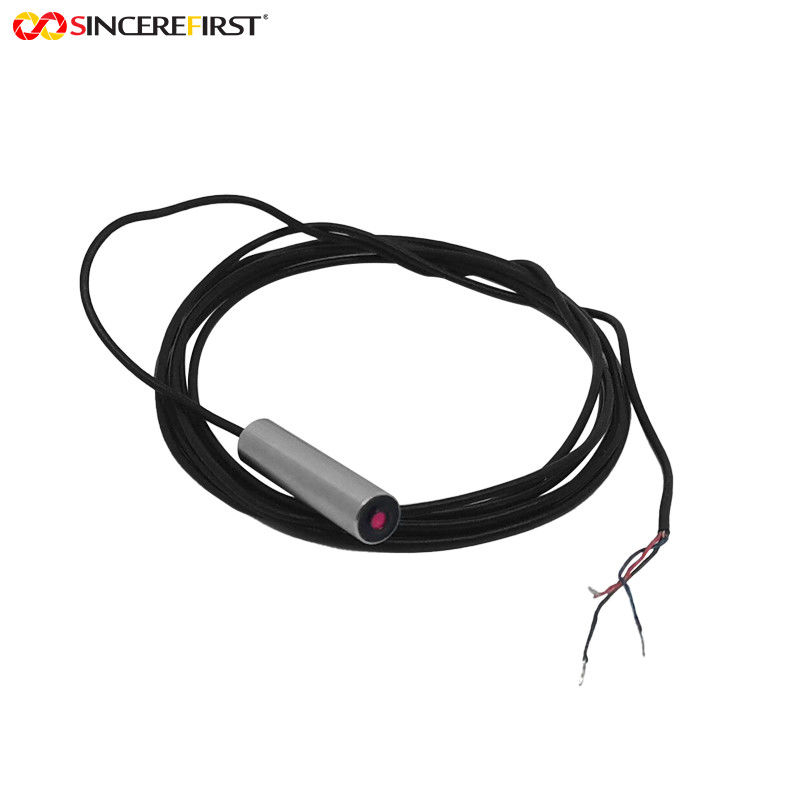

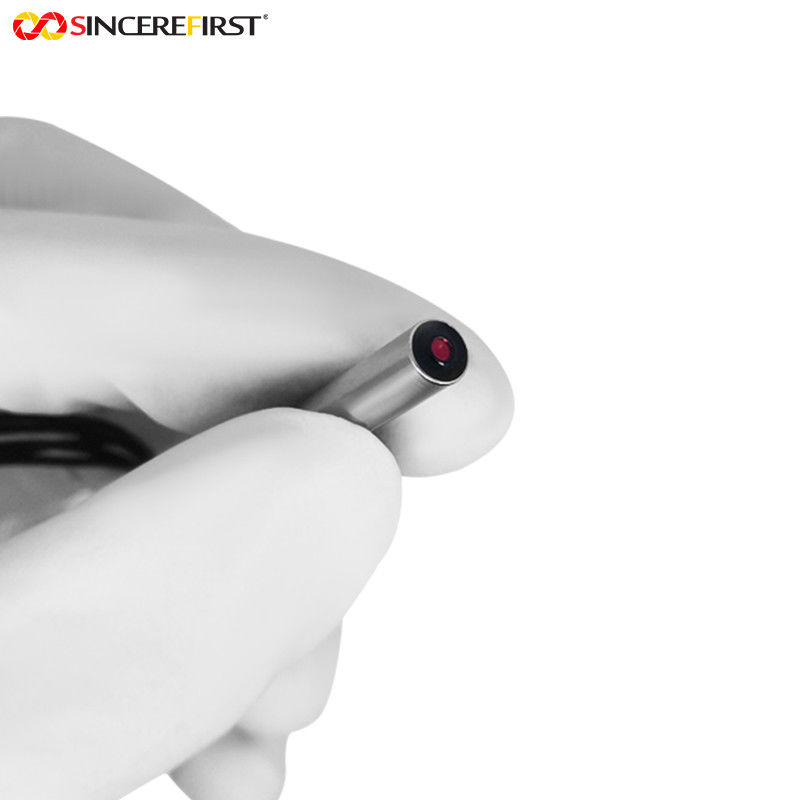

VGA endoscope module is an endoscopic device with VGA resolution (640x480 pixels) that provides clear image quality and is commonly used in medical, industrial and scientific fields.
1. High Resolution : VGA resolution provides crisp image quality and is suitable for most basic applications.
2. Low illumination: Suitable for low-light environments, such as operating rooms or inside industrial equipment.
3. Interface Compatibility : supports USB2.0, easy to connect to a computer or other devices.
4. Automatic Adjustment : with automatic exposure, white balance and gain control, adapt to different lighting conditions.
| Sensor | VGA Sensor |
| Led | 0402 Led |
| Output Format | YUV output |
| Focusing Range | 10-60mm |
| Focal Length | 1.08mm |
| F Number | 2.8 |
| FOV(D) | 90° |
| TV Distortion | ＜1.0% |
| Diameter | 4.6mm |
| Maximum Effective Pixel | 1280(H)X720(V) |
Scanning Bird Nests And Small Holes, Veterinary Endoscope, Sewer Detection, Laparoscope Equipments, Capsule Endoscopy
We can customize integrated or separate, diameter, steel sleeve, led, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
