The GC030A features 640V x 480H resolution with 1/10-inch optical format, and 4-transistorpixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC,and embedded image signal processor.
The full scale integration of high-performance and low-power functions makes the GC030A fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications.
It provides RAW10 and RAW8 data formats with MIPI interface. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.
1. Standard optical format of 1/10 inch
2. Output formats: Raw Bayer 10bit/8bit
3. Power supply requirement: AVDD28:2.7~3.0V; IOVDD:1.7~1.9V,2.8V
4. PLL support
5. Windowing support
6. ORE CON
7. MIPI interface support
8. Horizontal/Vertical mirror
9. Package:CSP/COB/wafer

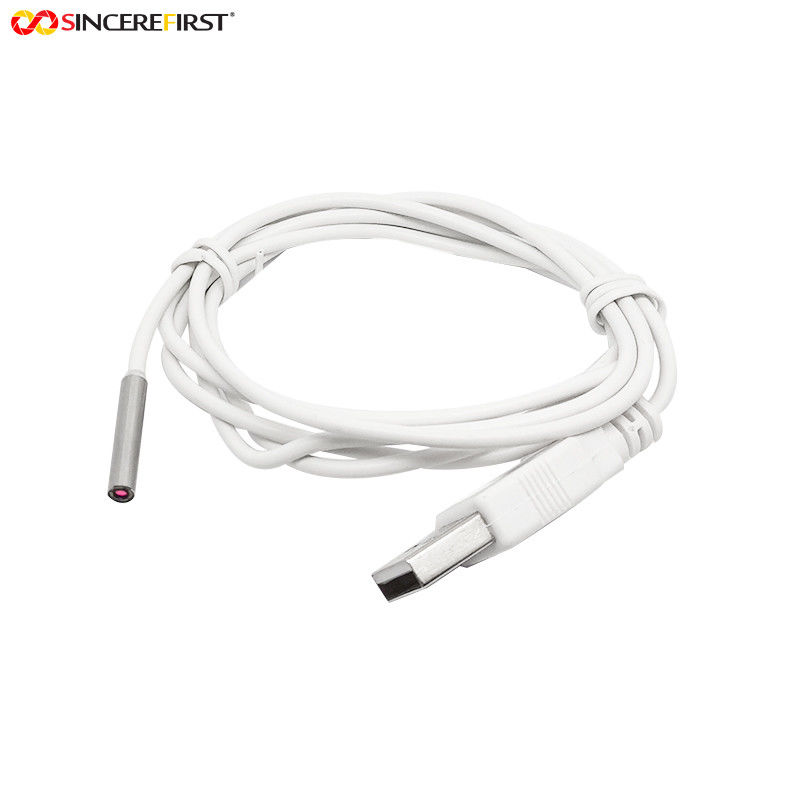

| Interface Type | USB |
| DSP | USB2.0 DSP |
| Sensor | VGA Sensor |
| Focusing Range | 20mm-60mm |
| Focal Length | 1.72mm |
| F Number | 3 |
| FOV(D) | 85° |
| TV Distortion | ＜-5% |
| Led | 4pcs |
| Warranty | 10 Years |
Scanning Bird Nests And Small Holes, Veterinary Endoscope, Sewer Detection, Laparoscope Equipments, Capsule Endoscopy
We can customize integrated or separate, diameter, steel sleeve, led, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
